Keeping Your Sportster Humming: A Comprehensive Guide to Checking Engine Oil
The heart of any motorcycle, particularly a classic like the Harley-Davidson Sportster, is its engine. And just like any complex mechanical beast, it thrives on proper lubrication. Engine oil is the lifeblood, ensuring smooth operation, dissipating heat, and protecting vital components from wear. While changing the oil is a fundamental maintenance task, knowing how to accurately check the oil level is equally, if not more, important for day-to-day riding. This guide will delve into the specifics of checking your Sportster's engine oil, covering the correct procedure, common mistakes to avoid, and why this simple check is paramount for the health and longevity of your beloved machine.
Why is Checking Your Sportster's Oil So Important?
Your Sportster, like many Harley-Davidson models, employs a dry sump lubrication system. Unlike a car's wet sump system where the oil resides in the engine's crankcase, a Sportster's oil is stored in a separate oil tank. This design has its advantages, but it also means that the oil level in the tank is the critical indicator of how much oil is available to lubricate your engine. Running with insufficient oil can lead to catastrophic engine failure, including seized bearings, scored cylinders, and a host of other expensive repairs. Conversely, overfilling the oil tank can also cause problems, leading to oil being forced out through breathers, contaminating the air filter, and potentially causing the oil cap to be dislodged.
The Correct Procedure for Checking Your Sportster's Oil
The key to an accurate oil level reading on your Sportster lies in understanding how the oil circulates within the dry sump system. Here's the step-by-step process:
1. Warm Up the Engine
This is arguably the most crucial step. Always check your Sportster's oil level when the engine is at its operating temperature. This typically means taking your bike for a ride of at least 15-30 minutes. Why? Because when the engine is running, the oil pump circulates oil throughout the engine. Some of this oil will naturally drain back down into the crankcase (a phenomenon known as 'wet sumping') when the engine is off. If you check the oil on a cold engine, you'll likely see a lower reading on the dipstick, prompting you to add more oil than necessary. When you then start the warm engine, the oil from the tank will be pumped into the crankcase, and the combined oil could lead to overfilling.
2. Park on Level Ground
Ensure your Sportster is parked on a perfectly level surface. Even a slight incline can cause an inaccurate reading on the dipstick. Use your sidestand for parking, but make sure the bike is as upright as possible.
3. Locate the Dipstick
The oil dipstick on most Sportster models is typically located near the oil tank, often integrated into the oil filler cap. Consult your owner's manual if you're unsure of its exact location.
4. Remove and Wipe the Dipstick
Carefully unscrew and remove the dipstick. It's essential to wipe it clean with a lint-free cloth or paper towel. This ensures that any residual oil doesn't create a false high reading.
5. Reinsert and Check the Level
Gently reinsert the dipstick fully into its housing. Do not screw it back in if it's a screw-in type; just push it down until it seats properly. Wait a few moments for the oil to settle.
6. Read the Oil Level
Remove the dipstick again and observe the oil level. There will be markings on the dipstick indicating the 'Add' or 'Low' level and the 'Full' or 'Max' level. The ideal oil level should be between these two marks, preferably closer to the 'Full' mark when the engine is hot.
7. Topping Off (If Necessary)
If the oil level is below the 'Add' mark, you'll need to top it up. Use only the recommended oil for your specific Sportster model and year (consult your owner's manual or a Harley-Davidson service manual). Add oil in small increments (e.g., 4-6 ounces at a time), re-check the level after each addition, and allow the oil to circulate briefly before re-checking. It's better to be slightly under than overfilled.
Common Pitfalls to Avoid
Several common mistakes can lead to inaccurate oil level readings or overfilling. Be aware of these:
- Checking on a Cold Engine: As mentioned, this is the most common error and can lead to overfilling. Always warm the engine first.
- Not Parking on a Level Surface: Even a slight tilt can skew the dipstick reading.
- Ignoring 'Wet Sumping': If your Sportster is prone to wet sumping (oil draining from the tank into the crankcase when parked), checking the oil immediately after shutting down a hot engine might show a lower-than-actual level. Allow a few minutes for the oil to settle back into the tank before checking.
- Overfilling: Adding too much oil can cause the excess to be pushed out through the breather system, leading to messy air filter issues and potential engine damage from oil starvation if the level drops too low due to blow-by.
- Using the Wrong Oil: Always use the correct viscosity and type of oil recommended for your Sportster. Using automotive oil that isn't motorcycle-specific can lead to clutch slippage as it may contain friction modifiers unsuitable for wet clutches.
Understanding Oil Viscosity and Specifications

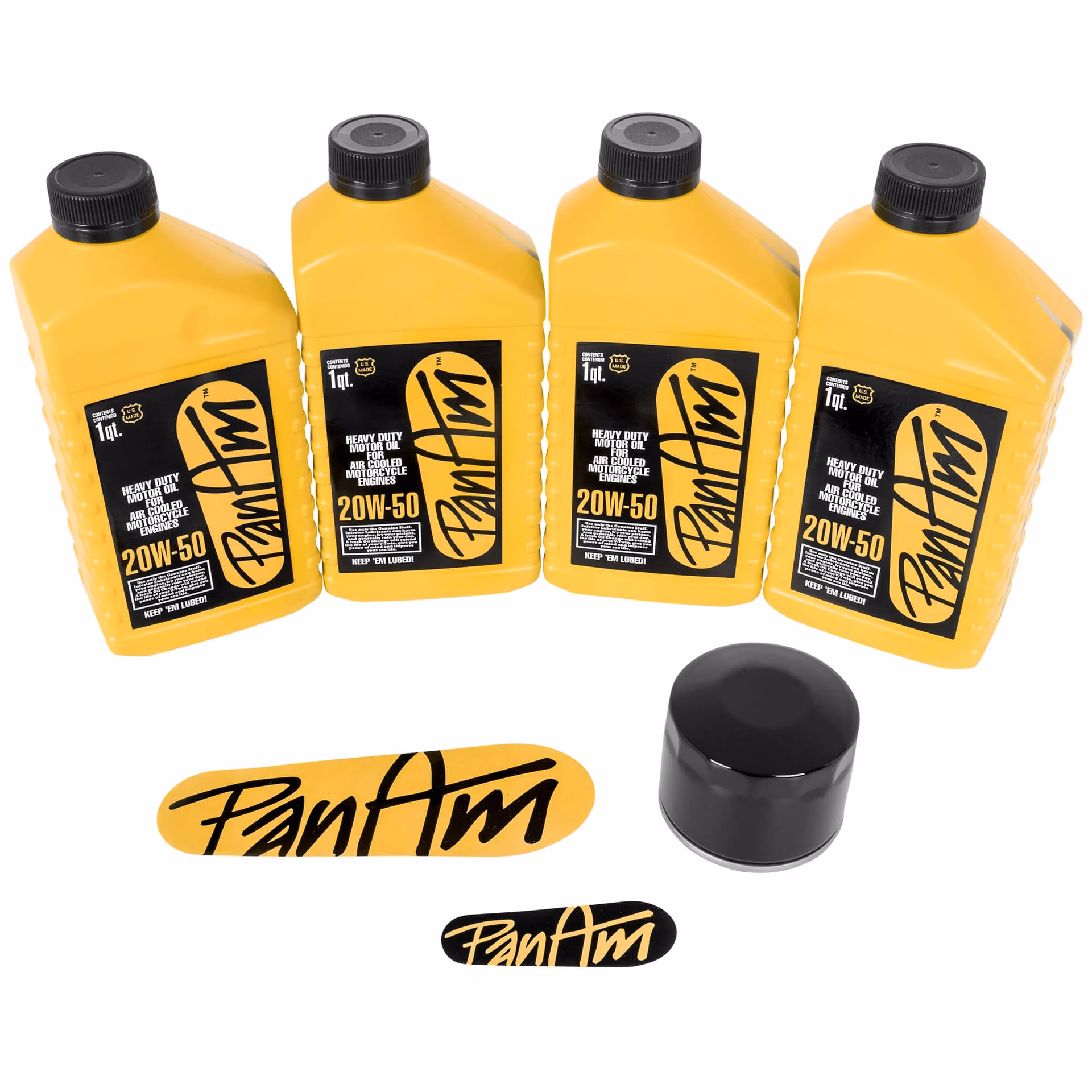

Harley-Davidson typically recommends specific oil viscosities for their Sportster models, often a 20W-50 for general use. However, always refer to your owner's manual for the precise recommendations for your year and model, especially considering ambient temperature variations. Modern synthetic motorcycle oils often offer superior protection and thermal stability compared to conventional oils, allowing for extended service intervals. When choosing an oil, look for specifications like API ratings (e.g., SG, SH, SL) and JASO ratings (JASO MA or MA2 for wet clutch compatibility).
When to Change Your Oil
While checking the level is a frequent task, knowing when to change the oil is equally vital. Harley-Davidson's recommendations have evolved over the years, but a general guideline for most Sportsters is every 5,000 miles or annually, whichever comes first. If you frequently ride in harsh conditions (e.g., stop-and-go city traffic, extreme temperatures), consider shortening these intervals. Regular oil changes, combined with using quality oil and filters, are the easiest ways to ensure your engine's longevity.
Why Does My Sportster's Oil Smell Like Petrol?
A faint smell of petrol in the oil can sometimes occur, especially with short rides where blow-by and water don't fully evaporate. However, a strong petrol smell usually indicates a fuel leak into the crankcase. The most common culprit is a faulty petcock that doesn't shut off fuel flow, allowing fuel to seep past the piston rings into the oil. Ensure your petcock is turned off when the bike is not in use, and check for leaks. If fuel dilution is suspected, the oil and filter should be changed immediately, and the fuel delivery system inspected.
Metal Particles in the Oil
A small amount of metallic 'sludge' on the dipstick or a magnet can be normal, especially after an engine rebuild or during the initial break-in period as parts seat themselves. However, if you find gritty particles, larger metal fragments, or a significant increase in metal content, it indicates abnormal engine wear and warrants immediate investigation. Used oil analysis can be a valuable tool here.
Frequently Asked Questions (FAQs)
Q1: Can I check my Sportster's oil level when the engine is cold?
A1: It is strongly recommended to check your Sportster's oil level when the engine is warm and at operating temperature for an accurate reading. Checking it cold can lead to overfilling.
Q2: What happens if I overfill the oil tank?
A2: Overfilling can cause excessive oil pressure, forcing oil out of the breather system, potentially leading to oil-soaked air filters and even oil loss that can starve the engine. It's crucial to avoid overfilling.
Q3: What type of oil should I use in my Sportster?
A3: Always refer to your owner's manual for the specific viscosity (e.g., 20W-50) and type of oil recommended by Harley-Davidson for your model year. Motorcycle-specific oils with a JASO MA or MA2 rating are generally preferred for their suitability with wet clutches.
Q4: How often should I change the oil in my Sportster?
A4: A general guideline is every 5,000 miles or annually, but this can vary based on riding conditions. Consult your owner's manual for the most accurate recommendation.
Q5: My Sportster is leaking oil from the dipstick area. What could be the cause?
A5: This could indicate overfilling, a damaged or improperly seated dipstick, or a problem with the crankcase breather system.
Conclusion
Regularly checking your Sportster's engine oil is a simple yet vital piece of maintenance that can prevent costly repairs and ensure your motorcycle performs at its best. By following the correct procedure – warming the engine, parking on level ground, and reading the dipstick accurately – you can keep your Sportster running smoothly for many miles to come. Remember, a little attention to your oil level goes a long way in protecting your investment and enjoying the open road with confidence.
