Sportster Brakes: A Comprehensive UK Guide

Ensuring your Harley-Davidson Sportster has a robust and reliable braking system isn't just about performance; it's paramount for your safety on the road. While Harley-Davidson designs and specifies the braking systems for their motorcycles, the actual components, such as calipers, master cylinders, and brake pads, are often manufactured by a network of specialist suppliers. This is a common practice in the automotive and motorcycle industry, where manufacturers leverage the expertise of parts suppliers to create a high-quality final product. Over the years, the fundamental operation of Sportster brakes has remained consistent, though specific styles and designs of brake pads and rotors have evolved. Understanding how these components work, when they need attention, and how to maintain them is crucial for any Sportster owner.

Your Sportster absolutely relies on brake pads to bring it to a halt. These pads, working in conjunction with the brake rotors, create the friction necessary for deceleration. Over time, the friction material on your brake pads will inevitably wear down. It's a natural process, but one that demands vigilance. If allowed to wear past their minimum thickness, the bare metal backing of the pads will come into contact with the rotors, causing significant and costly damage. Therefore, regular inspection and timely replacement are not just recommendations; they are essential for maintaining optimal braking efficiency and preventing further complications. While accessing and replacing the brake pads on a Sportster is generally a straightforward task, dealing with the rotors is a more involved process, often requiring the removal of the wheels and axles. This comprehensive guide will walk you through the procedures for both front and rear brake maintenance, ensuring your Sportster remains safe and responsive.

Understanding Your Sportster's Braking System

The braking system on your Harley-Davidson Sportster is a sophisticated assembly designed for effective deceleration. It primarily consists of brake pads, rotors (also known as discs), and calipers. When you apply the brake lever or pedal, hydraulic pressure forces the caliper pistons to squeeze the brake pads against the spinning rotor, generating friction that slows the wheel. While the basic principle has remained unchanged, Harley-Davidson has updated designs over the Sportster's long production run.

Key Components and Their Function

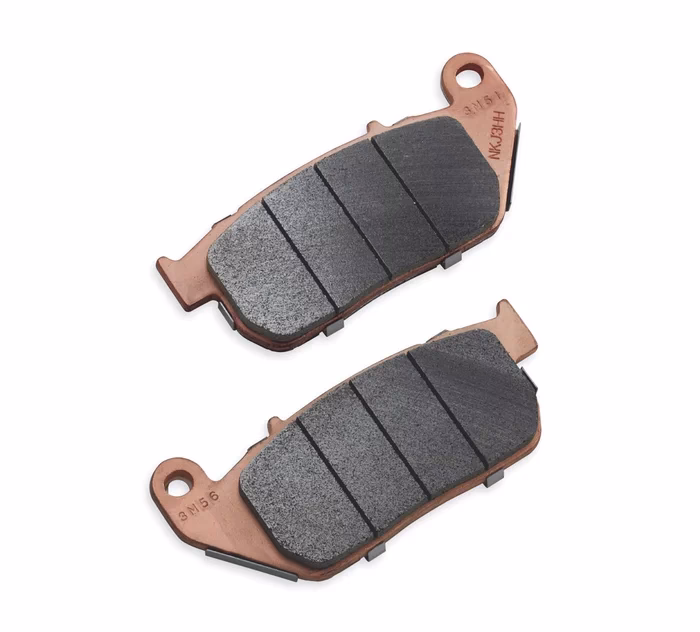

• Brake Pads: These are consumable friction materials that press against the rotor. Their lining wears down with use.
• Brake Rotors: Large metal discs attached to the wheel hub. The brake pads clamp onto these to create stopping power.
• Brake Calipers: These house the pistons that push the brake pads. They are typically bolted to the fork or swingarm.
• Master Cylinder: Converts the mechanical force from your lever or pedal into hydraulic pressure, which is then sent to the calipers.
• Brake Fluid: The hydraulic medium that transmits force from the master cylinder to the calipers.

Periodically inspecting your brake system is vital. Pay close attention to the remaining life of your brake pad linings. A visual check should be part of your regular maintenance routine. Also, inspect the rotor thickness; a significant 'lip' or edge on the rotor face often indicates that it has worn past its minimum thickness specification and requires replacement. Calipers, while less frequently serviced, should also be periodically checked for functionality to ensure their pistons are not sticking, which can lead to uneven pad wear or reduced braking performance.

Essential Tools and Materials

Before you begin any brake maintenance, gather all the necessary tools and materials. Having everything on hand will make the process smoother and more efficient. Safety should always be your top priority, so ensure you have appropriate protective gear.

• Motorcycle floor jack
• Ratchet strap
• Brake cleaner
• Rubber gloves
• Safety glasses
• Rags
• Allen key or Allen head socket set
• Torx head socket set (T-27 or T-40 depending on year)
• Channel lock pliers
• Flat head screwdriver
• Metric socket set (8mm-19mm) (1/2" or 3/8" drive)
• Ratchet
• 12-point socket set (6mm-15mm) (1/2" or 3/8" drive)
• 24mm or 36mm socket (depending on year for axle nut)
• Mallet or rubber hammer
• Anti-seize compound
• Torque wrench

Rear Brake Pad and Rotor Replacement

Replacing the rear brake pads and potentially the rotor is a detailed process that involves lifting the bike, removing the caliper, and in the case of rotor replacement, the rear wheel and axle. Follow these steps carefully.

Step 1: Safely Jack Up Your Sportster

Begin by positioning your motorcycle floor jack underneath the central frame of your Sportster. Once the bike is lifted, secure it firmly with a ratchet strap. This is crucial for stability, as a hydraulic jack alone can fail. For added safety, consider using a mechanical jack or placing jack stands under the frame to prevent accidental falls while you're working.

Step 2: Remove the Rear Caliper from the Swingarm

To gain better access, you might need to remove your saddlebags and/or belt guard, depending on your Sportster's configuration. Most belt guards are attached with a couple of easily accessible bolts around the swingarm. Start by removing the slide pin cap from the caliper by turning it counter-clockwise with a flat-head screwdriver. Open the rear master cylinder cover and place rags around the edge to catch any brake fluid spills, which can damage painted surfaces. As you’ll be compressing the caliper piston shortly, this prevents overflow. The caliper mounting bolts may vary in size, so it's a good idea to mark them for easier re-installation. Gently create space between the rotor and pads by carefully gripping the caliper with your thumbs and the inner side of the rotor with your fingers. Squeeze the caliper against the rotor to compress the pistons, being careful not to bend the rotor. You only need about 1/8th of an inch of compression. Now, remove the slide pin using a 3/16 Allen socket. With the slide pin out, the brake pads can be easily slid out of the caliper. The caliper itself is secured to the bracket by two bolts. Loosen the bolt closest to the engine first with a 9/16" socket; note the rubber dust boot on its inner side. Remove the second bolt with a 1/2" wrench.

Step 3: Disconnect Rear Shock and Remove Rear Axle

Next, remove the lower rear shock bolt. This bolt could be a Torx or Hex type, depending on your Sportster's year. To begin removing the rear axle, pry upwards on the safety clip from the axle nut with a screwdriver. Lower the bike slightly back to the ground or apply gentle pressure to the bottom of the tyre with a floor jack. This takes the weight off the axle, preventing it from binding. Loosen the castle nut with a 24mm or 36mm socket, again, depending on your model year. If the axle starts spinning with the castle nut, hold the Hex side of the axle steady while loosening the nut. Slide off the spacer for the belt adjustment, then lightly tap the end of the axle about an inch towards the Hex head side. Use a mallet or a block of wood between the hammer and axle to absorb impact and prevent damage to the bearings.

Step 4: Remove the Drive Belt

Slide the rear axle slightly forward. This will create slack in the drive belt. The axle will likely contact the drive belt adjustment bolt. If you need to adjust this bolt to move the axle further forward, mark its position or measure the thread length to ensure correct alignment during re-installation. Grab the belt at the top of the sprocket and pull it outwards over the sprocket. Place the transmission into neutral and turn the rear wheel backwards while pulling the belt to guide it off. With the belt removed, you can now completely remove the rear axle. Be mindful of the spacers (often labelled as number four in assembly diagrams) as you slide the axle out of the wheel. If the axle is stiff, gently vary the weight on the wheel until it slides freely. The caliper bracket is held in place by the rear axle, so it can also be removed at this point.

Step 5: Remove Wheel and Rotor

Carefully lower the wheel onto the ground. The rotor is attached to the wheel with five Torx bolts. Use a T-27 or T-40 Torx socket, depending on your year. These bolts are often secured with thread-locking compound, so be prepared to apply considerable force to loosen them.

Rear Brake Re-installation

Once the old components are off, it's time for the crucial re-installation process, ensuring everything is correctly torqued and aligned for safe operation.

Step 6: Begin Re-installing Rear Axle

Install the new rotor onto the wheel. Torque the rotor bolts to the manufacturer's specification, typically between 30 to 45 ft/lbs. Apply a light coating of anti-seize compound to the axle surface. Using your floor jack, lift the tyre back into position and begin re-installing the axle. Install the large spacer (often number 22 in assembly diagrams) on the side opposite to where the axle is being inserted. To keep this spacer aligned with the axle hole, you can temporarily thread a screwdriver through the spacer into the hole. This step is critical because there often isn't enough room to install the spacer once the axle is fully inserted through the wheel. Apply a small amount of caliper grease to any rubber areas on the caliper bracket, then slide it into place before the axle passes through the wheel. Ensure all washers and spacers are installed in the exact order they were removed. Once the axle has passed through the wheel, leave only a small portion pushed through on the belt-driven side. You need enough room between the axle and the alignment bolt to slide the wheel forward, allowing the belt to be re-installed.

Step 7: Finish Re-installing Rear Axle

The procedure for installing the drive belt is the reverse of removal. Pull the belt onto the belt guide grooves of the sprocket and turn the wheel backwards while feeding the belt into the grooves. Once the belt is seated, move the wheel backwards to tighten the belt and slide the axle completely through the wheel. You may need to gently lower or raise your floor jack against the tyre during this process to keep the weight off the rear axle, allowing it to slide freely. Once the axle is fully pushed through, remove the jack and install the adjuster washer. This washer has a notch that the alignment bolt fits into. Place the regular washer against it and then install the castle nut. The torque specification for the rear axle castle nut varies significantly by year model:

Ensure the castle nut slot aligns with the safety pin hole in the rear axle and slide the safety pin through the slot. If necessary, the castle nut can be tightened slightly past the specified torque to align the slot. Finally, re-install the lower rear shock bolt to the swingarm.

Step 8: Re-install Rear Caliper

Before installing the caliper, thoroughly clean the area around the pistons with brake cleaner and a clean rag. You'll need to compress the piston(s) back into the caliper body to create enough space for the new, thicker brake pads to fit around the rotor. This can be done by hand or carefully with channel lock pliers, placing an old brake pad against the piston(s) to distribute the force evenly. If new metal clips are provided with your brake pads, remove and replace the old ones on your caliper and caliper bracket. Apply a light amount of caliper grease to the surface of the new brake pads where the caliper piston makes contact, and also to the brake pad notch edges. These notches contact the metal clips on the caliper and bracket. Slide the caliper back over the rotor, then slide the outer-side brake pad into the caliper. You'll feel the brake pad notch slip into the corresponding notch on the brake caliper bracket. Apply a small amount of caliper grease to the slide pin and slide it through the brake pad hole. Repeat this process for the inner-side brake pad. Torque the caliper mounting bolts to 22 ft/lbs and the caliper slide pin(s) to 12 ft/lbs. Install the rubber boot over the caliper mounting bolt and the slide pin cap over the slide bolt. Finally, re-install your brake master cylinder cover, belt guard, and saddlebags if they were removed. Your rear brake is now complete!

Front Brake Pad and Rotor Replacement

The front brake system is equally crucial. While similar in principle to the rear, there are some distinct differences in the procedure.

Step 9: Remove Front Caliper

Start by removing the front master cylinder reservoir cover. Wrap several rags around the reservoir to protect painted surfaces from brake fluid. Remove the two 12-point bolts holding the caliper with a 10mm socket or wrench. Be ready to support the caliper as it detaches. It's good practice to tie the caliper to the shock tower, fender, or rim to prevent it from hanging by the rubber brake line, which can cause damage.

Step 10: Remove and Install Front Brake Pads

On newer Sportster models, there's a screen that snaps onto the top of the caliper; pull this off. Locate the retaining clip attached to the caliper slide pin and remove it with needle-nose pliers. Then, remove the caliper pin with a 5mm Allen key. Earlier models typically don't have a retaining clip but use a set screw over the caliper pin. If equipped, remove this set screw with a flat-head screwdriver, then remove the caliper slide pin with an Allen socket or key. Once the pin is out, the brake pads can be removed. If new metal clips are provided with your brake pads, replace the old ones inside the caliper. Clean the metal clip and the area around the pistons thoroughly with brake cleaner and a rag. Compress the caliper pistons back into the caliper using the same procedure described in Step 8 (using an old pad against the piston(s) and applying even force). Slide the new pads into the caliper. Apply a small amount of caliper grease to the brake pad surface where the caliper piston makes contact, as well as to the edges of the brake pad notches and the surface of the slide pin. Line up the slide pin hole notch with the slide pin hole in the caliper and gently press the brake pad into the caliper until you feel the metal clip compress onto the notch. Repeat for the other pad.

Step 11: Remove Front Wheel

Loosen the front axle nut with a 15/16" socket, but do not remove it completely yet. Move to the opposite side of the wheel and loosen, then remove, the pinch bolt using an Allen head socket and a 9/16" wrench. Once loose, raise the front wheel off the ground. Now, completely remove the axle nut and pull the axle through the wheel, carefully noting the orientation of the spacers on each side. You can insert a screwdriver through the axle hole to create more leverage if the axle is difficult to pull. If the axle binds, gently lift the front wheel slightly to relieve pressure. Once the axle is free, carefully lower the wheel onto a soft surface to prevent damage.

Step 12: Replace Rotor and Re-install Wheel

Remove the five Torx bolts holding the old rotor to the wheel. Install the new rotor and torque the bolts down to 18 ft/lbs. Apply a light coating of anti-seize compound to the axle surface. Begin re-installing the wheel by placing the small spacer between the wheel and the shock absorber. Ensure the spacer's flat face is closest to the shock. Slide the axle about three-quarters of the way through the wheel, then pivot the wheel to install the large washer between the other shock and the wheel. Insert a screwdriver into the axle hole while tightening the axle nut to prevent it from turning. Tighten the axle nut to 50 ft/lbs, and then torque the pinch bolt to 20 ft/lbs. Finally, ensure the front wheel spins freely without any binding.

Step 13: Re-install Front Caliper

Slide the front caliper back onto the rotor, double-checking that the brake pads are still properly installed within the caliper. Slide the caliper slide pin through the pads and torque it to 12 ft/lbs. Slide the caliper back onto the rotor and install the two mounting bolts. Torque these mounting bolts to 22 ft/lbs. Re-install the master cylinder cover, ensuring the brake fluid level is near the 'max' mark. After all work is completed, double-check every bolt and component you've touched. Before riding at speed, test your brakes thoroughly at a slow speed in a safe area to confirm they are functioning correctly and providing adequate stopping power.

Frequently Asked Questions (FAQs)

Q: Who manufactures the original brake components for Harley-Davidson Sportsters?

A: While Harley-Davidson designs and specifies the braking systems, the individual components like calipers, master cylinders, and brake pads are typically manufactured by specialised third-party suppliers. Harley-Davidson sources from a range of reputable automotive and motorcycle component manufacturers to meet their standards.

Q: How often should I inspect my Sportster's brake pads and rotors?

A: It's recommended to inspect your brake pads and rotors during every oil change or at least every 5,000 miles (approximately 8,000 km). However, if you ride aggressively or frequently in stop-and-go traffic, more frequent checks are advisable.

Q: What are the signs that my brake pads need replacing?

A: Common signs include a squealing or grinding noise when braking (indicating metal-on-metal contact), reduced braking performance, a spongy or soft brake lever/pedal, or a visible reduction in the thickness of the pad's friction material.

Q: Can I upgrade my Sportster's braking system?

A: Absolutely! Many aftermarket companies, such as TC Bros', offer high-quality upgrade components for Sportsters, including floating brake rotors, performance brake pads, caliper conversion brackets, and even high-performance calipers like those from Brembo. These upgrades can significantly enhance stopping power and feel.

Q: What is the purpose of anti-seize compound on the axles?

A: Anti-seize compound is applied to threads and mating surfaces to prevent components from seizing due to corrosion or galling. On axles, it ensures easier removal in the future and helps prevent rust from binding the axle within the wheel bearings and spacers.

Q: Why is it important to compress the caliper pistons before installing new pads?

A: New brake pads are thicker than worn ones. Compressing the pistons back into the caliper body creates the necessary space for the new, thicker pads to fit around the brake rotor without binding.

By following these detailed steps and understanding the importance of each component, you can confidently maintain your Sportster's braking system, ensuring a safe and enjoyable ride for many miles to come. Remember, when in doubt, consult a qualified motorcycle mechanic for professional assistance.
