Spark Plug Thread Repair Explained

The health of your vehicle's engine is intrinsically linked to the proper functioning of its ignition system, and at the heart of this system lies the spark plug. The spark plug screws into the cylinder head, and the integrity of these threads is paramount. Spark plug thread repair is a vital maintenance procedure that addresses damaged threads in the cylinder head where the spark plug is seated. Damage can arise from a variety of common errors, such as over-tightening, cross-threading during installation, or even from general wear and tear, corrosion, and impact. Failing to address such damage can lead to a cascade of problems, including poor engine performance, persistent misfires, reduced fuel efficiency, and in severe cases, significant and costly engine damage. Ensuring that these threads are in pristine condition is essential for a tight seal, effective heat transfer, and ultimately, optimal combustion and engine performance. This article will delve into the importance of spark plug thread repair, explore the common culprits behind thread damage, guide you through the diagnosis process, detail various repair methodologies, and offer crucial tips to prevent future issues, ensuring your engine purrs like a kitten.

Common Causes of Spark Plug Thread Damage

Understanding why spark plug threads become damaged is the first step in preventing and rectifying the problem. Several common scenarios can compromise these critical threads:

Stripped Threads

This is perhaps one of the most frequent issues encountered, particularly in engines that have seen considerable mileage. Stripped threads occur when the helical grooves within the cylinder head or on the spark plug itself are worn down or damaged. This prevents the spark plug from being screwed in securely. The primary culprit behind stripped threads is often over-tightening, which forces the threads to shear or deform. When threads are stripped, the spark plug cannot achieve a proper seal, leading to compression loss and misfires. Repair typically involves using specialised thread repair kits, which we will discuss later.

Cross-Threading

Cross-threading is a user-induced error that happens during the installation of a spark plug. It occurs when the spark plug is not aligned perfectly with the threads in the cylinder head. Instead of engaging smoothly, the spark plug is forced in at an angle, causing the threads to grind against each other. This can damage both the spark plug and, more critically, the cylinder head threads. The immediate consequence is that the spark plug cannot be tightened correctly, often resulting in exhaust leaks and poor engine performance. To prevent cross-threading, always ensure proper alignment before applying any torque and start threading by hand.

Corrosion and Rust

Exposure to the elements and internal engine conditions can lead to corrosion and rust forming on the spark plug threads and within the cylinder head. Over time, this can cause the threads to degrade, weaken, and become difficult to engage. In advanced stages, the threads can become so compromised that removing or installing a spark plug becomes a challenge, and the seal may be compromised. Keeping the engine bay clean and dry, and using anti-seize compound during spark plug installation, can help mitigate this issue.

Over-Tightening

While mentioned under stripped threads, over-tightening deserves its own spotlight. Many DIY mechanics, in an effort to ensure a 'tight' seal, apply excessive force to spark plugs. This not only strips the threads but can also crack the cylinder head, particularly if it's made of aluminium. The recommended torque specifications provided by manufacturers are there for a reason. Using a torque wrench is non-negotiable for correct spark plug installation.

Impact Damage

Accidents happen. Dropping a spark plug and having it strike the cylinder head, or a spark plug socket slipping during removal or installation, can cause direct impact damage to the threads. This can result in bent or completely sheared-off threads, making a new spark plug unusable. Careful handling and ensuring the socket is firmly seated on the spark plug are crucial to avoid this.

Diagnosing Spark Plug Thread Damage

Recognising the signs of damaged spark plug threads is key to timely intervention. Ignoring these symptoms can lead to more severe problems. Here’s how to identify potential issues:

• Difficulty Installing or Removing Spark Plugs: If a spark plug feels overly stiff when screwing it in, or if it requires excessive force to remove, this is a strong indicator of thread damage.
• Engine Misfires and Rough Idling: Damaged threads prevent the spark plug from seating correctly. This can lead to an improper air-fuel mixture and incomplete combustion, resulting in misfires, especially under load, and a generally rough-running engine.
• Unusual Engine Noises: Leaks from the spark plug well due to a poor seal can sometimes manifest as a hissing or puffing sound.
• Reduced Fuel Efficiency: Inefficient combustion caused by poor sealing directly translates to higher fuel consumption.

Inspection Process:To confirm thread damage, carefully remove the spark plug. Using a good quality flashlight, visually inspect the threads on both the spark plug and inside the cylinder head. Look for:

If any damage is evident, prompt repair is recommended.

Spark Plug Thread Repair Methods

Fortunately, there are several effective methods for repairing damaged spark plug threads, ranging from simple to more involved procedures. The choice of method often depends on the severity of the damage and the material of the cylinder head (typically aluminium or cast iron).

Thread Chasers and Taps

For minor damage, such as light corrosion or slight thread deformation, a thread chaser or a tap can be used. A thread chaser is designed to clean and slightly reform existing threads without removing much material. A tap, on the other hand, cuts new threads. It's crucial to use the correct size and pitch of chaser or tap that matches the original spark plug threads. These tools should be used with a cutting fluid and rotated carefully to avoid further damage. They are best suited for restoring threads that are not severely compromised.

Helicoil Inserts

Helicoil inserts are a very popular and effective solution for more significant thread damage, especially in aluminium cylinder heads where threads can be easily stripped. A Helicoil kit typically includes a drill bit, a tap, an insertion tool, and the Helicoil inserts themselves. The process involves:

1. Drilling out the damaged threads with the provided drill bit.
2. Tapping the hole with the special tap to create a new thread pattern for the insert.
3. Winding the Helicoil insert into the newly tapped hole using the insertion tool. The insert coils into place, creating a strong, new thread that is often stronger than the original.

Helicoils are made of a spring-like stainless steel wire and provide excellent thread strength and durability.

Time-Sert Inserts

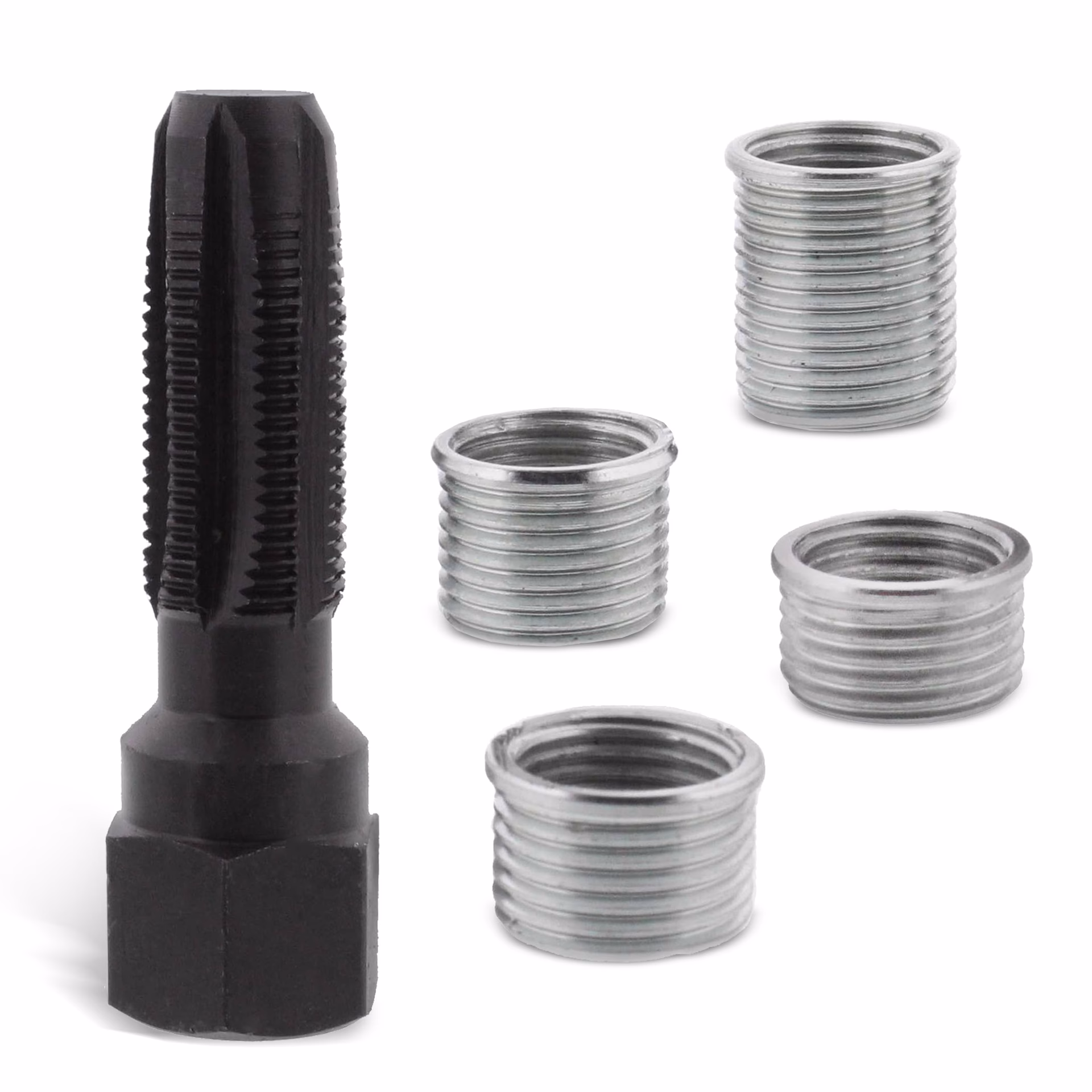

Time-Sert inserts are another high-quality thread repair system, often considered a more robust alternative to Helicoils. They are solid, one-piece threaded inserts that are installed similarly to Helicoils but offer a more permanent and often stronger repair. The process involves drilling, tapping with a specific Time-Sert tap, and then driving the insert into place with a tool that flushes out any excess material. Time-Serts are particularly favoured for applications where high strength and resistance to vibration are critical, making them ideal for performance engines.

Re-threading Tools

Similar to taps, specialised re-threading tools can be used to cut new threads into a damaged spark plug hole. These tools often have adjustable dies that can be set to the correct thread pitch and diameter. They are a viable option for repairing moderately to severely damaged threads, essentially creating a fresh set of threads within the existing hole.

Welding Repairs

Welding is generally considered a last resort for extremely damaged spark plug threads, especially in older cast-iron heads. This method involves welding material into the damaged hole and then re-drilling and tapping it to the correct specification. This is a highly skilled procedure that carries a risk of damaging the surrounding cylinder head material if not performed by an experienced welder. Due to the precision required and the potential for further damage, it's a method best left to professionals.

Step-by-Step Guide for Repairing Spark Plug Threads

Here’s a general guide to the process of repairing damaged spark plug threads. Always refer to the specific instructions provided with your chosen thread repair kit.

1. Preparation and Safety: Ensure the engine is cool. Disconnect the battery. Wear safety glasses and gloves.
2. Remove the Spark Plug: Use the correct spark plug socket and ratchet to carefully remove the damaged spark plug.
3. Clean the Area: Clean any debris around the spark plug well to prevent it from falling into the cylinder. You can use compressed air or a vacuum.
4. Inspect the Damage: Thoroughly examine the threads as described in the diagnosis section.
5. Drill the Hole (If using inserts): If using a Helicoil or Time-Sert, carefully drill out the damaged threads using the drill bit provided in the kit. It’s crucial to drill straight and to the correct depth. Some kits include a depth stop for the drill.
6. Tap the Hole (If using inserts): Use the provided tap to cut new threads into the drilled hole. Ensure the tap is perfectly straight. Apply cutting fluid.
7. Install the Insert: Carefully thread the Helicoil or Time-Sert insert into the newly tapped hole using the specific insertion tool. Follow the kit's instructions for proper installation and activation (for Helicoils, this usually involves breaking off a tang).
8. Chase or Re-thread (If not using inserts): If using a thread chaser or re-threading tool, carefully work it into the damaged threads to clean or recut them.
9. Clean the Hole: Once the repair is made, ensure the spark plug hole is completely clean. Blow out any metal filings or debris with compressed air, directing the air away from the cylinder. You might want to insert a rag or a dedicated tool into the cylinder to catch any stray particles.
10. Install the New Spark Plug: Apply a small amount of anti-seize compound to the threads of the new spark plug. Carefully thread the spark plug into the repaired hole by hand to ensure it starts correctly.
11. Torque to Specification: Use a calibrated torque wrench to tighten the spark plug to the manufacturer's specified torque. This is critical to avoid damaging the new threads.
12. Reconnect and Test: Reconnect the spark plug wire or coil pack. Reconnect the battery. Start the engine and listen for any irregularities.

Tips for Preventing Spark Plug Thread Damage

Prevention is always better than cure. By following these tips, you can significantly reduce the risk of damaging your spark plug threads:

• Proper Installation Technique: Always start threading the spark plug by hand. If you feel resistance, stop immediately, back it out, and try again to ensure it’s not cross-threading.
• Use a Torque Wrench: This cannot be stressed enough. Always adhere to the manufacturer's recommended torque specifications. Over-tightening is a leading cause of thread damage.
• Anti-Seize Compound: Apply a small amount of anti-seize compound to the spark plug threads before installation. This prevents them from seizing in the cylinder head, especially in aluminium heads, making future removal easier and reducing the risk of thread damage.
• Keep Threads Clean: Before installing new spark plugs, ensure both the spark plug threads and the cylinder head threads are clean and free from dirt, debris, or corrosion.
• Use the Correct Spark Plugs: Ensure you are using the correct spark plugs for your vehicle, as specified by the manufacturer.
• Regular Maintenance Checks: During routine maintenance, visually inspect spark plugs and their threads when accessible.
• Avoid Over-Tightening: This is worth repeating. A snug fit followed by the final torque is all that's needed. Don't try to tighten it "just a bit more."

Frequently Asked Questions (FAQs)

Q1: Can I drive with damaged spark plug threads?

Driving with damaged spark plug threads is not recommended. It can lead to misfires, poor performance, reduced fuel economy, and potentially further damage to the cylinder head.

Q2: How much does spark plug thread repair cost?

The cost can vary significantly. DIY kits range from £20 to £80. Professional repair costs can range from £100 to £300 or more, depending on the complexity and labour rates.

Q3: Is Helicoil a permanent fix?

Yes, a properly installed Helicoil insert provides a strong and durable thread repair that is considered permanent for the life of the cylinder head.

Q4: What if my cylinder head is aluminium?

Aluminium cylinder heads are more prone to thread damage due to their softness. Helicoil or Time-Sert inserts are highly recommended for repairing threads in aluminium heads.

Q5: Can I just use a larger spark plug?

No, this is not a viable or safe repair. Using a plug with incorrect thread dimensions will not seal properly and can cause significant damage.

Conclusion

Spark plug thread repair is a critical aspect of automotive maintenance that ensures the integrity of your engine's ignition system. Understanding the common causes of thread damage – from the seemingly simple act of over-tightening to the more complex issues of corrosion and impact – empowers you to prevent these problems. By diligently performing regular inspections and employing the correct repair methodologies, such as using Helicoil or Time-Sert inserts, you can restore the vital connection between the spark plug and the cylinder head. Adhering to preventative measures like using anti-seize compound and always employing a torque wrench are simple yet highly effective ways to safeguard your engine. Ultimately, maintaining healthy spark plug threads is fundamental to achieving optimal engine performance, fuel efficiency, and the overall longevity of your vehicle.
