Can You Perform a 4-Wheel Alignment in Your Own Workshop?

The question of whether a home mechanic or a small independent workshop can undertake a 4-wheel alignment is a common one. Historically, this task has been reserved for specialised garages equipped with expensive, dedicated machinery. However, with the advent of advanced diagnostic and alignment systems, the landscape is changing. This article explores the capabilities of modern equipment and whether it empowers you to perform professional-grade 4-wheel alignments right in your own shop.

Understanding 4-Wheel Alignment

Before delving into the 'how', let's briefly touch upon the 'what' and 'why' of 4-wheel alignment. It's a precise adjustment of your vehicle's suspension and steering components to their original manufacturer specifications. This ensures that all four wheels are pointing in the direction you intend, leading to:

• Improved Tyre Wear: Uneven or rapid tyre wear is a primary indicator of misalignment.
• Better Fuel Economy: Misaligned wheels create drag, forcing your engine to work harder.
• Enhanced Handling and Stability: A properly aligned vehicle tracks straighter, feels more stable, and is easier to control, especially at higher speeds or during cornering.
• Reduced Driver Fatigue: Constantly correcting a vehicle that pulls to one side can be tiring.

The key angles adjusted during a 4-wheel alignment include:

• Camber: The inward or outward tilt of the tyre when viewed from the front.
• Caster: The angle of the steering axis when viewed from the side. It affects steering stability.
• Toe: The inward or outward angle of the tyres when viewed from above. Toe-in means the front of the tyres are closer together than the rear; toe-out is the opposite.
• Thrust Angle: The direction the rear axle is pointing relative to the vehicle's centerline.

The Equipment: Spanesi Multibench-12 and TOUCH System

The information provided highlights the capabilities of the Spanesi Multibench-12 and its accompanying TOUCH measurement system, which are designed to bring professional-level diagnostics and alignment into a more accessible format. Let's break down what makes this combination suitable for your workshop:

Spanesi Multibench-12 Lift

The Multibench-12 is an electro-hydraulic lift with a robust 6600 lbs (3,000 kg) capacity, capable of lifting most passenger vehicles. Its design is particularly noteworthy for alignment work:

• Direct Wheel Lifting: The vehicle is raised directly on its wheels, eliminating the need for traditional wheel stands that can interfere with alignment adjustments.
• 360° Straightening Capability: With a pulling tower and Fast Clamps, the system allows for straightening vehicles from any angle. Crucially, this can be done without wheel stands or lifting the vehicle from the ramps, streamlining the process.
• Low Profile: Standing at just 4.25 inches (108 mm) high, it requires no external ramps, making vehicle placement easier and safer.
• High Lifting Height: It can reach a lifting height of 57 ½ inches (4.8 ft), providing ample clearance for working underneath.
• Fast Anchoring System: This suggests a quick and secure method for positioning the vehicle and associated equipment.

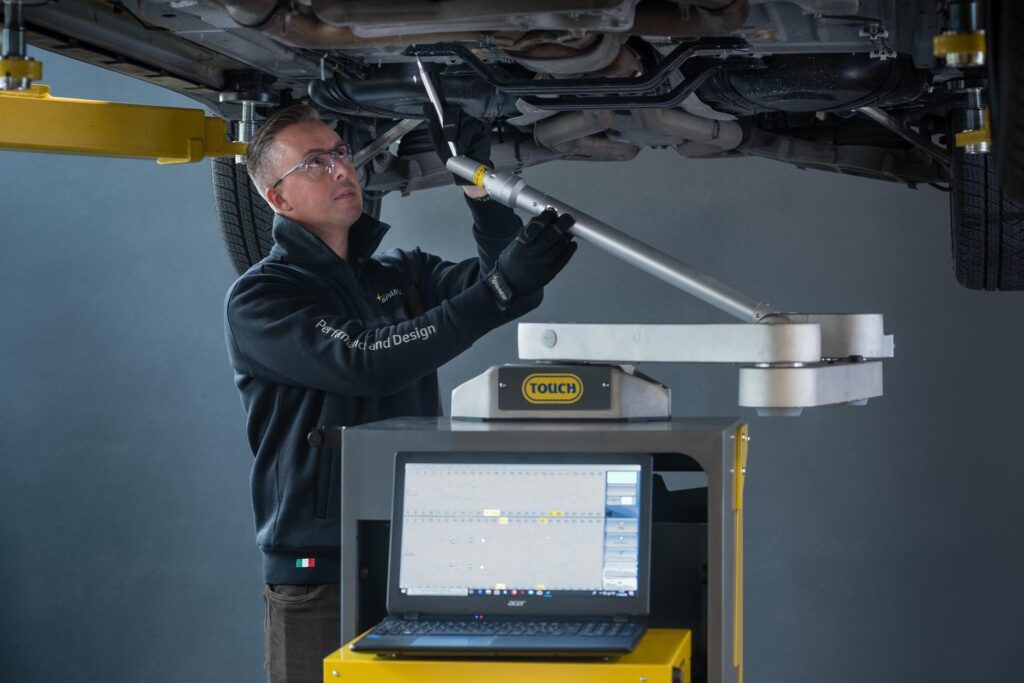

TOUCH Measurement System

The TOUCH system is where the intelligence of the alignment process lies. It transforms the Multibench-12 into a comprehensive diagnostic station:

• Universal Electronic Measuring System: This is key. It's described as a system that can diagnose damaged vehicles without the help of adapters. This implies a sophisticated sensor and software setup that can quickly and accurately capture vehicle geometry.
• Speed and Ease of Use: Simple and quick equipment positioning is paramount for workshop efficiency. The system is touted as the fastest electronic measuring system available.
• Extensive Vehicle Database: Leveraging proprietary and Mitchell International data, it contains alignment parameters for thousands of vehicles. This database is crucial for ensuring accuracy.
• Custom Database: The ability to create your own database of vehicles or parts adds flexibility.
• Comprehensive Diagnosis: Beyond just alignment angles, the TOUCH system, especially with the Wheels Kit, can diagnose bodywork, shock absorbers, arms, spindles, chassis, and suspension issues. This allows you to identify the root cause of misalignment, not just the symptoms.
• Diagnosis and Certification: The system provides easy-to-understand printouts for diagnosis and certification, which is vital for customer confidence and quality assurance.

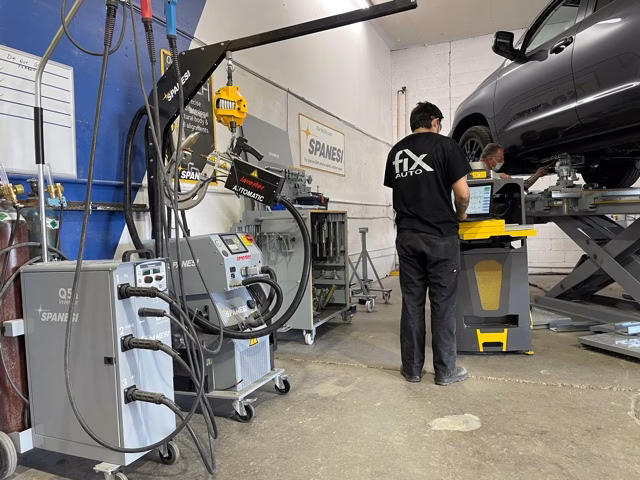

Performing a 4-Wheel Alignment in Your Shop

The combination of the Spanesi Multibench-12 and the TOUCH system appears to directly address the question: Yes, you can perform 4-wheel alignments in your own shop, provided you have the right equipment.

The process would generally involve:

1. Vehicle Placement: Driving the vehicle onto the low-profile Multibench-12 lift.
2. Securing the Vehicle: Using the Fast Anchoring System to ensure the vehicle is stable and positioned correctly on the lift.
3. Sensor Attachment: The TOUCH system's "Wheels Kit" allows for quick attachment of sensors to the wheels. The absence of the need for adapters is a significant time-saver.
4. Data Input: Selecting the specific vehicle make, model, and year from the extensive database.
5. Measurement: The system performs a comprehensive scan, measuring all critical suspension and chassis points.
6. Diagnosis: The software analyzes the measurements against the manufacturer's specifications, identifying any deviations and potential underlying issues.
7. Adjustment: Based on the diagnostic report, the technician would then adjust the relevant suspension components (camber bolts, tie rods, etc.) to bring the vehicle back into specification. The 360° pulling capability could be used for more severe structural corrections if necessary.
8. Re-measurement and Certification: After adjustments, a final measurement is taken to confirm the alignment is correct. The system then generates a certification report, proving the work was done to standard and guaranteeing the car's safety.

Benefits of In-House Alignment

Bringing 4-wheel alignment capabilities in-house offers several advantages:

• Increased Revenue Stream: Alignment services can be a profitable addition to your workshop's offerings.
• Customer Retention: Keeping services in-house means customers don't have to visit other garages, fostering loyalty.
• Control Over Quality: You manage the entire process, ensuring the highest standards are met.
• Efficiency: Eliminating the need to outsource or wait for external alignment services saves valuable time.
• Comprehensive Diagnostics: The ability to diagnose related suspension and chassis issues alongside alignment provides a more complete service offering.

Spanesi Vacuum Refinishing (A Note on Related Technology)

While the primary focus is on 4-wheel alignment, the mention of "Spanesi vacuum refinishing" and the Spanesi Touch system in the context of damage assessment is relevant. It highlights Spanesi's commitment to advanced diagnostic tools. The Touch system, when used for damage assessment, employs sophisticated technology and an intuitive interface for precise vehicle damage evaluation. This indicates a broader ecosystem of high-tech solutions from Spanesi designed to enhance workshop capabilities, from structural repair to precise geometric measurement.

Key Considerations for Your Workshop

• Space Requirements: Ensure you have adequate space for the lift and working area.
• Technician Training: While the system is designed to be user-friendly, proper training on its operation and the principles of alignment is crucial.
• Initial Investment: High-quality alignment equipment represents a significant investment, but the potential returns can justify the cost.
• Calibration and Maintenance: Like all precision equipment, regular calibration and maintenance are essential to ensure ongoing accuracy.

Frequently Asked Questions

Q1: Can any workshop perform a 4-wheel alignment with this equipment?
Yes, the Spanesi Multibench-12 and TOUCH system are specifically designed to enable workshops, even smaller ones, to perform professional 4-wheel alignments.

Q2: What makes the TOUCH system different from older alignment machines?
The TOUCH system emphasizes speed, ease of use without adapters, and a comprehensive database, allowing for quicker diagnosis and adjustments. Its ability to diagnose broader chassis and suspension issues beyond just alignment angles is also a key differentiator.

Q3: Is a 4-wheel alignment necessary for all vehicles?
While not every vehicle requires it immediately, it's recommended periodically (e.g., annually or after hitting a significant pothole) and certainly when experiencing symptoms like uneven tyre wear or pulling to one side.

Q4: How long does a typical 4-wheel alignment take with this system?
With the described fast setup and intuitive operation, a 4-wheel alignment can be performed much more quickly than with older, more cumbersome systems, potentially reducing the time spent per vehicle significantly.

Q5: Can I perform structural straightening and alignment simultaneously?
The Multibench-12's pulling tower allows for straightening, and the TOUCH system provides the measurement data to guide both straightening and alignment adjustments, offering a comprehensive solution for accident-damaged vehicles.

Conclusion

The evolution of automotive diagnostic and repair equipment has made professional 4-wheel alignment accessible to a wider range of workshops. Systems like the Spanesi Multibench-12 paired with the TOUCH measurement system provide the necessary precision, speed, and comprehensive data to perform this critical service effectively. By investing in such technology, your workshop can enhance its service offerings, improve customer satisfaction, and potentially boost profitability, all while ensuring vehicles are running safely and efficiently.
