SOGEVAC Oil Level & Pump Maintenance

Understanding the proper maintenance of your SOGEVAC vacuum pump is crucial for its longevity and optimal performance. One of the most fundamental aspects of this maintenance is ensuring the correct oil level. This guide will delve into what constitutes a normal oil level in a SOGEVAC pump, alongside other vital maintenance considerations to keep your equipment operating efficiently.

Understanding the SOGEVAC Oil Level

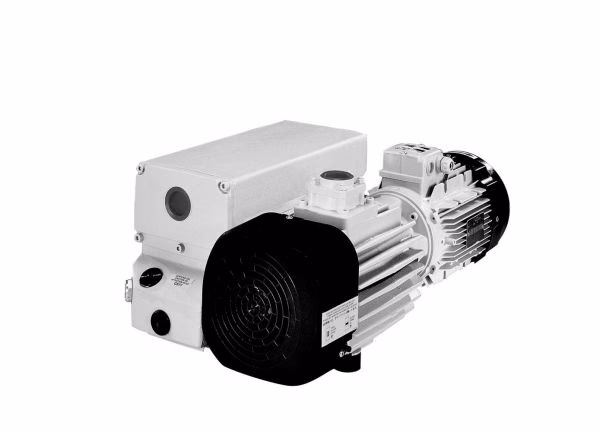

The SOGEVAC vacuum pump is designed with a clear visual indicator for its oil level: the sight glass. The ideal and normal oil level for a SOGEVAC pump is consistently found in the middle of the sight glass. This level ensures that the internal components of the pump are adequately lubricated and cooled during operation, preventing premature wear and tear. It's essential to check this level regularly, ideally before each use, and top it up if necessary.

Why the Middle Sight Glass Level is Important

Operating a vacuum pump with an incorrect oil level can lead to significant issues:

• Too Low Oil Level: Insufficient lubrication can cause increased friction between moving parts, leading to overheating, accelerated wear, and potentially catastrophic failure of the pump. The pump's ability to create a vacuum may also be compromised.
• Too High Oil Level: An overfilled pump can lead to oil being carried over into the vacuum system, contaminating your process. It can also cause increased pressure within the pump housing, potentially stressing seals and leading to leaks. Furthermore, it can create excessive churning of the oil, leading to foaming and reduced lubrication effectiveness.

Checking and Topping Up SOGEVAC Oil

To check the oil level, ensure the pump is off, cooled down, and on a level surface. Locate the sight glass, typically a small, transparent window on the side of the pump housing. Observe the oil level within this glass. If the level is below the middle mark, you will need to add the appropriate SOGEVAC vacuum pump oil. Always use the specific oil recommended by the manufacturer to ensure compatibility with the pump's materials and operating conditions. Slowly add oil through the designated filling port until the level reaches the middle of the sight glass. Avoid overfilling.

Startup and Operational Considerations

The SOGEVAC pump is designed for normal startup at ambient temperatures above 0°C (32°F), as per PNEUROP standards. This threshold can vary slightly depending on the specific type of oil used. Cold starts can be more demanding on the pump's motor and internal components. Ensuring the oil is at the correct level and, if necessary, has been warmed slightly can facilitate easier and safer startups in colder conditions.

Motor Protection: Avoiding Overloads

A critical aspect of operating a SOGEVAC pump is protecting its motor from overload. To prevent overloading the motor, it is advised not to start the pump more than six times within a one-hour period. Frequent starting and stopping can generate excessive heat and put undue strain on the motor, reducing its lifespan and potentially causing premature failure. If your application requires frequent starts and stops, consider implementing a VSD (Variable Speed Drive) or other control methods to manage the pump's operation more effectively.

General Maintenance Schedule and Tips

Beyond the oil level, regular maintenance is key to a reliable SOGEVAC pump. Here’s a general guideline:

Oil Changes

The frequency of oil changes depends on the operating conditions, the type of oil used, and the level of contamination in the vacuum system. As a general rule, it's recommended to change the oil:

• Every 3-6 months for continuous operation.
• Annually for intermittent use.
• Immediately if the oil becomes visibly contaminated, discoloured, or shows signs of emulsification (milky appearance).

When changing the oil, it's advisable to warm the pump slightly to ensure the oil flows out easily. Drain the old oil completely, clean the oil reservoir if possible, and refill with the correct type and amount of new oil, checking the level against the sight glass.

Filter Maintenance

SOGEVAC pumps often feature inlet filters to protect the pump from particulate contamination. These filters should be inspected regularly and cleaned or replaced as needed. A clogged filter will restrict airflow, reduce pumping speed, and increase the load on the pump.

Seal Inspection

Periodically inspect the pump's seals for any signs of wear or leakage. Leaking seals can compromise the vacuum level and allow contaminants into the pump or oil. Address any leaks promptly.

Vibration and Noise Monitoring

Pay attention to any unusual vibrations or noises coming from the pump. These can be indicators of internal wear, bearing issues, or imbalance. Addressing these symptoms early can prevent more significant damage.

Frequently Asked Questions (FAQs)

Q1: What type of oil should I use for my SOGEVAC pump?

Always refer to your SOGEVAC pump's specific manual for the recommended oil type. Using the wrong oil can damage the pump. Generally, specialized vacuum pump oils with good low vapour pressure and thermal stability are required.

Q2: How often should I check the oil level?

It is best practice to check the oil level before each use of the pump. This ensures it is always within the optimal range.

Q3: Can I use standard motor oil in my SOGEVAC pump?

No, you should not use standard motor oil. Vacuum pump oils have specific properties, such as low vapour pressure, that are essential for maintaining a vacuum. Standard motor oils will likely vaporise at the operating pressures and temperatures, contaminating your vacuum system and damaging the pump.

Q4: What should I do if the oil is milky in the sight glass?

A milky appearance indicates that water or another contaminant has emulsified with the oil. This means the oil is no longer providing adequate lubrication and protection. You should drain and replace the oil immediately and investigate the source of the contamination.

Q5: Is it normal for the oil level to drop over time?

A slight drop in oil level can occur due to normal operation, where a small amount of oil is vaporised and expelled with the pumped gases. However, a significant drop usually indicates a leak or excessive oil carry-over, which needs to be addressed.

Conclusion

Maintaining the correct oil level in your SOGEVAC vacuum pump, specifically in the middle of the sight glass, is fundamental for its efficient and reliable operation. Coupled with regular checks, timely oil changes, and attention to operational limits, you can significantly extend the life of your SOGEVAC pump and ensure consistent performance in your vacuum applications. Always consult your pump's specific manual for detailed instructions and recommendations tailored to your model.
