Muffler Repair: Weld vs. Sealer Explained

A healthy exhaust system is vital for any vehicle, not just for keeping noise levels down but also for efficient engine performance and ensuring harmful emissions are properly directed away from the cabin. When your muffler or exhaust pipe suffers damage, it can lead to irritating rattles, a loud roar, or even dangerous fumes entering your car. Faced with a compromised exhaust, many motorists ponder their options: should they opt for a robust weld repair or a more accessible exhaust sealer? This article delves into both methods, helping you understand which solution is right for your vehicle and how to tackle common exhaust repairs.

Understanding the components of your exhaust system is the first step towards effective repair. From the exhaust manifold, which collects gases from the engine, through catalytic converters that reduce harmful pollutants, to the muffler (silencer) that dampens noise, and finally the tailpipe, each part plays a crucial role. Damage can occur anywhere along this path due to corrosion, road debris, or even minor impacts. Identifying the source and severity of the damage will dictate the best repair approach.

The Purpose of Your Muffler and Exhaust System

Your vehicle's exhaust system is far more than just a pipe that vents fumes. It's a complex network designed to perform several critical functions:

• Noise Reduction: The muffler, often called a silencer in the UK, uses a series of baffles and chambers to reduce the loud noise produced by engine combustion. A damaged muffler can make your car sound like a racing machine, often illegally loud.
• Emissions Control: The catalytic converter, an integral part of the exhaust system, transforms toxic gases like carbon monoxide, nitrogen oxides, and unburnt hydrocarbons into less harmful substances before they are released into the atmosphere.
• Engine Performance: A well-sealed exhaust system maintains proper back pressure, which is essential for engine efficiency and fuel economy. Leaks can disrupt this balance, leading to a loss of power and increased fuel consumption.
• Safety: Most importantly, the exhaust system safely directs hazardous exhaust gases, such as carbon monoxide, away from the vehicle's cabin. A leak can allow these dangerous fumes to seep inside, posing a serious health risk to occupants.

Recognising the signs of a failing exhaust system is key to addressing issues promptly. Common indicators include a louder-than-usual exhaust note, rattling noises from underneath the car, a strange smell of exhaust fumes inside the vehicle, or a noticeable decrease in fuel efficiency.

Muffler Weld Repair: A Permanent Solution

Muffler weld repair involves using specialised welding equipment to fuse metal back together, creating a strong, airtight seal. This method is typically performed by a professional mechanic and is considered the most durable and long-lasting repair option for significant damage.

When is Welding the Right Choice?

• Large Cracks or Holes: If your exhaust pipe or muffler has substantial cracks, large holes, or has completely fractured, welding is often the only viable permanent solution.
• Structural Damage: When a component of the exhaust system is physically broken or detached from its mounting points, welding can restore its structural integrity.
• Long-Term Fix: For those seeking a repair that will last for many years, welding offers unmatched durability and reliability, often outliving the rest of the exhaust system.
• High-Stress Areas: Joints and areas subjected to significant vibration or heat are best repaired with welding due to its inherent strength.

Advantages of Welding:

• Superior Strength: A properly welded joint is as strong, if not stronger, than the original material, ensuring a robust and permanent fix.
• Longevity: Welded repairs can last for the remaining lifespan of the exhaust component, making it a cost-effective solution in the long run.
• Airtight Seal: Welding creates a perfect, leak-proof seal, restoring optimal exhaust flow and emission control.

Disadvantages of Welding:

• Cost: Professional welding can be more expensive than DIY sealer options due to labour costs and specialised equipment.
• Expertise Required: Welding requires specific skills, training, and equipment, making it unsuitable for most DIY enthusiasts.
• Accessibility: The damaged area needs to be easily accessible for the welder to perform the repair effectively.

Muffler Sealer and Repair Paste: The DIY Approach

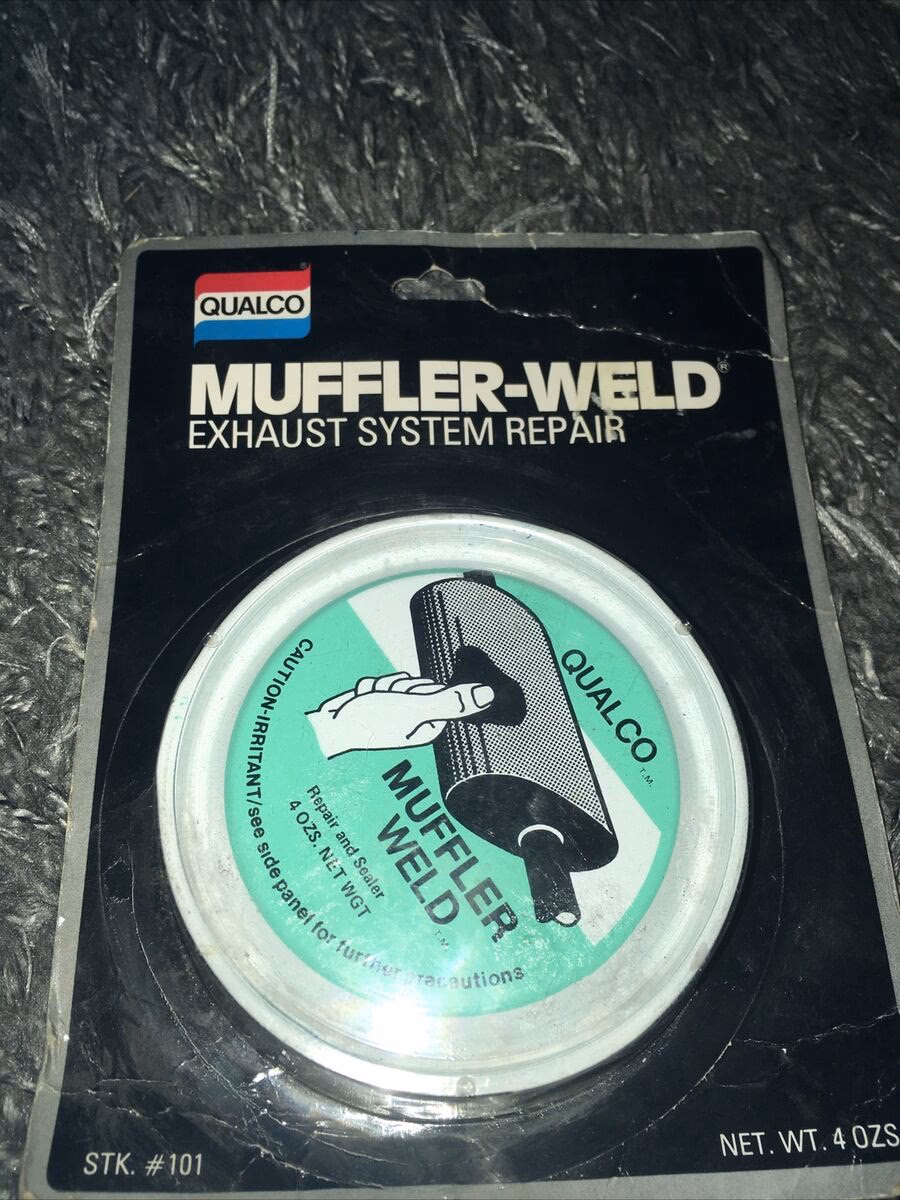

Exhaust system sealers, often sold as pastes or epoxies, offer a simpler, more accessible alternative for minor exhaust damage. These products are designed to fill small holes and cracks, providing a temporary but effective seal.

When is Sealer Suitable?

• Small Punctures or Pinholes: Ideal for minor damage caused by rust or small impacts.
• Hairline Cracks: Can seal fine cracks along pipes or muffler seams.
• Temporary Fix: Perfect for getting your vehicle through its MOT or until you can afford a more permanent repair.
• Budget-Friendly: A much more cost-effective immediate solution compared to professional welding.

Advantages of Sealers:

• Ease of Use: Most sealers are designed for DIY application, requiring minimal tools or mechanical knowledge.
• Affordability: The products themselves are inexpensive, making them an attractive option for budget-conscious repairs.
• Quick Fix: Can be applied relatively quickly, though drying time is required before driving.

Disadvantages of Sealers:

• Limited Durability: Sealers are not a permanent solution and may degrade over time due to heat, vibration, and moisture.
• Not for Major Damage: Ineffective for large holes, severe cracks, or structural breaks.
• Preparation is Key: Proper cleaning and preparation of the damaged area are crucial for the sealer to adhere effectively, and even then, performance can vary.

Step-by-Step Guide: Repairing a Broken Exhaust System with Sealer

If you've decided to tackle a minor exhaust repair using a sealer, follow these instructions carefully. Always prioritise safety by wearing appropriate protective gear.

DIRECTIONS: Exhaust system should be cold before repair is started. Always wear protective eyewear and gloves when working on exhaust system.

1. Preparation is Paramount: Clean damaged area to be repaired with wire brush or sandpaper. This step is crucial. Any rust, dirt, or grease will prevent the sealer from bonding properly. Scrub the area thoroughly until you see clean metal. The cleaner the surface, the better the adhesion and the longer the repair will last.
2. Moisten the Area: Moisten damaged area with wet rag or sponge. This helps activate certain types of exhaust sealers and allows for smoother application and better penetration into cracks and holes. Do not oversaturate; just a damp surface is sufficient.
3. Apply Liberally: Apply liberally with paddle or fingers working well into holes, cracks, seams, etc. Use a generous amount of the sealer, ensuring it fills every crevice. If using your fingers, ensure your gloves are intact. Work the paste into the damage, pressing it firmly to ensure it gets into the deepest parts of the crack or hole. Smooth out with wet hand. Use your wet hand (still gloved) to smooth the surface, creating a uniform layer that covers the entire damaged section and extends slightly beyond it for a good seal.
4. Allow for Curing: For best results allow to dry overnight. DO NOT START ENGINE UNTIL REPAIR IS THOROUGHLY HARDENED. This is perhaps the most critical step. The sealer needs time to cure and harden properly. Rushing this process will result in a failed repair. Depending on ambient temperature and humidity, it might take longer than overnight. Check the product's specific instructions for exact curing times. A fully hardened repair will be rigid and resistant to pressure.

Following these steps meticulously will give you the best chance of a successful temporary repair, allowing your vehicle to pass its MOT or hold out until a more permanent solution can be arranged.

Weld vs. Sealer: A Comparative Analysis

When to Seek Professional Help

While DIY repairs can be satisfying and cost-effective for minor issues, there are situations where professional intervention is not just recommended, but essential:

• Extensive Damage: If your exhaust system is heavily corroded, has multiple large holes, or is broken in several places, a sealer won't suffice, and welding may be beyond a typical mobile repair.
• Catalytic Converter Issues: Problems with the catalytic converter often require specialist diagnosis and replacement, which is a job for certified mechanics.
• Complex Leaks: Leaks near the engine manifold or in hard-to-reach areas are best handled by professionals with the right tools and lifts.
• MOT Failure: If your vehicle has failed its MOT due to exhaust issues, a professional repair or replacement is usually necessary to meet legal standards.
• Safety Concerns: Any doubt about the integrity of your exhaust system, especially if you suspect carbon monoxide leaks, warrants immediate professional inspection.

Preventative Maintenance Tips for Your Exhaust System

Extending the life of your exhaust system can save you money and hassle in the long run. Here are some tips:

• Regular Inspections: Periodically check your exhaust system for rust, holes, or loose components, especially before and after winter.
• Wash Your Car Regularly: Road salt and grime can accelerate corrosion. Regular washing, especially underneath the car, can help.
• Avoid Short Journeys: Frequent short trips don't allow the exhaust system to heat up sufficiently to evaporate condensation, which can lead to internal corrosion.
• Mind Road Hazards: Drive carefully over speed bumps and rough terrain to avoid striking the exhaust system.
• Address Issues Promptly: Don't ignore unusual noises or smells. Addressing small problems early can prevent them from becoming major, expensive repairs.

Frequently Asked Questions (FAQs)

How long does exhaust sealer last?

Exhaust sealer is a temporary fix. Its lifespan varies greatly depending on the product quality, the severity of the damage, driving conditions, and proper application. It could last anywhere from a few weeks to several months, but it's rarely a permanent solution. Expect to reapply or seek a more durable repair eventually.

Can I drive with a broken exhaust?

While you technically can drive with a broken exhaust, it's not recommended and can be illegal. A broken exhaust leads to excessive noise, reduced engine performance, increased fuel consumption, and, most critically, a risk of dangerous carbon monoxide fumes entering the vehicle's cabin. It can also lead to an MOT failure.

Is muffler repair expensive?

The cost of muffler repair varies significantly. A DIY sealer repair is very inexpensive, usually just the cost of the product (under £20). Professional welding will be more expensive, ranging from £50-£200+ depending on the complexity and labour rates. A full muffler or exhaust system replacement can be significantly more, potentially hundreds of pounds, depending on the vehicle model and parts needed.

What tools do I need for DIY exhaust repair with sealer?

For a basic sealer repair, you'll need: a wire brush or sandpaper for cleaning, a wet rag or sponge, a pair of durable work gloves, protective eyewear, and the exhaust repair paste itself. A jack and axle stands might be necessary if you need to lift the vehicle for better access to the damaged area.

Can a small crack be welded?

Yes, absolutely. Small cracks are ideal candidates for welding. A skilled welder can easily repair a small crack, providing a strong, permanent, and often nearly invisible fix that will last much longer than any sealer. Welding is generally preferred for any crack, regardless of size, if a permanent repair is desired.

In conclusion, choosing between muffler weld repair and exhaust sealer depends on the extent of the damage, your budget, and your desire for a long-term solution. While sealers offer a convenient and cost-effective DIY fix for minor issues, welding provides the superior durability and peace of mind of a permanent repair. Always prioritise safety when working on your vehicle's exhaust system, and don't hesitate to consult a professional if you're unsure or facing significant damage. Keeping your exhaust system in good working order is crucial for your vehicle's performance, emissions, and, most importantly, your safety on the road.
