Harley Softail Brake Overhaul: Pads, Rotors, Calipers

The braking system on your Harley Davidson Softail is arguably one of its most critical safety components, working tirelessly to bring your powerful machine to a halt. Over time, these vital parts – the brake pads, rotors, and even the calipers – endure immense stress and friction, leading to wear and ultimately requiring replacement. Neglecting this essential maintenance can lead to significantly compromised stopping power, increased wear on other components, and, most importantly, a serious safety risk. This comprehensive guide will walk you through the process of replacing your brake pads, rotors, and calipers on your Harley Davidson Softail (1984-Present), ensuring your ride remains safe and responsive on the road.

Why Brake Maintenance is Crucial for Your Harley Softail

Your Softail's brake system is a marvel of engineering, a pressurised hydraulic setup that translates the squeeze of your lever or the press of your pedal into immense stopping force through friction. Brake pads, designed to be sacrificial, rub against the rotors, generating the necessary resistance. This constant friction inevitably leads to them becoming thinner. If left unchecked, severely worn pads can cause metal-on-metal contact, damaging your rotors and significantly reducing braking efficiency. While brake calipers are generally robust, they can occasionally seize or stick due to corrosion, dirt, or internal seal failure, preventing the pads from engaging or disengaging properly. Recognising the signs of wear and addressing them promptly is paramount for your safety and the longevity of your bike.

When to Know It's Time for a Brake Overhaul

Your Softail will often give you clear indications when its brakes need attention. The most common symptom of worn brake pads is a high-pitched squeaking noise when you apply the brakes. This is often caused by the wear indicators on the pads themselves. If you hear a grinding noise, it's a more serious sign, indicating that the pads are completely worn down and the metal backing plates are rubbing directly against the rotors, which will quickly ruin them. Other signs include:

• Reduced braking performance or a "spongy" feel in the lever/pedal.
• Vibrations felt through the handlebars or footpegs during braking.
• A visible reduction in brake pad thickness.
• Scoring or deep grooves on the brake rotors.
• The bike pulling to one side when braking, which could indicate a sticking caliper.

Regular visual inspections of your brake pads and rotors are highly recommended, ideally at every service interval or before long rides, to catch wear early.

Essential Tools and Materials for the Job

Before you begin, gather all the necessary tools and replacement parts. Having everything to hand will make the process much smoother and more efficient:

• 5/16" Allen key or socket
• Flat head screwdriver
• Phillips head screwdriver
• Clear hose (for bleeding brakes)
• Empty bottle or container (for waste brake fluid)
• 3/8" wrench (for bleeder screw)
• New brake pads (ensure they are specific to your Softail model)
• New brake rotor (if required, specific to your Softail model)
• New brake caliper (if required, specific to your Softail model)
• Fresh DOT 4 or DOT 5 brake fluid (check your owner's manual for the correct type – never mix DOT 4 and DOT 5).
• Clean rags or shop towels
• Brake cleaner (optional, but highly recommended for cleaning components)
• Torque wrench (highly recommended for correct bolt tightening)
• Gloves and eye protection

Step-by-Step Guide to Replacing Your Harley Softail Brakes

Always work on a level surface with the bike securely supported. Ensure the engine and exhaust components are cool to the touch before you begin.

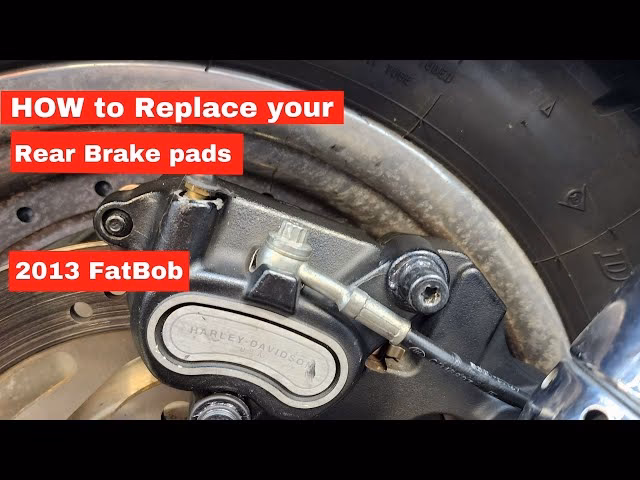

Part 1: Replacing Brake Pads – The Most Common Task

Replacing brake pads is the most frequent brake maintenance task. The process is broadly similar for both front and rear calipers, though the working space can differ.

1. Remove the Brake Caliper: Locate the two main bolts holding the brake caliper in place. These are typically Allen head or hex bolts. Use your 5/16" Allen key or socket to loosen and remove them. Once the bolts are out, gently pull the caliper up and away from the brake rotor. For the rear caliper, you can often rest it on a towel placed on the exhaust pipe. Crucially, never let the caliper hang by its brake line, as this can damage the line and lead to brake failure. Support it securely.
2. Access the Master Cylinder: Open the cover of the master cylinder (located on your handlebars for the front brake, or near the rear foot controls for the rear brake) by removing the two Phillips head screws holding it in place. This step is essential as it allows the brake fluid to return to the reservoir when you compress the caliper pistons.
3. Decompress the Pistons: With the master cylinder open, carefully insert your flat head screwdriver between the old brake pads and gently pry them apart. As you do this, the caliper pistons will retract into their bores, pushing fluid back into the master cylinder. Continue to pry and turn the screwdriver until the pistons are fully compressed, creating enough space for the new, thicker pads.
4. Remove Old Pads: Locate the brake pad pin, which holds the pads in place within the caliper. This is usually a small metal pin that slides through the top of the pads. Remove this pin, and the old pads should then slide out of the caliper easily. Take note of their orientation for installing the new ones.
5. Install New Pads: Carefully slide the new brake pads into the caliper, ensuring they are correctly seated and oriented. Reinsert the brake pad pin to secure them in place.
6. Reinstall Caliper: Carefully position the caliper back over the brake rotor. Align the bolt holes and reinsert the two main caliper bolts. Tighten these bolts securely, ideally using a torque wrench to the manufacturer's specified torque settings (consult your Softail service manual for exact figures).
7. Close Master Cylinder: Replace the master cylinder cover and secure it with its screws.

Part 2: Replacing Brake Rotors – When Wear is Evident

Rotors generally last longer than pads but will eventually wear thin, warp, or develop deep grooves, necessitating replacement. If you see significant scoring or feel vibrations during braking, rotor replacement is likely needed.

1. Unbolt the Rear Axle: To replace the rear rotor, you will need to gain access by unbolting the rear axle on the side of the rotor. First, remove any cotter pin or retaining clip from the axle nut. Then, use an appropriate wrench to remove the large nut holding the axle to the bike.
2. Create Clearance: Once the axle nut is removed, carefully lower the axle slightly. This will provide the necessary room for the rotor to be removed from the wheel hub. You may need to support the wheel.
3. Remove Rotor Bolts: The brake rotor is attached to the wheel hub with several smaller bolts, typically Allen head bolts. Use your Allen key to loosen and remove all of these bolts.
4. Extract Old Rotor: With the bolts removed, the old rotor should come off by pulling it directly outwards. Be extremely careful not to damage the brake caliper's hydraulic line as you maneuver the old rotor out and the new one in.
5. Install New Rotor: Position the new brake rotor onto the wheel hub, ensuring it is correctly aligned with the bolt holes. Reinsert and tighten all the rotor bolts. Again, using a torque wrench is highly recommended for these critical fasteners.
6. Reassemble Axle and Caliper: Raise the axle back into its correct position and reinsert the axle nut, tightening it to specification and replacing any cotter pin. Finally, place the brake caliper back over the new rotor and secure it with its two main bolts, tightening them securely.

Part 3: Replacing Brake Calipers – For Sticking or Malfunctioning Units

While less common, calipers can fail. Signs include a wheel that's hard to spin, a bike pulling to one side when braking, or a brake lever/pedal that feels unusually stiff or spongy. If you've already removed the caliper for pad or rotor replacement, installing a new one is straightforward.

1. Disconnect Brake Line: With the caliper's main mounting bolts already removed (as per Part 1), the only remaining connection is the hydraulic brake line. Using your 3/8" wrench, carefully loosen and remove the banjo bolt that connects the brake line to the caliper. Be prepared for some brake fluid to drip out. Have rags ready and immediately cap the open brake line to minimise fluid loss and prevent contamination.
2. Install New Caliper: Position the new brake caliper in place. Reconnect the brake line to the new caliper using the banjo bolt and new crush washers (always use new crush washers to ensure a leak-free seal). Tighten the banjo bolt securely, but do not overtighten.
3. Reinstall Caliper Mounts: Reinstall the two main bolts holding the caliper to the fork or swingarm and tighten them to the specified torque.
4. Crucial Step: Bleeding the Brakes: Because you've disconnected the brake line, air will have entered the system. This air must be removed, or your brakes will feel spongy and be ineffective. This is a two-person job for safety and efficiency.
1. Prepare for Bleeding: Ensure your master cylinder reservoir is full to the "MAX" line with the correct type of fresh brake fluid. Attach one end of your clear hose securely to the bleeder screw on the new caliper. Place the other end of the hose into an empty, clean bottle or container, ensuring the end of the hose is submerged in a small amount of fresh brake fluid to prevent air from being drawn back in.
2. The Bleeding Process (Rear Brake Example): Have your friend pump the rear brake pedal slowly and firmly a few times (typically 3-5 pumps) and then hold the pedal down firmly.
3. Bleed Fluid: While your friend holds the pedal down, quickly loosen the bleeder screw on the caliper using your 3/8" wrench. You will see brake fluid, possibly with air bubbles, flow through the clear hose into the bottle.
4. Tighten and Release: As the fluid flows, watch for bubbles. Before the fluid stops flowing, tighten the bleeder screw firmly. ONLY THEN should your friend release the brake pedal.
5. Repeat: Repeat steps (b) through (d) multiple times. It's crucial to ensure the master cylinder never runs dry during this process; continuously top it off as needed. Continue bleeding until you see a steady stream of clear, bubble-free fluid coming out of the bleeder hose.
6. Final Checks: Once bleeding is complete and the brake pedal/lever feels firm, tighten the bleeder screw securely. Top off the master cylinder to the correct level and replace its cover.

Post-Installation Checks and Bedding In

Once all components are installed, a few final steps are essential:

• Pump Your Brakes: Before riding, repeatedly pump your brake lever or pedal until a firm, consistent pressure is achieved. This ensures the pads are seated against the rotor and the system is fully pressurised.
• Check for Leaks: Thoroughly inspect all connections for any signs of brake fluid leaks. Even a small leak can compromise your braking performance.
• Bedding In New Brakes: New brake pads and rotors require a "bedding-in" process to ensure optimal performance and longevity. This involves a series of moderate stops from increasing speeds. Avoid any harsh, sudden stops initially. Perform about 10-15 stops from 30 mph to 5 mph, allowing the brakes to cool slightly between stops. This process helps to transfer a thin layer of pad material onto the rotor surface, ensuring consistent friction.

Troubleshooting Common Brake Issues After Replacement

• Spongy Brake Lever/Pedal: The most common cause is air still trapped in the brake lines. Re-bleed the system thoroughly, ensuring no bubbles are visible.
• Brakes Still Squeaking: This could be due to improper bedding in, cheap or incompatible pads, or contamination on the rotor. Ensure components are clean and try the bedding-in process again.
• Uneven Pad Wear: This often indicates a sticking caliper piston or slides. The caliper may need to be rebuilt or replaced if it's not moving freely.
• Brake Fluid Discolouration: If your brake fluid turns dark quickly, it may be absorbing moisture or breaking down. It's time for a full fluid flush.

Frequently Asked Questions (FAQs)

How often should I replace my brake pads on a Softail?

Brake pad life varies significantly based on riding style, conditions, and pad material. Generally, inspect your pads at every service interval, or at least every 5,000 to 10,000 miles. Replace them when they reach their minimum thickness specified by Harley Davidson, or if you hear the squeaking noise.

Can I replace just one brake component, or should I do them all?

While you can replace individual components, it's generally recommended to replace brake pads in pairs (both front or both rear) to ensure even braking. Rotors are also often replaced in pairs if worn evenly. If a caliper is sticking, replacing just that caliper is acceptable, but always bleed the system afterwards.

What type of brake fluid does my Harley Softail use?

Most Harley Davidson Softail models use DOT 4 brake fluid. However, some older models might use DOT 5 (silicone-based). It is absolutely critical to check your owner's manual or the cap of your master cylinder to confirm the correct type. Never mix DOT 4 and DOT 5 fluids as they are incompatible and can cause significant damage to your brake system.

How do I know if my brake caliper is sticking?

Signs of a sticking caliper include the bike pulling to one side during braking, excessive heat coming from one wheel, a burning smell, reduced fuel economy, or a wheel that is difficult to spin by hand when the bike is off the ground.

Is it safe to bleed my own brakes?

Yes, bleeding your own brakes is a common DIY task, but it requires patience and adherence to the correct procedure. If done incorrectly, air can remain in the system, leading to dangerous brake performance. If you are unsure, it's always best to consult a professional mechanic.

What is brake fade?

Brake fade is a reduction in braking power due to excessive heat. This often occurs during heavy or prolonged braking, causing the brake pads to lose their friction capabilities. Proper brake maintenance and ensuring your components are in good condition can help mitigate brake fade.
