So, you've just poured your heart and soul into an engine rebuild, confident in your meticulous work, only to be greeted by a smoke show so profound it prompts your neighbours to check for house fires. It's a truly baffling and alarming experience, especially when you know you've done everything 'right'. The pulsating idle and a frantic O2 sensor only add to the head-scratching. While a little wispy smoke can be normal after a rebuild, what you've described sounds like a significant issue that demands immediate attention. Let's break down what could be causing such a dramatic display and how to tackle it.
First and foremost, it's crucial to distinguish between normal post-rebuild occurrences and serious problems. A brand-new or freshly rebuilt engine will often produce some light smoke or vapours for a short period. This is typically due to residual assembly lubricants, protective coatings, or even oil that might have dripped onto hot exhaust components during installation. However, when the smoke is thick enough to obscure vision and covers the entire block, it's a clear signal that something more substantial is amiss. Your observation that it's not condensation and doesn't smell like coolant is a vital diagnostic clue, pointing away from head gasket issues or cracked blocks, and more towards the burning of oil or other specific contaminants.
Decoding the Smoke: What's Burning?
Given the sheer volume of smoke and your description of its colour and smell (not coolant, not thinning), the primary suspect is typically oil burning. When oil enters the combustion chambers or comes into contact with very hot exhaust components, it produces a dense, often bluish-white to greyish-white smoke with a distinctive pungent smell. The fact that it stayed white could also indicate other contaminants or an extremely rich fuel condition, but the volume points strongly to oil.
Common Culprits for Extreme Post-Rebuild Smoke:
- Excessive Assembly Lube or Oil: While some burn-off is normal, if an excessive amount of assembly lube, engine oil, or even rust-preventative oil was used or left in places it shouldn't be (e.g., inside exhaust ports), it can create a temporary but intense smoke screen. However, this usually dissipates quickly and wouldn't typically last long enough to cover a whole block.
- Piston Ring Issues: This is arguably the most common cause of severe oil burning after a rebuild. Even experienced mechanics can encounter this.
- Incorrect Ring Installation: Piston rings must be installed with the correct orientation (top vs. bottom, specific side up) and gap alignment. Incorrectly installed rings, or those with misaligned gaps, won't seal properly against the cylinder walls, allowing oil from the crankcase to bypass the rings and enter the combustion chamber.

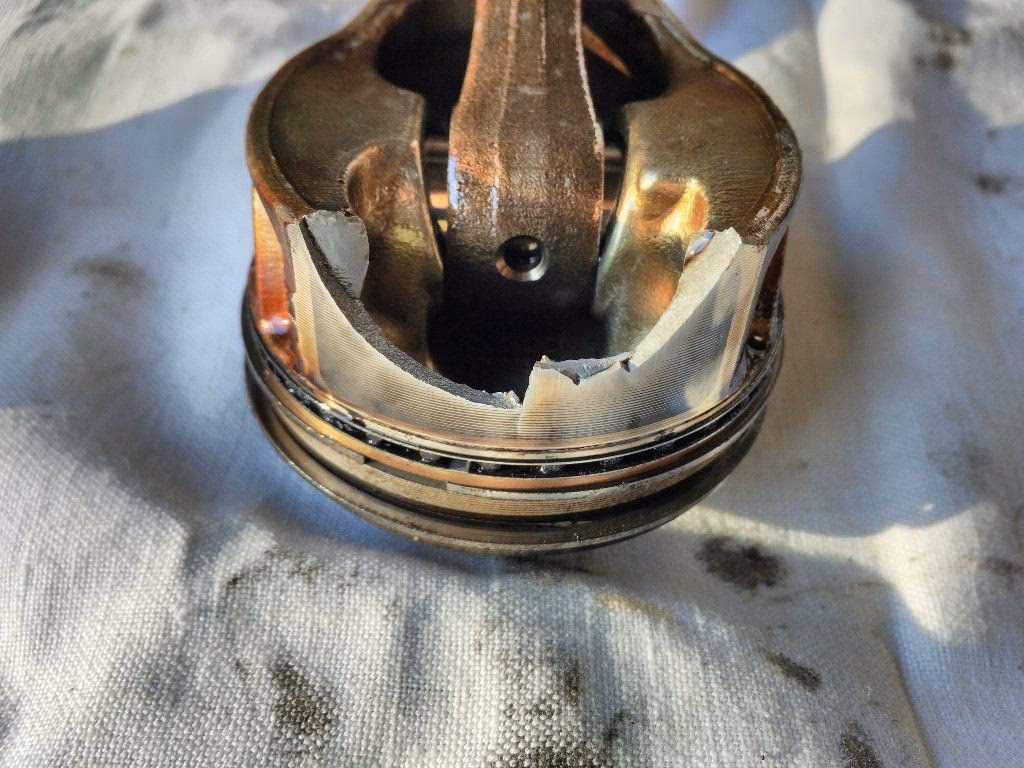

- Damaged Rings: Rings can be damaged during installation if forced or if the ring compressor isn't used correctly. A cracked or broken ring will fail to seal.
- Improper Ring Seating (Break-in): New rings need a proper break-in period to seat correctly against the cylinder walls. If the engine isn't run under varying loads during the initial break-in, the rings might not seat, leading to oil blow-by. However, the smoke you describe sounds more immediate and severe than a typical ring seating issue.
- Valve Stem Seals: These small seals prevent oil from the cylinder head (where the camshaft and valve springs are lubricated) from seeping down the valve stems into the combustion chamber. If these seals are damaged during valve installation, installed incorrectly, or are simply defective, they can leak a significant amount of oil, especially on the exhaust side, leading to white/blue smoke.
- Head Gasket Issues: While you've ruled out coolant smell, a head gasket can also fail in a way that allows oil (from an oil gallery) to enter the combustion chamber or exhaust ports, leading to smoke. It's less common for a brand new head gasket to do this, but not impossible if there was a defect or installation error.
- PCV (Positive Crankcase Ventilation) System Problems: A properly functioning PCV system vents crankcase gases and oil vapours back into the intake manifold to be re-burnt. If the PCV valve is stuck open, or the system is blocked or incorrectly routed, it can lead to excessive crankcase pressure, forcing oil past seals (like the rear main seal or even piston rings), or drawing excessive oil vapour into the intake manifold to be burnt, causing significant smoke.
- Turbocharger Issues (If Applicable): If your engine is turbocharged, a new or rebuilt turbo might have issues with its oil seals. Leaking turbo seals can dump large amounts of oil directly into the exhaust or intake, resulting in massive smoke.
- Residual Solvents or Contaminants: Less likely to cause such extreme, persistent smoke, but if engine components were cleaned with a solvent that wasn't fully evaporated or flushed, and then burnt off, it could produce an acrid, white smoke.
Addressing the Pulsating Idle and O2 Sensor
The pulsating idle (revving up to 2500 RPM and dropping to 1000 RPM repeatedly) coupled with an O2 sensor 'going crazy' is a critical diagnostic indicator. This behaviour suggests the engine's Electronic Control Unit (ECU) is struggling to maintain a stable air-fuel mixture. Here’s why:
- O2 Sensor Overload: If the engine is burning a massive amount of oil, the exhaust gases will be heavily contaminated with combustion byproducts of oil. The O2 sensor, designed to measure oxygen content for fuel mixture adjustments, will be completely overwhelmed and send erratic signals to the ECU. It's not necessarily that the O2 sensor itself is faulty, but rather it's reacting to an extremely abnormal exhaust gas composition.
- ECU's Reaction: In response to the erratic O2 sensor readings (indicating either a very rich or very lean condition due to the smoke/combustion issues), the ECU will try to compensate by constantly adjusting fuel delivery and ignition timing, leading to the erratic idle. It's in a feedback loop, chasing an impossible target because the underlying issue (the smoke source) isn't being addressed.
- Potential Vacuum Leaks: While less likely to cause such extreme smoke, a significant vacuum leak can also cause a fluctuating idle as unmetered air enters the engine. This would make the engine run lean, and the O2 sensor would try to compensate by adding more fuel. However, this doesn't typically explain the 'smoke covering the block' scenario unless it's combined with another oil-burning issue.
Systematic Diagnostic Steps
Given the severity, a systematic approach is vital. Safety first: ensure your garage is extremely well-ventilated, have a fire extinguisher handy, and avoid prolonged running of the engine in this state.
- Initial Visual Inspection: Carefully inspect the engine bay. Look for any obvious external oil leaks, especially around the exhaust manifold, turbo (if applicable), or any new gaskets. Check if any oil has dripped onto the exhaust system from above.
- Check Fluid Levels: Monitor your oil level closely. If it's dropping rapidly, that's further confirmation of significant oil burning.
- Spark Plug Inspection: Remove and inspect all spark plugs. Their condition can tell you a lot:
- Oil Fouling: Plugs coated in black, wet, oily residue strongly indicate oil burning in that cylinder.
- Carbon Fouling: Dry, sooty black deposits could indicate a very rich fuel mixture (perhaps due to the O2 sensor issue) or excessive idling.
- Glazing: Shiny, yellowish deposits could indicate additives or oil burning at high temperatures.
- Compression Test & Leak-Down Test: These are crucial for diagnosing internal engine health:
- Compression Test: Checks the sealing integrity of the piston rings and valves. Low compression in one or more cylinders can point to issues with rings, valves, or head gasket.
- Leak-Down Test: Even more precise than a compression test, this test pressurises each cylinder with compressed air and measures how much air leaks out. You can often hear where the air is escaping (e.g., through the exhaust for an exhaust valve issue, through the intake for an intake valve issue, or into the crankcase for a piston ring issue). This is your best bet for confirming ring seating or damage.
- PCV System Check: Ensure the PCV valve is functioning correctly (it should rattle when shaken and allow air flow in one direction) and that all PCV hoses are connected and free of blockages or cracks.
- Exhaust System Check: While less likely, ensure there isn't a significant blockage in the exhaust system causing back pressure, though this usually manifests as a lack of power rather than extreme smoke.
- O2 Sensor & ECU Diagnostics: While the O2 sensor is likely reacting to the problem, it's worth connecting a diagnostic scan tool to read live data. Look at the O2 sensor readings (they should be fluctuating rapidly but within a normal range, not wildly erratic). Check for any stored Diagnostic Trouble Codes (DTCs) related to the O2 sensor, fuel trims, or misfires.
Smoke Colour & Common Causes Table
| Smoke Colour | Likely Cause | Smell | Notes (Post-Rebuild Context) |
|---|---|---|---|
| White/Grey (Thick, Persistent) | Burning oil (most likely), unburnt fuel vapour | Pungent, acrid, sometimes sweet (if coolant, but you ruled this out) | Primary suspect for your situation. Points to piston rings, valve stem seals, or significant assembly lube burn-off. |
| Blue/Bluish-Grey | Burning oil | Distinctive burnt oil smell | Similar to thick white/grey, just a shade difference. Definitely oil. |
| Black | Excessively rich fuel mixture, burning carbon deposits | Strong fuel smell, sometimes acrid | Engine receiving too much fuel or not enough air. Less likely for "white" smoke but worth noting. |
| White (Thin, Dissipating Quickly) | Condensation, normal burn-off of assembly lubes | Often no strong smell, or slight new engine smell | Normal after rebuild, but clearly not what you're seeing. |
Frequently Asked Questions (FAQs)
Q: Is ANY smoke normal after an engine rebuild?
A: A small amount of thin, wispy white or light grey smoke, especially on initial start-up or during the first few minutes of operation, can be normal. This is typically due to residual assembly lubricants, protective coatings, or even oil that dripped onto the exhaust during installation burning off. However, this should dissipate quickly and never be thick enough to obscure vision.
Q: How long should an engine smoke after a rebuild if it's just 'normal' burn-off?
A: Normal burn-off should typically stop within a few minutes of the engine reaching operating temperature, or after the first 10-20 minutes of driving. If it persists beyond this, or if the smoke is thick and continuous, it indicates a problem.
Q: Can a bad O2 sensor cause engine smoke?
A: A faulty O2 sensor itself doesn't directly cause smoke. However, an O2 sensor that is giving incorrect readings can cause the engine's computer to mismanage the fuel-air mixture (e.g., make it run excessively rich), which *can* lead to black smoke (due to unburnt fuel) or, indirectly, to other issues. In your case, it's far more likely that the O2 sensor is reacting to the extreme smoke and combustion issues, rather than being the cause of it.
Q: What's the biggest mistake people make after an engine rebuild that causes smoke?
A: One of the most common mistakes leading to significant smoke is improper piston ring installation (incorrect orientation, gap alignment, or damage during fitting) or failing to ensure proper ring seating during the initial break-in period. Another common issue is damaged or incorrectly installed valve stem seals.
Q: What if I can't find the cause after trying these steps?
A: If you've performed these diagnostics and are still stumped, it's time to consider getting a professional opinion. An experienced automotive technician with specialised diagnostic equipment can often pinpoint the issue more quickly and safely. Given the magnitude of the smoke, prolonged operation could cause further, more severe damage.
The Next Steps
Given your extensive experience, it's particularly frustrating when such an issue arises. Even seasoned mechanics can overlook a tiny detail or encounter a faulty new component. The key here is not to second-guess your overall skill, but to methodically re-evaluate every component and step involved in the rebuild that could lead to such a massive oil burn or contamination. The pulsating idle and O2 sensor behaviour are symptoms of the underlying problem, which is the engine's inability to combust fuel cleanly due to the overwhelming smoke. Your priority is to identify the source of that smoke.
Start with the least invasive and most likely culprits first, moving towards more involved diagnostics like the compression and leak-down tests. It's a daunting task, but a systematic approach will help you uncover the root cause and get your freshly rebuilt engine running as cleanly and powerfully as it should. Remember, addressing this swiftly is crucial to prevent any further damage to your meticulously assembled engine.
