Can You Repurpose Your AIS Smog System?

In the intricate world of automotive engineering, every component serves a specific purpose, meticulously designed to contribute to the vehicle's overall function. Among these, the Air Induction System (AIS), often referred to as a "smog system," plays a crucial role in managing your vehicle's environmental impact. But a common question arises for enthusiasts and DIY mechanics alike: can this highly specialised system be repurposed for other uses? The short answer, overwhelmingly, is no. Let's delve into why this is the case, understanding the AIS's design, function, and the implications of attempting to divert it from its intended purpose.

Understanding the AIS: Its Primary Purpose

The Air Induction System (AIS) is an essential part of a vehicle's emissions control strategy, particularly prevalent in motorcycles and some cars. Its primary function is to reduce the amount of unburnt hydrocarbons and carbon monoxide released into the atmosphere. It achieves this by injecting fresh air into the exhaust port, just as the exhaust gases leave the combustion chamber. This fresh air provides additional oxygen, which helps to ignite any unburnt fuel in the hot exhaust gases, essentially allowing for a secondary combustion to occur within the exhaust system before the gases reach the catalytic converter. This process significantly reduces harmful pollutants, making your vehicle more environmentally friendly and compliant with stringent emissions regulations.

Typically, an AIS consists of several key components: an air pump (either mechanical or vacuum-driven), a series of hoses, and one-way reed valves that prevent exhaust gases from flowing back into the airbox. Some systems are more complex, integrating with the Engine Control Unit (ECU) to precisely manage air injection based on engine speed, load, and temperature. This sophisticated design highlights its singular focus: environmental compliance and efficient exhaust gas treatment.

Why Repurposing the AIS is Not Feasible

Given its highly specialised design, attempting to repurpose an AIS for anything other than its intended emissions control function is largely impractical and often detrimental. Here’s why:

• Specific Functionality: The AIS is not a general-purpose air compressor or vacuum pump. Its components are engineered to handle hot exhaust gases and introduce a controlled flow of air for a very specific chemical reaction. The air pump, if present, is low-pressure and low-volume, designed only to overcome exhaust backpressure, not to inflate tyres or power pneumatic tools.
• Lack of Adaptability: The one-way reed valves are designed to open and close rapidly in response to exhaust pulses and pressure differentials. They are not suitable for regulating air flow for other applications. The hoses are typically heat-resistant but not necessarily robust enough for high-pressure or continuous-flow applications outside their design parameters.
• Integration with Vehicle Systems: Modern AIS systems are often monitored by the ECU. Removing or altering the system without proper ECU recalibration will almost certainly trigger a "Check Engine" light (CEL) and could lead to incorrect fuel-air mixture readings, impacting engine performance, fuel economy, and potentially causing long-term damage.
• Safety Concerns: Attempting to modify or repurpose a component designed for a specific automotive function can introduce unforeseen safety risks. Improper connections or modifications could lead to leaks, fire hazards, or damage to other critical vehicle systems.

The "AIS Delete" Phenomenon: A Misconception of Repurposing

While you cannot repurpose an AIS, you might have heard of "AIS delete" kits, particularly popular in the motorcycle community. It’s crucial to understand that an AIS delete is not about repurposing the system but rather about removing it entirely. This modification is typically undertaken for a few reasons:

• Aesthetics and Weight Reduction: Removing the AIS components can declutter the engine bay, making it look cleaner and slightly reducing the vehicle's overall weight, which can be appealing for track-focused bikes.
• Deceleration Popping/Backfiring: In some vehicles, especially those with aftermarket exhausts, the AIS can contribute to "deceleration popping" or backfiring. By removing the AIS, this phenomenon can be reduced or eliminated, which some riders prefer.
• Simplification for Race Use: For vehicles used exclusively on closed courses or in racing environments where emissions regulations do not apply, simplifying the engine system by removing non-essential components can be beneficial for maintenance and tuning.

However, an AIS delete is not without significant drawbacks and legal implications:

• Legality: In the UK, tampering with or removing any emissions control device from a road-legal vehicle is illegal. Vehicles with modified emissions systems will fail their annual MOT test. The MOT test includes an emissions check, and any modification that increases tailpipe emissions will result in a failure. Fines and penalties can also be imposed for non-compliant vehicles.
• Environmental Impact: Removing the AIS directly increases the release of harmful pollutants into the atmosphere, contributing to air pollution. This goes against the fundamental principles of modern vehicle design and environmental responsibility.

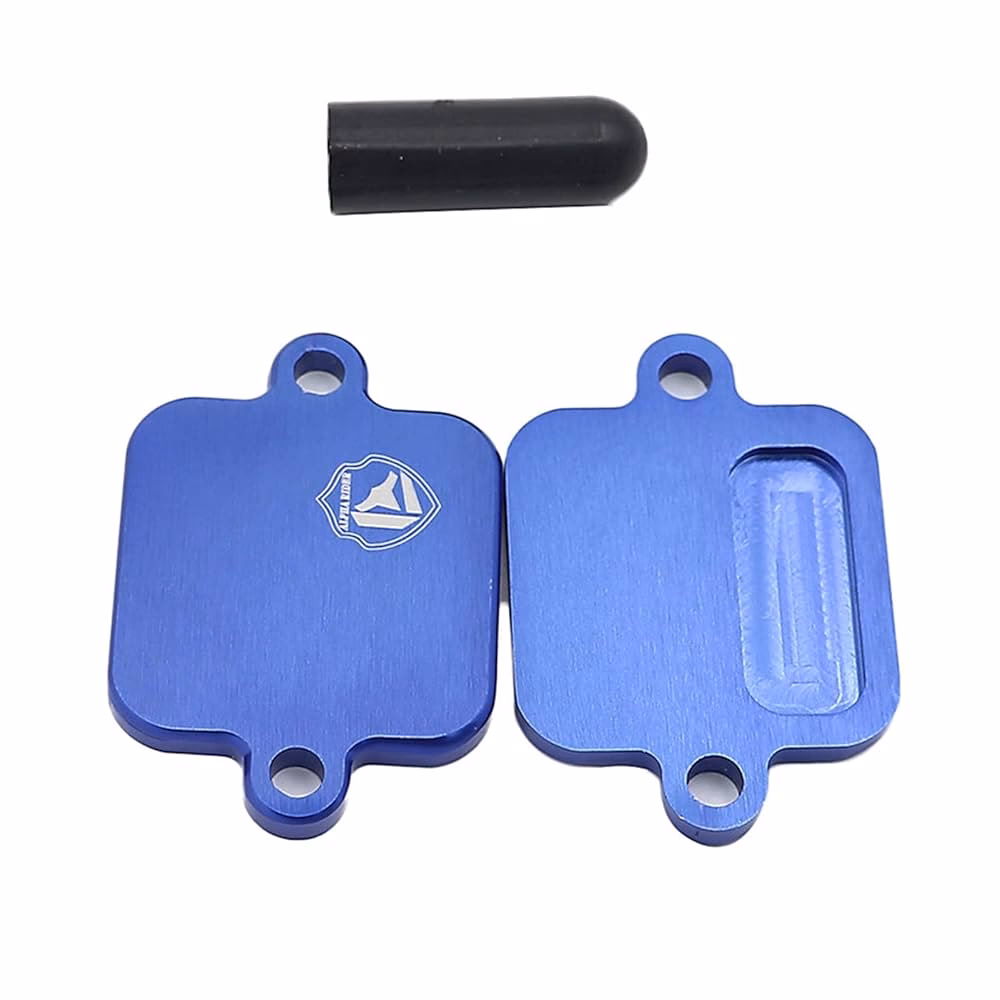

• Engine Management Issues: As mentioned, the ECU expects the AIS to be present and functioning. Removing it without proper ECU remapping can lead to error codes, sub-optimal engine running, and even potential long-term damage if the fuel mapping is significantly thrown off. While some delete kits come with block-off plates and resistor plugs to trick the ECU, this only addresses the error code, not the underlying emissions increase.

Therefore, while an AIS delete removes the system, it does not repurpose it. It's a modification with specific consequences, primarily undertaken for non-road legal or racing applications, and is generally not recommended for everyday road vehicles in the UK.

Detailed Operation of the AIS

To further illustrate why the AIS is so specialised, let's look at its operation in more detail. When exhaust gases exit the engine's combustion chambers, they are still incredibly hot and contain residual unburnt fuel particles (hydrocarbons) and carbon monoxide. The AIS introduces fresh, oxygen-rich air into this hot exhaust stream, typically via passages in the cylinder head, near the exhaust valves. This fresh air mixes with the hot exhaust gases, providing the necessary oxygen for these unburnt pollutants to undergo a secondary combustion, or oxidation, within the exhaust manifold or header pipes. This process converts the harmful hydrocarbons (HC) and carbon monoxide (CO) into less harmful carbon dioxide (CO2) and water (H2O) before they reach the catalytic converter. The catalytic converter then further refines these gases, but the AIS significantly reduces the workload on the converter, extending its life and improving overall emissions efficiency, especially during cold starts when the catalytic converter has not yet reached its optimal operating temperature.

The system's control varies. Simpler systems might use a vacuum-operated valve that opens and closes based on engine vacuum, allowing air to be drawn in only when needed. More advanced systems use an electric air pump and electronic control valves, precisely managed by the ECU to inject air at specific engine speeds and loads for maximum efficiency. This precise timing and quantity of air injection are critical for optimal emissions control and engine performance, underlining the intricate nature of its design.

Comparison: AIS vs. Other Vehicle Systems

To highlight the unique nature of the AIS, let's compare it to other common vehicle systems, illustrating why its components are not easily repurposed:

As the table demonstrates, while a 12V battery has inherent versatility for various DC power needs, the AIS, like most other complex automotive systems, is highly integrated and engineered for a single, critical function. Its components do not lend themselves to alternative uses without significant modifications, which would likely render them ineffective for their original purpose and unreliable for a new one.

Frequently Asked Questions About AIS

What does AIS stand for?

AIS stands for Air Induction System. It is also sometimes referred to as a Secondary Air Injection System or simply a "smog pump" system, particularly in older vehicles that used a dedicated mechanical pump.

What does an AIS do for my vehicle?

An AIS injects fresh air into the exhaust stream immediately after combustion. This additional oxygen helps to burn off uncombusted fuel and carbon monoxide in the exhaust gases, converting them into less harmful carbon dioxide and water vapour before they exit the tailpipe. This process significantly reduces harmful emissions and helps the vehicle meet environmental standards.

Is removing the AIS illegal in the UK?

Yes, removing or tampering with any emissions control device, including the AIS, on a road-legal vehicle in the UK is illegal. It will cause your vehicle to fail its annual MOT test, and you could face fines or other penalties. These devices are integral to ensuring your vehicle meets required environmental standards.

What are the symptoms of a faulty AIS?

Symptoms of a faulty AIS can include a "Check Engine" light illuminating on your dashboard, increased exhaust emissions (which would lead to an MOT failure), rough idling, or a noticeable increase in deceleration popping (backfiring) if the system is failing to inject air correctly.

Does an AIS affect engine performance?

No, a properly functioning AIS has a negligible direct impact on engine performance. Its role is solely in emissions control after combustion. While some might believe removing it frees up horsepower, any perceived gain is typically minimal and often outweighed by the legal and environmental consequences, not to mention potential engine management issues if the ECU is not properly remapped.

Can I use AIS components for a DIY air compressor or other home projects?

No, it is highly unadvisable. The air pump in an AIS system is not designed to generate the high pressures or continuous flow rates required for typical air compressor applications. The reed valves are specific to exhaust gas environments and are not suitable for general air regulation. Attempting to repurpose these components would likely result in poor performance, component failure, and potentially unsafe conditions. They are too specialised for such endeavours.

Conclusion

The Air Induction System (AIS) is a vital, albeit often overlooked, component of your vehicle's emissions control system. Its design and function are meticulously tailored to reduce harmful pollutants, making it a highly specialised piece of engineering. While the idea of repurposing automotive parts for other uses can be appealing, the AIS stands as a prime example of a system that is simply not designed for versatility. Attempting to use it for anything other than its intended purpose will likely lead to inefficiency, potential damage to your vehicle, and, most importantly, legal issues due to tampering with emissions control devices, particularly in the context of the UK's strict MOT requirements. For the health of your vehicle, the environment, and your wallet, it’s best to let the AIS perform its crucial job as intended.
