Smart Fortwo Clutch Actuator: Clean & Lube Guide

The clutch actuator on a Smart Fortwo, particularly the 451 model, plays a crucial role in the seamless operation of your automated manual transmission. Over time, the accumulation of dust, debris, and old grease can lead to sluggish shifting, unusual noises, or even transmission error codes. Fortunately, with a bit of know-how and the right tools, you can undertake a preventative maintenance task to clean and lubricate this vital component, potentially restoring smoother gear changes and prolonging its lifespan. This guide will walk you through the process, offering practical advice and essential steps for a successful outcome. Remember, as with any automotive maintenance, YMMV (Your Mileage May Vary) and you should always perform these tasks at your own risk.

Why Clean and Lubricate the Clutch Actuator?

The clutch actuator is an electromechanical device responsible for disengaging and engaging the clutch. It's essentially an automated way of doing what a clutch pedal does in a manual car. It receives signals from the car's computer and moves a piston to operate the clutch. When this mechanism becomes dirty or its lubrication dries up, it can lead to a range of performance issues: * Sluggish Shifting: The actuator might struggle to move smoothly, causing delays or hesitations between gears. * Clunking or Grinding Noises: Poor lubrication or debris can cause the actuator's internal components to grind or clunk during operation. * Transmission Error Codes: The car's onboard diagnostics may detect improper actuator function and trigger a warning light. * Difficulty Engaging Gears: In severe cases, a malfunctioning actuator can make it difficult to select any gear. Performing a clean and lubrication is a proactive measure that can help prevent these issues from developing or address them if they are just beginning.

Essential Tools and Supplies

Before you begin, ensure you have the necessary tools and supplies to complete the job efficiently and safely. Having everything at hand will prevent interruptions and ensure a smoother workflow. Here's what you'll need: * External Torx Socket Set: Specifically, an E10 socket is required for the actuator mounting bolts. If you don't have an external Torx set, they are readily available and inexpensive from most automotive tool suppliers. * 10mm Socket: For disconnecting the negative battery terminal. * Torx T20 Screwdriver: To remove the screws on the actuator housing cover. * Brake Cleaner or Electrical Contact Cleaner: A good quality cleaner will help remove old grease, dirt, and debris effectively. * White Lithium Grease (Spray Can): This is ideal for lubricating the moving parts of the actuator. It offers good adhesion and protection against wear. * Dielectric Grease: Recommended for coating the electrical connector contacts to prevent moisture ingress and corrosion. * Rags or Shop Towels: For cleaning and wiping. * Small Paintbrush (Optional): Can be useful for cleaning intricate parts within the actuator housing. * Vehicle Ramps or Jack and Stands: To safely elevate the rear of the vehicle for access. * Torque Wrench (Recommended): For tightening bolts to the correct specifications, though not strictly essential for this specific task if done carefully. * Marker (e.g., Sharpie): To mark the actuator's position before removal.

Step-by-Step Guide to Cleaning and Lubricating the Clutch Actuator

Follow these steps carefully to remove, clean, lubricate, and reinstall your Smart Fortwo's clutch actuator.

Step 1: Prepare the Vehicle

Safely elevate the rear of your Smart Fortwo using vehicle ramps. Ensure the parking brake is firmly engaged. This will give you the necessary access to the underside of the engine compartment where the clutch actuator is located. The actuator is typically found behind the driver's seat, tucked away beneath the engine.

Step 2: Disconnect the Battery

For safety and to prevent potential electrical issues or error codes, it is crucial to disconnect the negative battery terminal. Open the passenger floorboard to access the battery compartment. Using your 10mm socket, loosen the nut on the negative terminal and carefully remove the cable. Tuck it away so it cannot accidentally reconnect.

Step 3: Locate and Disconnect the Actuator

Working from underneath the car, locate the clutch actuator. It's a black, somewhat rectangular unit mounted to the transmission housing. You'll see the electrical connector attached to it. To disconnect it, carefully depress the locking tabs on both sides of the connector and gently pull it away from the actuator. You might need to use a small flathead screwdriver to help release the tabs if they are stiff.

Step 4: Remove the Actuator Mounting Bolts

Use your E10 external Torx socket to loosen and remove the three bolts securing the clutch actuator to the transmission. Before completely removing the bolts, it's a good idea to use a marker to make a reference mark on the actuator housing and the transmission. This will help you reinstall it in the same orientation, preserving the clutch's existing adjustment. Once the bolts are out, the actuator should be free to be removed.

Step 5: Clean the Transmission Interface

With the actuator removed, you'll be able to see the mating surface on the transmission where the actuator's piston engages. This area might have residual grease and debris. Take a clean rag and wipe away any old grease, dirt, or foreign particles. You may also notice a small dimple or plate where the actuator piston contacts the transmission; ensure this area is clean.

Step 6: Disassemble the Actuator Housing

Take the removed clutch actuator to a well-lit workspace. Turn it over to access the bottom of the housing. You will find six screws holding the cover in place. Use your Torx T20 screwdriver to carefully remove these screws. Keep the screws in a safe place.

Step 7: Clean the Actuator Internals

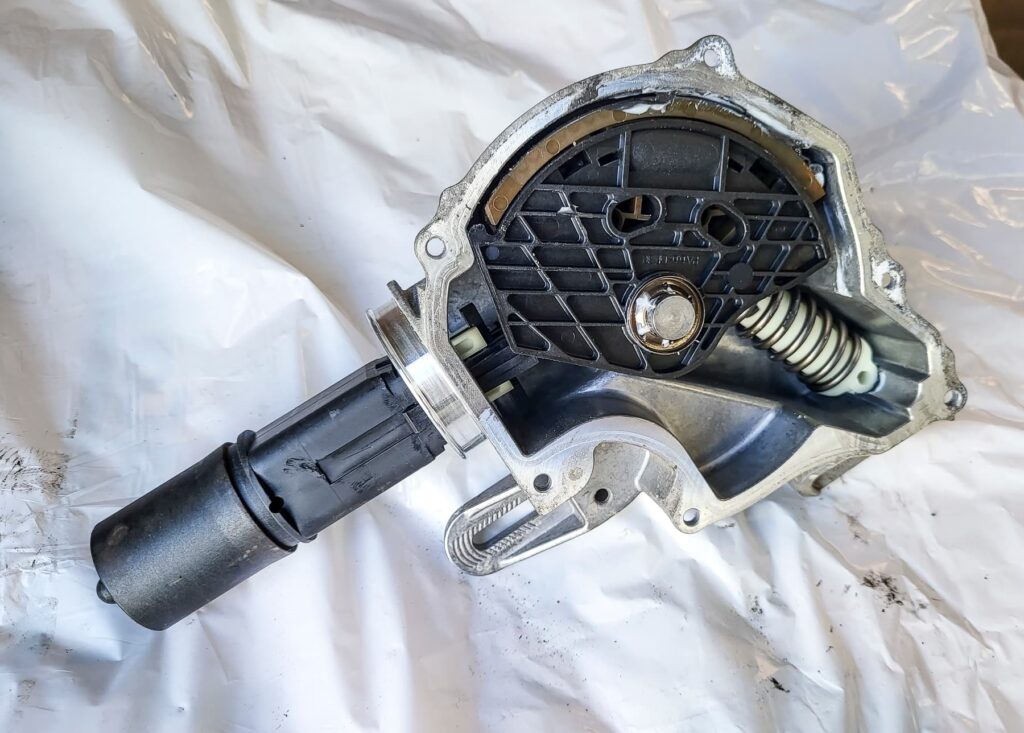

Once the cover is removed, you will see the internal mechanism of the actuator. Use your electrical contact cleaner or brake cleaner to thoroughly clean away all the old grease, dirt, and any metal filings or debris. Pay close attention to the moving parts, such as the screw drive and the piston. A small paintbrush can be helpful for dislodging stubborn dirt from nooks and crannies. Clean the inside of the cover as well, as it may have accumulated grime.

Step 8: Lubricate and Reassemble

Allow the actuator components to dry completely after cleaning. Once dry, apply a liberal amount of white lithium grease spray to all the moving parts. Ensure the screw drive, gears, and the piston are well-coated. Pay attention to the area where the piston extends and retracts. Before replacing the cover, ensure the gasket is clean and seated correctly. Also, clean the mating surface on the actuator housing where the gasket seals. This is crucial for creating a good seal and preventing moisture from entering. Some owners also like to apply a small amount of regular white lithium grease directly to the tip of the actuator piston. Once lubricated, carefully replace the cover and secure it with the six T20 screws. Do not overtighten the screws.

Step 9: Reinstall the Actuator

Carefully position the cleaned and lubricated actuator back onto the transmission housing. Thread the three E10 mounting bolts back into place by hand to avoid cross-threading. Initially, tighten them only slightly. Align the actuator using your reference marks made earlier to ensure it's in the correct position. Once aligned, tighten one of the bolts to hold it in place, then snug up the other two. Finally, tighten all three bolts securely, but avoid overtightening, which could strip the threads.

Step 10: Reconnect Electrical Connector and Battery

Before plugging the electrical connector back in, it is highly recommended to apply a small amount of dielectric grease to the contacts. This will help protect the electrical connections from moisture and corrosion, which can be a common issue in the undercarriage of a car. Once greased, firmly push the connector back onto the actuator until it clicks into place. Finally, reconnect the negative battery terminal using your 10mm socket and tighten it securely. Close the battery compartment lid.

Step 11: Test Drive and Record Keeping

Lower the vehicle safely from the ramps. Start the engine and listen for any unusual noises. Take the Smart Fortwo for a test drive, paying close attention to the gear shifting. You should hopefully notice smoother shifts and a more responsive transmission. It’s good practice to record the date and mileage of this maintenance in your vehicle's service log for future reference.

Frequently Asked Questions (FAQs)

Q1: How often should I clean and lubricate the clutch actuator?A1: There's no strict schedule, but it's generally considered a good preventative maintenance item. Consider doing it every 30,000 to 50,000 miles, or if you start noticing the symptoms mentioned earlier (sluggish shifting, noises). Q2: Can I use a different type of lubricant?A2: White lithium grease is recommended due to its temperature stability and lubricating properties for this application. Avoid using petroleum-based greases, as they can degrade plastic and rubber components within the actuator. Q3: What happens if I don't mark the actuator's position?A3: If the actuator is reinstalled in a significantly different position, it can affect the clutch's engagement point. This might lead to difficulty shifting, premature clutch wear, or the car not engaging into gear properly. Re-adjustment might be necessary, which can be more complex. Q4: Do I need to bleed the clutch system after this?A4: No, this procedure typically does not require bleeding the clutch hydraulic system, as you are not opening any hydraulic lines. Q5: What if the problem persists after cleaning and lubricating?A5: If you still experience shifting issues after performing this maintenance, the problem might lie elsewhere in the transmission or clutch system. It could indicate a worn-out actuator, a faulty sensor, or other internal transmission problems that may require professional diagnosis.

Conclusion

Cleaning and lubricating your Smart Fortwo's clutch actuator is a manageable DIY task that can contribute significantly to the longevity and smooth operation of your vehicle's transmission. By following these detailed steps and using the correct tools and materials, you can effectively address potential issues and ensure your Smart Fortwo continues to provide a reliable and enjoyable driving experience. Remember to always prioritize safety and perform maintenance tasks diligently.
