Steering Rack Replacement: The Ultimate Guide

A vehicle's steering system is undeniably one of its most safety-critical components. It’s what gives you control, allowing you to navigate the roads with precision and confidence. Among the many intricate parts that work in harmony to achieve this, the steering rack stands out as a fundamental piece of engineering. When this vital component begins to show signs of distress, it's not merely an inconvenience; it's a serious safety concern that demands immediate attention. In this comprehensive car maintenance guide, we’ll delve deep into the world of steering racks, exploring their function, common faults, the crucial symptoms to look out for, and, most importantly, whether they need replacing and what that entails for your wallet.

Ignoring issues with your steering rack can lead to a significant loss of control, putting you and other road users at severe risk. This article aims to equip you with the knowledge needed to identify potential problems early and understand the necessary steps to ensure your vehicle remains safe and responsive.

What is a Steering Rack?

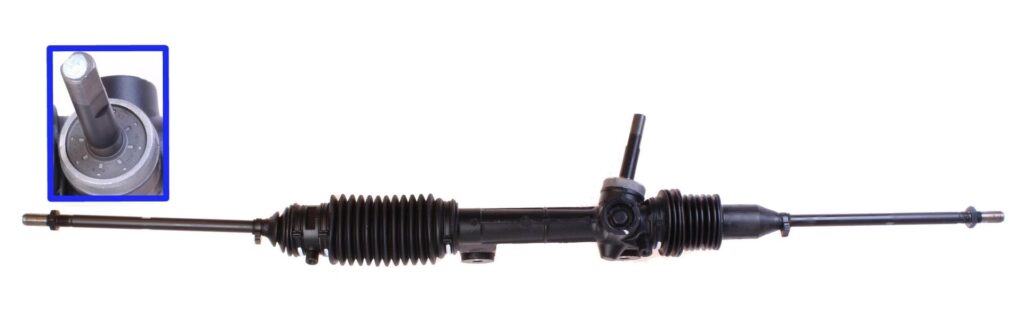

At its core, a steering rack is a crucial component of a vehicle's steering system, designed to convert the rotational movement of the steering wheel into the linear motion required to turn the road wheels. This ingenious mechanism is a hallmark of modern vehicles, offering a more direct and responsive steering feel compared to older recirculating ball systems.

Imagine a long metal bar, typically with teeth cut into one side – that's the 'rack'. Meshing with these teeth is a smaller circular gear, known as the 'pinion'. When you turn the steering wheel, it rotates a shaft connected to this pinion. As the pinion rotates, its teeth engage with the teeth on the rack, causing the rack to move linearly, either to the left or to the right. The ends of the steering rack are connected to the vehicle's steering arms (via tie rods), which in turn are attached to the wheel hubs. Thus, as the rack moves, it pushes or pulls these arms, causing the wheels to turn in the desired direction.

In the vast majority of modern vehicles, this mechanical process is significantly assisted by power steering systems. These systems reduce the effort required to turn the wheel, especially at low speeds or when parking. Historically, this assistance was provided by hydraulic systems, but increasingly, modern cars utilise electric power steering for its efficiency and adaptability.

Types of Steering Racks: Hydraulic vs. Electric

While the basic rack-and-pinion principle remains, the method of power assistance varies significantly, influencing the system's performance, maintenance, and potential failure points.

Hydraulic Power Steering (HPS)

Hydraulic systems use fluid pressure generated by a pump (driven by the engine's accessory belt) to assist steering. When you turn the wheel, valves open, directing fluid to assist the movement of the rack. HPS systems are often praised for their natural road feel and feedback, allowing the driver to sense the road surface more directly.

Electric Power Steering (EPS)

Electric systems, on the other hand, use an electric motor, controlled by an electronic control unit (ECU), to provide assistance. Sensors monitor steering wheel position, torque, and vehicle speed, and the ECU calculates the precise amount of assistance needed. EPS offers several advantages, including improved fuel efficiency (as there's no constant pump draw), easier integration with advanced driver-assistance systems (ADAS), and variable steering feel that can be tuned by the manufacturer. However, some drivers might find them to offer less tactile feedback than hydraulic systems.

Here's a quick comparison:

Why Do Steering Racks Fail? Common Faults

Despite their robust design, steering racks are subject to significant stress and wear over time. Understanding the common reasons for failure can help you identify potential issues early.

• Fluid Leaks (HPS only): This is perhaps the most common issue with hydraulic steering racks. Seals and hoses can degrade over time, leading to power steering fluid leaks. A low fluid level will result in increased steering effort, whining noises, and potential damage to the pump and rack due to lack of lubrication.
• Internal Wear and Tear: Over tens of thousands of miles, the internal components of the rack and pinion – such as the gears, bushings, and bearings – can wear down. This wear leads to excessive play, a loose feeling in the steering, and sometimes clunking noises.
• Contamination: Dirt, debris, or even moisture can enter the steering rack, especially if the protective boots (gaiters) are torn. This contamination can cause premature wear to the internal components and seals.
• Impact Damage: Hitting potholes, kerbs, or speed bumps at speed can inflict sudden, severe shock on the steering rack. This can bend components, damage internal seals, or even crack the housing, leading to immediate failure or accelerated wear.
• Corrosion: Exposure to road salt and moisture, especially in the UK's climate, can lead to corrosion of the metal components, particularly the tie rod ends and the rack housing.
• Pump or Hose Failure (HPS only): While not directly the rack, a failing power steering pump or a burst hose will starve the rack of the necessary hydraulic pressure, making steering extremely difficult and mimicking rack failure symptoms.
• Electrical Malfunctions (EPS only): With Electric Power Steering, issues can arise from faulty sensors, motor failure, or problems within the Electronic Control Unit (ECU). These can lead to intermittent power steering, complete loss of assistance, or warning lights on the dashboard.

Symptoms of a Failing Steering Rack

Recognising the signs of a failing steering rack is paramount for your safety. If you experience any of these symptoms, it's crucial to have your vehicle inspected by a qualified mechanic without delay.

• Difficulty Steering: One of the most obvious signs is that the steering wheel becomes noticeably harder to turn, especially at low speeds or when stationary. This is often due to low power steering fluid (HPS) or an electrical fault (EPS).
• Grinding or Clunking Noises: You might hear unusual noises, such as grinding, clunking, or knocking, when turning the steering wheel. This often indicates internal wear in the rack or loose components.
• Power Steering Fluid Leaks: For hydraulic systems, puddles of reddish-brown fluid under the front of your car are a clear indication of a leak. You might also notice the fluid reservoir level is low.
• Loose Steering or Excessive Play: If there's too much 'play' or slack in the steering wheel before the wheels respond, it suggests wear in the rack and pinion gears or tie rod ends. The steering might feel vague or disconnected from the road.
• Burning Smell: A burning smell, particularly for HPS systems, could indicate that the power steering pump is overheating due to low fluid or a struggling rack.
• Uneven Tyre Wear: A faulty steering rack can cause misalignment, leading to uneven and premature tyre wear. While many issues can cause this, it's a common symptom of steering problems.
• Vibrations Through the Steering Wheel: Vibrations that you feel through the steering wheel, especially when turning or driving over uneven surfaces, can indicate internal rack wear or balance issues.
• Steering Warning Light (EPS only): Modern vehicles with EPS will often illuminate a warning light on the dashboard if an electrical fault is detected within the power steering system.

Do Steering Racks Need to Be Replaced? Can They Be Repaired?

This is the core question. In most cases, if a steering rack has developed significant internal wear, suffered impact damage, or has persistent leaks, the answer is a resounding replacement. While some minor issues, like a single leaky seal or a damaged boot, might theoretically be repairable, the complexity and critical nature of the component often make a full replacement the safer and more cost-effective long-term solution.

Attempting to repair a severely worn or damaged rack can be unreliable. Internal wear is often extensive and difficult to fully address without specialised equipment and expertise. Furthermore, the labour cost to remove, repair, and reinstall a rack can often approach or exceed the cost of simply fitting a remanufactured unit. Remanufactured steering racks are units that have been professionally rebuilt to factory specifications, often with new internal components and seals, offering a reliable and more affordable alternative to brand-new parts.

Given the pivotal role the steering rack plays in vehicle control and safety, compromising on its integrity is never advisable. For most significant faults, the consensus among professional mechanics is that replacement with a new or quality remanufactured unit is the most prudent course of action.

The Steering Rack Replacement Process

Replacing a steering rack is a complex and labour-intensive job that should always be undertaken by a qualified mechanic. It’s not a DIY task for the average car owner. The process typically involves:

1. Vehicle Preparation: The vehicle is raised on a lift, and the front wheels are removed.
2. Draining Fluid (HPS): For hydraulic systems, the power steering fluid is drained.
3. Disconnecting Components: The tie rod ends are disconnected from the steering knuckles. Power steering lines (HPS) or electrical connectors (EPS) are detached from the rack.
4. Removing the Old Rack: The mounting bolts securing the steering rack to the subframe are removed, and the rack is carefully extracted from the vehicle. This often requires dropping the subframe or engine mounts, depending on the car's design.
5. Installing the New Rack: The new or remanufactured steering rack is meticulously installed, ensuring all connections are secure and torqued to manufacturer specifications.
6. Refilling and Bleeding (HPS): For hydraulic systems, new power steering fluid is added, and the system is bled to remove any air.
7. Reassembly: All disconnected components, including tie rods, wheels, and any removed subframe parts, are reattached.
8. Wheel Alignment: Crucially, a professional wheel alignment must be performed after a steering rack replacement. This ensures the wheels are correctly aligned, preventing uneven tyre wear and ensuring safe, straight-line driving.

Steering Rack Replacement Cost

The cost of replacing a steering rack in the UK can vary significantly, typically ranging from a few hundred pounds to well over a thousand, depending on several factors:

• Vehicle Make and Model: Luxury or high-performance vehicles, and those with complex EPS systems, will generally have higher parts and labour costs.
• Type of Steering Rack: Electric power steering racks are often more expensive than hydraulic ones due to the integrated electronics and motor.
• Parts Cost: A brand-new OEM (Original Equipment Manufacturer) steering rack will be the most expensive option. Remanufactured units offer a significant saving, while used parts, though cheapest, carry the highest risk and are generally not recommended for such a critical safety component.
• Labour Costs: This is often the largest portion of the bill. Replacing a steering rack is a time-consuming job, typically requiring 4-8 hours of labour, sometimes more depending on the vehicle's design. Garage labour rates vary across the UK.
• Additional Parts: You might also need new tie rod ends, power steering fluid (HPS), or even a power steering pump if it was damaged due to the failing rack. The mandatory wheel alignment after replacement is an additional cost.

For a typical family car, you might expect to pay anywhere from £400 to £800 for a remanufactured hydraulic rack replacement, including parts, labour, and alignment. For vehicles with complex EPS systems, or premium brands, this cost can easily climb to £800 - £1500 or even more. Always get a detailed quote from a reputable garage.

Maintenance Tips to Extend Steering Rack Life

While steering racks are designed for longevity, a little preventative care can go a long way in extending their lifespan:

• Regular Fluid Checks (HPS): Periodically check your power steering fluid level and condition. If it looks dark or smells burnt, have it flushed and replaced according to your manufacturer's recommendations.
• Avoid Potholes and Kerbs: This is perhaps the most significant tip. Sudden impacts can severely damage the steering rack and other suspension components. Drive defensively and be mindful of road hazards.
• Inspect Power Steering Boots: Have your mechanic regularly check the rubber boots (gaiters) that protect the steering rack. If they are torn, dirt and moisture can enter, leading to premature wear.
• Address Minor Issues Promptly: Don't ignore small leaks or unusual noises. Addressing minor problems early can prevent them from escalating into costly major repairs.
• Regular Vehicle Servicing: A comprehensive service will include checks of your steering and suspension components, allowing potential issues to be identified before they become critical.

Frequently Asked Questions (FAQs)

How long does a steering rack typically last?

A steering rack is designed to last the lifetime of the vehicle, often well over 100,000 miles. However, factors like driving style, road conditions, and lack of maintenance (especially for HPS systems) can significantly shorten its lifespan.

Can I drive with a bad steering rack?

It is highly inadvisable and extremely dangerous to drive with a faulty steering rack. Symptoms like excessive play, difficulty steering, or strange noises indicate a loss of control and a significant safety risk. You could lose steering control entirely, leading to a serious accident. If you suspect an issue, drive only if absolutely necessary and directly to a garage for inspection.

Is a faulty steering rack an MOT failure?

Absolutely, yes. Any significant play in the steering rack, fluid leaks from the power steering system, or issues that affect the safe operation of the steering will result in an MOT failure. The steering system is a critical component for vehicle safety, and it's thoroughly inspected during the MOT test.

What's the difference between a steering rack and a steering box?

A steering rack (or rack and pinion) is used in most modern cars and converts rotational motion directly into linear motion. A steering box (or recirculating ball steering gear) is an older design found in some trucks, SUVs, and classic cars, which uses a worm gear and recirculating ball bearings to convert rotational motion to linear motion. Both serve the same ultimate purpose but use different internal mechanisms.

Conclusion

The steering rack is an unsung hero of your vehicle, quietly ensuring that your commands from the steering wheel are translated into precise wheel movements. While designed for durability, it's not immune to wear and tear. Understanding its function, recognising the tell-tale signs of failure, and knowing when a replacement is necessary are crucial for maintaining your vehicle's safety and performance.

Never underestimate the importance of your steering system. If you suspect any issues with your steering rack, do not delay. Seek professional diagnosis and repair immediately. Investing in a timely replacement, though it can be a significant cost, is an investment in your safety and the longevity of your vehicle. Keep your steering sharp, and your journeys will remain safe and controlled.
