Carburettor Rebuilds: What's in a Full Kit?

When your engine starts to sputter, cough, or simply refuses to run smoothly, the humble carburettor is often the culprit. This vital component, responsible for mixing air and fuel in the correct ratio, can become clogged or worn over time. Fortunately, for many small engines found in everything from lawnmowers to chainsaws, a full carburettor rebuild kit can bring them back to life. But what exactly does a full carburettor kit contain, and why is it essential for a successful repair?

Understanding Carburettor Kits

Carburettor repair kits are specifically designed to address the wear and tear that affects these intricate devices. They are typically categorised into two main types: diaphragm and gasket kits, and full rebuild kits. While diaphragm and gasket kits provide the essential seals and membranes, a full kit aims to be a comprehensive solution, offering a much broader range of components for a complete overhaul. For instance, Walbro, a prominent manufacturer, identifies their full kits with a part number beginning with the letter 'K', distinguishing them from their diaphragm and gasket kits, which start with 'D'.

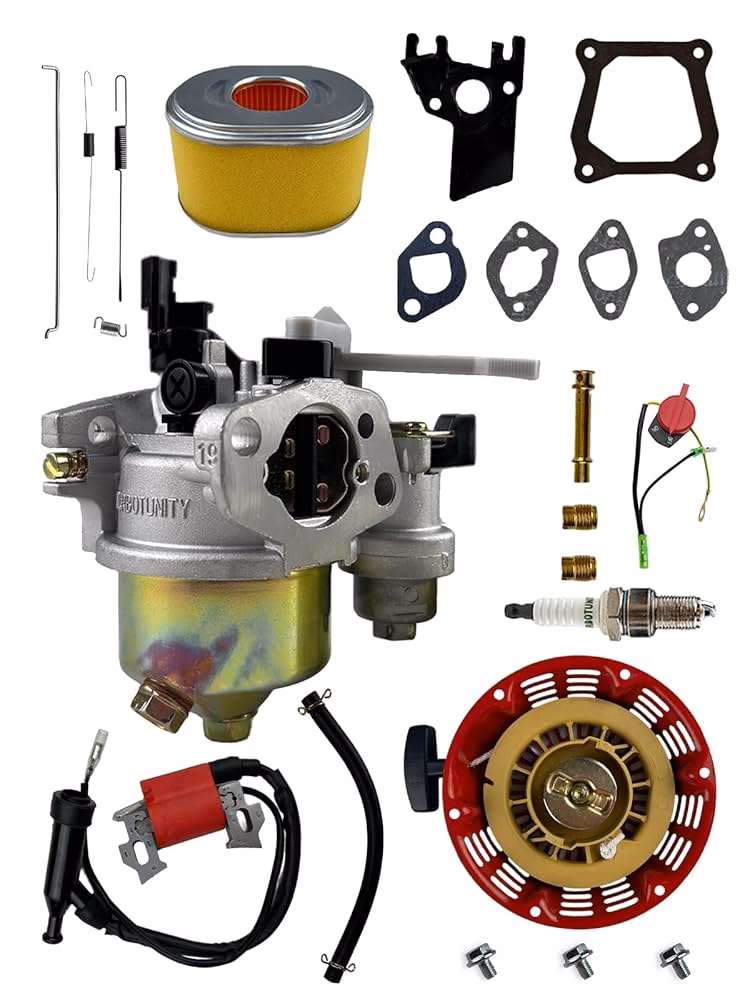

The Contents of a Full Carburettor Kit

The beauty of a full carburettor kit lies in its comprehensiveness. It’s designed to replace all the small, often overlooked, parts that can degrade and cause performance issues. While the exact contents can vary slightly between manufacturers and specific carburettor models, a typical full kit will usually include:

Essential Gaskets and Diaphragms

These are the backbone of any carburettor repair. Gaskets provide a seal between different parts of the carburettor, preventing fuel and air leaks. Diaphragms are flexible membranes that regulate fuel flow. Over time, these rubber or synthetic components can become stiff, brittle, or torn, leading to fuel delivery problems. A full kit ensures you have all the necessary gaskets and diaphragms to restore proper sealing and function.

Needles and Needle Seats

The main jet needle, often referred to as the metering needle, controls the flow of fuel into the carburettor. The needle seat is the component it seals against. Wear on either the needle tip or the seat can lead to an incorrect fuel-air mixture, causing rich or lean running conditions. Replacing these parts is crucial for accurate fuel metering.

Lever and Spring Assemblies

Many carburettors utilise a float or a diaphragm-operated lever system to control fuel intake. These levers can become bent or worn, and associated springs can weaken. A full kit often includes these lever assemblies and their springs, ensuring the fuel level within the float bowl (if applicable) or the diaphragm chamber is correctly maintained.

Filter Screens and Strainers

Small mesh screens are often incorporated within the carburettor to filter out debris from the fuel. These can become clogged with dirt or sediment, restricting fuel flow. A full kit typically includes replacement screens to ensure clean fuel reaches the metering components.

Welch Plugs (Core Plugs)

These are small, cup-shaped metal plugs that seal off passages within the carburettor body, often cast during the manufacturing process. They can sometimes corrode or loosen, causing leaks or performance issues. Replacing them is an important step in a thorough rebuild.

Clips, Pins, and O-rings

Beyond the major components, full kits also include the small, but vital, ancillary parts. These can include retaining clips for needles, pins for lever mechanisms, and various O-rings that provide seals for different connections and adjustments. These small items are easily lost or damaged during disassembly, making their inclusion in a kit invaluable.

Why Replace Everything? The Benefits of a Full Kit

While you might be tempted to only replace the obviously damaged parts, using a full kit offers significant advantages:

• Comprehensive Restoration: It ensures that all wear-prone components are replaced, restoring the carburettor to as close to its original condition as possible.
• Preventative Maintenance: Even parts that don't appear obviously faulty may be nearing the end of their service life. Replacing them proactively prevents future failures.
• Optimised Performance: A complete rebuild with fresh components leads to better fuel efficiency, smoother running, and easier starting.
• Cost-Effectiveness: While a full kit may cost slightly more than a basic gasket set, it can save you money in the long run by preventing repeat repairs or the need to replace the entire carburettor.

Identifying the Correct Kit

The most crucial step before purchasing a kit is accurate identification. As mentioned, manufacturers like Walbro use specific part numbering systems. To ensure you get the right kit:

1. Consult Reference Charts: Many manufacturers and parts suppliers provide comprehensive reference charts that cross-reference carburettor models with their corresponding repair kits.
2. Visual Inspection: The most reliable method is to locate the model number directly on the carburettor body of your equipment. This number is usually stamped or cast into the metal.
3. Match Components: If in doubt, carefully compare the components in your old carburettor with those shown in diagrams or listed for the kit you are considering.

Common Carburettor Issues Addressed by Full Kits

A full rebuild kit is designed to tackle a range of common carburettor ailments:

• Hard Starting: Often caused by clogged fuel passages or faulty diaphragms.
• Rough Idling: Can be due to worn needles or incorrect fuel-air mixture adjustments.
• Stalling: Frequently a symptom of fuel starvation due to blocked filters or diaphragms.
• Poor Acceleration: May result from an incorrectly functioning accelerator pump or metering circuits.
• Excessive Smoke: Often indicates a rich fuel mixture, potentially due to a stuck needle or incorrect float level.

Table: Comparing Kit Types

Frequently Asked Questions

Q: Do I always need a full carburettor kit?
A: Not necessarily. If you've identified a specific leak caused by a damaged gasket or diaphragm, a basic kit might suffice. However, for general performance issues or if the engine has been sitting for a while, a full kit is often the best approach for a thorough repair.

Q: How do I know if my carburettor needs rebuilding?
A: Symptoms include hard starting, rough idling, stalling, loss of power, or excessive fuel consumption. If cleaning the carburettor externally doesn't resolve these issues, a rebuild is likely necessary.

Q: Can I use a kit for a different carburettor model?
A: It is strongly advised against. Carburettor designs vary significantly, and using the wrong kit can lead to improper sealing, incorrect fuel metering, and further damage to the carburettor or engine.

Q: What tools will I need for a carburettor rebuild?
A: Basic hand tools such as screwdrivers (flathead and Phillips), pliers, a carburettor cleaning brush or compressed air, and possibly a small socket set or wrenches will be required. Ensure you have a clean workspace.

In conclusion, a full carburettor rebuild kit is an invaluable resource for anyone looking to restore the performance and reliability of their small engine. By understanding its contents and the benefits it offers, you can confidently tackle carburettor maintenance and keep your equipment running smoothly for years to come.
