XTR BR-M9120 Brake Pad Guide

The Shimano XTR BR-M9120 four-piston disc brake caliper is a cornerstone of high-performance mountain biking, renowned for its exceptional stopping power and modulation. However, even the most advanced brake system is only as good as its pads. Choosing the correct brake pads for your BR-M9120 calipers isn't just about ensuring they fit; it's about optimising your bike's braking performance, enhancing safety, and tailoring your ride feel to specific conditions and preferences. This comprehensive guide will delve into everything you need to know about selecting the ideal brake pads for your Shimano XTR BR-M9120.

Understanding which pads fit your BR-M9120 caliper is the first crucial step. The BR-M9120, being a four-piston caliper, utilises a specific pad shape. Shimano designates these pads with an 'N' or 'J' series code, indicating their compatibility with their four-piston mountain bike calipers. Specifically, the original equipment pads for the BR-M9120 were often the N03A (Resin) and N04C (Metal). More recently, updated versions like the J03A (Resin) and J04C (Metal) have become common replacements, offering similar performance characteristics with potential minor improvements in durability or heat resistance. When searching for replacements, ensure the packaging or product description clearly states compatibility with 'Shimano 4-piston calipers' or explicitly lists the BR-M9120 model number.

The Two Primary Pad Compounds: Resin vs. Metallic

Once you've confirmed the correct physical fit, the next decision revolves around the brake pad compound. Shimano, and indeed most aftermarket manufacturers, primarily offer two types for mountain biking: resin (also known as organic) and metallic (also known as sintered). Each compound offers distinct advantages and disadvantages, making them suitable for different riding styles and environmental conditions.

Resin (Organic) Brake Pads

Resin pads, such as the Shimano N03A or J03A, are made from organic materials (like rubber, resins, and sometimes Kevlar) bound together with a resin. They are often the preferred choice for riders seeking a smooth, quiet, and predictable braking experience. Here’s a breakdown of their characteristics:

• Initial Bite: Resin pads typically offer excellent initial bite, meaning they provide strong stopping power from the moment you apply the brakes. This makes them feel very responsive and easy to modulate, which is beneficial for technical riding where precise speed control is paramount.
• Noise: They are generally much quieter than metallic pads, especially in dry conditions. This can significantly enhance your riding experience, eliminating annoying squeals or grinding noises.
• Rotor Wear: Due to their softer compound, resin pads are gentler on brake rotors, leading to less wear and potentially extending the life of your rotors.
• Heat Management: While good for initial bite, resin pads are more susceptible to heat fade during prolonged or heavy braking. This means their performance can degrade as they get hotter, leading to a noticeable reduction in stopping power.
• Durability: They tend to wear down faster than metallic pads, particularly in wet, muddy, or gritty conditions, where abrasive particles can accelerate pad wear.
• Performance in Wet/Muddy Conditions: Their performance can be significantly reduced in wet or muddy conditions, often resulting in a loss of power and an increase in noise.

Resin pads are an excellent choice for general trail riding, cross-country, and riders who prioritise quiet operation and a strong initial bite. If your rides primarily involve dry, less aggressive terrain, or if you prefer a 'softer' brake feel, resin pads are likely your best bet.

Metallic (Sintered) Brake Pads

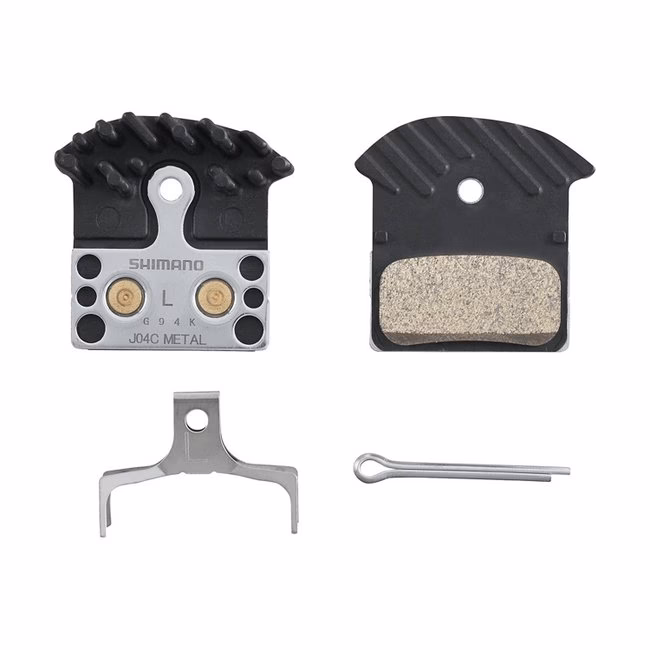

Metallic pads, such as the Shimano N04C or J04C, are composed of metallic particles (like copper, iron, or bronze) pressed together at high temperatures. These pads are built for durability and consistent performance in demanding conditions. Let's look at their traits:

• Durability: Metallic pads are significantly more durable and long-lasting than resin pads, especially in abrasive conditions like mud, sand, or grit. This makes them a more economical choice in the long run for riders who frequently encounter such environments.
• Heat Resistance: They excel in heat dissipation and are far less prone to heat fade. This makes them ideal for long, steep descents or aggressive downhill riding where brakes are subjected to extreme temperatures.
• Consistent Performance: Metallic pads offer consistent performance across a wide range of temperatures and in all weather conditions, including wet and muddy trails. Their stopping power remains reliable even when soaked.
• Noise: A notable drawback is their tendency to be noisier, especially in wet conditions. They can produce a distinct squeal or grinding sound.
• Initial Bite and Modulation: While powerful, metallic pads often have a less aggressive initial bite compared to resin pads. They require more lever force to achieve the same stopping power, and their modulation can feel less refined for some riders.
• Rotor Wear: Due to their harder compound, metallic pads can cause more wear on your brake rotors over time.

Metallic pads are the go-to choice for enduro, downhill, and aggressive trail riders who demand maximum stopping power and consistency in all conditions, particularly wet or prolonged descents. If you ride hard, fast, and in varied weather, the benefits of metallic pads often outweigh their potential noise.

Choosing the Right Pad for Your Ride

The decision between resin and metallic pads for your XTR BR-M9120 ultimately boils down to a combination of your riding style, the typical conditions you encounter, and your personal preference for brake feel. Consider the following:

• Riding Style: Are you an aggressive downhill rider who frequently pushes the limits of your brakes on long descents? Metallic pads will offer the heat resistance and consistent power you need. Are you a cross-country rider who values lightweight components and a quiet ride? Resin pads might be more suitable. For general trail riding, you might find a preference for either, depending on the terrain.
• Weather Conditions: Do you frequently ride in wet, muddy, or gritty conditions? Metallic pads will provide superior performance and durability in these environments. If your trails are predominantly dry and dusty, resin pads will perform admirably and quietly.
• Noise Tolerance: How bothered are you by brake noise? If silent operation is a high priority, resin pads are generally the quieter option. If a bit of squeal is an acceptable trade-off for raw power and durability, then metallic pads won't disappoint.
• Rotor Material: While XTR rotors are designed to work with both, some budget rotors might wear faster with metallic pads. Always check your rotor’s compatibility if you are using non-Shimano components.

It's also worth noting that some riders experiment with mixing pads, though this is generally not recommended for optimal, balanced performance. Sticking to a consistent compound across both front and rear brakes ensures a predictable feel. For example, some might consider resin on the front for better modulation and metallic on the rear for durability, but this can lead to an unbalanced brake feel.

Comparative Table: Resin vs. Metallic Pads

Here’s a quick overview to help you compare the two main types of brake pads:

Installation and Bedding-In Process

Once you’ve chosen your pads, proper installation and bedding-in are crucial for optimal performance and longevity.

Installation

Replacing brake pads on your Shimano XTR BR-M9120 is a relatively straightforward process. Ensure you have the correct tools, typically a flat-head screwdriver or a specific pad-retaining bolt tool. Always clean your calipers thoroughly before inserting new pads. Ensure the brake pistons are fully retracted into the caliper body to allow the new, thicker pads to fit over the rotor without issue. Use a clean pad spreader or plastic tyre lever for this, never a metal object that could damage the pistons. Secure the retaining pin, and give the brake lever a few squeezes to allow the pistons to self-adjust to the new pad thickness.

Bedding-In

Bedding-in new brake pads is perhaps the most critical step after installation. This process transfers a thin layer of pad material onto the rotor surface, creating a more consistent friction interface. Failing to bed-in pads properly can lead to reduced stopping power, excessive noise, and premature wear. Here’s how to do it:

1. Find a safe, flat area where you can ride and brake repeatedly without obstacles.
2. Accelerate to a moderate speed (around 15-20 mph or 25-30 km/h).
3. Apply the brakes firmly, but not to the point of skidding, until your speed significantly reduces (e.g., to walking pace). Do not come to a complete stop.
4. Release the brakes and allow them to cool slightly.
5. Repeat this process about 15-20 times. You should notice the braking power increasing with each repetition.
6. For metallic pads, you might need a few more repetitions and slightly higher speeds to fully bed them in.

During bedding-in, avoid harsh, sudden stops or dragging the brakes. The goal is to gradually heat the pads and rotors, not to overheat them quickly.

Frequently Asked Questions (FAQs)

How often should I replace my brake pads?

The lifespan of brake pads varies significantly based on compound type, riding conditions, riding style, and rider weight. As a general rule, inspect your pads regularly. Most pads have a wear indicator line. If the pad material is less than 0.5mm thick (or if you can no longer see the wear indicator), it’s time for replacement. Listen for unusual noises and feel for reduced braking performance – these are often early signs of worn pads.

Can I use different types of pads on my front and rear brakes?

While technically possible, it's generally not recommended for optimal performance and a consistent feel. Using a resin pad on the front and a metallic pad on the rear, for example, will result in different bite points, modulation, and overall power characteristics between the two brakes. This can make braking unpredictable and harder to control, especially in emergency situations.

Why are my brakes squealing or making noise?

Brake noise can be caused by several factors:

• Contamination: Oil, grease, or brake fluid on the pads or rotors is a common culprit. Clean rotors with isopropyl alcohol and consider replacing contaminated pads.
• Improper Bedding-In: Pads not properly bedded-in will often squeal.
• Worn Pads: Severely worn pads can cause metal-on-metal contact.
• Loose Caliper/Rotor: Ensure all bolts are torqued correctly.
• Vibration: Sometimes, the combination of pad, rotor, and frame can create resonant vibrations.
• Wet Conditions: Metallic pads, in particular, are prone to noise in wet conditions, which is often considered normal.

What is brake fade?

Brake fade is the reduction in braking power that occurs when your brake system (pads and rotors) overheats. As pads get excessively hot, their friction properties change, leading to a noticeable decrease in stopping ability. Resin pads are more susceptible to fade than metallic pads, especially on long, steep descents. If you experience fade, ease off the brakes to allow them to cool, or consider switching to a more heat-resistant pad compound.

Are all Shimano 4-piston brake pads interchangeable?

While the BR-M9120 uses the 'N' or 'J' type pad shape common to many Shimano 4-piston calipers (including some XT and Saint models), it's always best to check the specific part number and compatibility list for your caliper. Shimano sometimes makes subtle revisions, but generally, the N03A/J03A (resin) and N04C/J04C (metallic) are the correct fit for the XTR BR-M9120.

Should I replace my rotors when I replace my pads?

Not necessarily. Rotors typically last longer than pads. However, you should inspect your rotors for wear. If they are heavily scored, warped, or have worn below their minimum thickness (often stamped on the rotor, e.g., MIN TH. 1.5mm), then they should be replaced. Replacing pads on a worn rotor can lead to suboptimal performance and accelerated wear of the new pads.

Conclusion

Selecting the right brake pads for your Shimano XTR BR-M9120 is a straightforward but impactful decision that directly influences your bike's performance and your safety on the trails. Whether you opt for the quiet, responsive bite of resin pads or the durable, consistent power of metallic pads, understanding their unique characteristics is key. Remember to always ensure the correct fit (N-type or J-type for 4-piston calipers), properly bed-in your new pads, and perform regular maintenance checks. With the right pads and proper care, your XTR BR-M9120 brakes will continue to deliver the world-class stopping power you expect, allowing you to ride with confidence and control, no matter the terrain or conditions.
