Demystifying Shimano SLX Brakes & Pads

When it comes to mountain biking, reliable stopping power is not just a luxury; it's an absolute necessity. Whether you're navigating steep descents, technical trails, or simply need to control your speed, your brakes are your most crucial safety net. Among the myriad of options available, Shimano's SLX series has long been a favourite for its excellent balance of performance, durability, and value. But understanding what makes SLX brakes tick, and perhaps more importantly, choosing the correct brake pads to complement them, can often feel like a deep dive into technical jargon. This article aims to demystify the world of SLX brakes and their compatible pads, ensuring you have the knowledge to make informed choices for your ride.

What Exactly Are Shimano SLX Brakes?

Shimano's SLX line sits comfortably in their mountain bike component hierarchy, positioned just below the top-tier XT and XTR groupsets. It's often praised for offering much of the performance of its more expensive siblings without the premium price tag. The latest iterations of SLX brakes, such as the M7000 series and beyond, feature significant advancements designed to enhance rider control and braking efficiency.

One of the most notable design updates at the lever end of modern SLX brakes is the mid-mount design. This innovative approach positions the hinged split-clamp, which secures the lever to your handlebar, in the middle of the master cylinder. This isn't just an aesthetic change; it serves a crucial functional purpose. By moving the clamp inwards, the end of the lever body itself can brace against the handlebar. This bracing action creates a more rigid platform for the lever, significantly improving lever feel and consistency. You'll notice a firmer, more direct brake feel, reducing flex and allowing for more precise modulation, especially when you're really leaning on the brakes during aggressive riding.

This mid-mount design is a direct inheritance from the higher-end XT and XTR equivalents, demonstrating Shimano's commitment to trickling down advanced technologies to more accessible price points. So, when you choose SLX, you're getting a taste of pro-level performance and design integrity.

Understanding Shimano Brake Calipers: 2-Pot vs. 4-Pot

While the lever assembly controls the hydraulic pressure, the brake calipers are where the magic truly happens, converting that pressure into stopping force. Historically, SLX brakes have been synonymous with a 2-pot (two-piston) design, offering excellent power and modulation for a wide range of riding conditions. These calipers, like the BR-M7000, are robust and dependable, providing ample braking for most trail and cross-country applications.

However, as mountain biking has evolved, with more aggressive terrain and longer descents becoming common, the demand for increased braking power has led to the proliferation of 4-pot (four-piston) calipers. These calipers, often found on enduro and downhill bikes, offer superior heat management and increased raw stopping power due to the larger contact area of their pads and the distribution of force across four pistons. It's worth noting that 4-pot calipers require different brake pads than their 2-pot counterparts, a crucial detail to remember when purchasing replacements.

Interestingly, some riders, including myself, have experimented with 4-pot setups but eventually returned to the simplicity and consistent performance of 2-pot SLX calipers. While 4-pot brakes offer immense power, issues such as persistent squealing can sometimes arise, leading riders back to the reliable and often quieter 2-pot systems for their preferred riding experience.

Deciphering Shimano Brake Pad Codes

Choosing the right brake pad is paramount to optimising your braking performance. Shimano has a comprehensive, albeit sometimes confusing, coding system for their pads. Understanding this system is key to selecting the perfect pad for your riding style and conditions.

Brake Pad Compound: The Middle Numbers

• 01, 02, 03: These numbers typically denote different iterations or updates of resin (also known as organic) compounds. A higher number, such as '03', generally indicates the most recent and often improved version of the resin formula. Resin pads are known for their quiet operation, good initial bite, and excellent modulation, making them ideal for less aggressive riding or riders who prefer a softer, more progressive feel. However, they tend to wear faster, especially in wet or muddy conditions, and can be more susceptible to fade on long, sustained descents.
• 04: This number consistently designates metal (also known as sintered) pads. Metal pads are renowned for their superior durability, longer lifespan, and consistent performance in all weather conditions, including mud and rain. They offer powerful braking with less fade, making them a popular choice for aggressive trail riding, enduro, and downhill. The trade-off is often increased noise (squealing), a more 'on/off' feel, and potentially higher rotor wear. Furthermore, some disc rotors are not compatible with metal pads, so always check your rotor's specifications.

Backing Material: The Last Letter

The final letter in the Shimano pad code indicates the material of the backing plate, which plays a critical role in heat management:

• A = Aluminium: Aluminium backing plates are lightweight and can help dissipate heat from the pad itself. However, they tend to transfer heat more readily to the caliper and the hydraulic fluid. In extreme braking scenarios, this can risk the brake fluid overheating and potentially boiling, leading to a sudden loss of braking power known as 'brake locking on' or 'brake fade'.
• S = Steel: Steel backing plates are more robust and less prone to warping under heat. They tend to transfer heat more effectively to the rotor, which can help dissipate it away from the caliper. While this is generally beneficial, excessive heat transfer to the rotor can lead to 'brake fade', where the braking power diminishes as the system gets too hot. Steel is a very common and reliable choice.
• Ti = Titanium: Titanium backing plates offer a good balance of heat resistance and lighter weight compared to steel. Like steel, they tend to transfer heat to the rotor, which, if not managed, can still lead to brake fade. Titanium is often found on higher-end pads due to its cost.
• C = Combination: This typically refers to a stainless steel backing plate with additional aluminium fins. This design aims to combine the strength of steel with the heat-dissipating properties of aluminium fins, effectively creating a larger surface area for cooling and mitigating the disadvantages of singular materials.

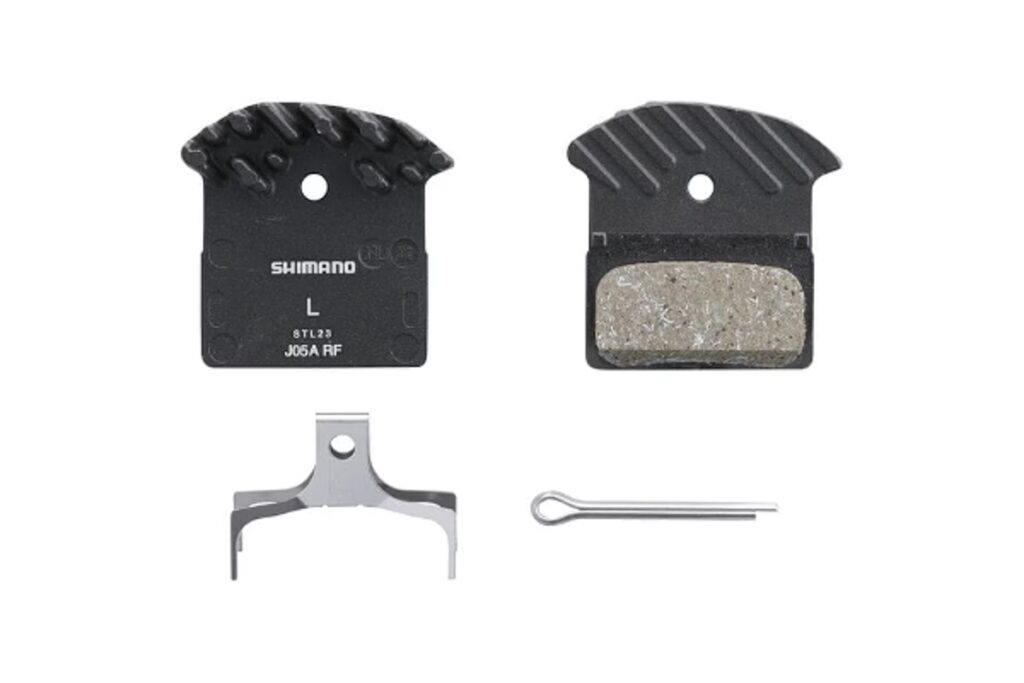

The Role of Heat Sink Fins

You might have noticed some pads featuring prominent cooling fins, often referred to as heat sinks. These fins, whether integrated into the backing plate or attached separately, are a clever engineering solution to the challenges of heat management. By increasing the surface area exposed to the air, they help to dissipate heat away from the pad and caliper more efficiently. This mitigation significantly reduces the risk of brake fade and helps maintain consistent performance, especially during prolonged braking efforts on long descents. Pads like the J03A and J04C are examples of those that incorporate these beneficial heat sinks.

Selecting the Ideal Pads for Your SLX Brakes

Given the array of options, choosing the right pad can seem daunting. Your ideal choice will depend heavily on your riding conditions, style, and personal preference.

Genuine Shimano Recommendations for 2-Pot SLX/XT

For standard 2-pot SLX (M7000 series) and XT (M8000 series) brakes, several genuine Shimano pads are excellent choices:

• J03A Resin pads with heat sink: These are an excellent all-rounder. The resin compound provides good initial bite and quiet operation, while the heat sink fins significantly improve heat management, reducing fade on longer descents. This is often a go-to choice for trail riders seeking a balance of performance and comfort.
• G03S Resin pads with steel backing: If you prefer the feel of resin but don't require the advanced heat dissipation of fins, these are a solid option. The steel backing provides durability, and the resin compound ensures a smooth braking experience.
• J02A or G03A: These are perfectly adequate alternatives if the J03A or G03S are unavailable or if you're looking for slightly different characteristics. They offer reliable resin performance.

For those who ride in consistently muddy or wet conditions, or who demand maximum stopping power and longevity, metal pads like the J04C Metal pad with anti-fade heat-sink or G04S Metal pad with a steel back plate might seem appealing. However, it's crucial to verify your disc rotor's compatibility. Many rotors are designed specifically for resin pads and will wear excessively, or even be damaged, by metal pads. Furthermore, some riders find the feel of metal pads to be too aggressive or 'grabby', preferring the more progressive modulation of resin.

Pads for 4-Pot Shimano Calipers

If you have upgraded to or your bike came with 4-pot Shimano calipers (like the M7120 SLX or M8120 XT), you'll need a different pad shape. The standard choice for these often includes the D03S resin pads with a steel backing. These pads are designed to handle the increased forces of a 4-piston system and typically offer a good balance of power and feel. As with 2-pot systems, metal alternatives exist (e.g., D04S), but the same considerations regarding rotor compatibility and brake feel apply.

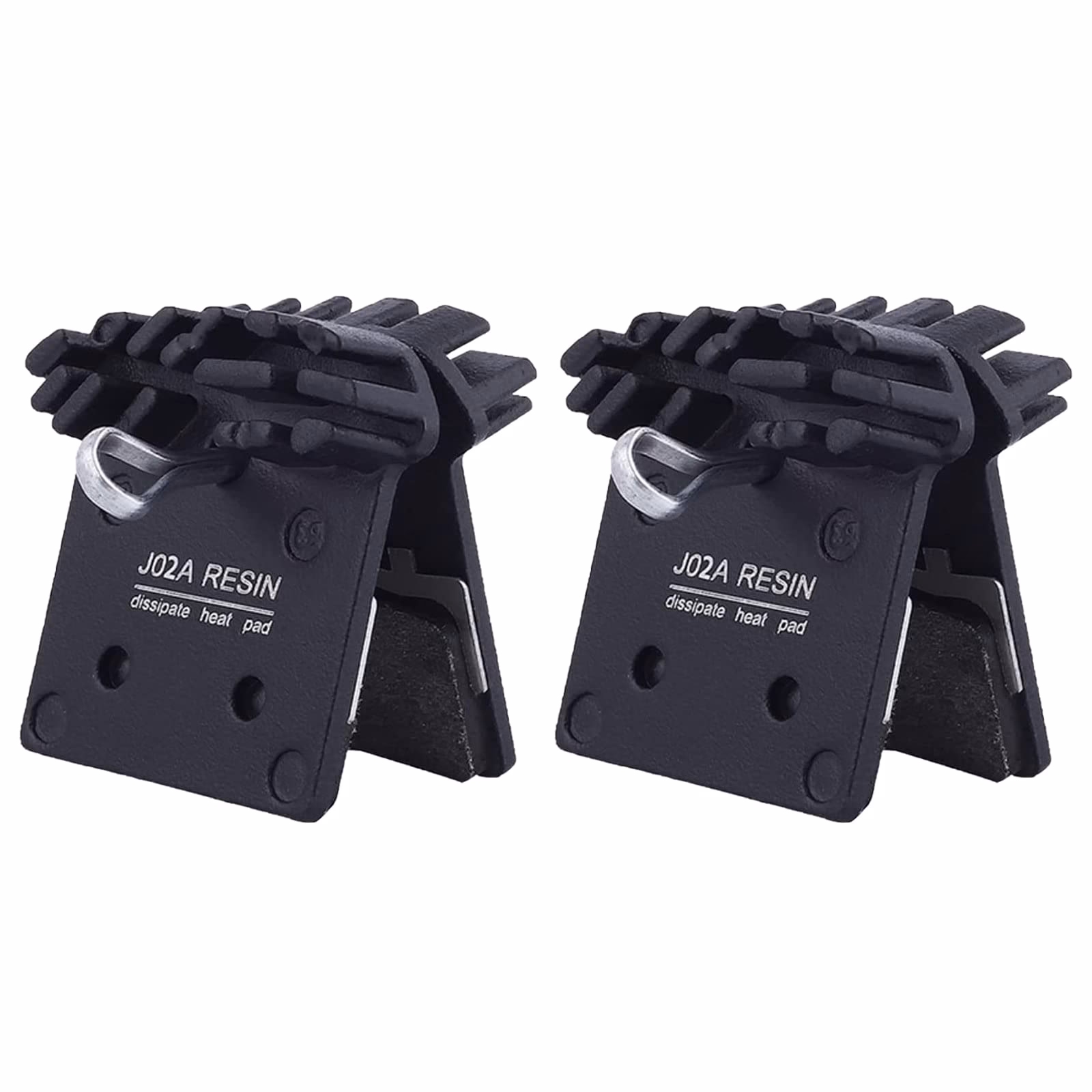

Exploring Alternative Brake Pads

While genuine Shimano pads are a safe and reliable bet, the aftermarket is flooded with alternative brake pad manufacturers. Brands like Noah and Theo, often found on platforms like eBay, have garnered positive reviews from some riders. However, reliable information on their performance can be scarce. It's often a case of trial and error to find an alternative that matches the feel and durability of genuine parts. My advice would be to stick with genuine Shimano pads initially, especially while you're familiarising yourself with your brake system. If you do venture into aftermarket options, proceed with caution and be prepared to experiment.

Comparative Table of Shimano Brake Pad Types

To help summarise the characteristics of different Shimano pad types, here's a handy table:

Frequently Asked Questions About SLX Brakes and Pads

Q1: Are SLX brakes good for all types of mountain biking?

SLX brakes are incredibly versatile and are excellent for a wide range of mountain biking disciplines, including cross-country, trail riding, and even light enduro. Their balance of power, modulation, and durability makes them a fantastic choice for most riders. For very aggressive downhill or extreme enduro, some riders might prefer the even higher power and heat management of XT or XTR 4-pot systems, but SLX remains a highly capable option.

Q2: Can I use metal pads with any disc rotor?

No, not all disc rotors are compatible with metal (sintered) brake pads. Many rotors are designed specifically for resin pads, and using metal pads on them can lead to accelerated wear, poor braking performance, and even damage to the rotor. Always check the manufacturer's specifications for your disc rotors to ensure compatibility. Look for markings on the rotor itself or consult your bike's manual or the rotor manufacturer's website.

Q3: What's the main difference in feel between resin and metal pads?

Resin pads typically offer a softer, more progressive feel with better initial bite. They are quieter and provide excellent modulation, allowing for fine control over your braking power. Metal pads, on the other hand, tend to feel more 'on/off' with a stronger, more direct bite. They are more powerful and consistent in wet conditions but can be noisier and require more force to modulate smoothly.

Q4: How often should I replace my brake pads?

The lifespan of your brake pads depends heavily on your riding style, terrain, weather conditions, and the type of pad you're using. Aggressive riding, steep descents, and wet/muddy conditions will wear pads out much faster. Resin pads generally wear quicker than metal pads. Regularly inspect your pads for wear; most have wear indicators, but a good rule of thumb is to replace them when the pad material is less than 0.5mm thick. Also, replace them if they become contaminated with oil or grease, as this will severely impair their performance.

Q5: My brakes are squealing, is it always the pads?

Squealing brakes can be caused by several factors, not just the pads. Common culprits include contaminated pads or rotors (from oil, grease, or cleaning products), misaligned calipers, loose bolts, worn-out pads, or even resonance from the frame. While changing pads can sometimes resolve the issue, it's often worth thoroughly cleaning your rotors with disc brake cleaner and ensuring your calipers are properly aligned first. If you've recently installed new pads, a proper bedding-in procedure is crucial to prevent squealing.

Q6: What is 'brake fade' and how do heat sinks help?

Brake fade occurs when the braking system overheats, leading to a significant reduction in stopping power. This is common during long, continuous descents where heat builds up rapidly in the pads, rotors, and even the hydraulic fluid. Heat sink fins on brake pads help to combat this by increasing the surface area for heat dissipation. They effectively draw heat away from the pad and caliper, allowing it to cool more efficiently and thus maintaining more consistent braking performance over extended periods.

Conclusion

Shimano SLX brakes offer a fantastic blend of performance and value, making them a superb choice for a wide array of mountain bikers. Their refined lever design, coupled with robust caliper options, provides reliable and powerful stopping. However, the true potential of your SLX brakes is unlocked by selecting the right brake pads. Understanding the nuances of resin versus metal compounds, the significance of backing materials, and the benefits of heat sink technology empowers you to tailor your braking system to your specific needs.

Whether you prioritise quiet operation and smooth modulation with resin pads or demand ultimate durability and power from metal pads, the information on Shimano's coding system will guide your choice. Always remember to consider your riding conditions and, critically, ensure your chosen pads are compatible with your disc rotors. With the correct setup, your SLX brakes will provide the confidence and control you need to tackle any trail with conviction.
