Mastering MOT Type 1 Sub-Base Calculation

When embarking on any serious construction or landscaping project, whether it's laying a new driveway, creating a sturdy patio, or building a robust shed base, the foundation is paramount. And at the heart of many such foundations in the UK lies MOT Type 1 sub-base. This versatile aggregate provides essential stability and load-bearing strength, making it the bedrock of countless successful undertakings. However, getting the quantity right is crucial – too little, and you face delays and additional costs; too much, and you're left with surplus material and wasted money. This comprehensive guide will demystify the process, helping you accurately calculate the exact amount of MOT Type 1 sub-base you need, ensuring your project starts on the strongest possible footing.

What Exactly is MOT Type 1 Sub-Base?

MOT Type 1 is a high-quality, well-graded granular material widely used as a crucial sub-base for various construction applications. The 'MOT' in its name refers to the Ministry of Transport, indicating that it meets the strict standards set out in the Specification for Highway Works. This certification ensures a consistent product designed to withstand significant loads and environmental factors, including frost heave.

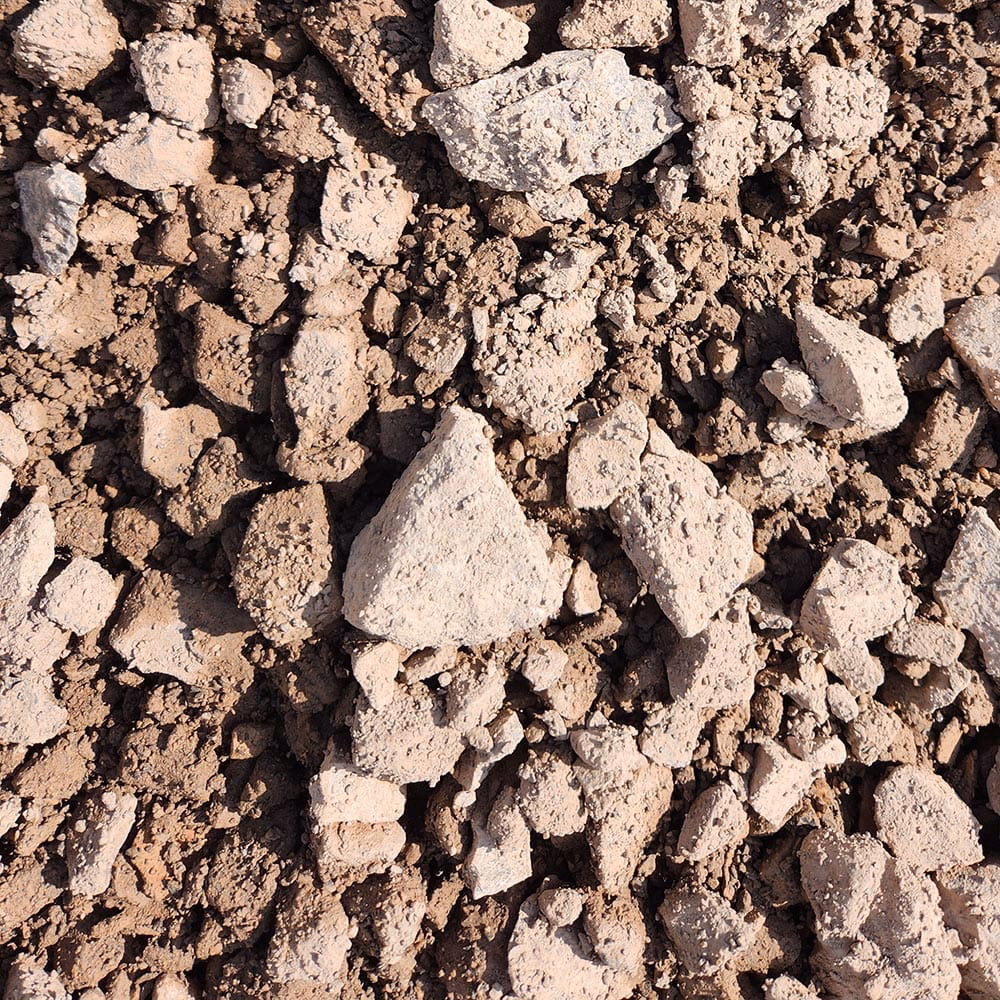

Typically, MOT Type 1 is comprised of aggregates such as granite, limestone, basalt, gritstone, or clean crushed concrete. These materials are meticulously crushed to a maximum size of 40mm down to dust. This specific grading – a mix of larger stones and finer particles – is what gives MOT Type 1 its exceptional compaction properties. When compacted, the smaller particles fill the voids between the larger ones, creating a dense, interlocking, and highly stable layer that can effectively distribute weight and prevent settling.

Its primary applications are where a stable and durable sub-base is required, including:

• Highways and public roads
• Car parks and commercial hard standings
• Footpaths and pedestrian areas
• Domestic driveways (especially for gravel or tarmac finishes)
• Patio bases
• Shed and building sub-bases

Why Accurate Calculation is Non-Negotiable

Precision in calculating your MOT Type 1 requirements isn't just about saving a few quid; it's fundamental to the success and longevity of your project. Here’s why it’s so important:

• Cost Efficiency: Over-ordering leads to unnecessary expenditure on materials and potentially disposal costs. Under-ordering results in project delays, additional delivery charges, and the frustration of waiting for more supplies.
• Structural Integrity: An inadequate depth of sub-base, or one that isn't uniformly applied, can compromise the entire structure built upon it. This can lead to cracking, subsidence, and premature failure of your driveway, patio, or building foundation.
• Time Management: Having the right amount of material on site when you need it keeps your project on schedule, avoiding frustrating pauses and allowing you to maintain momentum.
• Environmental Impact: Minimising waste by ordering precisely what you need contributes to more sustainable building practices.

Understanding the Core Calculation: Volume and Weight

The calculation for any aggregate, including MOT Type 1, boils down to determining the volume of the space you need to fill. Once you have the volume, you can then convert it into weight (tonnes), which is how MOT Type 1 is typically sold.

The fundamental formula for calculating volume is simple:

Volume = Length × Width × Depth

However, the challenge often lies in ensuring all your measurements are in consistent units and then accounting for the density and compression of the material.

Units of Measurement

You can measure your area in various units – centimetres, metres, inches, feet, or yards. The key is to convert all your measurements to the same unit before performing the calculation. For professional results and easier conversion to cubic metres (m³), which is the standard for aggregate calculations, it's highly recommended to convert all your dimensions into metres. Here are some useful conversions:

• 1 centimetre (cm) = 0.01 metres (m)
• 1 inch = 0.0254 metres (m)
• 1 foot = 0.3048 metres (m)
• 1 yard = 0.9144 metres (m)
• 1 millimetre (mm) = 0.001 metres (m)

Density of MOT Type 1

To convert your calculated volume (in cubic metres) into weight (in tonnes), you need to know the density of MOT Type 1. The industry standard density for MOT Type 1 sub-base is approximately 1.50 tonnes per cubic metre (t/m³). This means every cubic metre of MOT Type 1 weighs about 1.50 tonnes. Conversely, 1 tonne of MOT Type 1 occupies roughly 0.7 cubic metres (m³/t).

The Compression Factor

One critical factor to consider is compaction. When MOT Type 1 is laid and compacted (using a vibrating roller or whacker plate), it will reduce in volume. To account for this, it's generally recommended to add an extra 15% to your calculated volume. This ensures you have enough material after it has been properly compacted to achieve the desired finished depth and stability.

Step-by-Step Calculation Guide

Follow these steps to accurately calculate the MOT Type 1 sub-base required for your project:

Step 1: Measure Your Area

Measure the length and width of the area you intend to cover. Use a tape measure and note down the dimensions. For irregularly shaped areas, it's often easiest to break them down into smaller, manageable rectangles or squares, calculate each section separately, and then add the volumes together. Alternatively, for complex shapes, you can extend the measurements to form a simple rectangle that encompasses the entire area. It's always better to slightly over-order than under-order.

Step 2: Determine Your Required Depth

The depth of your MOT Type 1 sub-base is crucial and depends entirely on the application and anticipated load. Here are some common recommended depths:

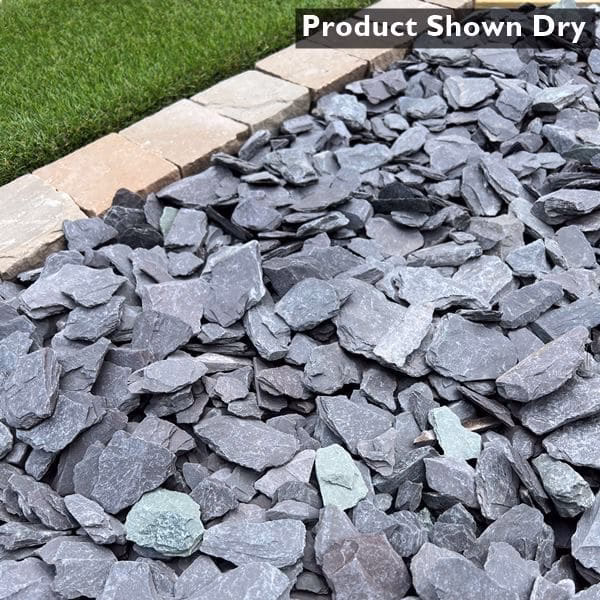

For gravel or slate top layers, the aggregate size also influences the minimum depth. For instance, a 10mm aggregate generally needs a depth of 30-40mm, but 50mm on a driveway. A 20mm aggregate would require at least 40-50mm deep, and 50-60mm on driveways. The MOT Type 1 is beneath these layers.

Step 3: Convert All Measurements to Metres

Ensure your length, width, and chosen depth are all in metres. For example, if you have a driveway that is 10 metres long, 4 metres wide, and you need a depth of 150mm, convert 150mm to 0.15 metres.

Step 4: Calculate the Initial Volume (in m³)

Multiply your converted length, width, and depth together:

Volume (m³) = Length (m) × Width (m) × Depth (m)

Example: For a driveway 10m long, 4m wide, and 0.15m deep:

Volume = 10m × 4m × 0.15m = 6 m³

Step 5: Account for Compression

Add 15% to your calculated volume to account for compaction:

Volume for ordering = Initial Volume × 1.15

Using the example: 6 m³ × 1.15 = 6.9 m³

Step 6: Convert Volume to Weight (in Tonnes)

Multiply your adjusted volume by the density of MOT Type 1 (1.50 t/m³):

Weight (tonnes) = Volume for ordering (m³) × 1.50 t/m³

Using the example: 6.9 m³ × 1.50 t/m³ = 10.35 tonnes

Therefore, for a 10m x 4m driveway with a 150mm compacted MOT Type 1 sub-base, you would need approximately 10.35 tonnes.

Practical Installation Tips

While this article focuses on calculation, a brief understanding of installation is beneficial. Once your MOT Type 1 arrives, spread the material evenly with a shovel to the approximate depth. The critical step is compaction. Using a vibrating roller or a heavy-duty whacker plate, compact the material in layers. For optimal results, aim for layers of no more than 100-150mm at a time, compacting each layer thoroughly before adding the next. This layered approach ensures a stable, uniform, and durable sub-base that will withstand the test of time and traffic.

Frequently Asked Questions (FAQs)

Is MOT Type 1 suitable for all driveway sub-bases?

MOT Type 1 is an excellent choice for driveway sub-bases, particularly when the final surface will be gravel or tarmac. However, for block-paved driveways, a more permeable sub-base, such as MOT Type 3, may be necessary to meet Sustainable Urban Drainage System (SUDS) regulations. Type 3 offers superior drainage, which is often required for block paving to prevent water pooling and comply with environmental standards.

Is MOT Type 1 free-draining?

MOT Type 1 does facilitate water passage, but at a slower rate compared to other products like MOT Type 3. Due to its fine particles (down to dust), it can become less permeable when fully compacted. While it allows some drainage, it's not considered 'free-draining' in the same way coarser aggregates are.

What are the specifications for MOT Type 1?

MOT Type 1 is produced in accordance with the Specification for Highways Works Clause 803. This rigorous standard ensures a consistent product that meets specific requirements for grading, strength, and resistance to environmental factors like frost heave. Adhering to these specifications is crucial for public works and large-scale construction, but also provides a benchmark for quality in domestic projects.

Can I use a general aggregate calculator for MOT Type 1?

Yes, many online aggregate calculators can be used for MOT Type 1. Ensure the calculator allows you to input your dimensions (length, width, depth) and ideally lets you specify the material type or its density. Some advanced calculators will even factor in the compression for you, making the process even simpler. Always double-check the density used by the calculator against the standard 1.50 t/m³ to ensure accuracy.

Conclusion

Calculating the correct amount of MOT Type 1 sub-base is a fundamental step for any successful groundwork project. By understanding the simple volume formula, converting units consistently, accounting for the material's density and the crucial 15% compression factor, you can ensure you order precisely what you need. This meticulous approach will not only save you time and money but also guarantee that your driveway, patio, or building foundation is built upon a solid, stable, and durable base, ready to support whatever you build upon it for years to come. Take the time to measure accurately, calculate precisely, and your project will undoubtedly benefit from a professional and long-lasting finish.
