Clutch Pedal Not Returning: Causes & Fixes

A clutch pedal that doesn't return fully to its top position, or feels unusually low, is a common and incredibly frustrating issue for any driver. This problem can manifest as a pedal that only comes halfway up, feels spongy, or perhaps even sticks to the floor entirely. Not only does it make gear changes difficult, if not impossible, but it also signals a potential underlying fault within your vehicle's crucial clutch system. Understanding the cause is the first step towards a smooth, functional clutch once more, ensuring your car remains safe and enjoyable to drive on UK roads.

Understanding the fundamental operation of your vehicle's clutch is key to diagnosing why the pedal might not be returning. In most modern manual transmission vehicles, the clutch operates using a hydraulic system, much like your brakes. When you press the clutch pedal, you actuate the master cylinder, which then sends hydraulic pressure through a fluid line to the slave cylinder. The slave cylinder, in turn, mechanically disengages the clutch, allowing you to change gears. If any part of this hydraulic or mechanical chain malfunctions, the pedal's return can be compromised. This guide will break down the most common reasons for a non-returning clutch pedal and offer practical steps for diagnosis and repair.

Understanding the Clutch Hydraulic System

Before diving into specific issues, let's briefly recap the components involved in the hydraulic clutch system. The clutch pedal is connected to the master cylinder, typically located on the firewall inside the engine bay. This cylinder contains a piston that moves when the pedal is depressed, pressurising the hydraulic fluid (usually brake fluid, DOT3 or DOT4). This pressurised fluid then travels through a high-pressure line to the slave cylinder, which is usually mounted on the gearbox. The slave cylinder's plunger then pushes on the clutch release fork, disengaging the clutch from the flywheel and allowing gear changes. When you release the pedal, the system relies on spring pressure and hydraulic pressure to return the pedal to its resting position. Any interruption in this delicate balance can lead to the pedal not returning fully.

Common Reasons for a Non-Returning Clutch Pedal

Several issues can cause your clutch pedal to not return to its proper position. It's often a hydraulic problem, but mechanical issues can also play a role. Breaking down the problem into these two main categories can help streamline your diagnostic process.

1. Low or Contaminated Hydraulic Fluid

The simplest and often overlooked cause is insufficient hydraulic fluid. The master cylinder needs a full reservoir to function correctly. If the fluid level drops too low, the master cylinder won't be able to generate enough pressure to fully engage the slave cylinder or allow for a proper pedal return. Over time, hydraulic fluid can also become contaminated with moisture or debris, leading to reduced efficiency and potential internal component damage.

• Symptoms: Spongy pedal, difficulty shifting, pedal not returning fully.
• Diagnosis: Check the fluid level in the clutch master cylinder reservoir (often shared with the brake fluid reservoir, but sometimes separate). Look for discolouration or cloudiness in the fluid.
• Fix: Top up the fluid to the correct level. If the fluid is old or contaminated, a full flush and refill is recommended. Remember to use the correct DOT specification fluid for your vehicle.

2. Air in the Hydraulic System

Air is compressible, unlike hydraulic fluid. If air enters the clutch hydraulic system, it will compress when you press the pedal instead of transmitting force efficiently. This results in a spongy or soft pedal feel and can prevent the pedal from returning fully, as the trapped air expands and contracts, hindering the smooth movement of fluid.

• Symptoms: Spongy or soft pedal, inconsistent pedal height, difficulty engaging gears, pedal not returning.
• Diagnosis: A visual inspection might show air bubbles in the fluid reservoir (if visible). The primary diagnosis is often the feel of the pedal itself.
• Fix: The system needs to be bled to remove the trapped air. This process is similar to bleeding brakes and often requires two people: one to pump the pedal and one to open and close the bleed nipple on the slave cylinder.

3. Faulty Clutch Master Cylinder

The master cylinder is the heart of the hydraulic clutch system. Over time, its internal seals can wear out, leading to internal or external fluid leaks. An internal leak means that when you press the pedal, fluid bypasses the piston seals instead of being pushed towards the slave cylinder. This results in a loss of pressure and the pedal slowly sinking or not returning properly.

• Symptoms: Pedal slowly sinks to the floor, pedal feels soft/spongy, fluid leaks around the master cylinder, difficulty changing gears. The pedal might return slowly or only partially.
• Diagnosis: Check for fluid leaks around the master cylinder itself, especially near the firewall. If no external leaks are present but the pedal sinks, it's likely an internal seal failure.
• Fix: Replacement of the master cylinder is usually the most reliable solution. After replacement, the system will need to be bled thoroughly.

4. Faulty Clutch Slave Cylinder

The slave cylinder is the component that directly acts upon the clutch release mechanism. Like the master cylinder, its seals can fail, leading to fluid leaks (often visible underneath the vehicle or on the gearbox bell housing). A failing slave cylinder won't be able to hold pressure effectively, causing the clutch to not fully disengage or engage, and the pedal to not return.

• Symptoms: Similar to master cylinder failure: soft pedal, difficulty shifting, visible fluid leaks (often near the transmission), pedal not returning. The leak might be external or internal (into the bell housing, which is harder to spot without disassembly).
• Diagnosis: Look for fluid leaks underneath the car, particularly around where the slave cylinder connects to the gearbox. If it's an internal slave cylinder (concentric slave cylinder, CSC), leaks might only be evident by a dropping fluid level and poor clutch operation without visible external leaks.
• Fix: Replacement of the slave cylinder is necessary. This can be more involved than replacing the master cylinder, especially if it's an internal type, which often requires removing the gearbox. Always bleed the system after replacement.

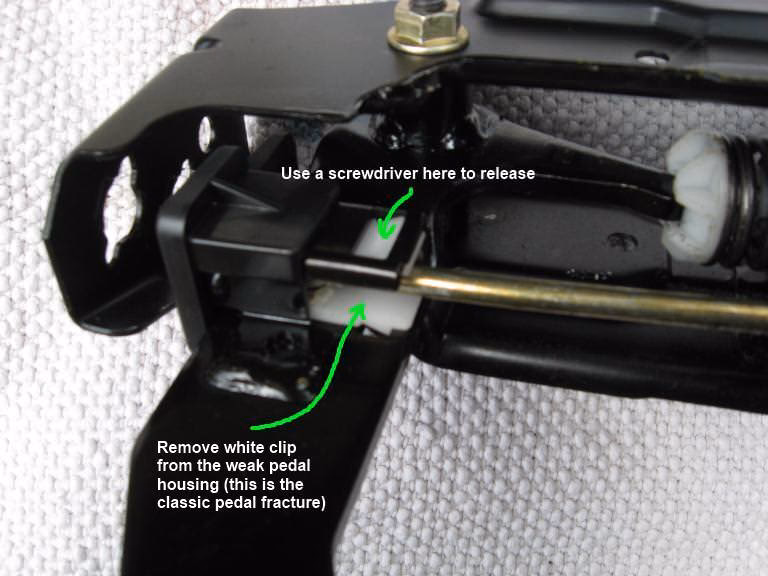

5. Mechanical Issues with the Clutch Pedal Assembly

While less common than hydraulic problems, mechanical issues within the pedal assembly itself can prevent proper return. This could include a seized or worn pivot point for the pedal, a broken or weakened return spring, or issues with the linkage connecting the pedal to the master cylinder rod.

• Symptoms: Pedal feels 'sticky' or gritty, physically binds when pressed, audible squeaks or creaks, pedal only returns part way and needs to be pulled up by foot.
• Diagnosis: Visually inspect the pedal assembly under the dashboard. Lubricate pivot points to see if the issue resolves. Check the return spring for damage or detachment.
• Fix: Lubricate pivot points with appropriate grease. Replace the return spring if broken. Repair or replace any damaged linkage components.

6. Worn or Damaged Clutch Release Fork/Bearing

Although these issues primarily affect clutch engagement and disengagement, severe wear or binding of the release fork or release bearing (also known as the throw-out bearing) can put abnormal resistance on the slave cylinder, potentially hindering the pedal's smooth return. If the fork is bent or the bearing is seized, the slave cylinder might not be able to push it freely, or the natural return mechanism might be impeded.

• Symptoms: Grinding noises when pressing the clutch, difficulty engaging gears, clutch slipping, or a very heavy/stiff pedal that doesn't return fully.
• Diagnosis: Often requires inspection of the clutch assembly, which means gearbox removal. This is usually a last resort after ruling out hydraulic issues.
• Fix: Replacement of the worn or damaged components. This is a significant job, often requiring specialist tools and knowledge, and is usually combined with a full clutch kit replacement.

Diagnostic Steps for a Non-Returning Clutch Pedal

Here’s a systematic approach to pinpointing the problem:

1. Check Fluid Level: Locate the clutch fluid reservoir (or brake fluid reservoir if shared). Ensure the fluid is between the MIN and MAX marks. Top up if low.
2. Inspect for Leaks: Look for any signs of fluid leaks around the master cylinder (on the firewall), the fluid lines, and particularly around the slave cylinder (on the gearbox bell housing). A wet patch under the car, especially after parking, is a tell-tale sign.
3. Pump the Pedal: With the engine off, pump the clutch pedal several times. Does it feel spongy? Does the resistance build up? Does it return more fully after pumping? This can indicate air in the system or a failing master cylinder.
4. Bleed the System: If you suspect air, or after topping up low fluid, bleed the clutch system. Follow your vehicle's specific procedure, typically involving opening a bleed nipple on the slave cylinder while someone slowly depresses the pedal.
5. Inspect Pedal Assembly: Get into the footwell and visually inspect the clutch pedal. Wiggle it. Does it feel loose? Is the return spring in place? Are there any obvious signs of wear or binding at the pivot point? Lubricate and test.
6. Assess Master vs. Slave Cylinder:
   • If the pedal slowly sinks to the floor without external leaks, suspect the master cylinder.
   • If there are external leaks, especially near the gearbox, suspect the slave cylinder.
   • If the pedal feels spongy and no leaks are found, suspect air in the system or a very minor internal leak in either cylinder.

Comparative Analysis: Master vs. Slave Cylinder Symptoms

While their symptoms can overlap, understanding the subtle differences can aid diagnosis:

Frequently Asked Questions (FAQs)

Q: My clutch pedal is stuck to the floor. Is this the same problem?

A: Yes, a pedal stuck to the floor is an extreme symptom of the same underlying issues described. It most commonly points to a complete loss of hydraulic pressure, often due to a major leak from either the master or slave cylinder, or a severe amount of air in the system.

Q: Can I drive my car if the clutch pedal isn't returning fully?

A: It's strongly advised not to. Driving with a faulty clutch system is dangerous and can cause further damage to your transmission. If the clutch isn't fully disengaging, you risk grinding gears, damaging the gearbox, and losing control of the vehicle. Get it inspected and repaired as soon as possible.

Q: How often should I check my clutch fluid?

A: It's good practice to check your clutch fluid (if separate from brake fluid) as part of your regular under-bonnet checks, perhaps every few months or during a service. If it shares the brake fluid reservoir, ensure that fluid is checked regularly. Any sudden drop in fluid level warrants immediate investigation.

Q: Is it difficult to bleed a clutch system?

A: Bleeding a clutch system is a common DIY task, similar to bleeding brakes. It typically requires two people and a basic set of tools (spanner for the bleed nipple, a hose, and a container for old fluid). Some vehicles, particularly those with concentric slave cylinders, can be more challenging to bleed and may require a pressure bleeder.

Q: How long do clutch master and slave cylinders typically last?

A: The lifespan varies greatly depending on driving style, mileage, and vehicle make. Generally, they can last anywhere from 80,000 to 150,000 miles, but failures can occur earlier. Regular fluid changes can help prolong their life.

Conclusion

A clutch pedal that doesn't return fully is more than just an annoyance; it's a clear indicator of a problem within your car's critical transmission system. By systematically checking the hydraulic fluid level, inspecting for leaks, and evaluating the feel of the pedal, you can often narrow down the cause to either a faulty master cylinder, slave cylinder, or simply air in the system. While some fixes, like bleeding, can be a DIY task, others, especially slave cylinder replacements, might require professional assistance. Addressing the issue promptly will not only restore your vehicle's drivability but also prevent more extensive and costly damage to your gearbox in the long run. Don't delay – get your clutch back in top form and enjoy smooth, confident driving on the UK's roads.
