Accessing Your Skoda Fabia Mk3's OBD Port: A Comprehensive Guide

The On-Board Diagnostics (OBD) port is a vital gateway to understanding your vehicle's inner workings. For owners of the Skoda Fabia Mk3, knowing the location and proper usage of this port can be incredibly empowering, allowing for a deeper insight into your car's health and performance. This guide will walk you through the simple steps to locate your Fabia Mk3's OBD port and explain its fundamental purpose in vehicle diagnostics.

Locating the OBD Port on Your Skoda Fabia Mk3

Finding the OBD port on your Skoda Fabia Mk3 is a straightforward process. Begin by entering the driver's cabin. Once seated, direct your attention to the lower section of the dashboard. Typically, the OBD port is discreetly situated on the left-hand side of the dashboard area. You might need to feel around slightly or use a small torch to pinpoint its exact location, as it's often tucked away to maintain a clean interior aesthetic. Once you've located it, you'll see a standard 16-pin connector, ready to be used with compatible diagnostic equipment.

What is the OBD Port For?

The OBD port serves as a standardized interface for vehicle self-diagnosis and reporting. It connects to the vehicle's Electronic Control Unit (ECU), which is essentially the car's brain. The ECU monitors various sensors and systems throughout the vehicle, such as the engine, transmission, anti-lock braking system (ABS), and airbag systems. When a fault is detected, the ECU stores a Diagnostic Trouble Code (DTC) and illuminates a warning light on the dashboard, often the "Check Engine" light.

By connecting a compatible diagnostic tool to the OBD port, you can retrieve these DTCs. This information is crucial for technicians, and increasingly for DIY enthusiasts, to accurately identify the root cause of a problem. Understanding these codes allows for targeted repairs, saving time and money compared to guesswork.

Using Your OBD Port for Diagnostics

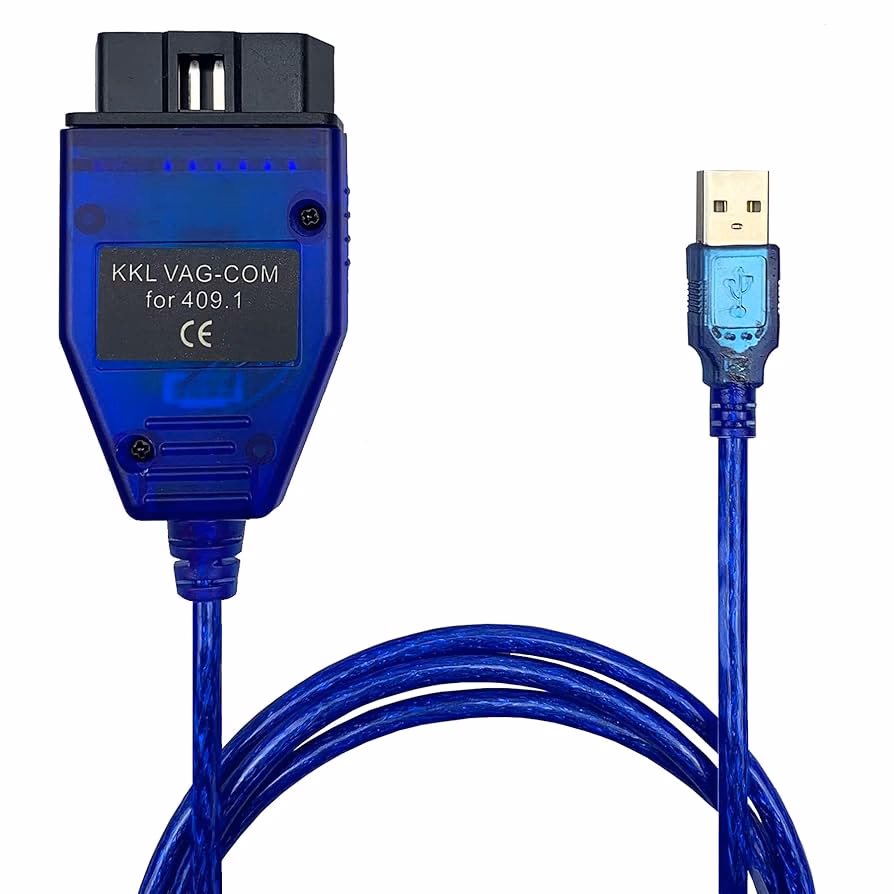

To effectively utilise your Skoda Fabia Mk3's OBD port, you will need two key components: a diagnostic tool and a compatible cable. The diagnostic tool, often referred to as an OBD scanner or code reader, is a device that plugs into the OBD port and communicates with the vehicle's ECU. There are various types of diagnostic tools available, ranging from simple code readers that can retrieve and clear DTCs to more advanced handheld scanners and even software that runs on laptops or smartphones.

When selecting a diagnostic tool, it's essential to ensure its compatibility with your Skoda Fabia Mk3. Most modern vehicles, including the Fabia Mk3, utilise the OBD-II (On-Board Diagnostics, Second Generation) standard. However, specific protocols and software versions can vary between manufacturers and even models. Always check the specifications of the diagnostic tool and the cable to confirm they support Skoda vehicles and your specific model year.

The Diagnostic Process: Step-by-Step

1. Ensure the Vehicle is Off: Before plugging in any diagnostic tool, make sure the car's engine is switched off and the ignition is in the "off" position.
2. Connect the Tool: Carefully plug the OBD cable into the OBD port on your Fabia Mk3 and connect the other end to your diagnostic tool.
3. Turn the Ignition On: Turn the ignition key to the "on" position (the position where dashboard lights illuminate, but the engine is not running). Some tools may require the engine to be running, so always consult your tool's manual.
4. Establish Communication: Your diagnostic tool should now attempt to establish communication with the vehicle's ECU. This may take a few moments.
5. Retrieve Codes: Once communication is established, navigate through the tool's menu to "Read Codes" or a similar function. The tool will then display any stored DTCs.
6. Interpret Codes: Each DTC is a unique alphanumeric code (e.g., P0300, P0420). You can then look up the meaning of these codes in your tool's database, an online resource, or a repair manual.
7. Clear Codes (Use with Caution): After addressing the underlying issue, you can use the diagnostic tool to clear the DTCs. However, it's important to only clear codes after the problem has been resolved, as clearing them without fixing the issue will simply mask the problem and the warning light may reappear.

Common Issues Diagnosed via OBD Port

The OBD system is incredibly versatile and can help diagnose a wide range of issues. Some of the most common problems that can be identified through the OBD port include:

• Engine Misfires: Codes related to misfires (e.g., P0300 series) can indicate issues with spark plugs, ignition coils, fuel injectors, or even mechanical problems with the engine itself.
• Oxygen Sensor Malfunctions: Faulty oxygen sensors (O2 sensors) can lead to poor fuel economy and increased emissions. OBD codes (e.g., P0130 series) will point to these issues.
• Catalytic Converter Problems: Issues with the catalytic converter, a crucial emissions control component, can be detected through O2 sensor readings and specific catalytic converter codes (e.g., P0420).
• Evaporative Emission Control (EVAP) System Leaks: The EVAP system prevents fuel vapours from escaping into the atmosphere. Leaks in this system can trigger codes like P0442 or P0455.
• Mass Airflow Sensor (MAF) Issues: A malfunctioning MAF sensor can affect the air-fuel mixture, impacting engine performance and fuel efficiency.

Choosing the Right Diagnostic Tool

The market offers a vast array of OBD diagnostic tools. Here's a brief comparison to help you make an informed decision:

Important Considerations and Best Practices

While using the OBD port is generally safe, there are a few best practices to keep in mind:

• Always use compatible tools: Using incorrect tools can potentially damage your vehicle's ECU.
• Consult your vehicle's manual: Familiarise yourself with any specific instructions or warnings related to your Skoda Fabia Mk3.
• Do not clear codes unnecessarily: Clearing codes without addressing the underlying issue can lead to further complications.
• Understand the codes: Researching DTCs before attempting a repair is crucial for accurate diagnosis.
• Safety first: Ensure the vehicle is in a safe location, on level ground, and with the parking brake engaged when performing diagnostics.

Frequently Asked Questions (FAQs)

Q1: Can I use any OBD scanner on my Skoda Fabia 3?
While most modern scanners are designed to work with the OBD-II standard, it's crucial to ensure the scanner is compatible with Skoda vehicles and supports the specific protocols used by your Fabia Mk3. Always check the product specifications.

Q2: Will using an OBD scanner void my car's warranty?
Generally, using a standard OBD scanner for diagnostics will not void your warranty, provided you don't misuse the equipment or attempt repairs beyond your capabilities that could cause further damage. However, it's always wise to check your warranty terms or consult your dealer if you have any concerns.

Q3: Can I fix the problems myself after reading the OBD codes?
This depends on the complexity of the issue and your mechanical skill level. Simple issues like replacing a faulty sensor might be manageable for a DIY enthusiast. However, for more complex problems, it's best to consult a qualified mechanic.

Q4: How often should I check my OBD port?
There's no set schedule for checking your OBD port unless a warning light is illuminated on your dashboard. However, if you notice any unusual changes in your car's performance, it's a good time to perform a diagnostic check.

Conclusion

The OBD port on your Skoda Fabia Mk3 is a powerful tool for understanding and maintaining your vehicle's health. By knowing its location and how to use it with the right diagnostic equipment, you can gain valuable insights into potential issues, enabling proactive maintenance and informed repair decisions. Whether you're a seasoned DIY mechanic or simply want to be more aware of your car's condition, mastering the use of your Fabia's OBD port is a worthwhile skill.
