Skoda Fabia: Brake Light Check

Understanding Your Skoda Fabia's Brake Lights

The brake lights on your Skoda Fabia are a critical safety feature, illuminating to signal to following drivers that you are slowing down or stopping. A malfunctioning brake light can not only lead to a potential collision but also result in an MoT (Ministry of Transport) failure or a fixed penalty notice from the police. It's therefore essential to know how to check if they are working correctly and, if not, how to rectify the issue.

The Skoda Fabia, a popular supermini first introduced in 1999 as a successor to the Felicia, has evolved through four generations. Each generation, from the Mk1 (1999-2006) to the current Mk4 (2021 onwards), has featured a distinct design and technological advancements. However, the fundamental safety systems, including the brake lights, remain a constant priority. Whether you own an early model or the latest aerodynamic Mk4, understanding the basic maintenance of your brake lights is a straightforward yet vital task for any Fabia owner.

How to Check Your Fabia's Brake Lights

Checking your Skoda Fabia's brake lights is a simple process that can be done with minimal tools. Here’s how:

1. Find a suitable location: Park your Fabia on a level surface, preferably facing a wall or a reflective surface like a shop window. Ensure there is enough space to walk around the car.
2. Turn on your ignition: You don't need to start the engine, but turning the ignition to the 'on' position will power up the car's electrical systems, including the brake lights.
3. Engage the brake pedal: Press the brake pedal firmly. You might need a second person to help you with this step to observe the lights.
4. Observe the rear lights: Look at the rear of your car. You should see two bright red lights illuminate, in addition to the standard tail lights. The brake lights are typically positioned on either side of the rear cluster. Some models might also have a third, centrally mounted brake light (often referred to as the 'high-level' brake light) within the boot lid or spoiler.
5. Check the third brake light: If your Fabia is equipped with a third brake light, ensure this also illuminates when the brake pedal is pressed.
6. Get a helper: The easiest way to confirm is to have a friend or family member stand behind your car while you operate the brake pedal. They can then confirm whether both brake lights (and the third, if fitted) are functioning correctly.

If any of the brake lights do not illuminate, or appear dimmer than the others, it indicates a problem that needs to be addressed.

Common Causes for Non-Working Brake Lights

Several factors can cause your Skoda Fabia's brake lights to fail. Understanding these common culprits can help in diagnosing the issue:

Replacing a Blown Brake Light Bulb in Your Fabia

Replacing a blown brake light bulb in a Skoda Fabia is usually a straightforward DIY task. The process can vary slightly between generations, but the general principle remains the same. You'll typically need to access the rear light clusters.

General Steps for Bulb Replacement:

1. Locate the light cluster: Open the boot (trunk) of your Fabia. The rear light clusters are usually accessible from the inside of the boot.
2. Access the bulb holder: You'll often find a cover or panel on the inside of the boot that provides access to the rear of the light cluster. This might be held in place by clips or screws. Carefully remove this cover.
3. Identify the correct bulb: Within the light cluster, you'll see multiple bulb holders. The brake light bulb is typically a brighter, often dual-filament bulb (for stop and tail functions) or a specific red-coloured bulb. Consult your Fabia's owner's manual for the exact bulb type and location. Common bulb types for brake lights include P21W or R5W, but always verify.
4. Remove the old bulb: Most bulb holders twist to unlock and then pull out. Gently twist the bulb holder counter-clockwise and pull it straight out.
5. Insert the new bulb: Take your new bulb (ensure it's the correct type and wattage) and insert it into the holder. Push it in firmly and twist clockwise to lock it in place.
6. Reassemble: Refit the cover or panel you removed earlier, ensuring it's securely fastened. Close the boot.
7. Test: With the ignition on, press the brake pedal to confirm the new bulb is working.

Important Notes:

• Handle bulbs with care: Avoid touching the glass of new halogen bulbs with your bare fingers, as oils from your skin can cause them to overheat and fail prematurely. Use a clean cloth or tissue.
• Check your owner's manual: For precise instructions specific to your Fabia's generation and model, always refer to your owner's manual. It will detail the exact bulb types and access methods.
• Third brake light: The third brake light can be more challenging to access and may involve removing interior trim panels or even the boot lid liner. If you're unsure, it's best to seek professional help.

Checking the Brake Light Switch

The brake light switch is a small but vital component. When you press the brake pedal, it activates this switch, completing the circuit and illuminating the brake lights. If this switch malfunctions, your brake lights will cease to work.

Symptoms of a faulty brake light switch:

• Brake lights not working at all.
• Brake lights staying on constantly, even when the brake pedal is not pressed.
• Cruise control (if fitted) not functioning, as it often relies on the brake light switch to disengage.

Diagnosis and Replacement:

The brake light switch is typically located in the footwell, mounted on the brake pedal arm. You may need to get under the dashboard to access it. Visually inspecting the switch for damage or signs of wear is the first step. Sometimes, the switch can simply become misaligned or its electrical connector may be loose.

If the switch appears intact, a mechanic can test its continuity using a multimeter. If it fails the test, it will need to be replaced. The replacement process usually involves unscrewing or unbolting the old switch and fitting the new one, followed by reconnecting the electrical connector.

Fuse Box Locations and Fuse Checks

The Skoda Fabia has one or more fuse boxes, typically located in the dashboard area (often behind a small flap on the side of the dashboard or under the steering wheel) and sometimes in the engine bay. The exact location will be detailed in your owner's manual.

Steps to check fuses:

1. Consult the manual: Open your Skoda Fabia's owner's manual and find the diagram that illustrates the fuse box layout and identifies which fuse corresponds to the brake lights.
2. Locate the fuse box: Find the relevant fuse box in your car.
3. Identify the brake light fuse: Using the diagram, locate the specific fuse for the brake lights.
4. Remove the fuse: Most fuse boxes come with a small plastic fuse puller tool. Use this to carefully pull the fuse straight out.
5. Inspect the fuse: Hold the fuse up to the light. You'll see a thin metal wire or filament running through the plastic casing. If this wire is broken or looks burnt, the fuse has blown.
6. Replace if blown: If the fuse is blown, replace it with a new fuse of the *exact same amperage rating*. Using a fuse with a higher rating can cause damage to the electrical system.
7. Test: Turn on the ignition and test your brake lights.

If you replace a fuse and it blows again immediately, it indicates a more serious electrical fault that requires professional diagnosis.

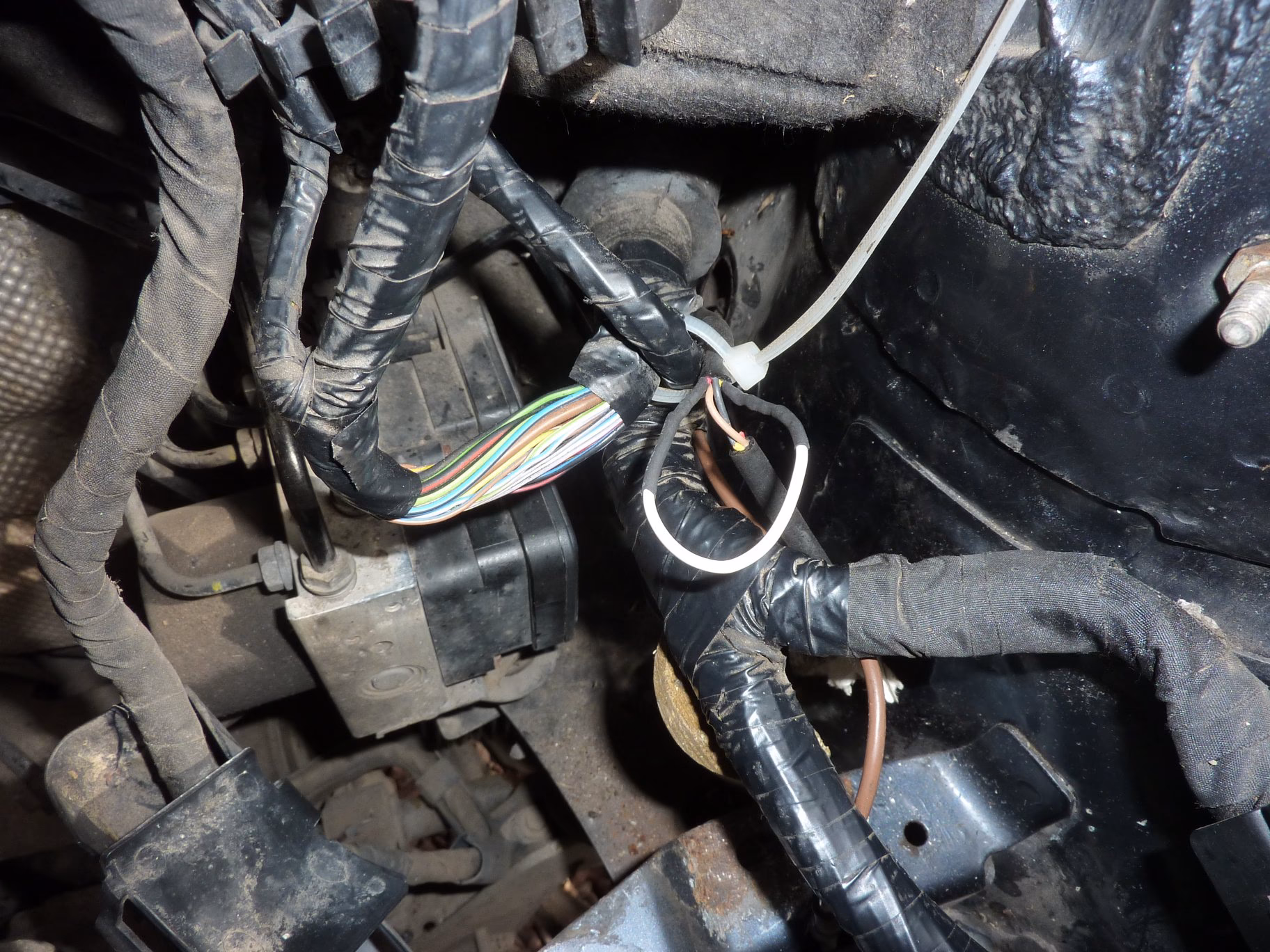

Wiring and Electrical Connections

Corroded connectors, loose wires, or damaged wiring harnesses are less common but can be the cause of brake light failure. These issues often arise due to age, exposure to moisture, or physical damage.

Inspection:

• At the light cluster: Check the electrical connector that plugs into the rear of the light cluster. Ensure it's clean, free from corrosion, and securely connected. Gently wiggle the wires to see if there's any looseness.
• At the brake light switch: Inspect the wiring and connector at the brake light switch for any signs of damage or corrosion.
• Under the boot trim: For more persistent issues, it might be necessary to remove some of the boot trim panels to inspect the wiring harness that runs to the rear light clusters.

If you find corroded terminals, you can try cleaning them with electrical contact cleaner. Loose connections may need to be tightened or re-crimped. Any visible damage to the wiring itself will require repair by splicing in new wire or replacing sections of the harness.

When to Seek Professional Help

While many brake light issues can be resolved with basic DIY checks and bulb replacements, there are times when it's best to consult a qualified mechanic:

• Persistent problems: If you replace a bulb and it blows again shortly after, or if replacing a fuse doesn't resolve the issue, there's likely a deeper electrical fault.
• Complex wiring issues: If you suspect damaged wiring harnesses or internal faults within the light clusters, professional diagnosis is recommended.
• Third brake light access: If accessing the third brake light proves too difficult or requires extensive trim removal.
• Uncertainty: If you're not comfortable working with car electrics or are unsure about any step in the process.

A professional mechanic has the diagnostic tools and expertise to quickly pinpoint the root cause of the problem and ensure a safe and correct repair, keeping your Skoda Fabia roadworthy and safe for yourself and others.

Frequently Asked Questions

Q1: How often should I check my brake lights?

A1: It's good practice to check your brake lights at least once a month, or before any long journeys. A quick visual check with a helper or by observing reflections can prevent potential issues.

Q2: Can I drive my Fabia with one brake light out?

A2: While it might seem minor, driving with a faulty brake light is illegal in most places and can result in a fine or penalty points. It also significantly increases the risk of an accident, as following drivers may not realise you are braking.

Q3: What is the correct bulb type for my Fabia's brake lights?

A3: The specific bulb type can vary depending on the generation and model year of your Skoda Fabia. Always refer to your owner's manual for the precise bulb specification (e.g., P21W, R5W, or a specific dual-filament type). You can usually find this information in the section on replacing bulbs.

Q4: My third brake light isn't working, but the main ones are. What could be the problem?

A4: This usually indicates a separate issue with the third brake light itself. It could be a burnt-out bulb (if it's a standard bulb type), a faulty connection specifically to that light, or a problem with the wiring unique to the high-level brake light. Check the bulb first, then inspect its wiring and connections if possible.

Q5: I replaced the fuse, and it blew again immediately. What does this mean?

A5: This strongly suggests a short circuit somewhere in the brake light wiring or a faulty component (like the brake light switch) that is causing excessive current draw. Continuing to replace fuses will likely not solve the problem and could potentially cause further damage. It's essential to have this checked by a qualified mechanic as soon as possible.

By understanding these checks and potential issues, you can ensure your Skoda Fabia's brake lights are always in optimal working order, contributing to a safer driving experience.
