Dissecting Your Car's Fuel Injection System

Modern vehicles owe much of their efficiency, power, and reduced emissions to sophisticated fuel injection systems. Gone are the days of carburetors, which offered less precise control over the air-fuel mixture. Today, a complex network of components ensures that fuel is delivered with pinpoint accuracy, optimising combustion for every driving condition. Understanding these vital parts isn't just for mechanics; it empowers every car owner to better appreciate their vehicle and recognise potential issues early. Let's embark on a journey through the heart of your car's fuel delivery system, exploring each crucial component and its role in keeping you moving.

The Backbone: Essential Fuel System Components

While seemingly simple in concept – getting fuel from the tank to the engine – the execution involves several interconnected parts, each performing a critical function. From the moment fuel enters your tank to its final atomised spray into the cylinders, a precise sequence of events is managed by these components.

1. The Fuel Tank: The Reservoir

This is where it all begins. The fuel tank is a robust container, typically made of plastic or metal, designed to safely store petrol or diesel. Modern tanks often include internal baffles to prevent fuel sloshing during cornering or braking, which could disrupt fuel pump operation. They also feature a fuel sender unit, which transmits the fuel level information to your dashboard gauge, and a filler neck for refuelling. Safety features, such as rollover valves to prevent fuel spillage in an accident, are also integrated.

2. The Fuel Pump: The Heartbeat

The fuel pump is arguably one of the most critical components, responsible for drawing fuel from the tank and pushing it towards the engine under pressure. Most modern vehicles utilise an electric fuel pump, often located inside the fuel tank itself (in-tank pump) to keep it cool and quiet, and to reduce the risk of vapour lock. These pumps typically consist of an electric motor and a pumping mechanism (e.g., a turbine or roller cell pump) that generates the necessary pressure. Some systems, especially direct injection ones, might also have a high-pressure pump located on the engine to further boost pressure for the injectors.

3. The Fuel Filter: The Guardian

Clean fuel is paramount for the longevity and efficient operation of the entire fuel injection system, especially the delicate fuel injectors. The fuel filter acts as a crucial barrier, trapping contaminants such as dirt, rust particles, and other debris that might be present in the fuel or the tank. Typically located between the fuel tank and the engine, it protects the fuel pump and injectors from damage and clogging. A clogged fuel filter can significantly restrict fuel flow, leading to poor engine performance, hesitation, or even stalling. Regular replacement is a key maintenance item.

4. Fuel Lines: The Arteries and Veins

Fuel lines are the conduits through which fuel travels from the tank, through the filter and pump, and finally to the engine. They are typically made of steel or nylon, designed to withstand the pressure of the fuel and resist corrosion from chemicals. Modern systems often use both a supply line (delivering fuel to the engine) and a return line (sending unused fuel back to the tank to help cool the pump and maintain pressure). These lines must be robust and leak-free to ensure safety and prevent fuel loss.

5. The Fuel Rail: The Distributor

Once the fuel reaches the engine bay, it enters the fuel rail. This is a hollow metal tube or manifold that distributes pressurised fuel evenly to all the fuel injectors. It acts as a common reservoir, ensuring that each injector receives a consistent supply of fuel at the correct pressure. The fuel rail is designed to dampen pressure pulsations caused by the rapid opening and closing of the injectors, ensuring a stable fuel supply to all cylinders.

6. The Fuel Injectors: The Atomisers

The fuel injectors are the heart of the injection system, directly responsible for spraying a finely atomised mist of fuel into the engine. Each cylinder typically has its own injector. These are electronically controlled solenoid valves that open for a precise duration (pulse width) when commanded by the Engine Control Unit (ECU). The fine mist, or atomisation, allows the fuel to mix thoroughly with air, leading to efficient and complete combustion. Injectors can become clogged over time, leading to misfires, reduced fuel economy, and increased emissions.

7. The Fuel Pressure Regulator: The Stabiliser

To ensure consistent fuel delivery, the system needs to maintain a stable fuel pressure at the injectors, regardless of engine speed or load. This is the job of the fuel pressure regulator. It's typically located on the fuel rail or near the fuel pump. It works by bleeding off excess fuel pressure back to the fuel tank via the return line, maintaining the desired pressure within the fuel rail. Some modern systems use a demand-controlled pump and sensor rather than a mechanical regulator.

The Brains Behind the Operation: Electronic Control

While the mechanical components handle the flow and pressure, it's the electronic control system that dictates precisely when and how much fuel is injected. This is where the intelligence of the system lies.

8. The Engine Control Unit (ECU): The Mastermind

The ECU, often referred to as the car's 'brain', is a sophisticated computer that continuously monitors numerous engine parameters via a network of sensors. It processes this information in real-time to make precise adjustments to engine operation, including fuel injection. Based on inputs like engine speed, load, air temperature, and oxygen content in the exhaust, the ECU calculates the optimal amount of fuel to inject and the precise timing for each injector. It determines the 'pulse width' – how long the injector stays open – ensuring the perfect air-fuel ratio for various driving conditions.

9. Sensors: The Eyes and Ears

The ECU relies heavily on data from a multitude of sensors to make informed decisions. Key sensors relevant to fuel injection include:

• Mass Air Flow (MAF) or Manifold Absolute Pressure (MAP) Sensor: Measures the amount of air entering the engine, crucial for calculating the correct fuel quantity.
• Oxygen (O2) Sensor: Located in the exhaust, it measures the oxygen content, indicating how rich or lean the air-fuel mixture is after combustion, allowing the ECU to fine-tune injection for optimal emissions and efficiency.
• Throttle Position Sensor (TPS): Informs the ECU of the driver's demand for power by measuring the throttle valve's position.
• Coolant Temperature Sensor (CTS): Provides engine temperature data, influencing cold start enrichment and idle speed.
• Crankshaft Position Sensor (CKP): Monitors engine speed and piston position, critical for precise injection timing.

10. Wiring Harness and Connectors: The Nervous System

All these electronic components are interconnected by a complex wiring harness. This network of wires and connectors transmits signals between the sensors, the ECU, and the actuators (like the fuel injectors). Any break or corrosion in these connections can disrupt the flow of information, leading to system malfunctions.

How It All Comes Together: A Simplified Flow

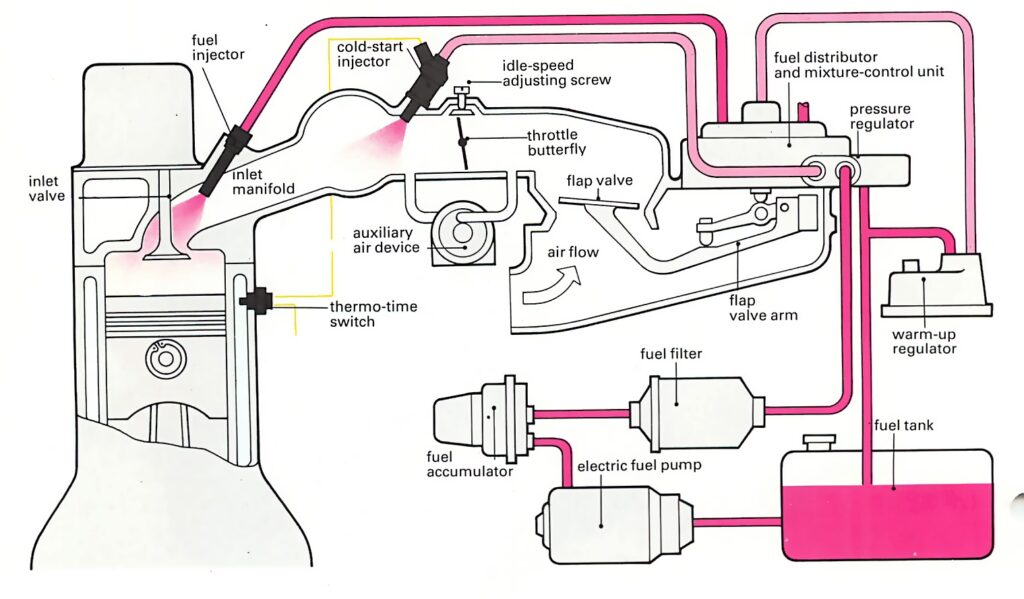

Imagine fuel starting in the tank. The electric fuel pump draws it out, pushing it through the fuel filter to remove impurities. The pressurised, filtered fuel then travels through the fuel lines to the fuel rail, which distributes it to each injector. Meanwhile, the ECU is constantly receiving data from various sensors about the engine's current state. Based on this data, it calculates the precise amount of fuel needed and sends an electrical signal to each injector, opening it for a fraction of a second. The high pressure causes the fuel to spray out in a fine mist, mixing with air before combustion. The fuel pressure regulator ensures that the pressure within the rail remains constant, returning any excess fuel to the tank.

Types of Fuel Injection Systems

While the core components remain similar, there are two primary types of fuel injection systems prevalent in modern cars:

Port Fuel Injection (PFI)

In PFI systems, the fuel injectors are located in the intake manifold, just before the intake valves. Fuel is sprayed onto the back of the closed intake valve, where it mixes with air before entering the combustion chamber when the valve opens. This has been the standard for decades due to its simplicity and effectiveness.

Direct Injection (GDI/FSI)

Direct Injection (often referred to as GDI for Gasoline Direct Injection or FSI for Fuel Stratified Injection) is increasingly common. Here, the injectors are located directly inside the combustion chamber. Fuel is sprayed at very high pressure directly into the cylinder, allowing for more precise control over the air-fuel mixture and enabling higher compression ratios, leading to better fuel economy and power output. These systems often require a low-pressure pump in the tank and a high-pressure pump on the engine.

Comparative Table: PFI vs. Direct Injection

Common Issues and Maintenance

While robust, fuel injection systems are not immune to problems. Common issues include:

• Clogged Fuel Filter: Leads to reduced fuel flow, poor performance, and potential pump strain.
• Failing Fuel Pump: Can result in no start, long crank times, or engine stalling.
• Clogged or Leaking Injectors: Causes misfires, rough idle, reduced fuel economy, and increased emissions.
• Faulty Sensors: Incorrect readings from MAF, O2, or other sensors can lead to incorrect fuel delivery.
• Fuel Pressure Regulator Failure: Can cause either too much or too little fuel pressure.

Regular maintenance, such as replacing the fuel filter at recommended intervals and using quality fuel, can significantly extend the life of these components.

Frequently Asked Questions (FAQs)

Here are some common questions drivers have about their fuel injection systems:

Q1: How often should I replace my fuel filter?

A1: This varies by vehicle manufacturer, but generally, it's recommended every 30,000 to 60,000 miles. Check your car's owner's manual for the precise recommendation. Ignoring it can lead to costly repairs down the line.

Q2: What are the symptoms of a failing fuel pump?

A2: Common symptoms include difficulty starting, a whining noise from the fuel tank area, engine sputtering at high speeds, a sudden drop in fuel economy, and stalling, especially when the engine is under load or hot.

Q3: Can I clean my fuel injectors myself?

A3: Over-the-counter fuel system cleaners can help with minor deposits if used regularly as a preventative measure. However, for heavily clogged injectors, professional cleaning or replacement is often necessary. This involves specialised equipment that pulses the injectors and flows cleaning solution through them.

Q4: Is direct injection better than port injection?

A4: Direct injection generally offers better fuel economy and higher power output due to more precise fuel delivery and the ability to run higher compression ratios. However, it can be more prone to carbon build-up on the intake valves since fuel doesn't wash over them, potentially requiring more specific maintenance.

Q5: How does the ECU know how much fuel to inject?

A5: The ECU uses a complex algorithm based on real-time data from various sensors, including the MAF/MAP sensor (air intake), O2 sensor (exhaust oxygen), throttle position sensor (driver demand), engine speed, and engine temperature. It continuously calculates the optimal air-fuel ratio and adjusts the injector pulse width accordingly, often thousands of times per second.

Conclusion

The fuel injection system is a marvel of engineering, a testament to the continuous drive for more efficient, powerful, and cleaner internal combustion engines. Each component, from the humble fuel tank to the sophisticated ECU and precise injectors, plays a vital role in ensuring your vehicle runs smoothly and reliably. Understanding these parts not only demystifies your car's operation but also equips you with the knowledge to identify potential issues early, contributing to better maintenance and a longer, healthier life for your vehicle. Regular servicing and attention to any warning signs will help keep this intricate system performing at its best, ensuring you get the most out of every drop of fuel.
