Fuel Injection: The Modern Engine's Lifeline

In the realm of automotive engineering, few advancements have had as profound an impact as the transition from carburettors to fuel injection systems. By the late 1980s, fuel injection had largely supplanted its predecessor in petrol-powered vehicles, ushering in an era of enhanced performance, improved fuel efficiency, and significantly reduced emissions. But what exactly is this ubiquitous system, and how does it work its magic under the bonnet?

Fuel Injection vs. Carburettors: A Clear Advantage

The primary driver behind the widespread adoption of fuel injection was its superior performance characteristics compared to traditional carburettors. Let's delve into the key benefits:

The fundamental difference lies in their approach to mixing fuel and air. A carburettor operates at low pressure, relying on the vacuum created by the engine to draw fuel and air through it. In contrast, a fuel injection system atomises fuel under high pressure, delivering it precisely through a small nozzle. This high-pressure atomisation is key to eliminating many of the cold-start ignition issues commonly associated with carburettors.

The Heart of the System: Fuel Injectors

At the core of any fuel injection system are the injectors themselves. These are essentially sophisticated nozzles, each equipped with a tiny valve. When the engine control unit (ECU) signals the injector, the valve opens, allowing fuel to be sprayed into the intake manifold or directly into the combustion chamber. The fuel, propelled by the pressure from the fuel pump, is forced through the injector's fine holes, creating a fine mist – a process crucial for efficient combustion. The injector's needle, held closed by a spring, is lifted by fuel pressure when the ECU sends an electrical pulse, allowing fuel to spray. This precise timing and volume control are paramount.

The Driving Force: Environmental Consciousness

The rise of fuel injection wasn't solely driven by performance gains; environmental concerns played a pivotal role. Following the 1990s, increased awareness of the greenhouse effect and global warming led to stricter emissions regulations across Europe and beyond. Governments began imposing stringent laws on vehicle emissions, compelling manufacturers to develop cleaner technologies. Fuel injection systems emerged as the solution, engineered to achieve the ideal air-fuel mixture for complete combustion, thereby minimising the release of harmful pollutants.

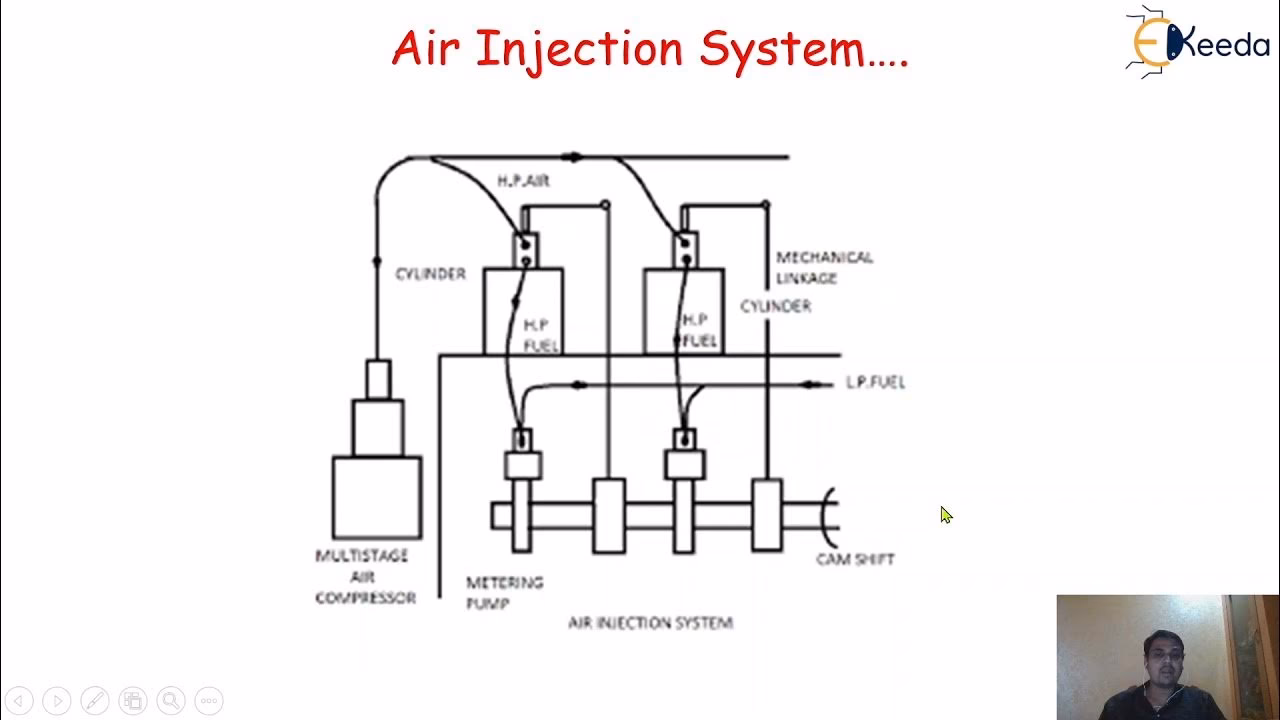

Evolution of Fuel Injection Systems

The journey of fuel injection has been one of continuous refinement, evolving from mechanical systems to the highly sophisticated electronic systems we see today. Initially, mechanical injection systems were employed, but the advent of electronic control units (ECUs) and a plethora of sensors revolutionised the process. These electronic systems allow for incredibly precise control over fuel delivery, adapting to myriad driving conditions, engine loads, and temperatures. This adaptability not only enhances performance but also significantly reduces fuel consumption and environmental impact.

The elimination of the carburettor also opened up new design possibilities for intake manifolds, allowing for smoother airflow into the cylinders. This optimisation of cylinder filling contributes to increased engine power and torque. When an individual injector is used for each cylinder, the air-fuel mixture is further refined, leading to faster and more effective regulation.

Components of a Fuel Injection System

While specific configurations vary between manufacturers, most fuel injection systems share a common set of core components:

• Fuel Tank: The secure storage for the vehicle's fuel.
• Fuel Pump: Responsible for drawing fuel from the tank and delivering it under pressure to the injectors.
• Fuel Lines: The conduits that transport fuel from the tank to the injectors.
• Fuel Filter: Ensures that only clean fuel reaches the injectors, preventing blockages and damage.
• Injectors: The precision nozzles that atomise and spray fuel into the engine.
• Throttle Body: Controls the amount of air entering the engine, regulated by the accelerator pedal. It houses the throttle plate, which opens and closes to manage airflow.
• Electronic Control Unit (ECU): The 'brain' of the system, receiving data from various sensors and controlling fuel delivery and ignition timing.
• Sensors: A network of sensors (e.g., oxygen sensor, mass airflow sensor, throttle position sensor) provide the ECU with real-time data about engine operating conditions.
• Canister Purge Valve & Canister: Part of the evaporative emissions control system, the canister stores fuel vapours, which are then purged into the engine to be burned.

Types of Fuel Injection Systems

Fuel injection systems can be broadly categorised based on several factors:

1. Location of Injection:

• Indirect Injection: Fuel is injected into the intake manifold, just before the intake valve.
• Direct Injection (DI): Fuel is injected directly into the combustion chamber. This method offers superior fuel economy and reduced emissions.

2. Number of Injectors:

• Single-Point Injection (SPI) / Mono-Point: A single injector supplies fuel to all cylinders via the intake manifold. Less precise than multi-point systems.
• Multi-Point Injection (MPI) / Multi-Point: Each cylinder has its own injector, providing more precise fuel delivery.

3. Timing of Injection:

• Continuous Injection: Fuel is injected continuously into the intake manifold. Less common in modern petrol engines.
• Intermittent Injection: Fuel is injected in pulses, precisely timed by the ECU. This is the dominant method in modern vehicles and can be:
  • Simultaneous: All injectors fire at the same time.
  • Semi-Sequential: Injectors fire in pairs.
  • Sequential: Each injector fires individually, timed with the opening of its respective intake valve. This offers the highest precision.

4. Control System:

• Mechanical: Early systems relied entirely on mechanical components for fuel metering.
• Electro-Mechanical: A blend of mechanical and electronic control.
• Electronic: Modern systems controlled by an ECU, utilising various sensors for optimal fuel management.

Historical Systems: A Glimpse into the Past

Several significant fuel injection systems have marked the evolution of this technology:

• K-Jetronic: A purely mechanical system used in the 1970s, dosing fuel based on airflow. Primarily seen today in maintenance and repair contexts.
• KE-Jetronic: An evolution of K-Jetronic, incorporating electronic control for improved optimisation and emissions.
• L-Jetronic: Electronically controlled with airflow metering via a vane sensor, and electro-magnetically controlled injectors.
• LH-Jetronic: Similar to L-Jetronic, but uses a hot-wire mass airflow sensor for more accurate air mass measurement.
• Mono-Jetronic: Centralised electronic injection with a single injector spraying fuel above the throttle body.
• Motronic: A comprehensive engine management system that integrates fuel injection and ignition control for optimised performance.
• Motronic ME with EGAS (Electronic Throttle Control): Integrates electronic throttle control for enhanced drivability, safety, and seamless interaction with other vehicle systems like ABS and ESP.
• Motronic MED (Gasoline Direct Injection - GDI): Injects fuel directly into the combustion chamber, allowing for stratified or homogeneous charge strategies for improved efficiency and emissions.
• Flex Fuel: Capable of automatically adapting to varying blends of petrol and alcohol (like ethanol) based on sensor readings.
• Trifuel: A digital multi-point system that can run on petrol, alcohol, or Compressed Natural Gas (CNG), offering significant fuel flexibility.

The Benefits of Modern Fuel Injection

The precision of modern fuel injection systems translates into tangible benefits for vehicle owners:

• Improved Fuel Economy: Precise fuel metering ensures that only the necessary amount of fuel is delivered, minimising waste.
• Reduced Emissions: The ideal air-fuel mixture and efficient combustion drastically cut down harmful exhaust gases.
• Enhanced Performance: Better cylinder filling and optimised fuel delivery lead to increased power and torque.
• Smoother Operation: Consistent and accurate fuel delivery results in a more refined driving experience, especially during cold starts.

Direct vs. Indirect Injection: A Closer Look

The distinction between direct and indirect injection is significant:

• Indirect Injection: Fuel is sprayed into the intake manifold, mixing with air before entering the cylinder. This typically results in a homogeneous air-fuel mixture throughout the combustion chamber. The ideal mixture for complete combustion is around 14.7 parts air to 1 part fuel by volume (stoichiometric or Lambda 1). While running leaner (more air) can improve economy, it can also increase nitrogen oxide (NOx) emissions.
• Direct Injection: Fuel is injected directly into the cylinder. This allows for more complex combustion strategies, such as stratified charge (a lean mixture around the spark plug and a richer mixture elsewhere) or homogeneous charge. Direct injection offers greater control over the combustion process, leading to superior efficiency and lower emissions.

Whether your vehicle is equipped with a classic K-Jetronic system or a cutting-edge Trifuel setup, understanding the fundamentals of fuel injection is crucial for proper maintenance. Regular servicing and monitoring by qualified mechanics are recommended to ensure your vehicle's fuel system operates at its peak efficiency and reliability. As the saying goes, a stitch in time saves nine.
