Understanding Single Point Fuel Injection

The evolution of automotive fuel delivery systems has seen remarkable advancements, moving from rudimentary carburetors to sophisticated, electronically controlled injection systems. Among these, the Single Point Injection (SPI) system, also known as Throttle Body Injection (TBI) or Central Fuel Injection (CFI), played a significant role in the transition period. While now largely superseded by Multi-Point Injection (MPI) and direct injection technologies, understanding how SPI works provides valuable insight into automotive engineering history and the fundamentals of fuel management.

What is Single Point Injection?

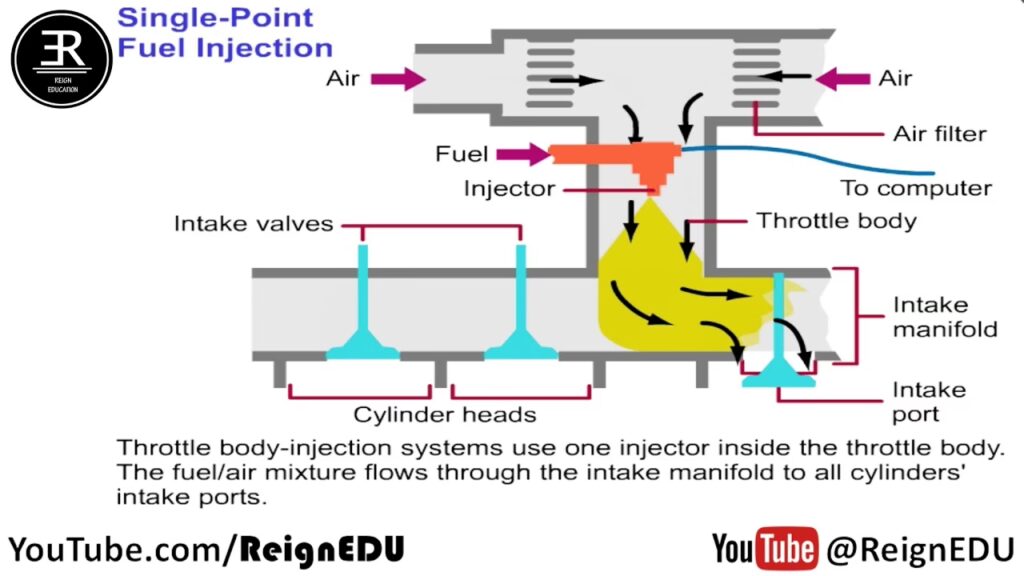

Single Point Injection is an electronic fuel delivery system that uses a single fuel injector, typically located in the throttle body. This is the same location where carburetors were traditionally mounted. The primary function of any fuel injection system is to deliver a precisely metered amount of fuel into the engine's intake air to create a combustible mixture. In SPI, this single injector sprays fuel into the intake manifold, just above the throttle butterfly valve. As the air is drawn into the engine, it mixes with the atomised fuel before being distributed to each cylinder.

Historical Context and Development

The concept of injecting fuel into the intake tract wasn't entirely new when SPI gained prominence in the automotive world. It was initially developed for large aircraft engines in the 1940s, where it was termed a "pressure carburetor." In the automotive sector, SPI began to appear in the 1980s. Manufacturers adopted different names for their SPI systems, including Throttle-body Injection (TBI) by General Motors, Central Fuel Injection (CFI) by Ford, PGM-CARB by Honda, and EGI by Mazda. The main driver behind the adoption of SPI was its cost-effectiveness. It allowed manufacturers to leverage existing components from carburetor systems, such as the air cleaner assembly, intake manifold design, and fuel line routing. This significantly reduced the need for costly redesign and retooling, making the transition to fuel injection more economical. Consequently, SPI systems were widely used in American passenger cars and light trucks from the mid-1980s to the mid-1990s, and also found their way into some European vehicles during the early to mid-1990s.

Principle of Operation

At the heart of an SPI system is a single, electronically controlled injector. Unlike Multi-Point Injection (MPI) systems where each cylinder has its own injector, SPI relies on one centrally located injector to supply fuel for all cylinders. The system operates with relatively low fuel supply pressures, typically between 0.75 to 1 bar. A single-stage turbine fuel pump is usually employed to deliver fuel from the tank to the injector. A key characteristic of SPI systems is the pressure regulator, which, unlike in MPI systems, often lacks a vacuum connection. This design choice is because the system pressure regulation is intended to be independent of manifold vacuum. Since the fuel injection occurs upstream of the throttle plate, in a region that is not under significant vacuum, the amount of fuel injected is primarily determined by the duration for which the injector remains open (pulse width), rather than by vacuum-referenced pressure adjustments.

Key Components and Sensors

The precise metering of fuel in an SPI system is managed by the Engine Control Unit (ECU), which receives input from various sensors:

• Throttle Position Sensor (TPS): This is a crucial sensor that informs the ECU about the throttle opening angle. It's a primary input for determining the driver's demand for acceleration and thus the required fuel quantity.
• Lambda Sensor (Oxygen Sensor): Located in the exhaust system, the Lambda sensor monitors the oxygen content in the exhaust gases. This provides feedback to the ECU on the efficiency of combustion, allowing it to adjust the fuel mixture for optimal air-fuel ratio (AFR), typically around 14.7:1 for gasoline engines. SPI systems, particularly the Bosch Mono-Jetronic, often relied heavily on the Lambda sensor for accurate fuel control due to their simpler engine load sensing mechanisms.
• Air Temperature Sensor: Measures the temperature of the incoming air. Colder air is denser, requiring more fuel for a correct mixture, and vice versa.
• Coolant Temperature Sensor: Indicates the engine's operating temperature. A cold engine requires a richer fuel mixture for smooth running and to prevent stalling.
• Crankshaft Position Sensor: While not always directly used for fuel quantity determination in basic SPI, it's vital for engine timing and RPM, which influences injection frequency.

ECU Control Strategy

The ECU calculates the required fuel injection duration based on the data from these sensors. For instance, when the throttle is opened, the TPS signals an increase in air intake. The ECU, considering the air temperature and engine temperature, calculates the necessary fuel pulse width to maintain the desired air-fuel ratio. The injector then opens for this calculated duration, spraying atomised fuel into the intake manifold.

Some SPI systems, like the Bosch Mono-Jetronic, managed idling via a stepper motor controlling an idle air bypass, relying solely on the throttle position sensor for engine load estimation. These systems typically lacked dedicated airflow or manifold absolute pressure (MAP) sensors, making them more sensitive to variations in engine operating conditions and heavily dependent on the Lambda sensor for closed-loop correction. Other systems, such as GM's Multec, might use a different method for idle speed control, such as a bypass air control valve.

"Wet Manifold" System

SPI systems are often referred to as "wet manifold" systems. This is because the fuel, after being injected, travels through the intake manifold runners along with the air before reaching the cylinders. This is in contrast to MPI systems, where fuel is injected directly into the intake port of each cylinder, closer to the intake valve, resulting in a "dry manifold" (or at least much less fuel present in the manifold itself). The fuel wetting the manifold walls in an SPI system can affect the fuel delivery characteristics, especially during transient conditions (sudden throttle changes), and can lead to slightly less precise fuel control compared to MPI.

Comparison with Multi-Point Injection (MPI)

SPI and MPI systems differ significantly in their injector placement and number:

Common Issues and Diagnostics

Like any automotive component, SPI injectors can develop faults. Common problems include:

• Electrical Issues: Open circuits or short circuits in the wiring to the injector, or poor connections at the injector plug, can prevent the injector from operating. Loose or corroded ground connections are also a frequent culprit.
• Mechanical Faults: The injector itself can fail internally, leading to blockage, leakage, or improper spray pattern.
• Clogging: Over time, fuel deposits can clog the injector nozzle, reducing fuel flow or causing a distorted spray pattern, leading to poor engine performance, misfires, and increased emissions.

Testing SPI Injectors

Diagnosing an SPI system often involves checking the injector's electrical integrity and its output signal. Here’s a typical diagnostic approach:

1. Resistance Check:

This test verifies the electrical coil within the injector. With the ignition off and the engine not running:

1. Disconnect the two-pin connector from the injector.
2. Connect a precise ohmmeter across the terminals of the injector connector.
3. The resistance should typically be very low, around 1 ohm or less. Consult the vehicle's service manual for the exact specification.
4. If the resistance is significantly higher, open-circuit, or shows a short, the injector is likely faulty and needs replacement.

2. Testing Output Signal with an Oscilloscope:

An oscilloscope can provide a more dynamic view of the injector's operation, showing both voltage and current waveforms.

Injector Voltage vs. Current Test:

1. Channel A (Voltage): Connect a 10:1 attenuator to Channel A of your oscilloscope. Connect the oscilloscope probe's red lead to one of the injector's wires and the black ground clip to the vehicle's chassis ground.
2. Channel B (Current): Use an appropriate current clamp (e.g., a CA-60 AC/DC current clamp) connected to Channel B. Set the clamp to the correct range (e.g., ±20A) and sensitivity (e.g., 1mV/10mA). Ensure the clamp is zeroed before attaching it to the wire. Crucially, clamp only one of the two wires to the injector. The polarity of the current reading will depend on which wire is clamped and the direction of current flow.
3. Start the engine and allow it to warm up to operating temperature, then let it idle.
4. Observe the waveforms on the oscilloscope. The voltage trace should show the injector being commanded open and closed. The current trace should show a rapid rise when the injector is energised and a drop when it de-energises. The shape and duration of these pulses are critical indicators of injector health.

Injector Voltage Test (Simplified):

1. Channel A (Voltage): Connect the oscilloscope probe as described above (red lead to injector wire, black to ground).
2. Start the engine and observe the voltage waveform.
3. Compare the observed waveform to a known good waveform for the specific vehicle. A good waveform will typically show a voltage drop when the injector is energised, followed by a voltage rise as the injector closes due to the back-EMF generated by the coil.

Deviations from the expected waveform, such as slow voltage transitions, missing pulses, or abnormal voltage levels, can indicate an electrical issue with the injector or its control circuit.

Conclusion

Single Point Injection systems, despite their relative simplicity, were a vital step in the progression towards modern fuel injection technology. They offered a cost-effective solution for improving fuel economy and emissions compared to carburetors. While they have been largely replaced by more advanced systems, understanding their operation, common faults, and diagnostic methods remains essential for anyone working on or maintaining vehicles from the era in which they were prevalent. The core principles of using electronic control to manage fuel delivery, however, laid the groundwork for the highly sophisticated systems we see in vehicles today.
