Unravelling Single Point Fuel Injection Systems

In the intricate world of automotive engineering, the method by which fuel is delivered to an engine's combustion chambers is paramount to its performance, efficiency, and emissions. Before the widespread adoption of highly advanced, multi-point, and direct injection systems, a significant stepping stone from the venerable carburettor was the Single Point Fuel Injection system, often affectionately known as Throttle Body Injection (TBI). This foundational technology played a crucial role in improving fuel delivery precision and engine responsiveness during a pivotal era for vehicle manufacturers and consumers alike.

Unlike its carburettor predecessors, which relied on the venturi effect to draw fuel into the airflow, SPI systems introduced electronic control and a dedicated fuel injector. This innovation marked a significant shift towards more controlled and efficient fuel management, even if it maintained some similarities to carburettor design in terms of its central location. Understanding the mechanics, advantages, and limitations of these systems offers valuable insight into the evolution of modern engine technology and appreciate the journey from mechanical simplicity to digital precision.

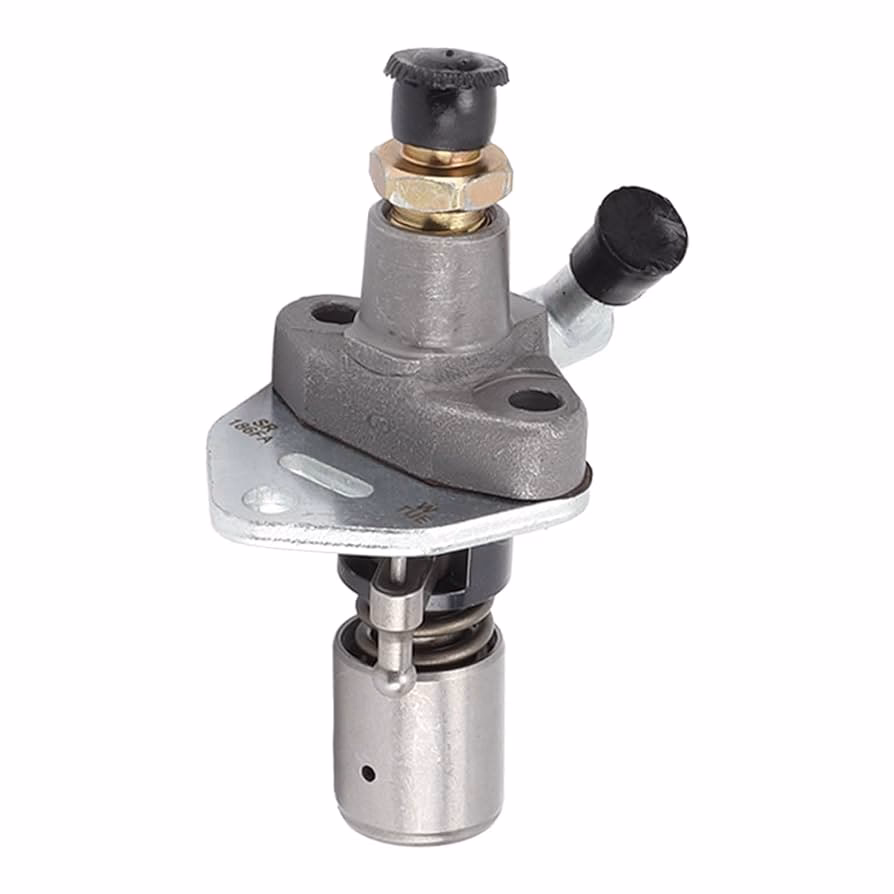

What is a Single Point Fuel Injection System?

A Single Point Fuel Injection system, frequently referred to as Throttle Body Injection (TBI), is a type of fuel injection system characterised by the use of a single fuel injector for mixing fuel with air. This sole injector is strategically positioned before the throttle valve, typically within a central housing that resembles a carburettor, located directly above the intake manifold.

In this configuration, the fuel is sprayed into a common plenum, where it then mixes with the incoming air before the mixture is distributed to all of the engine's cylinders via the intake manifold. This contrasts sharply with later multi-point injection systems, which utilise individual injectors for each cylinder. The design philosophy behind SPI was to offer a more precise and electronically controlled fuel delivery method than a carburettor, while maintaining a relatively simple and cost-effective setup, making it an ideal intermediate technology.

How Does a Single Point Fuel Injection System Work?

The operation of a single-point fuel injection system, while simpler than its modern counterparts, involves a coordinated effort between mechanical components and electronic controls. Here’s a breakdown of its working principle:

1. Fuel Delivery

   Fuel is drawn from the fuel tank by an electric fuel pump, typically located within or near the tank. This pump delivers fuel under pressure through a fuel filter, which removes contaminants, before it reaches the throttle body unit.

2. Fuel Injection

   Within the throttle body unit, the fuel injector is positioned. Unlike a carburettor, which relies on vacuum to draw fuel, the injector is an electronically controlled nozzle. The Engine Control Unit (ECU), often considered the 'brain' of the engine, determines the precise moment and duration for which the injector should open.

3. Sensor Input to ECU

   The ECU makes its decision based on real-time data received from various sensors. Key sensors include:

   • Manifold Absolute Pressure (MAP) Sensor: Measures the pressure inside the intake manifold, indicating engine load.
   • Throttle Position Sensor (TPS): Detects the angle of the throttle valve, indicating how much the accelerator pedal is pressed.
   • Engine Coolant Temperature (ECT) Sensor: Provides information about the engine's operating temperature, crucial for cold starting enrichment.
   • Oxygen (O2) Sensor: Located in the exhaust system, it measures the oxygen content in the exhaust gases, allowing the ECU to fine-tune the air-fuel ratio for optimal combustion and emissions.

   Based on these inputs, the ECU calculates the optimal amount of fuel required for the current engine operating conditions.

4. Air-Fuel Mixture Formation

   Once the ECU commands the injector to spray, fuel is atomised into a fine mist directly into the incoming airflow, just upstream of the throttle plate. This air-fuel mixture then passes through the throttle body and enters the intake manifold.

5. Mixture Distribution

   The intake manifold, a series of passages, is responsible for distributing this air-fuel mixture evenly to each of the engine's cylinders. Once the mixture reaches the cylinders, it is compressed and ignited by the spark plug, initiating the combustion cycle.

Key Components of a Single Point Fuel Injection System

While seemingly simple, an SPI system comprises several critical components that work in harmony:

• Fuel Pump: An electric pump that delivers fuel from the tank to the throttle body at a consistent pressure.
• Fuel Filter: Protects the injector and other components from contaminants in the fuel.
• Throttle Body: The central housing that contains the fuel injector, throttle plate, and often the fuel pressure regulator. It controls the amount of air entering the engine.
• Fuel Injector: The electronically controlled nozzle that sprays atomised fuel. SPI systems typically have only one or two injectors located here.
• Fuel Pressure Regulator: Maintains a consistent fuel pressure for the injector, ensuring accurate fuel delivery regardless of engine load. Excess fuel is returned to the tank.
• Engine Control Unit (ECU): The computer that processes sensor inputs and controls the fuel injector's operation, ignition timing, and sometimes idle speed.
• Sensors: As mentioned, these provide the ECU with vital data about engine conditions (e.g., MAP, TPS, ECT, O2).

Advantages and Disadvantages of Single Point Fuel Injection Systems

SPI systems offered a notable improvement over carburettors but also had their own set of limitations, especially when compared to subsequent fuel injection technologies.

Advantages of Single Point Fuel Injection System:

• Simple Construction: The design is relatively straightforward, utilising fewer injectors and a less complex manifold compared to multi-point systems. This simplicity often translated to lower manufacturing costs.
• Accurate Fuel Supply (compared to carburettors): By replacing mechanical venturi action with electronic control, SPI systems could deliver a more precise amount of fuel based on real-time engine conditions, leading to better cold starting, improved idle stability, and more consistent performance.
• Easy Maintenance: With fewer components and a centralised injection point, troubleshooting and maintenance can often be simpler than complex carburettor setups or distributed multi-point systems.
• Reliable Operation: Electronic control offered greater consistency and reliability over varying environmental conditions (e.g., altitude, temperature) compared to carburettors.
• Improved Cold Starting: The ability of the ECU to 'enrich' the fuel mixture during cold starts significantly improved engine starting in chilly conditions, a common challenge for carburettor-equipped vehicles.
• Reduced Emissions: While not as clean as modern systems, SPI helped vehicles meet increasingly stringent emissions regulations by providing better control over the air-fuel ratio, leading to more complete combustion and less unburnt hydrocarbons.

Disadvantages of Single Point Fuel Injection System:

• Uneven Fuel Supply to All Cylinders: This is arguably the most significant drawback. Because the fuel is injected at a single point before the intake manifold, the air-fuel mixture has to travel varying distances to reach each cylinder. This can lead to some cylinders receiving a slightly richer mixture and others a leaner one, affecting overall engine efficiency and power output.
• Less Efficient: The uneven distribution inherently means less efficient combustion across all cylinders, limiting overall engine efficiency compared to systems where fuel is precisely delivered to each cylinder.
• Intake Manifold Wetting: As the fuel is sprayed into the manifold and travels through it, some of the fuel can condense and form a layer on the manifold walls. This 'wetting' effect means less fuel is immediately available for combustion during sudden acceleration, leading to a slight delay in throttle response and further contributing to less efficient fuel use.
• Lower Fuel Economy: Due to the inefficiencies stemming from uneven distribution and manifold wetting, vehicles equipped with SPI generally achieve lower fuel economy figures compared to those with multi-point or direct injection systems.
• Limited Performance Potential: The inherent design limitations mean SPI systems are not ideal for high-performance applications where precise fuel delivery to each cylinder is crucial for maximising power and torque.

Single Point Injection vs. Other Fuel Delivery Systems

To truly appreciate the role of SPI, it's helpful to see where it fits in the lineage of fuel delivery systems:

Maintenance Considerations for SPI Systems

While SPI systems are less common in modern vehicles, many older cars still rely on this technology. Proper maintenance is key to their longevity and performance:

• Fuel Filter Replacement: A clogged fuel filter can restrict fuel flow, leading to poor performance and potential damage to the fuel pump. Regular replacement is crucial.
• Fuel Injector Cleaning: Over time, fuel injectors can become clogged with deposits. Professional cleaning or using fuel system cleaners can help maintain spray pattern and flow.
• Throttle Body Cleaning: Carbon deposits can build up around the throttle plate and within the throttle body, affecting idle quality and airflow. Regular cleaning can prevent these issues.
• Sensor Checks: Ensure all connected sensors (MAP, TPS, O2, ECT) are functioning correctly. Faulty sensors can send incorrect data to the ECU, leading to improper fuel delivery.
• Vacuum Leaks: As with any intake system, vacuum leaks can significantly affect air-fuel ratio and engine performance. Inspect hoses and gaskets regularly.

Common Issues and Troubleshooting

Owners of vehicles with SPI systems might encounter a few common issues:

• Rough Idle: Can be caused by a dirty throttle body, a faulty idle air control (IAC) valve, vacuum leaks, or a failing O2 sensor.
• Poor Fuel Economy: Often a symptom of a failing O2 sensor, a leaky fuel injector, or a clogged air filter.
• Hesitation or Stalling: Could indicate a weak fuel pump, clogged fuel filter, or issues with the TPS or MAP sensor.
• Hard Starting: Especially when cold, this might point to a faulty ECT sensor, a leaking fuel pressure regulator, or a weak fuel pump.
• Check Engine Light: Any sensor malfunction or significant deviation in engine parameters can trigger the check engine light, prompting a diagnostic scan.

Is Single Point Fuel Injection Still Relevant?

While virtually all new vehicles manufactured today utilise multi-point or direct injection systems due to their superior efficiency, emissions control, and performance, SPI systems remain relevant for enthusiasts and owners of classic or older vehicles from the 1980s and early 1990s. For these vehicles, understanding and maintaining the SPI system is essential for keeping them on the road.

Moreover, the SPI system represents a vital step in automotive evolution. It bridged the gap between purely mechanical fuel delivery and the sophisticated electronic control we see today, paving the way for more precise engine management systems that are now taken for granted. Its legacy is in the foundation it laid for modern engine efficiency and emissions standards.

Frequently Asked Questions (FAQs)

Q1: What is the main difference between single point and multi-point fuel injection?

The main difference lies in the number and placement of the fuel injectors. Single Point Injection (SPI) uses one (or sometimes two) central injectors located in the throttle body, spraying fuel into a common intake manifold. Multi-Point Injection (MPI), on the other hand, uses a dedicated fuel injector for each cylinder, positioned just before the intake valve, allowing for more precise and even fuel delivery.

Q2: Why is Single Point Injection also called Throttle Body Injection (TBI)?

It's called Throttle Body Injection because the fuel injector(s) are physically housed within the throttle body unit, which is typically mounted on top of the intake manifold, much like a carburettor. This central location in the throttle body is the defining characteristic of the system.

Q3: Are vehicles with Single Point Injection still common today?

No, vehicles with Single Point Injection are largely obsolete in new car production. They were prevalent in the 1980s and early 1990s as a transition technology from carburettors to more advanced fuel injection systems. You would typically only find them in older, classic, or vintage vehicles.

Q4: Does Single Point Injection offer better fuel economy than a carburettor?

Yes, generally Single Point Injection systems offer better fuel economy than carburettors. The electronic control of the fuel injector allows for a more precise air-fuel ratio based on engine conditions, reducing fuel waste and improving combustion efficiency compared to the less controlled mechanical nature of a carburettor.

Q5: What are the typical signs of a problem with an SPI system?

Common signs of an SPI system problem include a rough or unstable idle, poor fuel economy, hesitation or stalling during acceleration, difficulty starting (especially when cold), and the illumination of the check engine light. These symptoms often point to issues with the fuel injector, fuel pump, fuel pressure regulator, or various sensors feeding information to the ECU.
