CAV/Simms Minimec 8-Cylinder Pump Manual Guide

For anyone involved in the maintenance or repair of diesel engines equipped with CAV / Simms Minimec 8-cylinder injection pumps, understanding the intricacies of these vital components is paramount. These pumps are precision-engineered devices, central to the engine's fuel delivery system, and their optimal function directly impacts performance, efficiency, and longevity. When it comes to ensuring these pumps operate at their best, or when faced with the inevitable need for repair, a dedicated workshop manual becomes not just useful, but absolutely indispensable. This article will explore the critical role of the workshop manual for CAV / Simms Minimec 8-cylinder injection pumps, delving into its comprehensive coverage of overhaul and calibration, and providing essential insights into common problems and their effective troubleshooting.

The Cornerstone of Precision: What is a Workshop Manual for CAV / Simms Minimec 8-Cylinder Pumps?

A workshop manual is far more than just a collection of instructions; it is a meticulously compiled guide, a technical bible for a specific piece of machinery. In the context of the CAV / Simms Minimec 8-cylinder injection pump, this manual, specifically identified by CAV Publication No 31T, serves as the definitive resource for professionals and experienced enthusiasts alike. Its primary purpose is to provide detailed, step-by-step procedures for the complete overhaul and precise calibration of these complex fuel injection pumps. Without such a document, attempting to service or repair these units would be a risky endeavour, often leading to incorrect assembly, improper calibration, and ultimately, poor engine performance or even further damage.

The manual covers every aspect of the pump's internal workings. From the initial disassembly, through the inspection of individual components such as plungers, barrels, delivery valves, and cam followers, to the intricate reassembly process, each stage is clearly laid out. Crucially, it provides the exact specifications, tolerances, and torque settings required for each component, ensuring that the pump is restored to its factory-designed operational parameters. This level of detail is vital because even minor deviations in component clearances or spring tensions can significantly affect fuel delivery, timing, and overall engine efficiency.

Why is the CAV Pub No 31T Manual Indispensable?

The value of a dedicated workshop manual like CAV Pub No 31T cannot be overstated. Here are several reasons why it is an essential tool for anyone working with these pumps:

• Accuracy and Precision: It eliminates guesswork. Every measurement, every adjustment, every sequence is specified, ensuring work is carried out with the highest degree of accuracy. This is particularly critical for fuel injection systems, where precision directly translates to engine performance and emissions.
• Comprehensive Overhaul Guidance: The manual details the complete stripping down of the pump, cleaning, inspection for wear, replacement of worn parts, and reassembly. This includes intricate procedures for the governor assembly, the fuel metering unit, and the drive shaft.
• Critical Calibration Procedures: Perhaps the most vital section, the manual provides exhaustive instructions for calibration. This involves setting the fuel delivery rates for each cylinder, ensuring even distribution and optimal combustion. It also covers spill timing, governor settings, and excess fuel devices, all of which are crucial for smooth engine operation and power output.
• Troubleshooting Foundation: While specific troubleshooting sections might be expanded upon elsewhere, the manual provides the foundational knowledge of how the pump should operate, which is the starting point for diagnosing any deviations.
• Longevity and Reliability: By following the correct procedures for overhaul and calibration, the lifespan of the injection pump is extended, and its reliability is significantly enhanced, preventing costly breakdowns and premature wear.

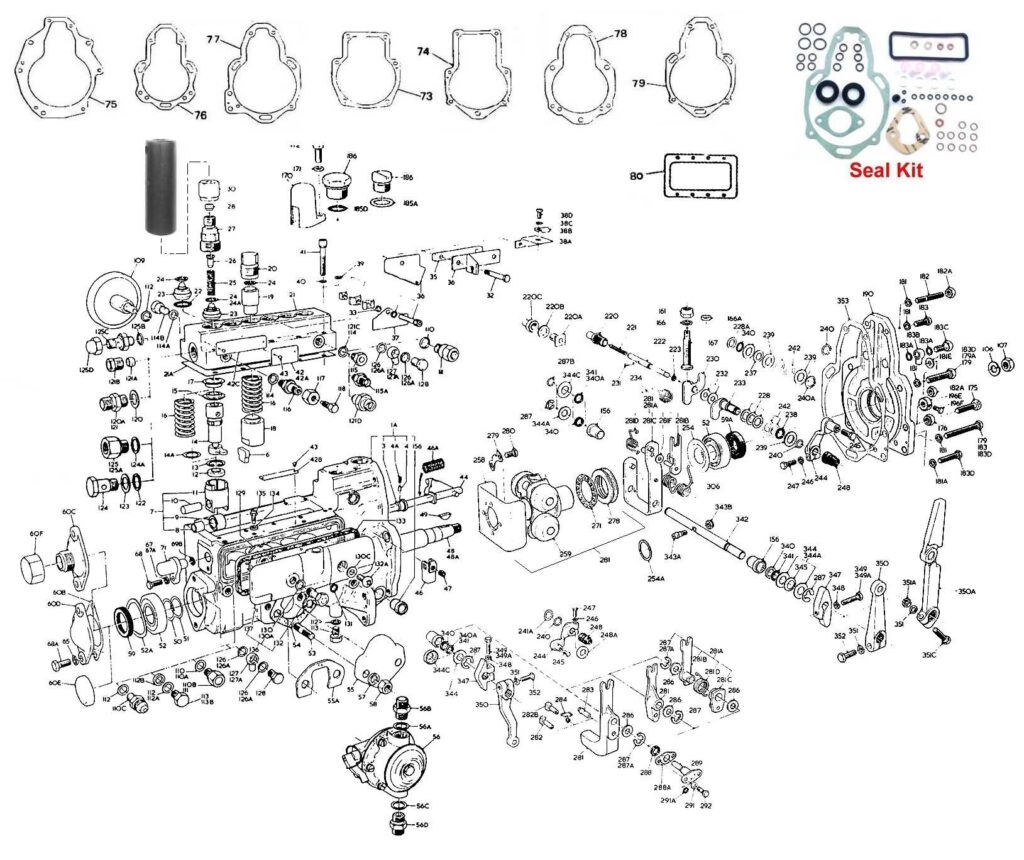

Understanding the Minimec Injection Pump: A Brief Overview

The Simms Minimec injection pump, often found in various diesel applications, particularly in older agricultural, marine, and industrial engines, is an inline, cam-operated pump. Each cylinder of the engine has a corresponding pumping element (plunger and barrel) within the pump. The camshaft, driven by the engine, actuates these plungers, which then deliver precisely metered and pressurised fuel to the injectors at the correct moment. The 'Minimec' designation typically refers to a specific design of the governor and fuel metering system, aiming for compact size and efficient operation. The 8-cylinder version, as the name suggests, is designed to fuel an eight-cylinder diesel engine, demanding even greater precision in synchronisation and fuel distribution.

The governor mechanism within the Minimec pump is responsible for controlling the engine speed by regulating the amount of fuel delivered. This mechanical governor reacts to engine speed changes, adjusting the effective stroke of the plungers to maintain a desired RPM, or to prevent overspeeding. The intricate interplay of springs, weights, and control racks within the governor assembly is a prime example of where precise calibration is absolutely essential.

Common Issues with Simms Injection Pumps and Troubleshooting Tips

Even with the most robust design, mechanical components are subject to wear and tear. Simms injection pumps, particularly older units, can develop a range of problems that impact engine performance. Knowing how to diagnose and resolve these issues can save significant time and money. Here are some common problems and troubleshooting tips:

1. Fuel Leaks

Fuel leaks are a common and serious issue, as they can lead to fuel loss, reduced efficiency, and even fire hazards.

• Symptoms: Visible fuel drips around the pump body, wet patches, smell of diesel, unexplained fuel consumption.
• Troubleshooting:
  • Check Connections: Inspect all fuel lines, banjo bolts, and unions connected to and from the pump. Tighten any loose fittings.
  • Inspect Seals and Gaskets: Over time, O-rings and gaskets (e.g., around the inspection cover, delivery valve holders, or pump element plugs) can harden, crack, or shrink. A thorough visual inspection is necessary.
  • Delivery Valve Holders: Leaks often occur around the delivery valve holders. These require specific torque settings, and their sealing washers can fail.
  • Pump Element Seals: Less common without an overhaul, but seals around the pumping elements themselves can fail.
  • Resolution: Replace worn or damaged seals, O-rings, and gaskets. Ensure correct torque is applied to all fittings after replacement.

2. Timing Problems

Incorrect injection timing can severely affect engine performance, fuel economy, and emissions.

• Symptoms: Hard starting, excessive smoke (black or white), reduced power, rough idling, increased fuel consumption, engine knocking.
• Troubleshooting:
  • Verify Static Timing: Consult the engine's service manual for the correct static timing procedure. This usually involves aligning marks on the flywheel or crankshaft with marks on the engine casing, and then checking the pump's timing marks (often via a timing window or by spill timing).
  • Dynamic Timing Check: If possible, use a dynamic timing light to check injection timing while the engine is running.
  • Pump Drive Coupling: Inspect the coupling between the engine's timing gear and the pump. Wear or damage here can cause timing drift.
  • Resolution: Adjust the pump's position relative to the engine (usually by rotating the pump body) to achieve the correct timing. Replace worn drive coupling components if necessary.

3. Poor Fuel Delivery / Low Power

This can manifest as a lack of power, engine struggling under load, or inconsistent performance.

• Symptoms: Engine lacks power, slow acceleration, misfires, black smoke under load, engine stalls.
• Troubleshooting:
  • Fuel Supply Issues: First, rule out external factors. Check for clogged fuel filters, air in the fuel system, restricted fuel lines, or a faulty lift pump.
  • Worn Pump Elements: Internally, worn plungers and barrels can lead to reduced fuel delivery pressure and volume. This often requires an overhaul.
  • Faulty Delivery Valves: Sticking or worn delivery valves can cause fuel leakage back into the pump body instead of being sent to the injectors.
  • Governor Malfunction: A faulty governor might not be allowing the correct amount of fuel for the engine's load, leading to insufficient power.
  • Resolution: Address fuel supply issues first. If the problem persists, an internal inspection and overhaul of the pump, guided by the manual, may be necessary to replace worn components.

4. Rough Idling or Erratic Speed

An engine that idles unevenly or surges can indicate issues with fuel metering or governor control.

• Symptoms: Engine speed fluctuates at idle, engine 'hunting', noticeable vibrations.
• Troubleshooting:
  • Air in Fuel System: Bleed the fuel system thoroughly.
  • Injector Issues: Faulty or clogged injectors can cause uneven combustion. Test injectors if possible.
  • Governor Linkage: Check for sticking or loose governor linkages. Ensure smooth movement.
  • Worn Governor Components: Worn weights, springs, or other parts within the governor can lead to unstable regulation.
  • Uneven Fuel Delivery: This points directly to the need for calibration of the pump's elements.
  • Resolution: Address air and injector issues. If the problem persists, a detailed governor inspection and pump calibration using the workshop manual's procedures are crucial.

Manual Availability: Hard Copy vs. Download

The CAV Publication No 31T workshop manual for Minimec 8-cylinder pumps is available in different formats, each with its own advantages and limitations:

The choice between a hard copy and a digital download depends largely on your working environment and preferences. For a hands-on mechanic who needs to refer to diagrams and instructions directly at the workbench, a physical, spiral-bound manual that can withstand a workshop environment is often preferred. The inability to print the digital version makes the hard copy particularly appealing for practical application, where having physical copies of specific pages can be invaluable.

Frequently Asked Questions About CAV / Simms Minimec Pumps

Q1: Why is precise calibration so important for these pumps?

A1: Precise calibration ensures that each cylinder receives the exact, correct amount of fuel at the precise moment it's needed. This leads to balanced cylinder power, smooth engine running, optimal fuel economy, reduced emissions, and prevents excessive wear on engine components. Without proper calibration, an engine can run rough, lack power, smoke excessively, and suffer from reduced lifespan.

Q2: Can I use a generic diesel injection pump manual for a Simms Minimec 8-cylinder pump?

A2: While generic manuals might offer some basic principles, they will not provide the specific dimensions, tolerances, torque settings, and detailed procedures unique to the CAV / Simms Minimec 8-cylinder pump, especially for its overhaul and calibration. Using a generic manual risks incorrect assembly, damage to the pump, or suboptimal engine performance. The dedicated CAV Publication No 31T is essential.

Q3: What specific tools are needed for an overhaul and calibration?

A3: Beyond standard hand tools, an overhaul and calibration will require specialised tools. These include a dedicated injection pump test bench for calibration, dial indicators for measuring plunger lift and timing, specific wrenches for delivery valve holders, and potentially special fixtures for disassembly and reassembly. The workshop manual will often list the required special tools.

Q4: How often should a Simms injection pump be overhauled or calibrated?

A4: There isn't a fixed interval, as it depends heavily on engine operating hours, fuel quality, and maintenance history. Generally, an overhaul is considered when performance significantly degrades (e.g., severe leaks, power loss not attributable to other factors, excessive smoke), or as part of a major engine rebuild. Calibration should be checked and adjusted if the engine shows signs of uneven running, poor fuel economy, or after any significant pump repair.

Q5: Is it possible to troubleshoot without disassembling the pump?

A5: Many common issues, such as fuel leaks, air in the system, or incorrect external timing, can often be diagnosed and resolved without full pump disassembly. However, internal issues like worn plungers, faulty delivery valves, or governor component wear will necessitate opening up the pump, guided by the workshop manual.

Conclusion

The CAV / Simms Minimec 8-cylinder injection pump is a testament to precision engineering, and its continued reliable operation hinges on expert maintenance. The workshop manual, CAV Publication No 31T, is not merely a reference document; it is an invaluable investment for anyone committed to the proper care, overhaul, and calibration of these critical components. From understanding the intricate steps of an overhaul to mastering the art of calibration, this manual provides the clarity and detail required to ensure peak performance. Furthermore, by equipping oneself with the knowledge to diagnose and troubleshoot common issues like fuel leaks, timing problems, and poor fuel delivery, one can significantly extend the life of these pumps, maintain optimal engine efficiency, and ultimately, save considerable time and money. Whether opting for the tactile practicality of a hard copy or the digital convenience of a download, having this manual within reach is the first step towards mastering Minimec pump maintenance.
