Toyota Sienna Brakes: Rotors & Pads Explained

When it comes to your Toyota Sienna, few components are as critical to your safety as the braking system. It's not just about slowing down; it's about control, responsiveness, and preventing accidents. Understanding the vital roles played by brake rotors (often called brake discs in the UK) and brake pads is paramount for any Sienna owner. This comprehensive guide will delve into the intricacies of your Sienna's braking system, helping you identify potential issues, understand maintenance requirements, and ensure your family hauler stops reliably every time.

Understanding Brake Rotors/Discs in Your Toyota Sienna

At the heart of your Sienna's braking system are the brake rotors. A brake rotor is essentially a smooth metal disc firmly attached to your wheel hub. For most modern vehicles, including your Toyota Sienna (especially models from 1999 onwards), you'll find these crucial components at every wheel. Older vehicles might still utilise drums on the rear wheels, but rotors offer superior braking performance, particularly under demanding conditions.

The primary function of brake rotors is to provide a surface for the brake pads to press against. When you engage the brake pedal, the brake callipers clamp the brake pads onto the rotor. This friction is what generates the force needed to slow down and eventually bring your Sienna to a complete stop. It's a fundamental principle of kinetic energy conversion: the motion of your vehicle is converted into heat through friction, which is then dissipated into the air by the rotors.

However, rotors are not impervious to wear. Over time and with repeated braking, they can become thinner or even warp. This wear significantly impacts their ability to dissipate the immense heat generated during braking. When rotors can no longer effectively dissipate heat, the brake fluid itself can boil. Boiled brake fluid is a serious issue, as it introduces air bubbles into the hydraulic system, leading to a 'spongy' brake pedal feel and a drastic reduction in braking effectiveness – a dangerous scenario, especially in an emergency.

When Do Your Toyota Sienna's Brake Rotors Need Attention?

Recognising the common symptoms of worn or damaged brake rotors is crucial for timely intervention. Ignoring these signs can compromise your safety and lead to more expensive repairs down the line.

• Vibration or Pulsation When Applying Brakes: This is perhaps the most common indicator of warped rotors. If you feel a shuddering or pulsating sensation through the brake pedal or even the steering wheel when you press the brakes, it's highly likely your rotors are no longer perfectly flat. This uneven surface causes inconsistent contact with the brake pads, leading to the vibrations.
• Blue Discoloration of Rotor Surface: Upon inspection, if you notice a bluish tint on the rotor surface, it's a clear sign of excessive heat. This discoloration indicates that the rotors have been subjected to very high temperatures, often due to aggressive braking or, more commonly, due to being too thin to handle the heat effectively.
• Grooves or Hot Spots in Rotors: Visible grooves or scoring on the rotor surface, or distinct shiny spots (often called hot spots), are another warning sign. Grooves can be caused by worn brake pads with exposed metal backing or debris caught between the pad and rotor. Hot spots indicate concentrated areas of extreme heat, often associated with warping or uneven material distribution within the rotor itself.

Our Recommendation for Rotor Maintenance

Proactive maintenance is key to the longevity and performance of your Sienna's braking system. It is highly recommended to have the thickness of your brake rotors measured annually by a qualified mechanic. Furthermore, every time your brake pads are replaced, your mechanic should diligently measure the rotor thickness to ensure they are still within the manufacturer's specified minimum thickness.

As a general rule of thumb, brake rotors typically last about twice as long as brake pads. This often means that you'll need to replace your rotors every other brake pad service. However, this is just a guideline. Driving your Sienna for too long with severely worn-out brake pads can quickly destroy your rotors, as the metal backing of the pads can grind directly against the rotor surface, causing irreparable damage.

It's also a critical point to remember: brake rotors are always replaced in pairs. If your front brake rotors need replacing, both front wheels will receive new rotors. The same applies to the rear. This ensures balanced braking performance across the axle, which is vital for safe and predictable stopping. Crucially, unless your brake pads were replaced very recently, new brake pads must always be fitted when replacing rotors. Mismatched worn pads with new rotors will compromise performance and rapidly wear out the new components.

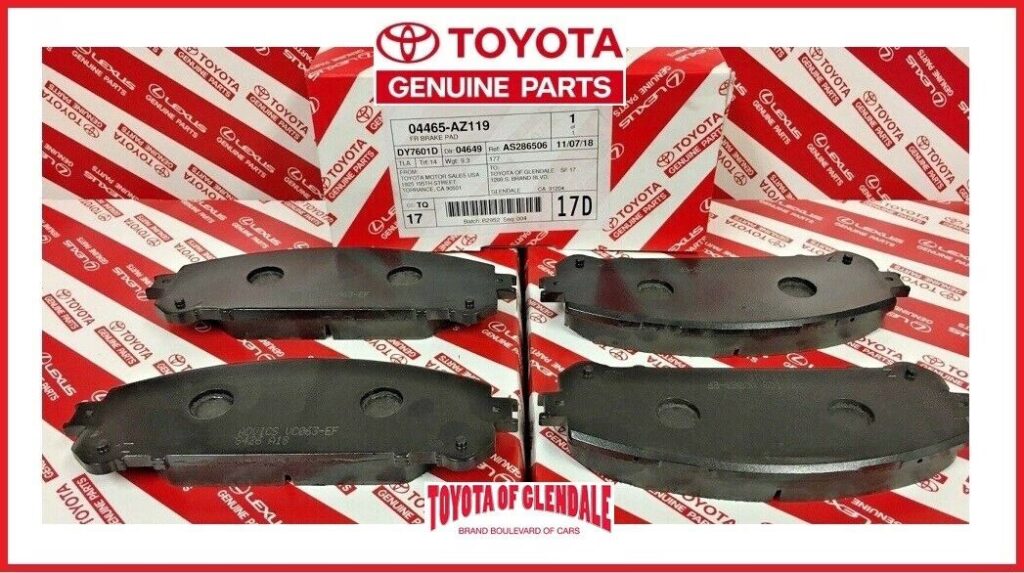

Understanding Toyota Sienna Brake Pads

While rotors provide the friction surface, brake pads are the components that actually generate the friction. They are designed to wear down over time as they perform their function, converting your Sienna's kinetic energy into thermal energy.

Why Aren't My Brake Pads Working as Expected?

One common and concerning issue that indicates a problem with your brake pads is your Sienna pulling to one side when you apply the brakes. This is often a tell-tale sign of unevenly worn brake pads. This occurs when one brake pad on an axle is completely worn down, possibly even to the metal backing, while the other pad on the same axle still retains some friction material. This disparity in friction causes the vehicle to pull towards the side with more effective braking.

Uneven wear can be caused by several factors, including a sticking calliper piston, seized guide pins, or even a collapsed brake hose that prevents fluid from properly retracting. Whatever the underlying cause, the only reasonable and safe fix is to replace both brake pads on the affected axle. Brake pads are always replaced in sets (axle sets) to ensure balanced and effective braking.

Choosing the Right Brake Pads for Your Toyota Sienna

When it comes to buying brake pads for your Toyota Sienna, quality is paramount. Investing in products from reputable brands ensures you're getting parts engineered and built to last, providing consistent and reliable braking performance. There are primarily two main types of brake pad materials commonly available:

Metallic Brake Pads

Metallic brake pads, as their name suggests, are made from a mixture of metals (like copper, iron, steel, and graphite) bonded together with a resin. They are often the least expensive option and are known for their strong stopping power, especially in a wide range of temperatures. However, they typically produce more brake dust, which can accumulate on your wheels, and can sometimes be noisier, producing a squeal or groan, particularly when cold or wet.

Ceramic Brake Pads

Ceramic brake pads are composed of ceramic fibres, filler materials, bonding agents, and sometimes small amounts of copper fibres. They are generally more expensive than metallic pads but offer several significant advantages. Ceramic pads tend to be much quieter, producing less noise during braking. They also generate significantly less brake dust, keeping your wheels cleaner. Furthermore, ceramic pads are known for their excellent performance across various temperatures and their impressive longevity, often providing more mileage than metallic alternatives.

Comparative Table: Metallic vs. Ceramic Brake Pads

To help you decide which type of brake pad might be best for your Toyota Sienna, here's a quick comparison:

The cost of Toyota Sienna brake pad replacement can vary greatly depending on the type of pads you choose and the brand. Options can range from around £35 for a basic set of metallic pads and go significantly higher for premium ceramic options. Always factor in the cost of labour if you're not performing the replacement yourself.

The Brake Service Process: How It's Done

When you bring your Toyota Sienna in for brake rotor and pad replacement, a skilled technician follows a precise procedure to ensure safety and optimal performance:

1. Initial Inspection and Measurement: The process begins with a thorough inspection of the entire braking system. This includes visually checking the brake lines, callipers, fluid levels, and most importantly, measuring the current thickness of the brake rotors using a micrometer. This measurement is compared against the manufacturer's minimum thickness specifications to determine if replacement is necessary or if the rotors can be resurfaced (though resurfacing is less common now due to thinner modern rotors).
2. Removal of Old Components: The wheels are removed, and the brake calliper is unbolted and carefully suspended. The old brake pads are then removed, followed by the brake rotor, which is typically held on by a retaining screw or simply by the wheel studs.
3. Installation of New Components: The hub surface is thoroughly cleaned to ensure the new rotor sits perfectly flat. The new brake rotor is then installed. New brake pads are fitted into the calliper bracket, and the calliper is reassembled. It's crucial that new hardware (shims, clips, pins) is used to ensure proper movement and reduce noise. The calliper piston may also need to be compressed to accommodate the thicker new pads.
4. Brake System Safety Inspection: With the new components in place, a comprehensive brake safety inspection is performed. This involves checking for any leaks in the brake lines, ensuring all components are properly torqued, and verifying that the brake fluid is at the correct level and condition. Bleeding the brake lines might be necessary if air has entered the system during the process.
5. Test Drive: Finally, a test drive is conducted by the mechanic. This crucial step allows the technician to assess the new brakes' performance under real-world conditions. They will listen for any unusual noises, check for proper pedal feel, and ensure the vehicle stops smoothly and in a straight line without pulling. This also helps to 'bed in' the new pads and rotors, which involves a series of controlled stops to transfer a thin layer of pad material onto the rotor surface for optimal friction.

Frequently Asked Questions About Toyota Sienna Brakes

Q: How often should I replace my Toyota Sienna brake rotors?

A: While brake pad wear varies greatly depending on driving habits, rotors typically last about twice as long as pads. This often means replacement every other brake pad service, or approximately every 50,000 to 70,000 miles. However, annual thickness measurements are recommended, and replacement is necessary if symptoms like vibration or visible damage appear, regardless of mileage.

Q: What causes brake pulsation in a Sienna?

A: The most common cause of brake pulsation (a shuddering or vibrating sensation through the pedal or steering wheel) is warped brake rotors. This occurs when the rotors become unevenly heated and cooled, causing them to deform slightly. Other less common causes can include an uneven build-up of brake pad material on the rotor or issues with wheel bearings.

Q: Can I replace only one brake rotor on my Toyota Sienna?

A: No, brake rotors must always be replaced in pairs on the same axle (e.g., both front rotors or both rear rotors). Replacing only one would lead to imbalanced braking, causing the vehicle to pull to one side under braking and compromising safety. It would also lead to uneven wear on the new rotor.

Q: What's the difference between metallic and ceramic brake pads for my Sienna?

A: Metallic pads are generally cheaper, offer strong initial bite, but produce more dust and can be noisier. Ceramic pads are more expensive but are quieter, produce less dust, last longer, and offer consistent performance across a wider temperature range. The choice depends on your budget, driving style, and preference for noise and cleanliness.

Q: Why are my Toyota Sienna brake pads wearing unevenly?

A: Uneven brake pad wear is often due to problems with the brake calliper. This could be a sticking calliper piston, seized guide pins that prevent the calliper from floating freely, or a collapsed brake hose. Any of these issues can cause one pad to drag or wear more quickly than the other. It's crucial to have this inspected and repaired promptly, as it affects braking efficiency and safety.

Conclusion

The braking system of your Toyota Sienna is a complex yet crucial assembly designed to keep you and your passengers safe. Understanding the function of brake rotors and pads, recognising the signs of wear, and adhering to recommended maintenance schedules are vital responsibilities for any vehicle owner. Whether you're dealing with pulsating brakes or a vehicle pulling to one side, prompt attention to these issues can prevent more serious problems and ensure your Sienna remains a reliable and safe mode of transport. Always opt for quality replacement parts and professional installation to guarantee optimal braking performance for miles to come.
