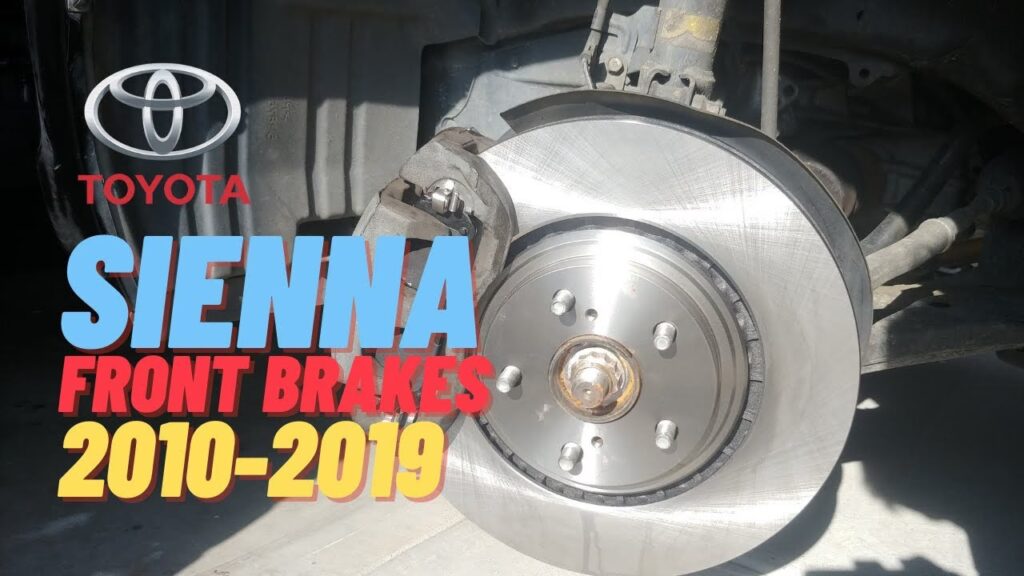

Toyota Sienna Front Brake Pad Replacement Guide

Ensuring your vehicle's braking system is in peak condition is paramount for safety, not just for you but for everyone on the road. For Toyota Sienna owners, maintaining the front brake pads is a straightforward yet crucial task that can be tackled at home with the right tools and a bit of know-how. This comprehensive guide will walk you through the process of replacing the front brake pads on a 2006 Toyota Sienna LE, providing all the necessary details to help you achieve a professional-standard finish.

Worn brake pads can lead to reduced stopping power, increased stopping distances, and an irritating squeal or grinding noise. Ignoring these signs can compromise your safety and potentially lead to more expensive repairs down the line, such as rotor damage. By following this guide, you'll be able to confidently replace your Sienna's front brake pads, restoring its braking performance and ensuring peace of mind on every journey.

Essential Tools and Materials

Before you begin, gathering all the necessary tools and materials will make the process much smoother. While the job is relatively simple, having the correct equipment is key to efficiency and safety. Here’s a detailed list of what you’ll need:

Main Tools and Materials:

• New front brake pads (e.g., Bosch brake pad kit, which typically includes pads, slide clips, and caliper grease)
• Hydraulic jack (or the scissor jack supplied with the vehicle)
• Jack stands (essential for safety)
• Breaker bar (or an impact wrench for easier lug nut removal)
• Torque wrench (critical for proper tightening of lug nuts and caliper bolts)
• C-clamp or brake piston compression tool
• Brake cleaner spray
• Wire brush (for cleaning components)

Other Standard Tools:

• Large flat-head screwdriver (for prying off hubcaps)
• 14 mm socket
• 18 mm spanner (for holding caliper pin)
• Wire or caliper hook holder (to suspend the caliper)
• Anti-seize compound
• Clean rags or shop towels
• Optional: Turkey baster (for brake fluid reservoir management)
• Optional: Fine square file (for cleaning slider channels)
• Optional: WD-40 (for stuck rotors)
• Optional: Anti-squeal compound

Step-by-Step Brake Pad Replacement Procedure

With your tools ready, let's get started on replacing those brake pads. Always prioritise safety throughout this process.

1. Secure the Vehicle and Access the Wheel

The very first step involves safely lifting and securing your Toyota Sienna. Begin by loosening the lug nuts on the front wheels slightly while the vehicle is still on the ground. This makes them easier to remove once lifted. Now, using your hydraulic jack, lift the front end of the vehicle. If you're using the scissor jack that came with your Sienna, you'll need to work on one side at a time. For added stability and safety, always place jack stands securely under the vehicle's frame once it's lifted. Never rely solely on the jack.

2. Remove the Wheel

Once the vehicle is safely supported, pry off the hubcap using a large flat-head screwdriver. With the hubcap removed and the lug nuts pre-loosened, use your breaker bar or impact wrench to fully remove the lug nuts. Carefully take the wheel off and roll it aside, ensuring it won't be in the way. If the wheel is stuck due to rust, a common issue, try kicking the tyre from behind while it's still slightly on the ground, or gently tapping the inside of the tyre with a rubber mallet to loosen it from the hub. This will expose the brake rotor and caliper assembly.

3. Loosen and Remove Caliper Bolts

With the wheel off, you'll have a clear view of the brake caliper. Locate the two 14 mm caliper bolts. Using your 14 mm socket, first loosen and then fully remove the lower caliper bolt. Next, loosen the upper 14 mm caliper bolt. You don't necessarily need to remove the upper bolt entirely at this stage; simply loosening it will allow the caliper to pivot upwards, freeing it from the brake pads. However, for easier access and to prevent accidental dropping, it is often recommended to remove the upper bolt completely.

4. Secure the Brake Caliper

Once the caliper bolts are loosened or removed, the caliper will be free. Carefully lift and rotate the caliper upwards and away from the brake pads and rotor. It's crucial to be extremely careful not to let the caliper hang freely by its brake line. This can damage the brake line, leading to a dangerous brake fluid leak and requiring further, more complex repairs. Instead, use a piece of wire, a bungee cord, or, ideally, a dedicated caliper hook holder to suspend the caliper securely from the suspension strut or a nearby sturdy component. This keeps tension off the brake line and prevents accidental damage.

5. Remove Old Brake Pads and Clips

With the caliper safely out of the way, you can now access the old brake pads. These are typically held in place by metal slide clips. Gently slide the old brake pads out of these clips. It often works best to tip them, pulling out the top part first, then the bottom part. Remove both the outer and inner brake pads. Set these old pads aside; one of them will be used later to compress the brake piston.

Next, pry out the old slide clips. These are small metal pieces that the brake pads rest on. It's highly recommended to replace these with new ones, which often come included with quality brake pad kits. If your kit doesn't include new clips, thoroughly clean the old ones with a wire brush to remove any rust or debris before re-inserting them. A useful tip is to clean the channels in the caliper carrier bracket where these clips sit using a fine square file. This removes corrosion and ensures the new clips sit flush, preventing future pad binding and premature wear.

6. Prepare and Install New Slide Clips and Pads

Before installing the new slide clips, apply a thin, even layer of the supplied caliper grease (or a high-temperature brake grease) onto them. This grease is crucial for allowing the brake pads to slide freely and helps prevent rattling and squeaking noises. Be meticulous when applying grease, ensuring none gets onto the rotor surface, as this will severely impair braking performance. Snap the new, greased slide clips into their respective positions on the caliper carrier bracket.

Now, carefully insert the new brake pads. It's usually easiest to fit the bottom part of the pad into the clip first, then push the top part into place. Ensure the pads are seated correctly and are not loose or crooked. Once both pads are in, gently press them together against the rotor to confirm they are securely in place and move freely within their clips.

7. Compress the Brake Piston

With the new, thicker brake pads in place, the brake caliper won't fit back over them without compressing the piston. This is a critical step. While the initial query was about "replacing a brake caliper piston," this guide focuses on compressing it, as the provided information does not cover a full piston replacement. If your calipers are seized and the piston won't move freely, then the caliper unit itself would need replacement, as mentioned in the original source.

To compress the piston, take one of your old brake pads and place it against the piston face. This distributes the pressure evenly and prevents damage to the piston. Position a large C-clamp or a dedicated brake piston compression tool so that it presses on the old brake pad and against the outer side of the caliper. Slowly and steadily tighten the C-clamp, pushing the piston back into the caliper bore. As you do this, keep an eye on your brake fluid reservoir under the bonnet. Compressing the piston will push fluid back into the reservoir, which can cause it to overflow if it was previously full. To prevent this, you can use a clean turkey baster to remove some brake fluid from the reservoir beforehand. Once the piston is fully retracted, the caliper will easily slide back over the new brake pads.

8. Re-attach the Caliper

Carefully slide the compressed caliper back into position over the new brake pads and rotor. Apply a small amount of anti-seize compound to the threads of the caliper bolts. This prevents them from seizing in the future and makes subsequent brake jobs easier. Re-insert both the upper and lower caliper bolts and tighten them finger-tight initially.

Now, use your torque wrench to tighten the caliper bolts to the manufacturer's specified torque. For the Toyota Sienna, the recommended torque for caliper bolts is typically around 25 ft-lbs (approximately 34 Nm). You'll notice that the caliper pin might spin freely as you try to tighten the bolt. To counteract this, hold the caliper pin steady with an 18 mm spanner while you tighten the 14 mm bolt with your torque wrench. Ensure both bolts are torqued correctly for safety.

9. Clean the Rotor and Re-install the Wheel

Before putting the wheel back on, it's good practice to spray off the brake rotor with some brake cleaner. This removes any grease, fingerprints, or debris that might have accumulated during the process, ensuring optimal braking performance from the start. Once clean, carefully place the wheel back onto the hub. Finger-tighten the lug nuts, ensuring they are snug. Then, lower the vehicle until the tyre just touches the ground, or fully lower it if working on one side at a time. Using your torque wrench, tighten the lug nuts to the specified torque, which for a Toyota Sienna is typically 76 ft-lbs (approximately 103 Nm). Tighten them in a star pattern to ensure even seating of the wheel against the hub.

10. Repeat for the Other Side and Final Checks

Now, repeat the entire process for the other front wheel. Once both sides are complete and the vehicle is fully lowered off the jack stands, it's time for a crucial final step. Before driving anywhere, start the vehicle and press the brake pedal fully down several times. You'll notice the pedal will feel soft at first, as the caliper pistons need to extend and make contact with the new brake pads. Continue pumping the pedal until it feels firm. The brakes will not stop the vehicle effectively until this step is performed, so do not skip it!

As a final preventative measure, remember to re-torque your lug nuts after driving approximately 50 miles (80 kilometres). This is important because the lug nuts can sometimes loosen slightly after the initial drive as the wheel settles onto the hub.

Understanding Brake Components and Common Considerations

Replacing brake pads is a fundamental part of vehicle maintenance, but understanding the system better can enhance your work and troubleshooting abilities.

Brake Rotors: Slotted & Cross-Drilled

The original text mentions "Slotted & cross-drilled rotors on a Sienna!". While these fancy rotors offer some operational benefits, such as improved heat dissipation and gas venting, they come with certain considerations. Resurfacing (or "turning") slotted and cross-drilled rotors is significantly more difficult, and often not recommended or even possible, compared to solid rotors. This means they are more likely to be a "single-use" component, requiring full replacement when worn, rather than being machined.

If your rotor is rusted onto the hub, a common issue, applying a little WD-40 at the hub where it meets the rotor and letting it soak in can help. There are also often two threaded "drive-out" spots on the rotor designed to help push it away from the hub using bolts. Always clean lug studs thoroughly before re-installing wheels, as lug nut torque specifications are for clean, dry threads.

The Role of Anti-Squeal Compound

The use of an anti-squeal compound is a matter of personal preference but can be highly effective. This compound is typically applied as a thin film between the back of the brake pads, shims (if present), and the piston face. Its purpose is to dampen high-frequency vibrations that can cause the notorious brake squeal. While some mechanics prefer not to use it, many find it an invaluable addition for quiet operation.

Here's a quick comparison of old vs. new brake pads:

Frequently Asked Questions (FAQs)

Q: How do I know when my brake pads need replacing?

A: Common signs include a squealing or grinding noise when braking (often due to wear indicators or metal-on-metal contact), a "spongy" or soft brake pedal, increased stopping distances, or visible thinning of the pad material (typically less than 3mm remaining).

Q: Do I need a 14mm spanner for front brake rotors?

A: No, a 14mm socket is typically used for the caliper bolts. An 18mm spanner is used to hold the caliper pin steady while torquing the 14mm bolt. The rotor itself doesn't require a spanner for removal in this process, though you might need one for the drive-out bolts if the rotor is stuck.

Q: What if my caliper piston won't compress?

A: If the piston is seized and won't compress, it indicates a problem with the caliper itself. In such cases, the entire caliper assembly will need to be replaced. Attempting to force a seized piston can damage the brake system further.

Q: Is it necessary to replace the slide clips?

A: While not strictly mandatory if your old clips are in perfect condition, it is highly recommended to replace them. New clips ensure proper pad movement, prevent sticking, and help avoid squealing. Most quality brake pad kits include new clips for this reason.

Q: Why do I need to pump the brake pedal after replacing pads?

A: Pumping the brake pedal pushes the caliper pistons back out, taking up the slack created by the new, thicker brake pads. This ensures the pads are in contact with the rotor and the brake pedal feels firm before you drive, restoring full braking capability.

Q: How often should I re-torque my lug nuts?

A: It's crucial to re-torque your lug nuts after driving approximately 50 miles (80 kilometres) following any wheel removal. This accounts for any settling of the wheel on the hub and ensures they remain securely fastened.

By following this detailed guide, you should be well-equipped to replace the front brake pads on your Toyota Sienna. This DIY task not only saves you money but also provides a deeper understanding of your vehicle's mechanics, contributing to safer and more confident driving. Always remember to prioritise safety and double-check all connections before taking your vehicle for a test drive.

Safe driving!
