Mastering Your Bike's Side-Pull Rim Brakes

Side-pull rim brakes, a staple on countless road bikes across the UK, remain a popular and effective braking solution despite the emergence of disc brake technology. Their straightforward design and reliable performance make them a common sight, offering cyclists dependable stopping power. However, like any precision component, their effectiveness hinges entirely on proper setup and regular maintenance. A well-adjusted set of side-pull brakes provides crisp, responsive stopping, instilling confidence on every descent and in every traffic situation. Conversely, misaligned or poorly maintained brakes can lead to reduced stopping power, uneven wear, and even potential damage to your valuable bike components. This comprehensive guide will delve into the mechanics of how these brakes operate and, crucially, walk you through the essential steps to adjust them, ensuring your ride remains safe and your equipment lasts longer.

How Side-Pull Rim Brakes Operate

At their core, side-pull rim brakes are elegantly simple mechanical systems designed to convert lever force into friction at the wheel's rim. When you squeeze the brake lever on your handlebars, a steel cable is pulled. This cable connects to one of the brake caliper's lightweight alloy arms. As this arm is pulled, it pivots inwards. A strong steel spring links this arm to a second, opposing arm. The movement of the first arm, facilitated by the spring, causes the second arm to also pivot inwards simultaneously. Both arms hold brake pads, which are designed to make direct contact with the rim's braking surface. The inward pivoting motion brings these pads firmly against the rim, generating friction. This friction is precisely what slows or stops your bicycle.

Modern side-pull caliper brakes often incorporate design enhancements compared to their older counterparts. Many now feature an additional pivot point and superior bearings. These improvements allow for smoother, more consistent movement of the brake arms, reducing play and ensuring that the pads engage the rim evenly and efficiently. This refined mechanism translates directly into a more powerful and controllable braking experience, making maintenance and adjustment even more impactful on overall performance.

Why Proper Brake Pad Alignment is Paramount

The seemingly minor detail of brake pad alignment holds significant sway over your bike's braking efficiency and the longevity of its components. When your side-pull brake pads are not hitting the rim evenly, or are positioned incorrectly, a cascade of undesirable outcomes can follow. You might notice that one pad engages the rim effectively while the other barely makes contact, leading to an unbalanced and less powerful braking action. This uneven engagement forces you to apply more force at the lever than necessary, diminishing overall braking capability.

Beyond compromised stopping power, incorrectly positioned brake pads can inflict considerable damage on your bike's rims and even your tyres. Rim brakes, by their very nature, rely on direct contact with the rim, making them more susceptible to causing wear or damage compared to, for instance, disc brakes, which act on a separate rotor. If a brake pad is positioned too low on the rim, it can gradually wear a 'shelf' into the rim's braking surface. This shelf can weaken the rim over time, potentially leading to a dangerous failure. Conversely, a pad positioned too high poses an even greater risk; it can rub against your tyre, causing excessive wear or even a catastrophic tyre blow-out, which could lead to a serious accident. Therefore, meticulous pad alignment isn't just about optimal braking; it's a critical aspect of bike safety and component preservation.

Essential Tools for Adjustment

Before you begin the adjustment process, gather the following basic tools. Having them readily available will streamline the task:

• 4mm Allen key wrench
• 5mm Allen key wrench
• (Optional but helpful) A cable-puller tool

Step-by-Step Guide to Adjusting Side-Pull Caliper Brakes

Adjusting your side-pull caliper brakes to ensure even pad contact and optimal performance is a straightforward process that can significantly improve your riding experience. Follow these steps carefully to achieve perfectly centred and effective brakes.

1. Balance Your Wheel's Alignment

Sometimes, what appears to be a brake problem is actually an issue with the wheel itself. Before delving into brake adjustments, it's prudent to confirm that your wheel is properly aligned within the frame. A misaligned wheel can cause the rim to sit unevenly between the brake pads, creating the illusion of a brake issue. To check this, visually inspect the bike tyre's alignment relative to the bike frame and fork (or seat stays for the rear wheel). If it appears off-centre, you'll need to adjust it.

To correct a misaligned wheel, first release the quick-release skewer or loosen the axle nuts that secure the wheel. With the skewer loose, gently push the wheel to centre it within the dropouts, ensuring it aligns perfectly with the bike frame. Once centred, firmly re-tighten the skewer or axle nuts to secure the wheel in its new position. After this, re-check your brake pads to see if they are now hitting the rim more evenly. If the issue persists, proceed to the next steps, as the problem then lies with the brake caliper itself.

2. Manually Adjusting the Brake Pads and Caliper Body

The goal here is to ensure both brake pads make simultaneous and even contact with the rim. The adjustment concept for side-pull brakes, whether old or new, remains consistent due to their single-bolt mounting system.

Locate the main centre fixing bolt or nut on the backside of your side-pull caliper brake where it mounts to the fork crown (or seat stay bridge for the rear brake). Using your appropriate Allen key, loosen this bolt just enough so that the entire brake caliper body can pivot or move slightly. Do not remove the bolt completely.

With the bolt slightly loosened, you can now manually pivot the entire brake caliper. Gently hold the metal body of the caliper and move it side-to-side until the brake pads are equally spaced from the rim on both sides. The objective is to achieve a position where both pads appear to be an equal distance from the rim. For best results, give the brake a slight shake or 'load' it by lightly squeezing the lever a few times while holding the caliper to help it settle into a centred position.

Once you are satisfied that the pads are centred and equally spaced, carefully tighten the centre fixing bolt you loosened earlier. As you tighten, ensure the caliper does not shift its position. This step requires a bit of finesse; sometimes, holding the brake firmly in its desired position while tightening the bolt is necessary to prevent it from moving. After tightening, test the lever by applying the brake. Both pads should now ideally contact the rim at precisely the same time. If there's still a slight unevenness, don't worry – this is often a process of trial and error. Repeat this step, making slight adjustments until you achieve satisfactory alignment.

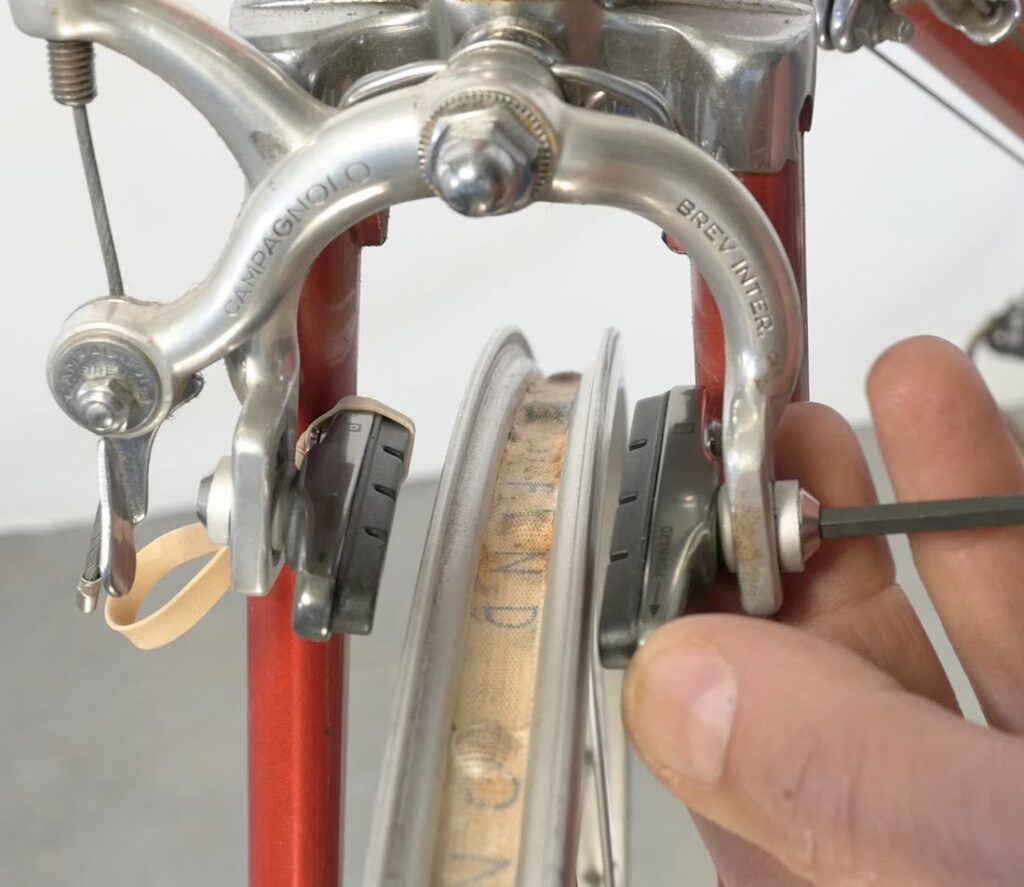

It's crucial to be mindful of the precise vertical positioning of your brake pads on the rim. A pad set too low can cause a 'shelf' to form on the rim, weakening it over time. Conversely, a pad positioned too high will not only create a shelf but can also rub against and damage your tyre, potentially leading to a dangerous blow-out. Ensure the entire braking surface of the pad makes contact with the rim, without touching the tyre or extending below the rim's braking track.

3. Fine-Tuning Cable Tension

Once your brake pads are centred horizontally, the next step is to adjust the cable tension. This dictates how much lever travel is required before the pads engage the rim and influences the overall 'feel' of the brake.

Begin by winding the barrel adjuster, typically located where the cable enters the brake caliper, fully inwards (clockwise). Then, wind it out by two full turns. This provides a good starting point and allows for future fine-tuning adjustments without needing to re-clamp the cable.

Next, locate the cable pinch bolt on the brake caliper where the cable is secured. Using your Allen key, loosen this bolt just enough so that the cable can slide through, but still offers some resistance. Squeeze the brake pads against the rim with your hand, effectively taking up any slack in the system. While holding the pads against the rim, pull any remaining slack cable through the pinch bolt using your fingers or a cable-pulling tool. Once you've removed the slack and the pads are just touching the rim, tighten the cable pinch bolt securely. This step sets the initial tension.

Now, wind the barrel adjuster the two full turns inwards that you initially wound out. This action will slightly release the cable tension, creating the necessary small gap between the pads and the rim. This clearance is vital to prevent the pads from rubbing the rim when the brake is disengaged, assuming your wheels are true.

4. Centring with Spring Tension Screws (If Applicable)

Some modern side-pull calipers feature small spring tension screws on either side of the caliper body, often near the pivot points. These screws allow for very fine adjustments to the balance of the brake arms, helping to ensure that both pads contact the rim simultaneously, even if the main centre bolt adjustment isn't perfect.

If one pad consistently hits the rim slightly earlier than the other, you can use these screws to fine-tune the balance. Turning the screw on the side where the pad hits *first* (often clockwise) will increase the spring tension on that arm, causing it to pull back slightly more, allowing the other pad to catch up. Conversely, turning the screw on the side where the pad hits *later* (often anti-clockwise) will decrease tension, allowing that pad to engage sooner.

Make very small, incremental adjustments to these screws, testing the lever after each tweak, until both pads engage the rim at precisely the same moment. This precise adjustment contributes significantly to a crisp and even brake feel, enhancing both control and safety.

Brake Adjustment Troubleshooting Guide

Even with careful adjustment, sometimes issues can persist. Here's a quick troubleshooting guide for common side-pull brake problems:

Frequently Asked Questions (FAQs)

How often should I check my brake pads and their alignment?

It's advisable to perform a quick visual inspection of your brake pads and their alignment before every ride, especially if you cycle frequently. A more thorough check, including testing the lever feel and examining pad wear, should be done at least once a month or every few hundred miles, whichever comes first. Regular checks are vital for consistent maintenance.

When should I replace my brake pads?

Brake pads have wear indicator lines or dimples. When the pad material wears down to these indicators, or if the pads become excessively hard, glazed, or contaminated (e.g., with oil), it's time for replacement. Worn pads drastically reduce braking effectiveness and can damage your rims.

Can I use any brake pad with my side-pull brakes?

While many rim brake pads are interchangeable, it's crucial to select pads designed for your rim material (e.g., specific pads for carbon rims). Also, ensure the pad mounting system (e.g., threaded post or smooth post) matches your brake caliper's design. High-quality pads significantly improve braking performance.

What does a 'spongy' brake lever indicate?

A spongy brake lever, where you have to pull the lever a long way before the brakes engage, typically indicates too much slack in the brake cable. This can be easily rectified by adjusting the barrel adjuster to take up the slack or, if the cable is stretched, by re-tensioning it at the pinch bolt.

Why do my brakes squeal, and how can I stop it?

Brake squeal is often caused by vibration. Common culprits include pads that aren't 'toed-in' correctly (where the front edge of the pad touches the rim slightly before the rear), dirty or glazed pads, or a contaminated rim surface. Cleaning the rim and pads, and ensuring proper toe-in, usually resolves the issue. Severe squealing might indicate worn or incorrect pads.

Conclusion

Properly adjusted side-pull rim brakes are a cornerstone of safe and enjoyable cycling. Understanding how they work, recognising the signs of misalignment, and knowing how to perform the necessary adjustments empowers you to maintain your bike's braking system effectively. By regularly checking your wheel alignment, meticulously positioning your brake pads, and fine-tuning cable tension, you ensure maximum stopping power, extend the life of your components, and, most importantly, enhance your safety on the road. Don't underestimate the impact of routine maintenance; a few minutes spent on your brakes can make all the difference to your ride.
