Shovelhead Engine Rebuild Guide

Embarking on a Shovelhead engine rebuild is a rewarding journey for any motorcycle enthusiast. These iconic V-twin engines, known for their distinctive sound and raw power, have powered countless custom choppers and classic Harley-Davidsons. While they are robust, time and use can take their toll, necessitating a rebuild to restore their former glory. This comprehensive guide will walk you through the essential steps, from gathering the right tools to the final tuning, ensuring your Shovelhead runs as smoothly as it did when it first left the factory.

Did you know that nearly 30% of Shovelhead engines experience performance issues due to improper maintenance? If you're one of the many enthusiasts looking to restore your bike's power, understanding the step-by-step process for rebuilding these iconic engines is essential. You'll need to gather the right tools and materials before tackling the disassembly phase. But what happens once you've cleaned and inspected the components? The next steps are where the real transformation occurs, and you won't want to overlook any details that could impact your engine's performance.

Tools and Materials Needed

To rebuild a Shovelhead engine successfully, you'll need a selection of essential tools and materials at your disposal. Having the right equipment is paramount to a smooth and successful rebuild.

Essential Toolkit:

• A comprehensive set of metric and imperial wrenches and sockets.
• Screwdrivers (flathead and Phillips).
• A high-quality torque wrench is critical; it guarantees you're tightening fasteners to the right specifications, preventing damage to threads and components.
• A rubber mallet for gently persuading stubborn parts.
• Pliers (needle-nose, standard, and snap-ring).
• Feeler gauges for precise measurements.
• A micrometer and vernier calipers for accurate bore and component measurements.
• A reliable service manual specific to your Shovelhead model. This is your bible during the rebuild, providing torque specs, tolerances, and procedural guidance.
• A clean workbench or engine stand.
• Drain pans for fluids.
• A good degreaser and plenty of clean rags.
• Safety glasses and gloves are a must.

Consumables and Replacement Parts:

• New gaskets and seals (a complete engine gasket set is highly recommended).
• High-quality engine oil and assembly lube.
• New pistons, rings, or even connecting rods, depending on the condition of your existing components.
• Thread-locking compound (e.g., Loctite).
• A parts washer or suitable cleaning solution.

Having the right tools and materials not only streamlines the process but also empowers you to take control of your ride's destiny. With these essentials, you're ready to embrace the challenge of rebuilding, allowing your freedom to ride to flourish.

Disassembling the Engine

Before diving into the disassembly, make certain you've got your workspace organized and all your tools ready to guarantee a smooth process. This step is essential for maintaining your focus and ensuring that you don't lose any parts. A methodical approach will save you headaches later.

Here’s a systematic approach to disassembling your Shovelhead engine:

1. Prepare the Bike: Ensure the motorcycle is stable, ideally on a lift or center stand. Disconnect the battery to prevent accidental shorts.
2. Drain Fluids: Carefully drain the engine oil and primary chaincase oil into appropriate drain pans.
3. Remove External Components: Disconnect and remove the carburetor, air cleaner assembly, exhaust system, and any other external accessories that obstruct access to the engine.
4. Take Off the Fuel Tank: This provides much better access to the top of the engine and cylinders.
5. Remove the Primary Cover: Unscrew the primary cover bolts. Gently pry it off, being careful with the gasket; you might want to reuse it if it's in good condition, but a new one is always preferable.
6. Remove the Clutch and Primary Drive: Once the primary cover is off, you'll need to remove the clutch assembly and the primary drive chain to gain access to the transmission and engine internals.
7. Remove the Cylinder Heads: Loosen the head bolts in a crisscross pattern, a few turns at a time. This prevents warping and makes it easier to lift off the heads. Carefully remove the cylinders and pistons.
8. Separate Engine Components: Continue dismantling the engine, removing the camshafts, lifters, pushrods, and eventually, the crankshaft and crankcases.
9. Organise and Label: As you remove each part, place it in a labelled bag or container. Taking photos or notes during disassembly can be incredibly helpful during reassembly.

Enjoy the liberation of working on your own engine—each bolt you remove brings you closer to a powerful rebuild!

Inspecting Components: The Heart of the Rebuild

When you inspect your Shovelhead engine components, start with a thorough visual examination to catch any obvious issues. This is where you identify what needs replacing and what can be reused. Next, make sure you measure tolerances accurately, as this is essential for proper functionality and longevity.

Visual Component Examination:

• Cylinders: Check for cracks, scoring, or excessive wear in the cylinder bores. Run your finger over the surface; you should feel a smooth finish. If there are deep scores or gouges, the cylinders will likely need to be bored oversize.
• Pistons: Look for signs of excessive wear on the piston skirts, piston rings, or any cracks. Check the piston pin bores for ovality.
• Valves: Inspect valves for bends, chips, carbon buildup, or signs of corrosion on the sealing faces. Check the valve guides for wear; a worn guide will allow excessive oil into the combustion chamber.
• Crankshaft: Verify there's no visible damage, scoring, or excessive wear on the main journals or connecting rod journals. Check for any play in the connecting rod big ends.
• Camshaft: Examine the lobes for pitting, wear, or scoring. Worn camshaft lobes can significantly impact engine performance and timing.
• Bearings: Inspect all engine bearings (main bearings, rod bearings, transmission bearings) for wear, pitting, or discoloration.
• Crankcases: Check the crankcases for cracks, stripped threads, or signs of previous damage. Ensure all mating surfaces are flat.

Use a bright light for better visibility, and don't hesitate to use a magnifying glass for those hard-to-see areas. Remember, catching problems now can save you from more extensive repairs later.

Measuring Tolerances Accurately: Precision is Key

Accurate measurement of tolerances is essential for guaranteeing each component of your Shovelhead engine functions at its best and fits together seamlessly. When you engage in the rebuilding process, get familiar with the tools you'll need, like micrometers and calipers. These precision instruments empower you to measure everything from the crankshaft journals to the cylinder bores.

Key Measurements to Take:

• Cylinder Bore Diameter: Measure at the top, middle, and bottom of the cylinder, both across and along the bore. Compare these measurements to your service manual's specifications for out-of-roundness and taper.
• Piston Diameter: Measure the piston skirt diameter at the designated measurement point (usually specified in the manual) to determine the correct piston-to-cylinder clearance.
• Piston Ring End Gap: Fit the piston rings into the cylinders at the correct position (usually near the bottom of the bore) and measure the gap between the ends of the ring.
• Crankshaft Journal Diameter: Measure the main and rod journals to check for wear and ensure they are within tolerance for bearing selection.
• Connecting Rod Big End Diameter: Measure the inside diameter of the connecting rod big end to determine the correct size of the rod bearings.

Start by consulting your service manual for the specifications. Knowing the ideal measurements allows you to gauge whether your components are within acceptable limits. Measure multiple times to verify consistency—this isn't just about precision; it's about confidence in your work.

Pay attention to the fit of parts, particularly in areas where friction occurs. A snug fit can lead to improved performance, while an overly tight or loose fit can cause issues down the road.

Don't rush this process; take your time to confirm accuracy. Remember, you're liberating your engine from past wear and tear, and precise measurements play a vital role in that journey.

Identifying Wear and Damage: What to Replace

After measuring tolerances, the next step is to closely examine each component for signs of wear and damage. This hands-on inspection is critical; it helps you identify issues that could affect performance and safety. You don't want to hit the road only to realize your engine's got problems.

Here are key areas to focus on during your inspection:

| Component | Common Wear/Damage Signs | Action Required | | :----------------- | :--------------------------------------------------------- | :------------------------------------------------------------------------------ | | Pistons and Rings | Scoring, excessive wear on skirts, cracks, worn ring grooves | Replace pistons and rings. Consider boring cylinders if necessary. | | Camshaft and Lifters | Pitting or abnormal wear patterns on lobes, worn lifter bases | Replace camshaft and lifters. Inspect cam bearings. | | Crankcase | Cracks, stripped threads, warped mating surfaces | Repair or replace crankcases. Ensure all threads are intact. | | Valves and Guides | Bent stems, chipped faces, worn guides, burnt edges | Replace valves, guides, and seals. Resurface or replace valve seats if needed. | | Crankshaft | Scoring on journals, worn rod bearings, bent crank | Polish or regrind journals. Replace rod bearings. If bent, replace crankshaft. | | Bearings | Pitting, scoring, discoloration, excessive play | Replace all worn or damaged bearings. | | Gaskets and Seals | Hardened, cracked, brittle, or torn | Replace all gaskets and seals with new ones. |
By being diligent in your visual examination, you're not just fixing a machine; you're nurturing a piece of your spirit. Stay vigilant and ride free!

Cleaning and Preparing Parts: The Foundation for Success

When you're ready to clean and prepare your Shovelhead parts, you'll need the right supplies to get started. Proper cleaning is crucial for a successful rebuild, as it allows for accurate inspection and ensures new components are free from contaminants.

Necessary Cleaning Supplies:

• Degreaser: A powerful degreaser will cut through the oily residue that clings to your parts. Look for a biodegradable option to keep your workspace clean and green.
• Parts Cleaner: An effective parts cleaner helps remove stubborn dirt and contaminants from intricate surfaces. You'll want one that works well on both metal and plastic.
• Wire Brushes: These brushes come in handy for scrubbing away rust and corrosion. Choose different sizes to reach those tight spots.
• Clean Rags: Stock up on lint-free rags to wipe down your parts after cleaning. They'll help you achieve that spotless finish you're aiming for.
• Compressed Air: Essential for blowing out oil passages and drying parts thoroughly.

Disassembly and Cleaning Process:

1. Initial Wash: Use a strong degreaser to remove the bulk of the oil and grime from all engine components.
2. Detail Cleaning: For more intricate parts like oil passages, carburetors, or the oil pump, use a dedicated parts cleaner and smaller brushes to ensure all passages are clear.
3. Rust Removal: If you find any rust, use a wire brush or a rust remover solution to clean the affected areas.
4. Final Rinse and Dry: Rinse all parts thoroughly with clean water or solvent and dry them immediately using compressed air and lint-free rags to prevent flash rust.
5. Inspect Again: After cleaning, inspect the parts again. Sometimes, cleaning reveals damage that wasn't visible before.

With these supplies, you'll be well-equipped to breathe new life into your Shovelhead engine. Let's get to work and embrace the freedom of the open road!

Proper Storage Techniques: Protecting Your Hard Work

Properly cleaning and preparing parts for storage guarantees they remain in excellent condition and ready for your next rebuild. You want to verify that every component is free from dirt, grease, and moisture, which can lead to corrosion and damage over time. Follow these steps to keep your parts liberated from the confines of decay:

• Clean Thoroughly: Use a degreaser and a soft brush to remove grime. Rinse with warm water and dry completely to prevent rust.
• Inspect for Damage: Before storing, check each part for wear or damage. Replace or repair any components that don't meet your standards.
• Apply Protective Coating: For metal parts, apply a light coat of oil (like WD-40 or a light motor oil) or a specialized rust inhibitor. This creates a barrier against moisture and oxidation.
• Store Properly: Use labeled containers, plastic bags, or wrap parts in protective paper to keep them organized and protected. Store in a cool, dry place, away from direct sunlight and humidity.

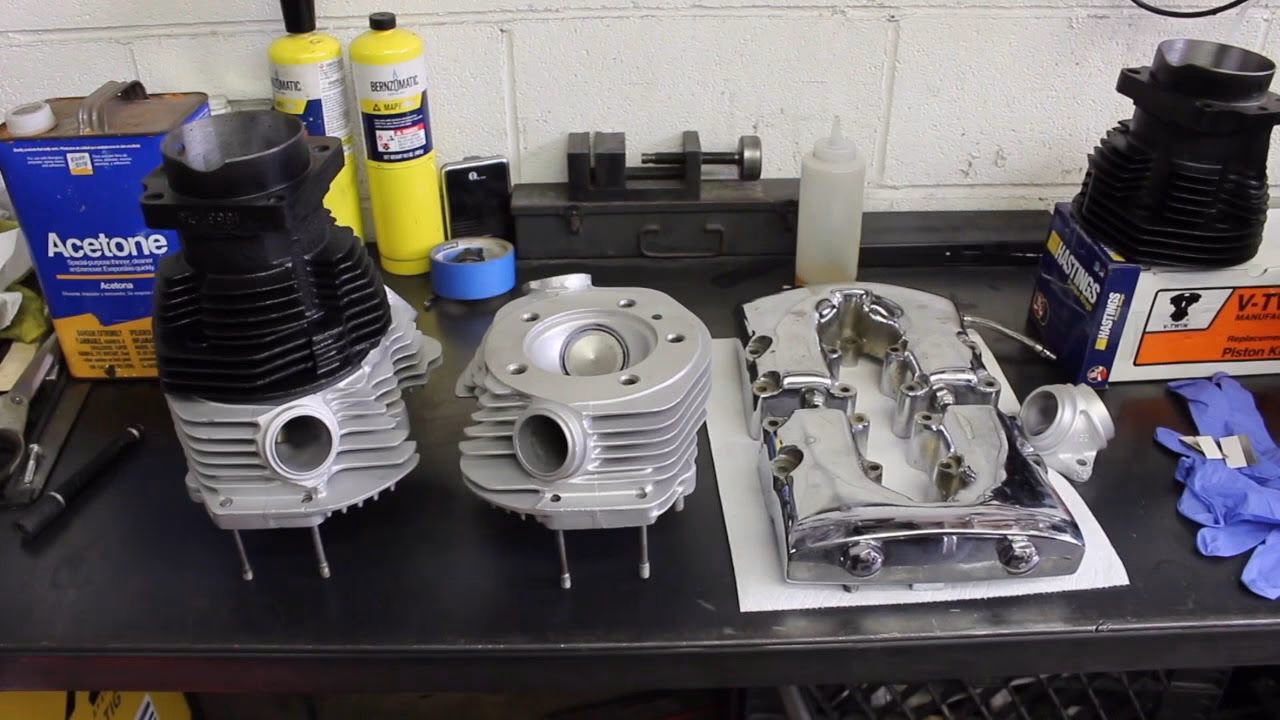

Reassembly Process: Bringing it All Back Together

Begin the reassembly process by carefully organizing all components and guaranteeing you have the necessary tools at hand. Lay out gaskets, bolts, and other parts in the order you'll assemble them. This will save time and reduce frustration. Remember to refer constantly to your service manual.

Step-by-Step Reassembly:

1. Crankcases: Clean the mating surfaces thoroughly to guarantee a proper seal. Apply a light coat of assembly lube to critical areas like the crankshaft bearings. Carefully install the crankshaft, ensuring it's seated correctly and spins freely.
2. Connecting Rods and Flywheels: Attach the flywheels to the crankshaft and check for proper alignment. Install the connecting rod bearings and ensure they are properly lubricated.
3. Cylinders and Pistons: Lubricate the piston skirts and cylinder walls with assembly lube. Install the piston rings correctly (refer to ring manufacturer instructions for orientation). Carefully insert the pistons into the cylinders, ensuring the ring gaps are staggered.
4. Camshaft and Lifters: Install the camshaft and lifters, ensuring they are properly lubricated and oriented according to the manual.
5. Pushrods and Rocker Boxes: Install the pushrods and rocker arms. Once the cylinders and heads are in place, adjust the pushrod length to achieve the correct lifter preload.
6. Cylinder Heads: Fit the cylinder heads onto the cylinders, ensuring the head gaskets are properly seated. Tighten the head bolts in stages and in the specified sequence (usually a crisscross pattern) using your torque wrench to the manufacturer's specifications. This precision is crucial for engine performance and sealing.
7. Primary Drive and Clutch: Reinstall the primary drive chain, clutch assembly, and primary cover, using new gaskets and seals.
8. Final Assembly: Reinstall the exhaust system, carburetor, and any other components that were removed. Fill the engine with the correct type and amount of oil.

Don't rush; take your time to make sure everything fits snugly and is torqued correctly. Every step is critical for the longevity of your rebuilt engine.

Testing and Tuning: Unleashing the Power

After completing the reassembly, it's important to test and tune the engine to guarantee everything runs smoothly. This phase is essential for ensuring your Shovelhead roars to life with the power and precision you crave.

Initial Start-Up and Checks:

• Check Fluid Levels: Start by ensuring that oil levels are correct.
• Inspect Electrical Connections: Verify that all wiring and connections are secure.
• Prime Oil System: Before the first start, it's good practice to prime the oil system by turning the engine over with the spark plugs removed (via the kickstarter or by engaging the starter briefly).
• Fire It Up: With everything checked, it's time to crank the engine. Listen for any unusual noises (knocking, ticking) and watch for leaks. If it runs rough, don't panic—this is where tuning comes in.

Tuning the Engine:

• Carburetor Adjustment: Tune the carburetor settings for the best air-fuel mixture. This typically involves adjusting the idle speed and mixture screws. You may need to adjust the jetting based on your engine's modifications and riding conditions. Use a tuning kit if necessary, and consider a dyno run for precise adjustments.
• Ignition Timing: Ensure the ignition timing is set correctly according to your service manual. Proper timing is vital for performance and engine health.
• Break-In Procedure: Follow a proper break-in procedure for your rebuilt engine. This usually involves varying the engine speed and avoiding prolonged idling or high RPMs for the first few hundred miles to allow new components to seat properly.

Frequently Asked Questions

What Are Common Signs of a Failing Shovelhead Engine?
When you're riding and notice unusual noises, like knocking or tapping, your Shovelhead engine might be failing. If you feel a loss of power or notice excessive smoke from the exhaust, it's time to pay attention. Poor fuel efficiency and overheating are also red flags. Trust your instincts—if something feels off, it probably is. Staying alert to these signs can help you reclaim the freedom of the open road.

How Long Does a Complete Rebuild Typically Take?
Rebuilding an engine is like crafting a fine piece of art; it takes time and precision. Typically, a complete rebuild can take anywhere from a few days to several weeks, depending on your skills, the extent of the work required, and your available time. You'll want to savor each step, ensuring everything's perfect. Rushing could lead to mistakes, and you deserve a flawless ride.

Can I Rebuild the Engine Without Professional Help?
Yes, you can rebuild the engine without professional help! It takes dedication, but if you're willing to learn and invest time, you'll enjoy the process. Plenty of resources are available, from manuals to online forums, where you can gather tips and advice. Just make sure you have the right tools and a clear workspace. Embrace the challenge; you'll gain confidence and a sense of accomplishment from doing it yourself!

What Is the Average Cost of Rebuilding a Shovelhead Engine?
On average, rebuilding a Shovelhead engine can cost between £2,500 and £5,000, depending on the parts you need to replace and whether you do the labour yourself or pay a professional. Notably, many enthusiasts find that DIY rebuilds can save up to 30% of costs. If you're craving the freedom to ride with a powerful engine, investing time and effort into this project might be worth it. Plus, you'll gain invaluable skills and a deeper connection to your bike as you bring it back to life.

Are There Any Modifications Recommended During the Rebuild?
When you're rebuilding your engine, consider modifications that enhance performance and efficiency. Upgrading to higher compression pistons or installing a better camshaft can boost horsepower. You might also explore improved ignition systems for better spark and fuel efficiency. Don't forget about the exhaust system; a free-flowing option can really release your engine's potential. Even upgrading the oil pump to a more reliable aftermarket unit can be a wise investment for Shovelheads.

Conclusion

As you wrap up your Shovelhead rebuild, remember it's not just about the nuts and bolts; it's a labor of love, much like restoring a classic masterpiece. With each turn of the wrench, you're breathing new life into a piece of history. So, take pride in your work and enjoy the ride that follows—after all, every great journey begins with a well-tuned engine. Now, hit the road and let your Shovelhead roar!
