Harley Shovelhead Clutch Cable Replacement Guide

It's a rite of passage for any Harley rider, especially those who cherish the classic Shovelhead era: the dreaded clutch cable snap. For Tyler at Lowbrow Customs, this wasn't just an inconvenience; it was an opportunity to share valuable knowledge. After a decade of faithful service, the clutch cable on his 1975 Harley FL Shovelhead chopper finally gave up the ghost, snapping right in the parking lot. Rather than a quick fix, the team saw a chance to create a definitive guide on how to change a clutch cable on a Harley Shovelhead. Join Todd as he walks you through the entire process, from removing the old, broken cable to installing and adjusting a new one. We'll delve into the nuances of early versus late model clutch cables and how different clutch levers, like Tyler's KustomTech lever which is versatile enough for both, integrate into the system. So, grab your tools, perhaps a refreshing beverage, and let's get your Shovelhead shifting smoothly again.

### Understanding Clutch Cable Differences: Early vs. Late Models

A crucial aspect of clutch cable replacement is understanding that Harley-Davidson made changes over the years. Specifically, there are differences between the clutch cables and levers used in earlier Shovelhead models and those in later ones. Tyler's 1975 Shovelhead, a custom build, features a KustomTech clutch lever. This particular lever is a fantastic choice because it's designed to accommodate both early and late style clutch cables. This flexibility is a significant advantage, especially for custom builds or when sourcing parts for older bikes.

Generally, earlier Shovelhead models (roughly pre-1975) might use a different style of cable end or connection at the clutch lever compared to later models. The key takeaway here is to ensure compatibility when purchasing your replacement cable. If you're unsure, consulting a parts specialist or referencing your specific model's service manual is highly recommended. The Drag Specialties FL, FX, and XL clutch lever, for instance, is often mentioned in discussions about compatibility issues with newer Harley models, highlighting the importance of checking these details.

### Tools and Preparation: What You'll Need

Before you begin, gathering the necessary tools will make the job much smoother. Here's a list of essentials:

• New Clutch Cable (ensure it's the correct type for your Shovelhead model and lever)
• Socket Set and Wrenches
• Pliers (including snap ring pliers)
• Screwdrivers
• Cable Lubricant (specifically designed for motorcycle cables)
• Rags and Shop Towels
• Safety Glasses
• Work Gloves
• A Helper (optional but recommended for certain steps)
• A suitable bench vise or clamp to hold parts

It's also wise to have your Harley's service manual handy for specific torque values and detailed diagrams relevant to your bike.

### Step-by-Step Guide to Replacing Your Shovelhead Clutch Cable

Let's break down the process, following Todd's expert guidance.

#### 1. Removing the Broken Clutch Cable

The first step is to disconnect the old, broken cable.

* At the Clutch Lever: Carefully examine how the cable end is secured to your clutch lever. In Tyler's case, with the KustomTech lever, the cable end typically sits in a specific recess. You might need to remove a retaining clip or simply pull the cable end out. For stock levers, you'll need to identify how the cable is fastened. The video shows the cable end being removed from the lever perch.
* At the Clutch Release Arm: The other end of the cable connects to the clutch release arm, usually located on top of the transmission housing, often secured by a bracket. You'll need to loosen the cable adjuster nuts to create slack, then disconnect the cable end from the release arm mechanism. This often involves removing a snap ring and a pin that holds the cable end in place.

#### 2. Removing the Clutch Lever (If Necessary)

In some cases, particularly if the cable end is difficult to access or if you're replacing the lever itself, you may need to remove the clutch lever assembly. This typically involves:

• Locating and removing the retaining snap ring that holds the lever pivot pin in place.
• Carefully withdrawing the pivot pin.
• Gently pulling the clutch lever away from its perch.

The KustomTech lever demonstration highlights how the cable interacts with the lever mechanism, showing the pin and how it interfaces with the cable end.

#### 3. Preparing the New Clutch Cable

This is a critical step often overlooked: LUBE YOUR NEW CABLE! A dry cable will wear out prematurely and won't operate smoothly.

• Use a dedicated motorcycle cable lubricant.
• Apply the lubricant generously to both ends of the cable and work it through the inner wire by cycling the cable back and forth. Many cable lubers are available that attach to the cable end and allow you to inject the lubricant.

This step is paramount for ensuring longevity and smooth operation of your clutch.

#### 4. Installing the New Clutch Cable

* To the Clutch Lever: Feed the new, lubricated cable end into its designated spot on the clutch lever. Ensure it's seated correctly and secured by any retaining clips or pins. If you removed the lever, re-install it now, securing it with the pivot pin and snap ring.
* To the Clutch Release Arm: Route the new cable along its intended path, ensuring it's not kinked or rubbing against any sharp edges. Connect the cable end to the clutch release arm at the transmission. This usually involves re-installing the pin and snap ring that secures it.

#### 5. Adjusting the Clutch Cable

Proper adjustment is key for a functional clutch. The goal is to achieve the correct amount of free play. Free play is the amount of movement in the clutch lever before you feel resistance from the cable. Too little free play can cause the clutch to slip, while too much can make it difficult to disengage fully.

• Locate the clutch cable adjuster nuts near the clutch release arm on the transmission housing.
• Loosen the locknut.
• Thread the adjuster barrel in or out to set the free play. A common specification for Harley-Davidson clutch free play is around 1/8" to 1/4" (3-6 mm) measured at the clutch lever. Check your service manual for the precise figure for your Shovelhead.
• Once the free play is set, tighten the locknut to secure the adjuster barrel.

A quick overview of clutch adjustment is provided in the video, emphasizing the importance of this step for optimal performance.

#### 6. Final Checks and Securing

After adjusting, double-check that everything is secure.

• Ensure the cable is properly seated at both the lever and the release arm.
• Tighten the clutch cable nut down to the cable bracket, securing the cable's routing.
• Cycle the clutch lever several times to ensure smooth operation and proper engagement/disengagement.

With the new cable installed and adjusted, Tyler's Shovelhead is ready to ride again! This process, while detailed, is quite manageable for the home mechanic.

### Common Questions & Troubleshooting

Q: Do I need to remove the clutch assembly to change the cable?

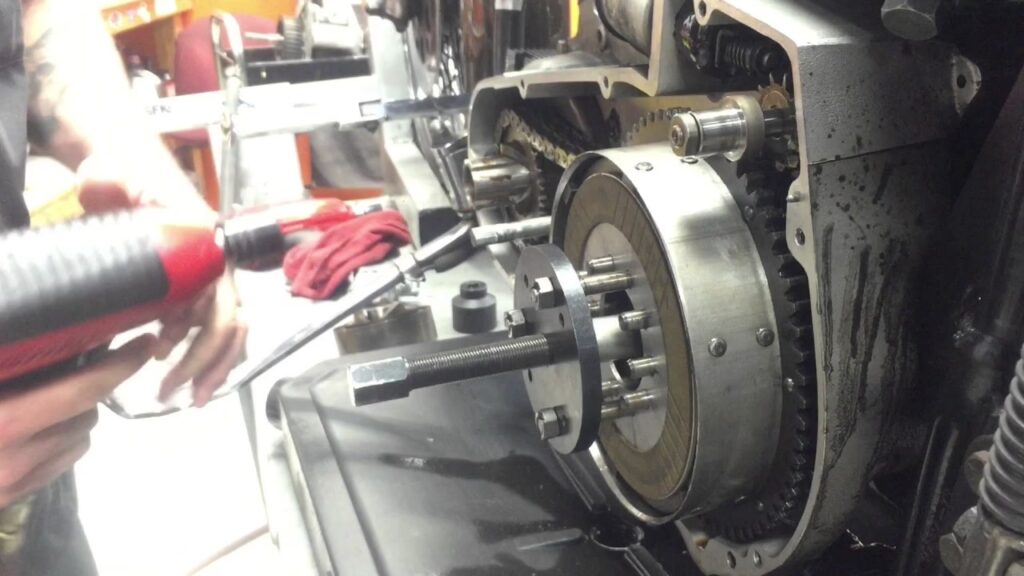

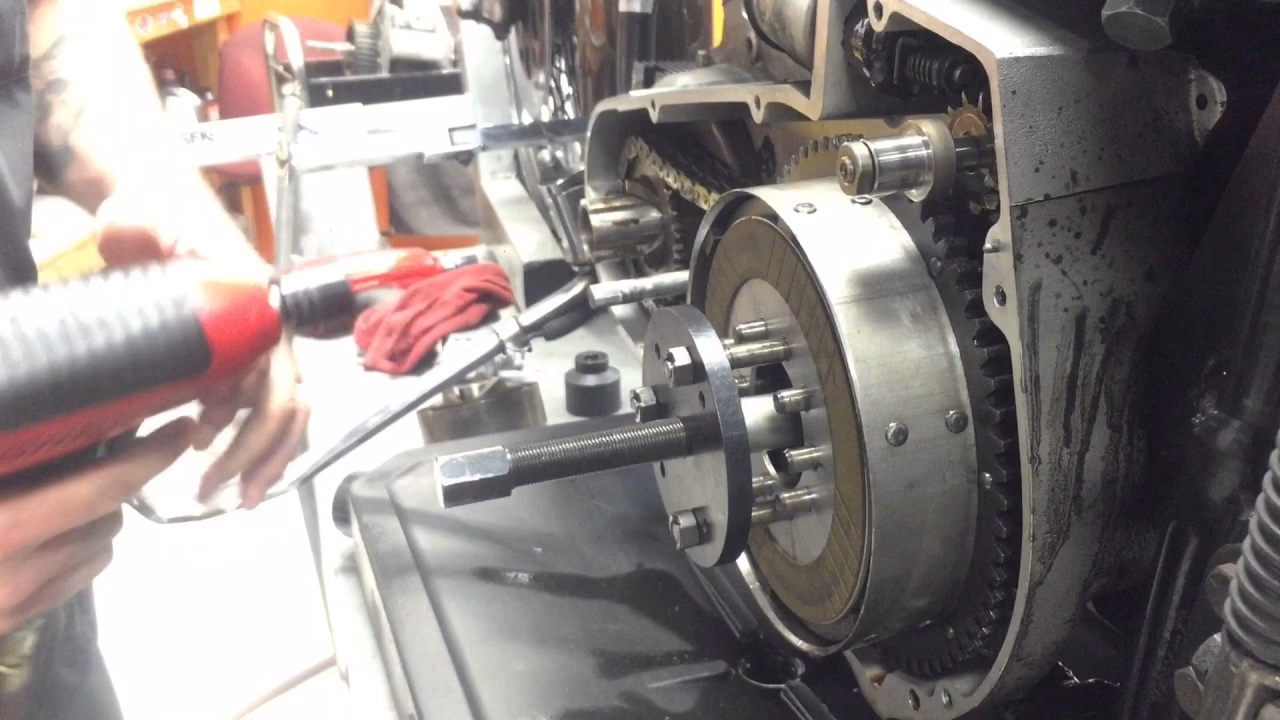

A: Generally, no. You do not need to remove the entire clutch assembly. The cable connects to the release arm on the outside of the transmission housing. However, if you're experiencing issues with the clutch itself or need to replace the clutch hub bolt (which can be stubborn, sometimes requiring significant force and potentially being reverse-threaded on some models as indicated by a user's question about their FX Shovelhead), then accessing the clutch assembly internally would be necessary.

Q: How do I adjust the clutch?
A: Clutch adjustment is typically done at the cable adjuster nuts located near the clutch release arm on the transmission. You adjust the cable tension to achieve the correct amount of free play at the clutch lever. Refer to the section above and your service manual for specific free play measurements.

Q: Has a broken cable ever left you stranded?
A: It's a common scenario for riders, especially those on older bikes with original or aged cables. Being prepared with a spare cable or knowing how to perform this roadside repair can save the day. Many riders have shared stories of being stranded due to cable failure, underscoring the importance of regular inspection and maintenance.

Q: Any cable or clutch tips you'd like to share?
A: Always lubricate new cables. Regularly inspect your clutch cable for fraying, kinks, or wear. Ensure the cable is routed correctly without any sharp bends or pinching. Proper free play adjustment is crucial for clutch longevity and performance. If your clutch feels stiff or sticky, cleaning and lubricating the clutch lever pivot point can also help.

### Conclusion

Replacing a clutch cable on a Harley Shovelhead is a fundamental maintenance task that ensures your classic ride remains reliable and enjoyable. By understanding the differences in components, preparing with the right tools, and following a systematic approach, you can successfully tackle this job. Remember the importance of lubrication and proper adjustment for optimal performance and longevity. So get out there, perform this essential maintenance, and enjoy the ride!
