Rear Differential Oil: The Ultimate Guide

Understanding Your Rear Differential and Its Crucial Fluid

Your vehicle's rear differential is an unsung hero, performing one of the most arduous tasks within the drivetrain. It's responsible for multiplying torque from the transmission and delivering it to your rear wheels, all while crucially allowing these wheels to rotate at different speeds during turns. For those with a limited-slip differential (LSD), it additionally ensures power is distributed to both rear wheels. This constant, demanding work makes the fluid within your rear differential absolutely vital for its longevity and optimal performance. This gear oil, or differential fluid, lubricates the intricate gears, bearings, and clutches, whilst also dissipating heat generated by this high-stress environment. Without the correct fluid, these components can suffer from excessive wear, overheating, and premature failure. This article will delve into the types of oils required, how to identify the correct fluid for your vehicle, and provide a comprehensive guide on how and when to change it.

The Mechanics of a Differential

At its core, a differential is a clever arrangement of gears and bushings designed to transmit rotational motion from one axis to another. In a rear-wheel-drive vehicle, it takes the rotational force from the driveshaft and directs it to the two rear wheels. The genius of the differential lies in its ability to allow these wheels to spin at different rates. When you turn a corner, the outer wheel needs to travel a greater distance than the inner wheel, thus requiring it to rotate faster. The differential's internal gearing facilitates this difference in speed. Furthermore, the differential also multiplies torque. This is expressed as the 'differential ratio', which is the ratio of teeth on the ring gear (output) to the teeth on the pinion gear (input). For example, a 4.11:1 ratio means torque is multiplied by 4.11 times the amount received from the transmission, which has already been multiplied by the engine's gearbox. Consequently, your rear differential can endure thousands, or even tens of thousands, of foot-pounds of torque with every application of the accelerator. The fluid within this unit, often referred to as gear oil, is specifically formulated to handle these extreme pressures and rotational forces, providing essential lubrication and cooling.

Types of Differential Fluid: GL-4 vs. GL-5

When selecting gear oil for your rear differential, you'll frequently encounter designations such as GL-4 and GL-5. These classifications, established by the American Petroleum Institute (API), indicate the level of extreme pressure (EP) additives present in the oil. These EP additives are crucial for protecting gears under high load and shear forces.

GL-4 gear oils contain a moderate amount of EP additives. They are typically recommended for manual transmissions and some older differentials that may have components made of softer metals like brass or bronze. Using a GL-5 oil in a transmission or differential designed for GL-4 could potentially damage these softer metal components due to the higher concentration of sulphur-based EP additives in GL-5, which can be corrosive to these materials.

GL-5 gear oils contain a significantly higher concentration of EP additives. They are designed for heavily loaded gears, such as those found in differentials, especially hypoid gears which operate with significant sliding motion. Most modern rear differentials, particularly those in cars and trucks, require GL-5 specification oil. It's imperative to consult your vehicle's owner's manual to confirm the correct API rating for your differential. Using the wrong specification can lead to premature wear and potential damage.

Limited-Slip Differentials (LSDs) and Special Fluids

Limited-slip differentials employ clutches or other mechanisms to ensure that power is sent to both rear wheels, even when one wheel loses traction. These differentials require specific friction modifiers in their gear oil to allow the clutches to engage and disengage smoothly. Many GL-5 gear oils are available in formulations specifically designed for limited-slip differentials, often labelled as 'LS' or 'with friction modifiers'. If your vehicle has an LSD, it is crucial to use a fluid explicitly stated as compatible with LSDs, or to add a separate friction modifier additive if recommended by the manufacturer. Using standard GL-5 oil in an LSD without these modifiers can cause chatter, reduced performance, and accelerated wear of the LSD components.

Top Gear Oils for Your Rear Differential

Choosing the right gear oil is paramount for the health of your rear differential. Here are some highly regarded options:

When Should You Change Your Rear Differential Fluid?

Your vehicle's owner's manual is the definitive source for recommended fluid change intervals. However, general guidelines suggest changing the rear differential fluid every 30,000 to 60,000 miles for typical daily driving. If your vehicle is subjected to more demanding conditions, such as frequent heavy hauling, towing, off-roading, or participation in motorsports, you should adhere to the lower end of this range, around 30,000 miles. For such strenuous use, consider changing the fluid annually or biennially.

A critical factor that necessitates an immediate fluid change is water ingress. Leaks in the differential housing or driving through deep water (deeper than the axle height) can allow water to contaminate the gear oil. Water cannot provide the necessary lubrication and will actively promote corrosion and wear on internal metal components. If you suspect water contamination, or if you've driven through significant water, it's prudent to check your differential fluid. If water is present, the fluid must be changed promptly to prevent long-term damage.

How to Change Your Rear Differential Fluid

The process for changing differential fluid can vary slightly depending on the differential design. Most modern vehicles have a differential housing with both a fill plug (usually at the top) and a drain plug (at the bottom). Some older or specialised differentials might require the removal of the entire rear cover.

Procedure for Differentials with Fill and Drain Plugs:

1. Preparation: Ensure you have the correct type and quantity of gear oil, a wrench for the plugs, a drain pan, and potentially a fluid pump. Clean the areas around the fill and drain plugs to prevent dirt ingress.
2. Open the Fill Plug First: This is a crucial step. Before draining any fluid, attempt to open the fill plug. If you cannot open the fill plug, you will not be able to refill the differential, and it's far better to discover this issue when the vehicle is still functional.
3. Drain the Old Fluid: Once the fill plug is confirmed open, position your drain pan beneath the drain plug (located at the lowest point of the differential housing). Remove the drain plug and allow all the old, often foul-smelling, gear oil to drain out completely.
4. Replace the Drain Plug: Once drained, clean the drain plug and replace it. If your vehicle's drain plug uses a crush washer, it's essential to replace it with a new one to ensure a proper seal and prevent leaks. Torque the drain plug to the manufacturer's specifications.
5. Refill with New Fluid: Using a fluid pump or a long-neck bottle, carefully fill the differential with the new gear oil. The correct fill level is typically when the fluid reaches the bottom edge of the fill plug opening; it should start to drip out. Avoid overfilling, as this can cause excessive foaming and aeration, damaging the fluid and components.
6. Replace the Fill Plug: Install the fill plug, again using a new crush washer if applicable, and torque it to the specified tightness.

Procedure for Differentials Requiring Cover Removal:

1. Preparation: Gather your supplies, including new gear oil, a gasket or RTV sealant, tools for removing bolts, a scraper, and a drain pan.
2. Open the Fill Plug: As with the previous method, open the fill plug first to ensure you can refill the differential later.
3. Loosen Differential Cover Bolts: Loosen all the bolts securing the differential cover. It's often advisable to leave the top bolts slightly snug while removing the lower ones. This allows the cover to start separating, and the differential fluid to begin draining.

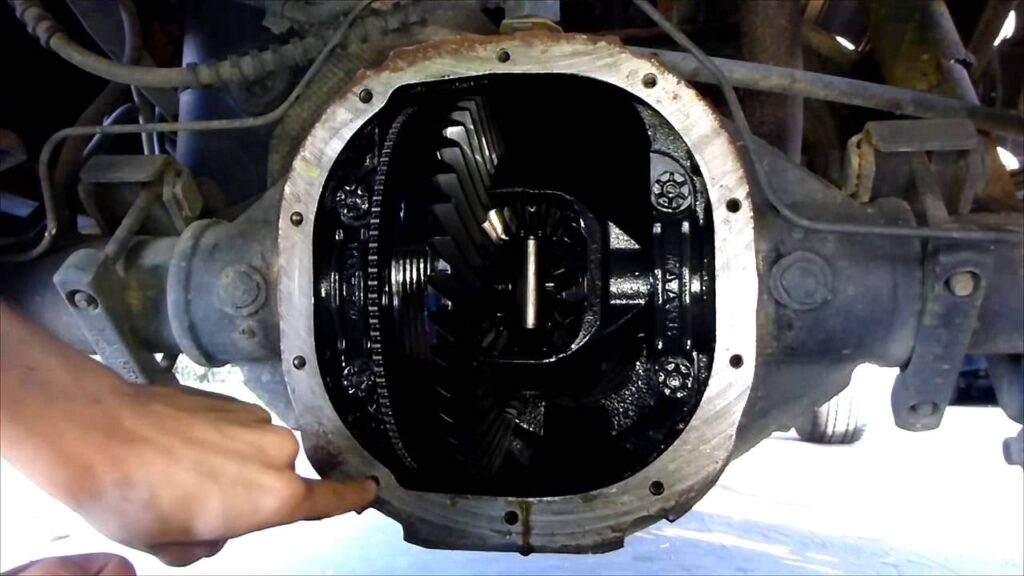

4. Remove the Cover: Once the lower bolts are out and the fluid has drained, carefully remove the remaining bolts and detach the differential cover. You may need to gently pry it loose with a flat-head screwdriver, being careful not to damage the sealing surface.
5. Clean the Housing and Cover: Thoroughly clean the inside of the differential cover and the differential housing to remove all old fluid, debris, and any metal particles. Use a scraper to clean the mating surfaces of both the cover and the housing. A brake cleaner can be used to ensure the surfaces are free of oil and grime.
6. Apply New Sealant: If your vehicle uses a gasket, replace it. If it uses RTV (Room Temperature Vulcanizing) silicone sealant, apply a neat, continuous bead around the mating surface of the cover. Ensure the bead is not excessively thick, as this can lead to sealant being pushed into the differential.
7. Reinstall the Cover: Carefully position the cover back onto the housing, ensuring the sealant or gasket is properly seated. Reinstall the bolts and tighten them in a criss-cross pattern to the manufacturer's specified torque. Avoid overtightening.
8. Refill and Finalise: With the cover sealed, refill the differential with the correct type and amount of gear oil as described in the previous method. Replace the fill plug, torque it to spec, and check for any external leaks.

Frequently Asked Questions

Q1: What happens if I use the wrong type of oil in my differential?
Using the wrong oil, particularly using GL-5 in a GL-4 application, can lead to corrosion of internal components made of brass or bronze. Using non-synthetic oil in a high-performance or synthetic-requiring differential can result in premature wear and breakdown under high temperatures.

Q2: Do I need a special oil for my limited-slip differential?
Yes, if your vehicle is equipped with a limited-slip differential, you generally need a gear oil that contains specific friction modifiers for LSDs, or you'll need to add a separate friction modifier additive. Check your owner's manual for recommendations.

Q3: How much gear oil does a rear differential take?
The amount of gear oil varies by vehicle. Typically, rear differentials hold between 1.5 to 2.5 litres (approximately 1.5 to 2.5 US quarts). Always consult your owner's manual for the exact capacity.

Q4: Can I use engine oil in my differential?
No, absolutely not. Engine oil is not formulated to withstand the extreme pressures and shear forces experienced by gears in a differential. Using engine oil will cause rapid and severe damage.

Q5: How often should I check my differential fluid?
It's a good practice to check your differential fluid level and condition whenever you check your engine oil, especially if you engage in heavy-duty use or drive through water. Look for leaks or signs of contamination.

By understanding the requirements of your rear differential and adhering to a regular maintenance schedule, you can ensure this vital component continues to perform reliably for many miles to come.
