Is Your Brake Pad Not Covering the Disc?

Observing an unswept area on your brake disc, particularly near the hub, after a recent brake service can certainly be a cause for concern. It’s a question that frequently arises among car owners, much like the query from 'jimmy156' about his Alfa 156. While a small amount of the disc remaining untouched by the brake pad is often completely normal and part of the design, a significantly wide or unusual band of corrosion or unworn material could indicate an underlying issue that needs immediate attention. Understanding the distinction between a normal scenario and a potential problem is crucial for both your vehicle's performance and, more importantly, your safety.

When brake pads, discs, and calipers are replaced, the expectation is for the new components to work in perfect harmony, ensuring maximum contact and optimal braking efficiency. However, the reality of brake system design and manufacturing tolerances means that a minute portion of the disc might intentionally, or unintentionally, not be swept by the pad. The key is determining if the observed unswept area falls within acceptable parameters or if it points to a misconfiguration or faulty component.

Understanding Brake Pad-to-Disc Contact

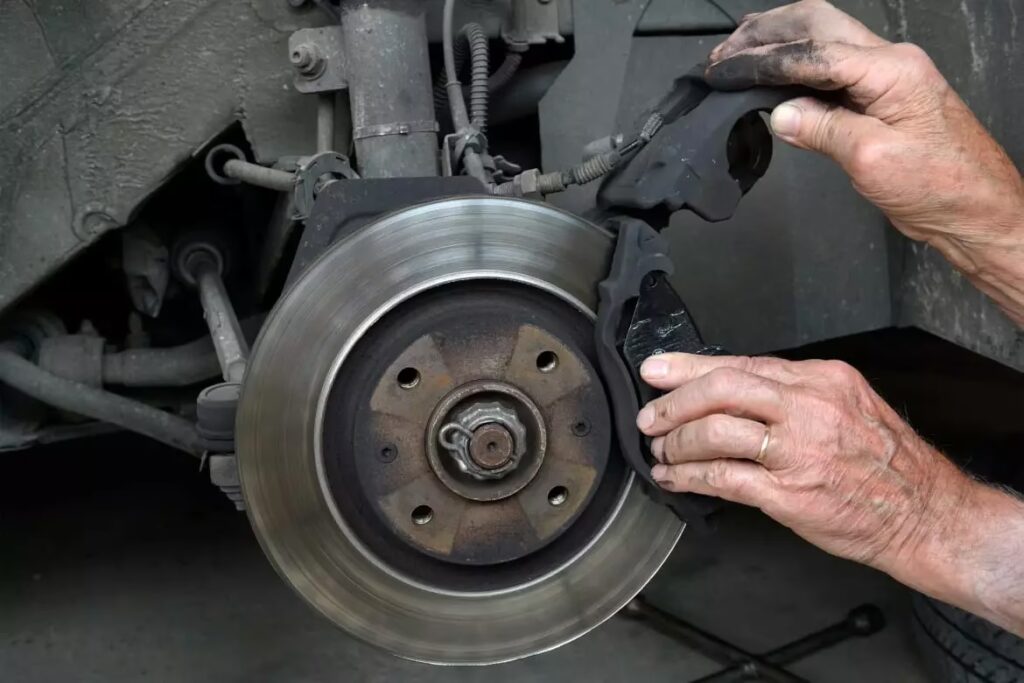

To fully grasp why a brake pad might not cover the entire disc, we first need to understand the fundamental design and purpose of a disc brake system. A disc brake operates by clamping a rotating brake disc (or rotor) between two stationary brake pads, which are housed within a caliper. This clamping action creates friction, slowing the vehicle down. For optimal performance, the contact area between the pad and the disc should be as consistent and complete as possible across the disc's friction surface.

However, there are several reasons why a small portion might remain unswept:

• Pad Design and Chamfers: Many brake pads feature chamfered edges, which are angled cuts on the leading and trailing edges of the friction material. These chamfers are primarily designed to reduce noise (squeal) and vibrations during braking, and to aid in the initial bedding-in process. These chamfers mean that the very edge of the pad isn't making full contact with the disc, often leaving a narrow, unworn band.
• Disc Hub Design: The inner part of the brake disc, where it mounts to the wheel hub, is typically not part of the friction surface. This area, often referred to as the 'hat' or 'bell' of the disc, is designed for mounting and does not require pad contact. The unswept area observed by 'jimmy156' near the hub is often this part of the disc or the transition area just before the main friction surface.
• Manufacturing Tolerances: Like all mechanical components, brake pads, discs, and calipers are manufactured within certain tolerances. These slight variations can sometimes result in a small, consistent ring on the inner or outer edge of the disc that isn't fully swept. As long as this unswept area is narrow (typically just a few millimetres) and consistent, it's generally not a cause for concern.

When an Unswept Area Becomes a Problem

While a narrow, consistent unswept band is often normal, a wide or uneven area of unworn material or significant corrosion on the disc's friction surface is a red flag. This indicates that the brake pad is not making sufficient contact with the disc, which can compromise braking performance and component longevity. Here are the common reasons why this might occur:

1. Incorrect Part Compatibility

This is arguably the most common cause of significant unswept areas. Installing brake pads or discs that are not specifically designed for your vehicle's make, model, and year, or even specific trim level, can lead to improper fitment. Different vehicles have varying disc diameters, thicknesses, and caliper designs. If the pads are too small for the disc, or the caliper isn't correctly aligned for the disc's friction surface, you will inevitably end up with an unswept area. This is particularly relevant if parts were sourced from a 'factors' and fitted by a friend, as mistakes in part number cross-referencing can happen.

2. Caliper Issues

The brake caliper is responsible for holding the pads and pressing them against the disc. If the caliper itself is faulty, misaligned, or improperly installed, it can prevent full pad contact:

• Seized Caliper Slides/Pins: Calipers typically slide on pins to ensure even pressure on both sides of the disc. If these pins are seized due to rust or lack of lubrication, the caliper might not float correctly, leading to uneven pad wear and an unswept area on one side of the disc.
• Sticking Piston: A piston within the caliper that is sticking or partially seized can prevent the pad from fully engaging the disc, leading to insufficient contact.
• Improper Mounting: If the caliper is not bolted securely or correctly to the vehicle's knuckle, it can be misaligned relative to the disc, causing the pad to only contact a portion of the disc's surface.
• Damaged Caliper Bracket: A bent or damaged caliper bracket can also misalign the caliper and, by extension, the brake pads.

3. Poor Quality or Manufacturing Defects

While less common with reputable brands, poorly manufactured brake pads or discs can have dimensional inaccuracies. Pads might be slightly undersized, or the friction material might not be perfectly bonded or shaped, leading to an uneven contact patch. Similarly, a disc with an incorrect friction surface width or excessive run-out could contribute to this issue.

4. Improper Bedding-In Procedure

While not a primary cause of an unswept area, an incorrect bedding-in procedure can exacerbate contact issues. Bedding-in involves a series of controlled stops to transfer a thin, even layer of friction material from the pad to the disc. If this process is not performed correctly, or if the brakes are excessively overheated, it can lead to uneven material transfer and hot spots, potentially affecting the effective contact area. However, this is more likely to cause judder or reduced performance rather than a distinct, wide unswept band.

Consequences of Insufficient Pad Contact

Ignoring a significant unswept area on your brake disc can lead to several detrimental consequences:

• Reduced Braking Performance: Less surface area contact means less friction, directly translating to longer stopping distances and reduced braking power. This is a critical safety concern.
• Uneven Wear: The parts of the pad and disc that are making contact will wear out much faster than intended, as they are doing all the work. This leads to premature component failure and increased maintenance costs. The unworn area of the disc will also be susceptible to rust and pitting, which can further degrade performance.
• Noise and Vibration: Uneven contact can cause brake squeal, grinding, or judder, making for an unpleasant driving experience.
• Overheating: Concentrated friction in a smaller area generates more heat locally, increasing the risk of brake fade (loss of braking power due to heat) and warping of the brake discs.
• Increased Corrosion: As 'jimmy156' observed, the unswept area of the disc will be exposed to the elements without the protective wiping action of the brake pad. This will lead to rapid surface corrosion, which can eventually spread and affect the entire disc's integrity.

Diagnosing the Problem

If you suspect an issue with your brake pad contact, here's how to approach the diagnosis:

1. Visual Inspection: Carefully examine both inner and outer friction surfaces of the brake disc. Is the unswept area wide (more than a few millimetres)? Is it consistent around the entire circumference? Does it appear on both sides of the disc, or just one?
2. Check Part Numbers: Verify that the brake pads and discs installed are the correct parts for your specific vehicle. Cross-reference the part numbers with the manufacturer's specifications or a reputable parts catalogue.
3. Caliper Inspection: Have a mechanic inspect the brake calipers. Check for seized slide pins, sticking pistons, or any signs of misalignment or damage to the caliper body or bracket.
4. Pad Wear Pattern: Remove the brake pads and inspect their friction material. Is the wear even across the entire pad surface? Uneven wear on the pad itself is a strong indicator of a caliper issue or misalignment.

Comparative Table: Normal vs. Problematic Unswept Areas

Rectifying the Issue

If you've identified that the unswept area is indeed problematic, here's a general approach to rectification:

1. Correct Part Replacement: If incorrect parts were installed, they must be replaced with the correct OEM or equivalent parts specified for your vehicle. There's no workaround for incorrect component sizing.
2. Caliper Service/Replacement: If the caliper is found to have seized pins, sticking pistons, or is otherwise faulty, it will need to be serviced (cleaned, lubricated, new seals) or, in severe cases, replaced entirely. Ensure caliper slide pins are properly lubricated with high-temperature grease during reassembly.
3. Professional Inspection: It's always advisable to have a qualified mechanic perform a thorough inspection. They have the tools and expertise to accurately diagnose the root cause and ensure all components are correctly fitted and functioning.
4. Bedding-In: After any brake component replacement, ensure a proper bedding-in procedure is followed. This helps to optimise pad-to-disc contact and performance.

Frequently Asked Questions (FAQs)

Q1: Is a thin ring of rust on the inner or outer edge of my brake disc normal?

A1: Yes, a very thin ring (1-3mm) of surface rust at the extreme inner or outer edge of the disc's friction surface is often normal. This is typically due to the pad's chamfered edges or the design of the disc's hub area, which means these very edges are not constantly wiped clean. As long as it's minor and consistent, it's usually nothing to worry about.

Q2: Can I continue driving if my brake pad isn't fully covering the disc?

A2: If the unswept area is significant (e.g., more than 5mm wide or uneven), it's highly advisable to have it inspected immediately. Continuing to drive can severely compromise your braking performance and safety, lead to premature component failure, and potentially cause more expensive repairs down the line. It's not worth the risk.

Q3: How much of the disc surface should the brake pad cover?

A3: Ideally, the brake pad should cover as much of the disc's main friction surface as possible, typically 95-98%. A small, consistent margin at the very edges is acceptable due to design features like chamfers, but any significant portion of the disc's active braking area remaining unworn indicates a problem.

Q4: What are brake pad chamfers, and do they contribute to unswept areas?

A4: Brake pad chamfers are angled cuts on the edges of the friction material. Their primary purpose is to reduce noise and aid in bedding-in. Because of these chamfers, the very edges of the pad don't make full contact, which can result in a narrow, unworn band on the disc. This is a normal design feature and not usually a concern.

Q5: My brakes were just serviced, and now I have this problem. What should I do?

A5: If the issue appeared immediately after a brake service, the first step is to contact the mechanic or garage who performed the work. It's possible that incorrect parts were used, or there was an error in the installation process (e.g., misaligned caliper, seized slide pins that weren't addressed). They should be able to diagnose and rectify the problem under warranty or as part of their service guarantee.

In conclusion, while a slight unswept area on your brake disc can be perfectly normal, a wide or uneven band of corrosion or unworn material after a brake service is a clear indicator of a problem. It suggests that your brake pads are not making adequate contact with the disc, potentially compromising your vehicle's braking performance and overall safety. Always prioritise a thorough inspection by a qualified mechanic to ensure your braking system is functioning as it should be.
