Lambda Sensor: When and Why to Replace

The Importance of Your Lambda Sensor

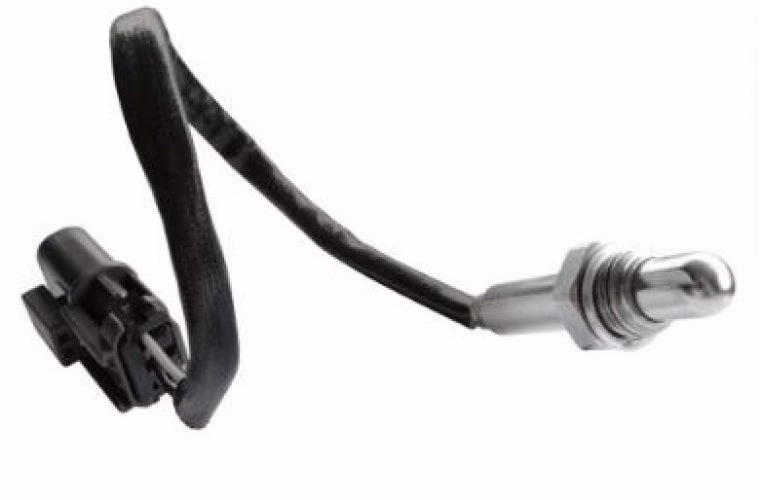

The lambda sensor, also known as an oxygen sensor, plays a crucial role in your vehicle's engine management system. Its primary function is to measure the amount of unburnt oxygen in the exhaust gases. This vital information is then sent to the Engine Control Unit (ECU), which uses it to adjust the fuel-air mixture for optimal combustion. A properly functioning lambda sensor ensures efficient fuel consumption, lower emissions, and smooth engine performance. However, like any component, lambda sensors can degrade over time and with use, leading to a host of drivability issues.

Lambda Sensor Lifespan and Recommended Replacement Intervals

Determining an exact mileage for lambda sensor replacement is challenging, as their lifespan is heavily influenced by various factors specific to each vehicle and its usage. For conventional narrowband (Zirconia, Titania) sensors, there isn't a strict, universally recommended replacement interval. However, as a general rule of thumb, a lambda sensor should typically last around 70,000 miles or between 7 to 10 years. Early sensors required replacement much sooner, often around 30,000 miles, but advancements in manufacturing have extended this significantly, with modern sensors capable of lasting up to 100,000 miles.

Several elements can impact a sensor's longevity:

• Driving Habits: Frequent short journeys where the engine doesn't reach optimal operating temperature can shorten a sensor's life.
• Fuel Quality: Using premium branded fuels is advisable, as some lower-quality fuels may contain higher levels of contaminants like SiO2 (Silicon Dioxide), which can poison the sensor and catalytic converter.
• Engine Condition: Issues like burning oil, which can introduce phosphorus into the exhaust, or a failing head gasket can contaminate the sensor.
• Sensor Location: While some modern vehicles position sensors further from the engine, older designs may be more susceptible to heat and contamination.

For planar sensors, which are often used in wideband applications, manufacturers typically state an operational life of 100,000 km. In practice, their lifespan is generally comparable to traditional sensors, as they are exposed to the same environmental contaminants.

Common Symptoms of a Failing Lambda Sensor

A malfunctioning lambda sensor can manifest in several ways, often leading to confusion as the symptoms can be attributed to other engine components. Recognizing these signs is key to timely diagnosis and repair:

1. Uneven Idle

An engine that idles roughly or unevenly can often be a tell-tale sign of a faulty lambda sensor. This can be due to a sluggish sensor, a physically damaged sensor, or a failure in its heating element. When the ECU receives inaccurate data about the exhaust gas oxygen content, it struggles to maintain the correct fuel-air mixture, resulting in an unstable idle. In some cases, particularly with BMW's M50 Vanos engines from the early to mid-1990s, idle issues that appear at startup and then rectify themselves might not be lambda-related, as the sensor's output is not used under cold-start conditions. These symptoms could point towards a Vanos system issue, potentially benefiting from an oil flush.

2. Power Loss at Cruising Speeds

If you notice a significant drop in power or a persistent misfire when maintaining a steady speed, your lambda sensor could be the culprit. A contaminated or faulty sensor might erroneously report a 'too rich' fuel mixture to the ECU. In response, the ECU will attempt to correct this by reducing the amount of fuel injected. If this correction is constant and overcompensates, it can lead to incomplete combustion, resulting in misfires and a noticeable loss of power. The ECU constantly switches between open-loop and closed-loop modes, and a faulty sensor can disrupt this delicate balance.

3. Fluctuating Idle Speed or Engine Racing

An engine whose idle speed cycles up and down, or one that 'races' by holding high revs unnecessarily, can also be linked to lambda sensor failure. The ECU, receiving erroneous data, struggles to maintain a stable idle. While these symptoms are sometimes blamed on the temperature sensor or idle speed control valve, the root cause might be an inaccurate signal from the lambda sensor. It's important to remember that the idle control valve is merely acting on the information it receives from the ECU, which might be flawed.

4. Post-Head Gasket Replacement Issues

If your vehicle has recently had a head gasket replacement, there's a high probability that the lambda sensor has become contaminated. Antifreeze, a common culprit in head gasket failures, is particularly detrimental to lambda sensors, especially the Titania type. Even if the engine is running after the repair, keep a close eye on its performance. A failed lambda sensor can sometimes be an early indicator of an impending head gasket failure, as coolant may have been leaking into the cylinders for some time.

5. No Lambda Fault Codes Despite Suspected Failure

While modern ECUs are increasingly adept at identifying lambda sensor failures, older systems may not always log specific fault codes. Many older ECUs will only register a fault if there is a complete loss of signal or if the mixture is consistently too rich or too lean over an extended period. The absence of a lambda-related fault code does not guarantee the sensor is functioning correctly. Sophisticated ECU systems might compensate for a failing sensor to maintain drivability, albeit with increased fuel consumption. For vehicles with OBD-II systems and a secondary (downstream) sensor, the ECU can often detect erroneous readings from the primary (upstream) sensor by comparing its output to the downstream sensor's reading, which monitors catalyst efficiency.

6. Physical Damage

Any physical damage to the sensor, its wiring harness, or its connector will necessitate replacement. This can occur during exhaust system work, where the sensor might be struck or bent. Melted or frayed wires, or a corroded connector, will significantly impair the very small signal (less than 0.8V) the sensor sends to the ECU. When cleaning connectors, use a suitable electrical contact cleaner and ensure they are dry. Lubricants like WD-40 can be used sparingly on the seal for improved water resistance if the contacts are in good condition, but avoid using them on corroded terminals. Attempting to straighten a bent sensor will likely cause internal fractures.

7. Tampering with the Injection System

If you've recently purchased a vehicle and are experiencing running issues, it's worth inspecting the fuel injection components for signs of previous work by unqualified individuals. Look for damaged connectors, stripped screw heads, missing fasteners, or tool marks on components like the throttle potentiometer, injectors, or air mass meter. If multiple components show signs of tampering, it might indicate an attempt to resolve a difficult problem that could be related to a lambda sensor issue.

Testing Your Lambda Sensor

There are several methods to test the functionality of your lambda sensor:

Using an Oscilloscope

If you have access to an oscilloscope, you can test the sensor's output while it's still fitted to the vehicle. Connect probes to the signal and ground wires (typically grey and black for Zirconia, or yellow and black for Titania). With the engine at operating temperature, the oscilloscope should display a waveform that peaks around 0.9V and dips to about 0.1V, with an average crossing the 0.45V mark 7-8 times every 10 seconds. A 'flat' or erratic waveform indicates a faulty sensor. However, a sensor performing well at idle might not function correctly under load.

Checking the Heater Element

The heater element ensures the sensor reaches its optimal operating temperature quickly. You can test its resistance using a multimeter set to ohms. Disconnect the sensor and connect the meter to the two heater wires (often white). The resistance should typically be between 1 and 20 ohms, depending on the sensor type and manufacturer. A very high or open-circuit reading indicates a failed heater element, which usually triggers an ECU fault code.

Using a Lambda Tester

Specialist lambda testers with LEDs can provide a visual indication of the sensor's voltage output. A more advanced method involves monitoring the sensor's response to rich and lean conditions. This can be done by introducing extra air into the intake (e.g., by removing the brake servo hose) to create a lean condition, and by partially restricting airflow or introducing unlit propane into the intake to create a rich condition. The sensor's voltage should react rapidly to these changes.

Testing Wideband (Planar) Sensors

Testing wideband sensors is more complex and typically requires an OBD-II scan tool. These sensors produce a more sophisticated signal, and direct testing with a voltmeter or oscilloscope is not practical. A scan tool can read the air/fuel ratio and monitor the sensor's response to changes, providing a more accurate assessment of its performance. Failures in wideband sensors are usually accompanied by a fault code, though not always.

Contamination of the Sensor Element

Several substances can contaminate and degrade lambda sensors:

• Silicon: Often introduced by a blown head gasket or certain fuels. It typically appears as a white coating on the sensor tip.
• Oil: Burning oil can lead to phosphorus contamination, appearing as a dark residue. This can be caused by worn engine components or turbochargers.
• Metallic Contaminants: Resulting from infrequent oil changes, these metals can poison the sensor's platinum coating.
• Carbon Fouling: A black powder on the sensor tip, often caused by excessive short journeys and soot buildup. Occasional high-speed driving can help clear this.
• Silicone Sealant: Unapproved silicone sealants used in engine gasket repairs can contaminate the sensor.

Wiring Colours

Lambda sensor wiring colours can vary between manufacturers, but common conventions exist:

• Zirconia Sensors: Typically, black is the signal wire, white wires are for the heater, and grey is for the ground in 4-wire setups.
• Titania Sensors: Red and white are often used for the heater, and yellow and black for the signal.

When fitting universal sensors, it's crucial to match the wiring correctly, as the colours on the vehicle's harness may differ significantly from the sensor's wiring.

Original vs. Universal Lambda Sensors

While universal lambda sensors might seem like a cost-effective option, fitting an original equipment (OE) specification sensor is generally recommended. OE sensors are specifically designed and manufactured to meet the exact requirements of your vehicle's ECU, including their protection casing and heater ratings. Universal sensors, often manufactured with cost-cutting measures, may not offer the same level of accuracy or longevity, potentially leading to premature failure and further issues.

Choosing an OE-spec sensor ensures:

• Correct compatibility with your vehicle's ECU.
• Optimal performance for fuel efficiency and emissions.
• Longer service life compared to many universal alternatives.
• Avoidance of potential fault codes related to incorrect sensor specifications.

While universal sensors can be a viable option in some cases, particularly for older vehicles where the resale value doesn't justify the cost of an OE sensor, careful selection based on vehicle-specific requirements is essential. Always consult with a specialist if you are unsure.

Can I Clean My Lambda Sensor?

While it's not possible to physically wash a lambda sensor like a spark plug, sometimes a sensor's performance can be temporarily improved by running the engine at around 3000 rpm for a few minutes (without load). This can help burn off minor deposits. However, if the symptoms return, it's likely the sensor is either contaminated beyond cleaning or has an internal fault, and replacement is necessary. Overheating the sensor, especially if the engine is running too rich, can permanently fuse contaminants onto the sensing element.

Conclusion

The lambda sensor is a critical component for efficient engine operation. Paying attention to the symptoms of a failing sensor, understanding its typical lifespan, and opting for quality replacement parts will help ensure your vehicle runs smoothly, economically, and with minimal emissions. When in doubt, always seek advice from a qualified mechanic or specialist.
