Haldex Oil Removal: A Comprehensive UK Guide

The Haldex all-wheel-drive (AWD) system is a sophisticated piece of engineering, designed to seamlessly transfer power to the rear wheels when needed, providing enhanced traction and stability, particularly in challenging driving conditions. Found in many vehicles from manufacturers like Volkswagen, Audi, Skoda, Seat, Volvo, Land Rover, and even some Ford models, its intelligent operation relies heavily on a dedicated hydraulic system. Just like any other fluid in your vehicle, the oil within the Haldex unit degrades over time, accumulating contaminants and losing its lubricating properties. Therefore, understanding how to properly remove and replace this oil is a crucial aspect of preventative maintenance, ensuring the longevity and optimal performance of your AWD system.

Why is Haldex Oil Change So Important?

Many vehicle owners overlook the Haldex service, often because it's not as frequently discussed as engine oil changes or brake fluid flushes. However, this oversight can lead to costly repairs down the line. The Haldex unit operates under immense pressure and heat, especially when actively engaging the rear wheels. The fluid, often referred to as Haldex fluid or AWD coupling fluid, is specifically formulated for this demanding environment. Over time, this fluid:

• Degrades: Heat and shear forces break down the fluid's chemical structure, reducing its ability to lubricate and protect components.
• Becomes Contaminated: Microscopic metallic particles from normal wear and tear, along with clutch material, circulate within the fluid. These contaminants can clog the filter and damage the pump and internal clutches.
• Loses Viscosity: As it degrades, the fluid can become thinner or thicker, affecting the precise hydraulic operation of the Haldex clutch pack.

Neglecting this service can lead to symptoms such as delayed AWD engagement, strange noises, or even complete failure of the Haldex unit, which can be an incredibly expensive repair. Regular oil removal and replacement, along with filter changes, are key to avoiding these issues.

When Should You Change Your Haldex Oil?

Service intervals for Haldex systems can vary significantly depending on the vehicle manufacturer and the specific generation of the Haldex unit. It's always best to consult your vehicle's owner's manual or a reputable service schedule for precise recommendations. However, as a general guideline:

• Most manufacturers recommend a service interval between 20,000 and 40,000 miles (approximately 30,000 to 60,000 kilometres) or every 2-3 years.
• For vehicles that frequently tow, are driven aggressively, or operate in extreme conditions (e.g., heavy snow, off-road), it might be prudent to shorten these intervals.
• Some earlier Haldex generations (Gen 1-3) may not have an official filter change interval, but it's still highly recommended to clean the filter gauze or replace it if possible. Later generations (Gen 4 and 5) almost always have a replaceable filter.

Even if your vehicle's manual states 'lifetime fluid', this term is misleading in the context of automotive fluids. 'Lifetime' generally refers to the expected life of the component itself, not the fluid's ability to maintain its properties indefinitely. For optimal longevity, regular maintenance is paramount.

Tools and Materials Required

Before you begin, gather all the necessary tools and materials. Having everything at hand will make the process smoother and more efficient:

• Correct Haldex Oil: This is critical. Ensure you purchase the specific oil recommended by your vehicle manufacturer or a high-quality aftermarket equivalent that meets the required specifications (e.g., VW G 055 175 A2, Volvo 31367940). Do not use standard gear oil or engine oil.
• Haldex Filter Kit (if applicable): Many kits include the filter, O-rings, and new drain/fill plugs.
• Drain Pan: To collect the old oil.
• Fluid Transfer Pump/Syringe: Essential for refilling the Haldex unit, as it often has a small, awkwardly placed fill hole.
• Socket Set/Wrenches: For drain and fill plugs (often Allen/Hex or Torx bits).
• Torque Wrench: To tighten plugs to specification.
• Jack and Jack Stands: To safely lift and support the vehicle.
• Wheel Chocks: For added safety.
• Brake Cleaner/Degreaser: For cleaning the area after draining.
• Lint-Free Rags/Shop Towels: For cleaning and wiping up spills.
• Gloves and Eye Protection: For personal safety.
• Optional: OBD-II diagnostic tool (e.g., VCDS for VAG group cars) if your specific Haldex generation requires pump activation or fault code clearing after a fluid change.

Safety First!

Working under a vehicle can be dangerous. Always prioritise safety:

• Ensure the vehicle is on a flat, level surface.
• Use sturdy jack stands to support the vehicle after lifting. Never rely solely on a jack.
• Engage the handbrake and chock the wheels that remain on the ground.
• Allow the vehicle to cool down before working, as components and fluids can be hot.
• Wear appropriate personal protective equipment (gloves, eye protection).
• Dispose of old oil responsibly at an authorised recycling centre.

Step-by-Step Haldex Oil Removal and Replacement Procedure

While the exact location and access might vary slightly between vehicle models and Haldex generations, the general procedure for oil removal remains consistent:

1. Prepare the Vehicle

Safely lift the rear of the vehicle using a jack and secure it firmly on jack stands. Ensure there's enough space to work comfortably underneath. Some people prefer to lift all four wheels to ensure the vehicle is level, which can aid in proper fluid drainage and filling.

2. Locate the Haldex Unit

The Haldex unit is typically located at the rear axle, integrated into or directly connected to the rear differential. It's usually a compact, cylindrical or rectangular metal housing with electrical connectors and fluid lines.

3. Locate Drain and Fill Plugs

Identify the drain plug (usually at the bottom of the unit) and the fill plug (usually on the side, slightly above the drain plug). They are often similar in appearance, requiring an Allen or Torx key. On some Gen 4/5 units, the fill plug might be higher up, close to the pump.

4. Drain the Old Oil

Place your drain pan directly beneath the Haldex unit. Using the correct tool, carefully loosen and remove the drain plug. Be prepared for the oil to come out quickly. The oil will likely be dark and murky, possibly with a strong odour, indicating its degraded state. Allow ample time for all the old oil to drain out completely. Some units may have a small amount of oil trapped, which is normal.

5. Access and Replace the Filter (If Applicable)

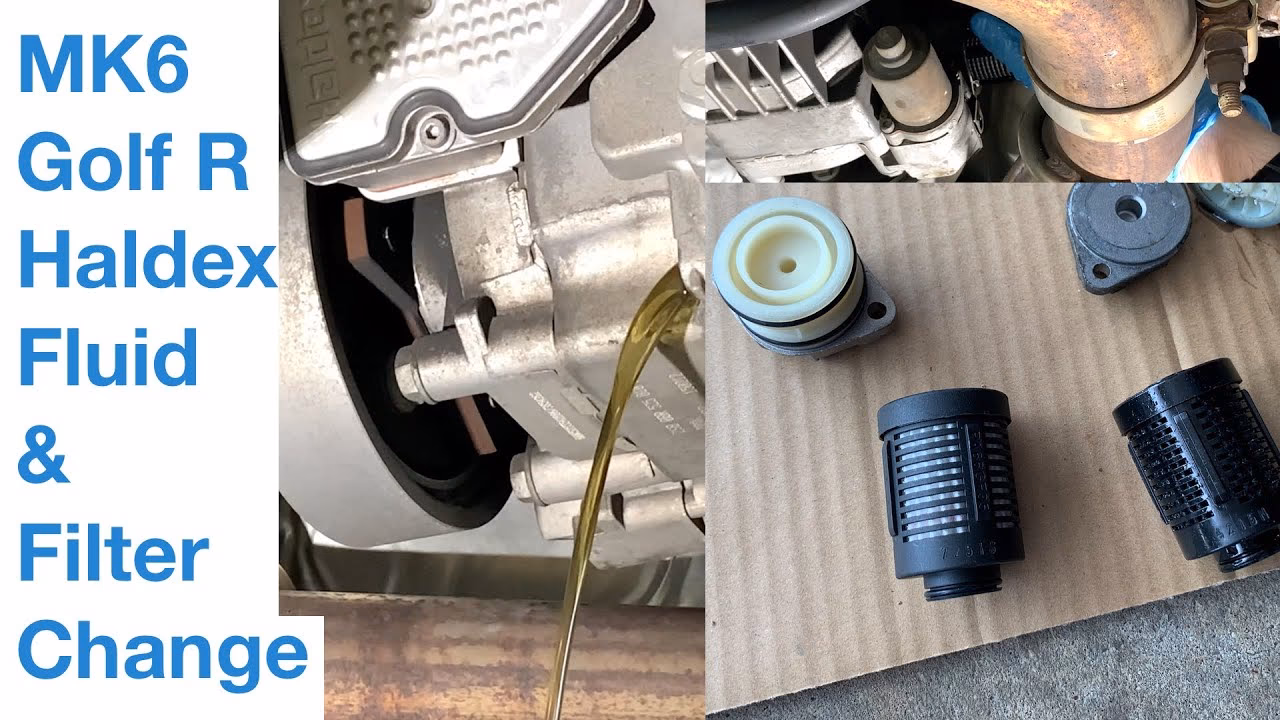

For Haldex Gen 4 and Gen 5 systems, there is a replaceable filter. This filter is usually located behind a cap or cover, often near the drain plug or the Haldex pump itself. You might need a specific socket or tool to remove its housing. Carefully remove the old filter, noting its orientation. Clean the filter housing and surrounding area thoroughly. Install the new filter with its new O-rings, ensuring it seats correctly. Some older generations (Gen 1-3) might have a metal gauze filter that needs to be removed, cleaned, and reinstalled, rather than replaced.

6. Clean and Replace the Drain Plug

Once all the oil has drained, clean the drain plug and its sealing washer (replace the washer if a new one came with your filter kit or fluid). Reinstall the drain plug and tighten it to the manufacturer's specified torque. Do not overtighten, as this can damage the threads in the Haldex housing.

7. Refill with New Haldex Oil

Using your fluid transfer pump or syringe, begin to pump the new, clean Haldex oil into the fill hole. Fill until the oil just starts to drip out of the fill hole. This indicates it's at the correct level. On some Gen 4/5 units, particularly those with a separate reservoir or pump, there might be a specific filling procedure involving cycling the pump using a diagnostic tool (e.g., VCDS) to ensure the system is completely full and purged of air. Consult your vehicle's specific repair manual for this. Generally, for a simple drain and fill, filling until overflow is sufficient.

8. Replace the Fill Plug

Once filled, clean the fill plug and its sealing washer (replace if new one provided). Reinstall the fill plug and tighten it to the manufacturer's specified torque.

9. Final Checks

Clean any spilled oil from the Haldex unit and surrounding components with brake cleaner or degreaser. Lower the vehicle safely from the jack stands. Start the engine and let it run for a few minutes. Take the vehicle for a short drive, ideally engaging the AWD system briefly (e.g., gentle acceleration from a stop). After the drive, check for any leaks around the drain and fill plugs. If your vehicle required a diagnostic tool for pump cycling, check for any related fault codes and clear them if necessary.

Common Pitfalls and Tips for Success

• Incorrect Fluid: Using the wrong type of fluid is a common and potentially catastrophic mistake. Always double-check the specifications.
• Cleanliness: The Haldex system is sensitive to contamination. Ensure your tools, hands, and the work area are as clean as possible. Even small particles can cause damage. This level of cleanliness is paramount.
• Torque Specs: Always use a torque wrench to tighten the drain and fill plugs to the manufacturer's specifications. Overtightening can strip threads; undertightening can lead to leaks.
• Filter Orientation: If replacing a filter, note its original orientation before removal to ensure the new one is installed correctly.
• Pump Pre-charge (Gen 4/5): Some later Haldex systems require the pump to be run via a diagnostic tool to properly pre-charge the system after a fluid change. Failing to do this can result in reduced AWD performance until the system self-bleeds (if it does).
• Dealing with Stripped Plugs: If a plug is seized or begins to strip, stop immediately and seek professional help. Forcing it will only worsen the problem.

DIY vs. Professional Service: A Comparison

Deciding whether to tackle the Haldex oil change yourself or take it to a garage depends on your comfort level, tools, and experience. Here's a brief comparison:

While DIY saves money, the correct fluid and procedure are paramount. If unsure, a professional service is always the safer option.

Frequently Asked Questions (FAQs)

Q: Can I use any gear oil for my Haldex unit?

A: Absolutely not. Haldex systems require very specific, dedicated Haldex fluid. Using standard gear oil or automatic transmission fluid will cause damage to the sensitive clutches and pump within the unit.

Q: Do all Haldex generations have a filter?

A: Not all. Earlier generations (Gen 1-3) typically do not have a replaceable cartridge filter, though some may have a mesh screen or gauze that can be cleaned. Gen 4 and Gen 5 units almost always have a replaceable filter that should be changed with the fluid.

Q: My Haldex unit doesn't have a drain plug, only a fill plug. How do I drain it?

A: Some very early Haldex units or specific vehicle models might indeed lack a dedicated drain plug. In such cases, the fluid is often drained by removing the fill plug and then carefully removing the Haldex pump itself, which allows the fluid to drain. This is a more involved procedure and may require specific knowledge or tools for pump removal and reinstallation with new seals. Consult your specific vehicle's repair manual or a professional.

Q: How much Haldex oil do I need?

A: The capacity varies slightly by generation and vehicle, but most Haldex units require between 650ml and 850ml of fluid. It's always advisable to purchase a 1-litre bottle to ensure you have enough, especially if some is spilled during the filling process.

Q: What if I don't change the Haldex oil?

A: Neglecting Haldex oil changes can lead to several problems, including reduced AWD performance, shuddering or clunking noises during engagement, increased wear on internal components, pump failure, and ultimately, complete failure of the Haldex unit, leading to a very expensive repair bill.

Q: Do I need to calibrate or reset anything after a Haldex oil change?

A: For some Gen 4 and Gen 5 Haldex systems, it is recommended or even necessary to perform a 'pump pre-charge' or 'basic setting' using a diagnostic tool (like VCDS for VAG cars). This ensures the pump is properly primed and the system is free of air bubbles, guaranteeing immediate and correct AWD operation. While some systems may self-bleed over time, using the diagnostic tool is the best practice for optimal results and is a key part of preventative maintenance.

By diligently following these steps and understanding the importance of proper Haldex maintenance, you can significantly extend the life and ensure the continued excellent performance of your vehicle's all-wheel-drive system. It's a rewarding DIY task that saves money and provides peace of mind on the road.
