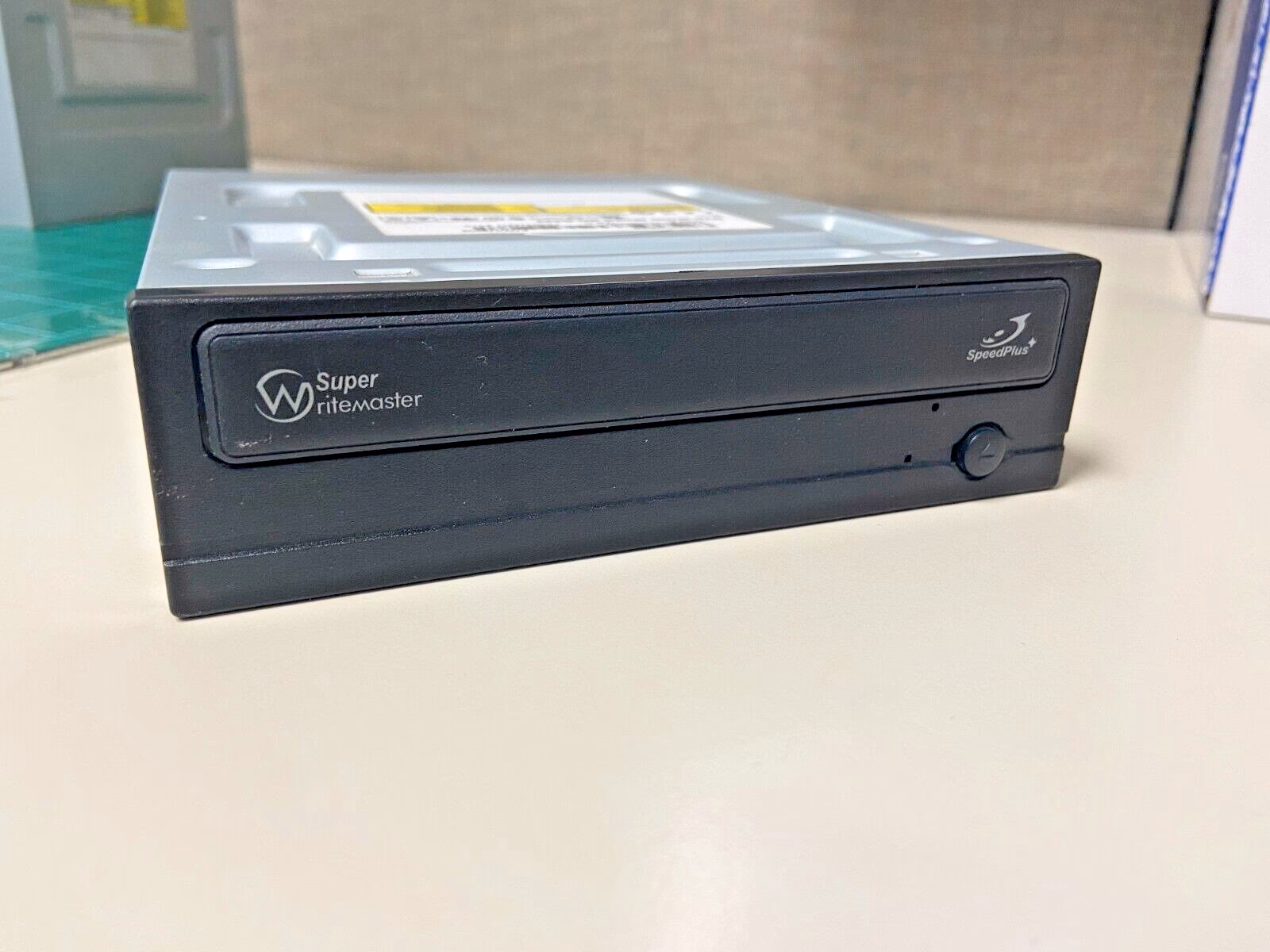

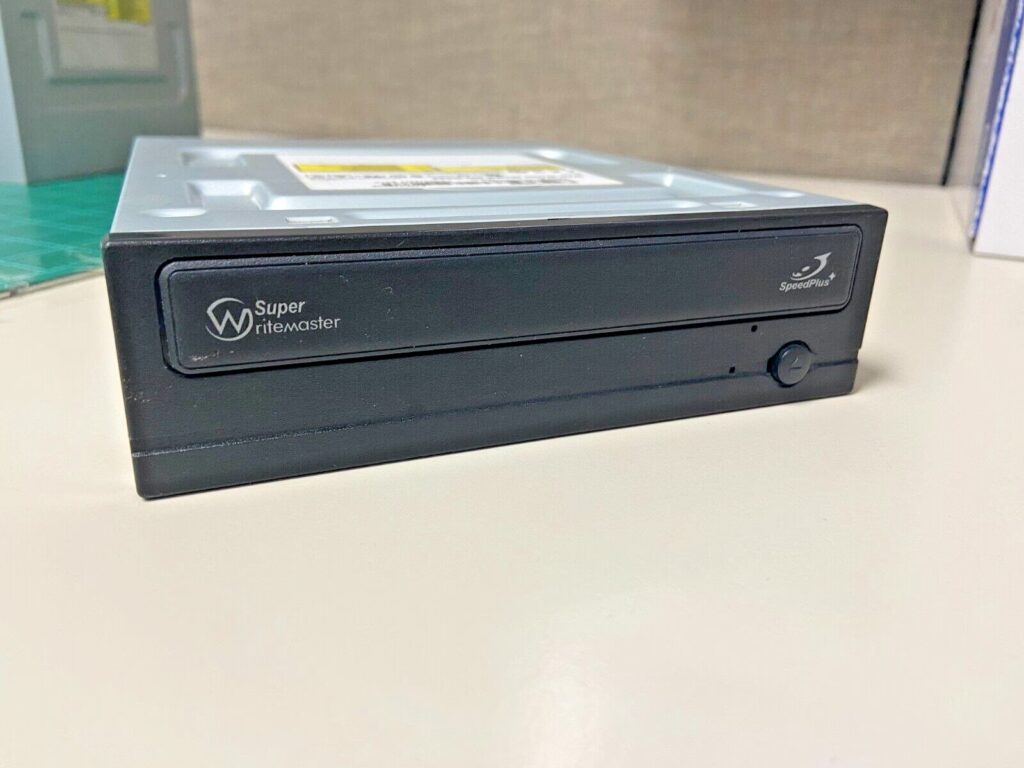

Samsung SH-S223C: Your DVD Writer Explained

In the realm of personal computing, optical drives once held a paramount position, serving as the primary means for software installation, data backup, and multimedia consumption. Among the numerous models that graced the market, the Samsung SH-S223C SATA DVD Writer emerged as a reliable and widely adopted internal optical drive. This versatile unit was designed to handle both DVD and CD formats, offering robust read and write capabilities essential for everyday computing tasks, from installing operating systems to burning personal photo collections.

Released during a period of transition in PC hardware, the SH-S223C integrated the newer Serial ATA (SATA) interface, marking a significant step forward from the older Parallel ATA (PATA) standard. This change brought benefits in terms of data transfer speeds, cable management, and overall system efficiency. While the digital age has seen a decline in the reliance on physical media, many systems, especially those of a certain vintage, still depend on these drives, and understanding their functionality and common issues remains invaluable.

Key Features and Specifications of the SH-S223C

At its core, the Samsung SH-S223C was engineered for dependable performance and user convenience. A key innovation that defined its reliability was its buffer underrun protection technology. This crucial feature prevented errors during high-speed writing processes, ensuring that discs were burned accurately without interruptions. In the past, if the flow of data from the computer to the drive momentarily stopped or slowed, it could result in a corrupted disc – often referred to as a 'coaster'. Buffer underrun protection eliminated this frustration by intelligently pausing and resuming the burning process as needed, leading to consistently successful burns.

The adoption of the SATA interface was another significant highlight. SATA offered several advantages over its predecessor, PATA: thinner, more flexible cables that improved airflow within the PC case; simpler point-to-point connections that eliminated the need for master/slave jumpers; and faster data transfer rates, though the speed of optical drives rarely fully saturated the SATA bandwidth. For the SH-S223C, this meant easier installation and a more streamlined connection to the motherboard.

While specific speeds could vary slightly between revisions, the SH-S223C typically offered impressive performance for its time, commonly supporting:

• DVD±R write speeds of up to 22x
• DVD+RW write speeds of up to 8x
• DVD-RW write speeds of up to 6x
• DVD-RAM write speeds of up to 12x
• CD-R write speeds of up to 48x
• CD-RW write speeds of up to 32x
• DVD-ROM read speeds of up to 16x
• CD-ROM read speeds of up to 48x

These speeds made it a highly efficient tool for burning large data archives, creating custom music CDs, duplicating video content, and installing software from physical media rapidly.

Installation and Initial Setup

Installing the Samsung SH-S223C was a straightforward process for anyone familiar with basic PC building. As an internal 5.25-inch drive, it would typically slide into an available drive bay in a desktop computer case, secured by screws on either side. Connection involved a single SATA data cable from the drive to an available SATA port on the motherboard and a SATA power cable from the power supply unit. Its plug-and-play nature meant that most modern operating systems, including various versions of Windows, often detected it automatically upon boot-up, simplifying the setup process without the need for manual driver installation in most cases.

Common Issues and Troubleshooting the SH-S223C

The Samsung SH-S223C, like any piece of hardware with moving parts, was not immune to issues. Users occasionally encountered problems ranging from discs not being read to the drive simply not being detected by the operating system. Understanding these common pitfalls and their solutions is key to maintaining or diagnosing issues with this classic optical drive.

'TSSTcorp CDDVDW S223C Not Working' – A Common Conundrum

One of the most frequently reported issues, especially for users upgrading to newer operating systems like Windows 10 (64-bit), was the drive suddenly ceasing to function. The 'TSSTcorp' prefix refers to Toshiba Samsung Storage Technology Corporation, the joint venture that manufactured these drives. When a drive stops working, it can manifest in several ways: the disc tray might not open, discs might not spin, or the drive might not appear in 'My Computer' or 'File Explorer'.

Driver Woes: 'No Drivers Found'

While many optical drives rely on generic drivers built into Windows, sometimes an operating system upgrade or corruption can lead to the drive not being recognised, displaying messages like 'No Drivers Found' in Device Manager. For the SH-S223C, dedicated manufacturer drivers were rarely necessary for basic functionality, as Windows typically provided the necessary support. However, if problems arise, the first step is to check Device Manager (right-click 'This PC' or 'My Computer' -> 'Manage' -> 'Device Manager'). Look for 'DVD/CD-ROM drives'. If the SH-S223C is listed with a yellow exclamation mark, or not at all, you might try:

1. Right-clicking on the device (if visible) and selecting 'Update driver software'. Choose 'Search automatically for updated driver software'.
2. Right-clicking and selecting 'Uninstall device', then restarting your computer. This often forces Windows to reinstall the generic drivers upon reboot.
3. Checking for any upper or lower filters in the Windows Registry that might be interfering with the drive. This is a more advanced step and should only be attempted if you are comfortable editing the registry.

Physical Obstructions and Lens Cleaning

A surprising number of optical drive issues stem from a dirty or obstructed laser lens. Over time, dust, smoke residue, or even fingerprints can accumulate on the lens, preventing it from accurately reading or writing data. Before considering more drastic measures, a thorough cleaning can often resolve the problem. Always ensure the computer is powered off and unplugged before attempting any physical cleaning inside the case.

• Method 1: Spectacles Cleaning Cloth: For light dust, a clean, soft, lint-free spectacles cleaning cloth can be gently wiped across the lens. Ensure the cloth is dry.
• Method 2: Isopropyl Alcohol: For more stubborn grime, a cotton swab lightly dampened with isopropyl alcohol (at least 90% pure) can be used. Gently wipe the lens in a circular motion, then use a dry end of the swab to remove any residue. Allow the lens to air dry completely (a few minutes) before attempting to use the drive. Always be extremely careful not to apply excessive pressure or scratch the delicate lens surface. Never spray cleaners directly into the drive mechanism.

Windows 10 64-bit Compatibility

The transition to Windows 10, particularly the 64-bit version, posed challenges for some older hardware, including certain optical drives. While many users reported seamless operation, others found their SH-S223C drives becoming unresponsive after the upgrade. This often related to driver conflicts or changes in how Windows handled legacy hardware. Beyond the driver steps mentioned, ensuring your Windows 10 installation is fully updated can sometimes resolve such issues. In some instances, performing a clean installation of Windows 10 (which wipes the drive) has been reported to resolve stubborn hardware detection issues, though this is a significant undertaking and should be a last resort.

When All Else Fails: Replacement

Unfortunately, optical drives have a finite lifespan. Moving parts, such as the laser assembly, disc motor, and disc tray mechanism, can wear out over time. If cleaning and software troubleshooting do not resolve the issue, the most practical solution for a non-functioning SH-S223C is often replacement. As mentioned in the problem description, new drives, or even second-hand equivalents in good condition, can frequently be acquired for under £20 in the UK. Given their relatively low cost and the ease of installation, replacing the unit is often more time and cost-effective than extensive component-level repair, especially considering the availability of parts for such an older device.

The SH-S223C's Relevance Today

While the age of physical media for software distribution and even media consumption has largely given way to digital downloads and streaming services, the Samsung SH-S223C, or similar optical drives, still hold a niche relevance. They are essential for accessing legacy software, playing old game discs, watching DVD movies, or burning data backups to optical media. Many businesses and individuals still rely on physical archives for long-term storage or legal compliance, making these drives indispensable for specific tasks. For those maintaining older systems or working with physical media collections, a reliable optical drive remains a valuable component.

Comparison: SH-S223C vs. Other Optical Drive Types

Frequently Asked Questions (FAQs)

Here are some common questions users have about the Samsung SH-S223C and similar optical drives:

Q: Is the Samsung SH-S223C still relevant today?
A: While digital distribution has largely replaced physical media, the SH-S223C remains relevant for accessing legacy software, playing DVD movies, burning data backups to disc, or if you simply prefer physical media for certain tasks. It's particularly useful for older systems.

Q: Can I use this drive with a laptop?
A: No, the SH-S223C is an internal 5.25-inch drive designed for desktop computers. Laptops use slimmer, smaller optical drives, or rely on external USB units for disc functionality.

Q: What does 'buffer underrun protection' mean?
A: Buffer underrun protection is a feature that prevents errors during disc burning. If the data flow from the computer to the drive temporarily stops or slows down, this technology pauses the burning process, preventing a corrupted or 'coaster' disc, and resumes when data flow is stable. This ensures reliable burns, especially at high speeds.

Q: How long do optical drives like the SH-S223C typically last?
A: The lifespan varies greatly depending on usage. With moderate use, an optical drive can last many years, often beyond the typical lifespan of the computer itself. Heavy use, especially frequent burning, can shorten the lifespan of the laser assembly and motor.

Q: Are there still drivers available for the SH-S223C for Windows 10?
A: Samsung (or TSSTcorp) did not typically release specific drivers for this drive for Windows 10. It relies on the generic optical drive drivers built into the operating system. If you encounter issues, troubleshooting usually involves checking Device Manager, ensuring Windows updates are applied, or physical cleaning/replacement rather than installing specific drivers.

Q: My drive tray won't open. How can I fix it?
A: First, try restarting your computer. If that doesn't work, look for a small pinhole on the front bezel of the drive. Straighten a paperclip and gently insert it into this hole. Pushing firmly should manually eject the disc tray. This often indicates a mechanical issue or a sticky tray, which might require a replacement drive.

Q: Can I use a cleaning disc to clean the lens?
A: While cleaning discs are available, they are often less effective than manual cleaning for stubborn grime and can sometimes cause more issues if the drive mechanism is already weak. Manual cleaning with a cotton swab and isopropyl alcohol is generally more thorough and effective for issues caused by a dirty lens.

Conclusion

The Samsung SH-S223C SATA DVD Writer, while a product of a bygone era in some respects, represents a highly capable and reliable piece of computer hardware that served millions of users across the globe. Understanding its features, particularly its robust buffer underrun protection and the benefits of its SATA interface, provides insight into the technological advancements of its time. For those still relying on optical media, or needing to access older archives, this drive remains a testament to robust engineering.

Knowing how to troubleshoot common issues like driver problems or a dirty lens, and understanding the implications of operating system upgrades like to Windows 10, can significantly extend its useful life. When faced with persistent issues, the affordability and simplicity of a replacement unit often make it the most sensible solution, ensuring your system retains its ability to interact with the world of physical discs for years to come.
