Carburettor Black Spark Plug Diagnosis

Understanding Black Spark Plugs: A Comprehensive Guide

Encountering a black spark plug in your vehicle can be a puzzling experience for any car enthusiast or DIY mechanic. While a quick glance might suggest a simple problem, the colour and texture of the deposits on the spark plug's tip can actually reveal a wealth of information about your engine's health and the intricate workings of your carburettor. This article will delve into the various types of black deposits you might find, explain what they signify, and guide you through the diagnostic process to address potential issues, including the crucial adjustment of the pilot air screw on carburettors like the Keihin 300.

Decoding the Colour: What Does "Black" Really Mean?

The term "black" on a spark plug isn't a one-size-fits-all diagnosis. It's essential to differentiate between the types of black deposits, as each points to a different set of problems. Let's break down the common scenarios:

1. Black, Sooty, and Easily Removable Deposits

If your spark plug exhibits a soft, sooty residue that can be brushed off with relative ease, it's almost always a clear indicator of a rich fuel condition. This means your engine is receiving too much fuel relative to the amount of air it's burning. You might also notice that your exhaust system emits an odour reminiscent of unburnt fuel. This richness can stem from several carburettor-related issues:

• Float Level Too High: If the float bowl in your carburettor is overfilling, it can lead to an excess of fuel entering the combustion chamber.
• Worn Float Valve: A faulty float valve that doesn't seal properly can also cause the float bowl to overfill, resulting in a rich mixture.
• Pilot Jet Size: If the pilot jet is too large for the engine's requirements, it will deliver too much fuel at low speeds and idle.
• Incorrect Air Screw Adjustment: An improperly set pilot air screw can restrict the amount of air entering the idle circuit, leading to a rich mixture.

2. Black Deposits with Hard, Difficult-to-Clean Residue

When the black deposits on your spark plug are hard and resistant to cleaning, it often signifies a more serious issue with the engine itself, commonly referred to as a "shot engine." This usually points to problems like low compression or excessive oil consumption. Here's how to differentiate:

• Piston and Rings: If the piston rings are worn or damaged, the engine will typically expel a blue or light blue cloud of smoke from the exhaust when you rev the engine and then release the throttle, or when you decelerate down a long hill using engine braking.
• Valves: Issues with the valve guides or seals can lead to a grey trail of unburnt fuel appearing in the exhaust when rolling down a long hill on compression.

In these cases, the black deposits are a symptom of the underlying mechanical wear, rather than a direct carburettor issue, although a rich condition can exacerbate these problems.

3. Black Deposits with Wet Residue

Wet, black deposits on a spark plug are usually a sign of engine oil entering the combustion chamber. This typically indicates worn piston rings or severely worn valve guides. However, there's a crucial distinction to be made:

• Oil Contamination: If the wet black deposits smell like engine oil, it confirms oil burning due to worn internal engine components.
• Fuel Contamination (Ignition System Issue): If the wet black deposits smell like gasoline, it suggests a failing ignition system. This could be due to a faulty CDI unit, a malfunctioning crank reference pickup, a weak coil, or a damaged spark plug wire. Engines experiencing ignition problems often show diminished performance as they warm up and can be difficult to start when cold.

The Diagnostic Process: Starting with the Spark Plug

Before diving into carburettor adjustments, it's vital to accurately identify the type of fouling on your spark plug. This initial assessment will dictate your next steps. Remove the spark plug and examine it closely under good lighting. Note the colour, texture, and consistency of the deposits.

Troubleshooting Rich Fuel Conditions: Focusing on the Carburettor

Assuming you've identified a rich fuel condition based on sooty spark plug deposits, the carburettor is the primary suspect. The source of the richness can vary depending on the operating condition (low speed, idle, or high speed).

Low Speed Operation Richness:

If the sooty deposits are primarily a result of low-speed riding, the issue likely lies with the float level being too high or a worn-out float valve that is allowing too much fuel into the float bowl.

Idle Operation Richness:

For richness occurring at idle, you'll need to adjust the pilot air screw to allow more air into the idle circuit. Alternatively, you might consider dropping a size in your pilot jet if the adjustment range of the air screw is insufficient.

High Speed Operation Richness:

Richness during high-speed operation can be attributed to one or a combination of the following factors:

• High Float Level or Drooling Float Needle Valve: As mentioned earlier, an overfilling float bowl will lead to a rich condition.
• Main Jet Too Large: The main jet controls fuel delivery at higher throttle openings. If it's too large, it will deliver an excessive amount of fuel.
• Starting Plunger Cable Adjustment/Leakage: The starting plunger (often referred to as the "choke") can cause a rich condition if its cable is adjusted too tightly or if the plunger itself is leaking, allowing the carburettor to flood.
• High Needle Jet Setting: In carburettors with an adjustable needle jet (the component that the needle rises with the air valve), a too-high setting can enrich the mixture. While many factory units have fixed needle jets, aftermarket replacements often offer adjustability.
• Jet Needle Too Large: The jet needle, which sits atop the main jet tube and is controlled by the throttle slide, regulates fuel flow across a range of power delivery. If the needle is too large (or the clip is set too low), it can cause a richer mixture.

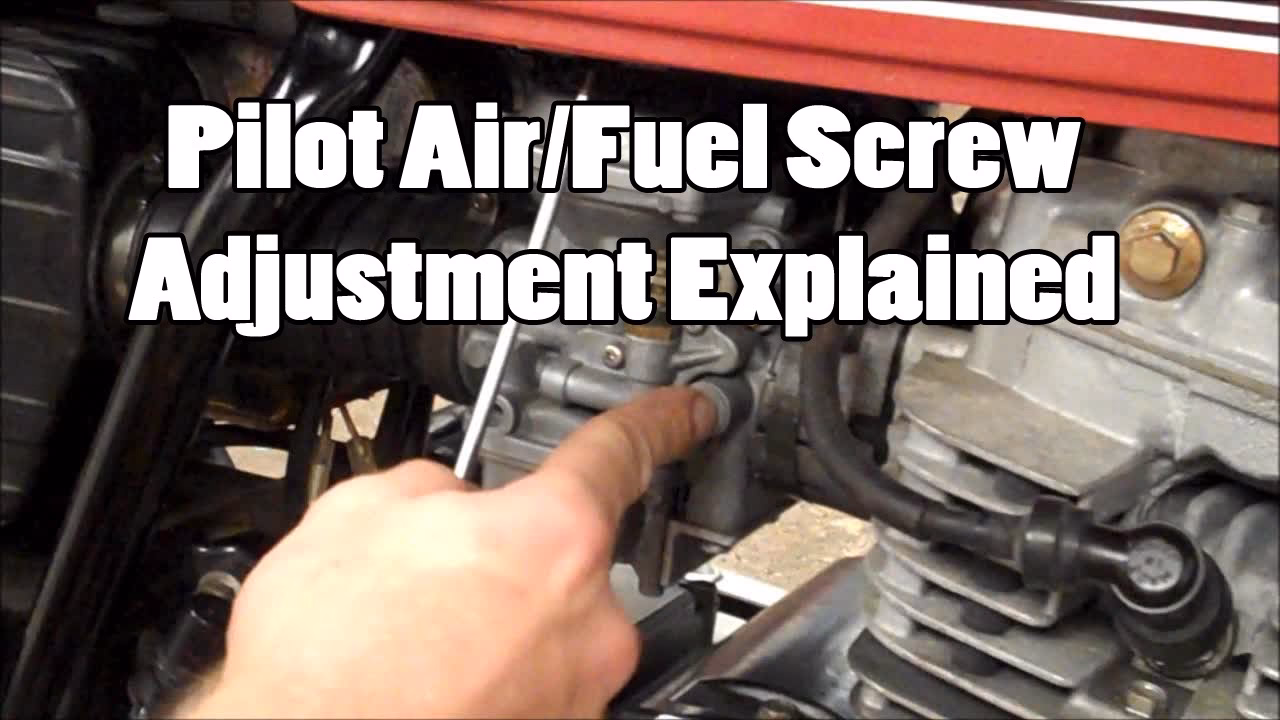

Locating the Pilot Air Adjustment Screw

For carburettors like the Keihin 300, understanding the location of the pilot air adjustment screw is crucial for fine-tuning the idle mixture. While specific locations can vary slightly between models, it is generally found on the front side of the carburettor. Look towards the bottom, just forward of the float bowl, often facing upwards. On some carburettors, this screw may be covered by a small metal cap or plug within a protective well. Consult your vehicle's owner's manual or the manufacturer's website (e.g., kawasaki.com for Kawasaki models) for precise diagrams and information specific to your carburettor model. Parts diagrams are invaluable for identifying all components and their functions.

How to Adjust the Pilot Air Screw

The pilot air screw controls the air-fuel mixture at idle and just off-idle. The general procedure for adjustment is as follows:

1. Warm Up the Engine: Ensure the engine is at its normal operating temperature.
2. Initial Setting: Gently turn the pilot air screw inwards until it lightly seats. Do not overtighten. Record this position (e.g., 1.5 turns out).
3. Adjust for Best Idle: Slowly turn the screw outwards (counter-clockwise) to enrich the mixture, or inwards (clockwise) to lean it. Listen for the highest and smoothest idle speed.
4. Fine-Tuning: Once you find the point of highest idle speed, you may need to slightly adjust the idle speed screw to achieve the desired idle RPM.
5. Test Ride: After adjustment, take the vehicle for a test ride, paying attention to its response off idle and at low speeds. If there's still hesitation or sputtering, further minor adjustments to the pilot air screw might be necessary.

Important Note: The pilot air screw controls the *air* entering the mixture. Turning it out (counter-clockwise) allows more air, leaning the mixture. Turning it in (clockwise) allows less air, enriching the mixture.

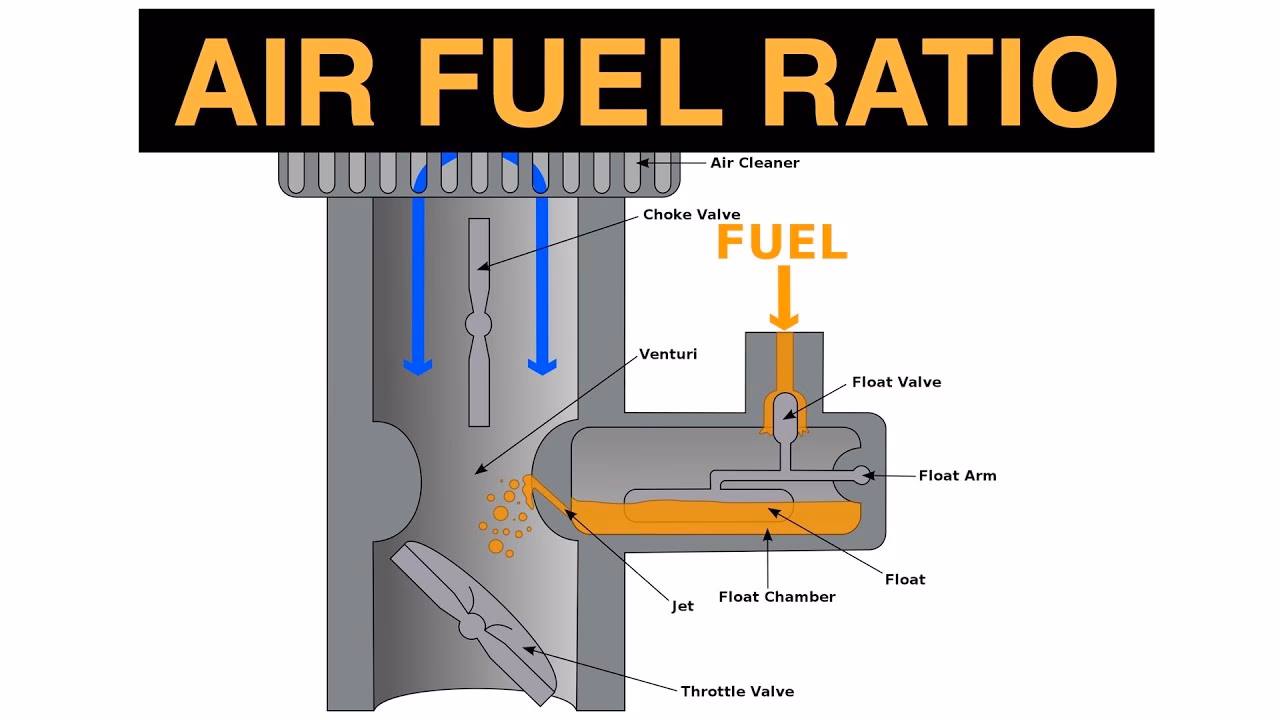

Carburettor Component Comparison Table

Understanding the role of each carburettor component is key to effective diagnosis and adjustment:

Frequently Asked Questions (FAQs)

• Q: My spark plug is black and sooty. What's the first thing I should check?
  A: Start by checking your float level and the condition of your float valve. Also, ensure your pilot air screw is correctly adjusted.
• Q: How do I know if the black deposits are from oil or fuel?
  A: The smell is a key indicator. Engine oil will have a distinct oily smell, while a fuel smell, especially with wet deposits, points towards an ignition system issue.
• Q: Can a dirty air filter cause black spark plugs?
  A: Yes, a restricted air filter will reduce the amount of air entering the engine, effectively richening the fuel-air mixture and potentially leading to sooty spark plugs.
• Q: Where is the pilot air screw on a Keihin 300 carburettor?
  A: It's typically located on the front of the carburettor, near the bottom and forward of the float bowl, often facing upwards.
• Q: What happens if I overtighten the pilot air screw?
  A: Overtightening can damage the screw tip and its seat, leading to poor sealing and inaccurate adjustments, potentially causing ongoing idle issues.

Conclusion: Achieving Optimal Engine Performance

Understanding the nuances of spark plug diagnosis is a fundamental skill for any vehicle owner. By carefully examining the deposits on your spark plugs, you can gain valuable insights into your engine's health and identify potential carburettor issues. Correctly adjusting the pilot air screw and other carburettor components, such as the pilot jet and float system, is essential for ensuring a proper fuel-air mixture, leading to smooth idling, responsive acceleration, and overall optimal engine performance. Regular maintenance and attention to these details will help prevent more serious problems down the line and keep your vehicle running at its best.
