Understanding Servo Motors: Precision in Motion

In the intricate world of mechanical engineering and automation, precision and control are paramount. Whether it's the delicate movements of a robotic arm, the accurate positioning of a satellite dish, or the smooth operation of industrial machinery, a specific type of motor consistently rises to the challenge: the servo motor. Often described as a 'smart motor', a servo motor is far more than just an electric motor; it's a sophisticated actuator designed to deliver highly accurate and repeatable movements in terms of position, speed, and torque. The very name 'servo' hints at its purpose, derived from the Latin word 'servus' meaning servant, reflecting its role in precisely executing commands from a control system. This article delves into the fascinating realm of servo motors, exploring their construction, operational principles, diverse applications, and the underlying technology that makes them indispensable in modern engineering.

What Exactly is a Servo Motor?

At its core, a servo motor is an electric motor that is part of a closed-loop system. This means it doesn't just spin; it actively monitors and adjusts its own position, speed, or torque in response to control signals. This closed-loop operation is what distinguishes it from a standard motor. It comprises three fundamental components: a motor (typically DC or AC), a feedback system (like a potentiometer or encoder), and a controller. The controller receives an input signal dictating the desired position. It then uses the feedback from the sensor to compare the current position with the desired one. If there's a discrepancy, the controller sends a corrective signal to the motor, adjusting its movement until the target position is achieved. This continuous feedback and correction loop ensures exceptional accuracy and responsiveness.

The 'Smart' Motor: Why is a Servo Motor Intelligent?

The 'smartness' of a servo motor lies in its ability to 'know' where it is and to actively work towards a commanded position. This is achieved through its integrated feedback system. Unlike a simple motor that might run continuously or stop based on a power signal, a servo motor can be instructed to move to a specific angle or position and hold it. This makes them ideal for applications requiring precise movements, such as in robotics, CNC machines, and automated manufacturing processes where accuracy is critical. They possess a high torque-to-inertia ratio, allowing for rapid acceleration and deceleration, further enhancing their precision and responsiveness.

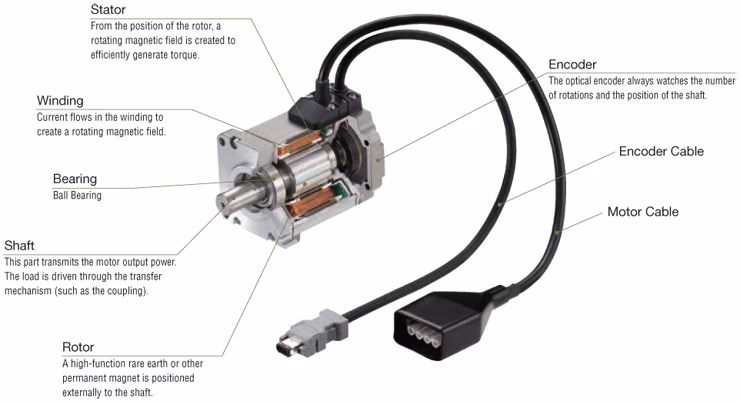

Deconstructing the Servo Motor: Key Components

To understand how a servo motor achieves such precise control, it's essential to examine its constituent parts:

• Motor: This is the primary actuator, providing the rotational or linear force. It can be either an AC or DC motor, with the choice often depending on the power and speed requirements of the application.
• Feedback Device: This is crucial for the closed-loop operation. Common feedback devices include:
• Potentiometer: A variable resistor that provides a simple analog voltage output proportional to the shaft's position. These are typically found in less demanding, hobbyist-level servos.
• Encoder: A more sophisticated digital device that provides precise position and speed information. Incremental encoders provide relative position data, while absolute encoders provide a unique digital code for each shaft position, even after power loss. Resolvers are another robust option, often used in harsh environments.
• Controller: Often referred to as the servo drive or amplifier, this is the 'brain' of the system. It interprets the incoming control signals, processes the feedback from the sensor, and generates the appropriate signals to drive the motor. It contains the logic for comparing desired and actual positions and calculating the necessary adjustments.
• Gear Train (Optional but Common): Many servo motors incorporate a gearbox. This is used to increase the torque output of the motor and to reduce the speed, allowing for finer control and the ability to move heavier loads.
• Control Input: This is the signal that tells the servo motor what to do. Typically, this is a Pulse Width Modulation (PWM) signal, where the width of the pulse determines the desired position of the output shaft.
• Power Supply: Provides the necessary electrical energy to operate the motor and its control circuitry.

How Does a Servo Motor Work? The Closed-Loop Principle

The operational principle of a servo motor is elegant in its simplicity yet powerful in its execution. It operates on a closed-loop feedback system. Here's a breakdown:

1. Command Signal: The system receives a command signal, usually a PWM pulse, indicating the desired position of the output shaft.
2. Controller Action: The servo's internal controller interprets this signal.
3. Feedback Monitoring: Simultaneously, the feedback device (potentiometer or encoder) continuously monitors the actual position of the motor shaft.
4. Comparison: The controller compares the 'desired' position from the command signal with the 'actual' position from the feedback device.
5. Error Signal Generation: If there's a difference (an error), the controller generates an error signal.
6. Motor Adjustment: This error signal is used to control the power supplied to the motor. The motor will rotate in a direction that reduces the error, either increasing or decreasing its speed and direction of rotation.
7. Reaching the Target: This process continues until the actual position matches the desired position, at which point the error signal becomes zero, and the motor stops, holding its position.

This continuous cycle of sensing, comparing, and correcting ensures that the servo motor maintains its commanded position with high accuracy, even under varying loads.

Types of Servo Motors: A Classification

Servo motors can be broadly classified based on several criteria:

Based on Power Supply:

• DC Servo Motors: These are common for smaller, precision applications. They typically use a DC motor, a gearbox, a potentiometer or encoder for feedback, and a control circuit. They are known for their quick response and relatively simpler control electronics.
• AC Servo Motors: Generally used for higher power and speed applications, AC servo motors are more robust and efficient. They are commonly found in industrial automation, CNC machines, and robotics where continuous operation and high torque are required. They often employ encoders or resolvers for feedback.

Based on Commutation:

• Brushed Servo Motors: These use physical brushes and a commutator to switch the current direction in the motor windings. They are typically less expensive and simpler to control but require more maintenance due to brush wear.
• Brushless Servo Motors: These eliminate physical brushes, using electronic commutation (often with Hall effect sensors or encoders) instead. Brushless designs offer higher efficiency, longer lifespan, less maintenance, and quieter operation, making them preferred for demanding applications.

Based on Rotor Field:

• Synchronous Servo Motors: In these AC motors, the rotor rotates at the same speed as the stator's rotating magnetic field. They are known for their precise speed control.
• Asynchronous (Induction) Servo Motors: The rotor in these AC motors rotates at a speed slightly slower than the stator's rotating magnetic field. They are robust and cost-effective but may offer less precise speed control than synchronous types.

Linear Servo Motors:

While most servo motors are rotary, linear servo motors directly produce linear motion without the need for mechanical conversion systems like gears or ball screws. They are ideal for high-speed, high-precision linear movements.

Servo Motor vs. Stepper Motor: A Comparative Look

Both servo and stepper motors are used for precise motion control, but they operate on different principles:

Applications of Servo Motors: Precision in Action

The versatility and precision of servo motors make them indispensable across a vast array of industries:

• Robotics: Essential for controlling the joints of robotic arms, grippers, and mobile platforms, enabling precise manipulation and movement.
• CNC Machines: Used to control the precise movement of cutting tools, ensuring accuracy in milling, turning, and other machining operations.
• Industrial Automation: Found in conveyor systems, packaging machinery, printing presses, and assembly lines for precise positioning and movement of components.
• Aerospace and Defence: Utilised in aircraft control surfaces, missile guidance systems, and drone stabilisers for accurate flight control.
• Automotive: Employed in manufacturing processes for precise assembly of components and in some vehicle systems like electronic power steering.
• Medical Equipment: Critical in medical devices like robotic surgical systems, imaging equipment (MRI, CT scanners), and laboratory automation for precise positioning of instruments and samples.
• Consumer Electronics: Used in cameras for autofocus and image stabilisation, in printers for head positioning, and in entertainment systems.
• Renewable Energy: Applied in solar tracking systems to precisely orient solar panels towards the sun for maximum energy capture.

Advantages and Disadvantages of Servo Motors

Like any technology, servo motors have their strengths and weaknesses:

Advantages:

• High Precision and Accuracy: Due to closed-loop feedback, they offer superior positional and speed control.
• High Torque at Low Speeds: They can deliver significant torque even when moving slowly, ideal for starting heavy loads.
• Fast Response Time: Quick acceleration, deceleration, and directional changes are possible.
• Wide Speed Range: Can operate efficiently across a broad spectrum of speeds.
• Energy Efficiency: They only draw power as needed to maintain position or move, often more efficient than stepper motors.
• Smooth Operation: Generally provide smoother motion compared to stepper motors, especially at higher speeds.

Disadvantages:

• Higher Cost: The inclusion of feedback devices and complex controllers increases the initial purchase price.
• Complexity: Setup, tuning, and troubleshooting can be more complex than with simpler motors.
• Potential for Overheating: Under heavy, continuous load, they can generate significant heat, requiring adequate cooling.
• Sensitivity: Can be sensitive to electrical noise and environmental factors if not properly protected.

Installation, Maintenance, and Troubleshooting

Proper installation and regular maintenance are vital for the longevity and optimal performance of servo motors. Key considerations include:

• Installation: Ensure secure mounting, correct electrical connections, and proper calibration of feedback devices.
• Maintenance: Regular inspections for wear, proper lubrication (if applicable), and monitoring of operating temperatures are essential.
• Troubleshooting: Common issues like overheating, abnormal noises, or reduced torque often stem from overloading, poor ventilation, worn components, or miscalibration. Addressing these promptly can prevent further damage.

Conclusion

Servo motors are the workhorses of precision motion control, enabling the sophisticated movements required in modern robotics, automation, and advanced manufacturing. Their ability to precisely control position, speed, and torque, coupled with their responsive nature, makes them an invaluable asset in countless applications. As technology continues to evolve, servo motor designs will undoubtedly become even more efficient, intelligent, and integrated, further pushing the boundaries of what is possible in mechanical engineering and beyond.
