Modern diesel vehicles, particularly those from Peugeot and Citroën, rely heavily on Selective Catalytic Reduction (SCR) systems, which use AdBlue (or urea) to reduce harmful nitrogen oxide (NOx) emissions. While crucial for environmental compliance, these systems are unfortunately prone to developing complex faults. The dreaded AdBlue warning light or persistent engine management errors can quickly turn a routine drive into a stressful ordeal. This comprehensive guide aims to demystify some of the most common AdBlue system issues and provide a structured approach to diagnosis and potential repair, drawing on real-world experience.
Understanding AdBlue System Faults: The Common Culprits
Before diving into specific fixes, it's essential to understand the nature of AdBlue system faults. These often manifest as dashboard warnings, countdowns to vehicle immobilisation, or even a sudden loss of engine power (limp mode). Key diagnostic trouble codes (DTCs) frequently associated with these issues include P20E8 (Urea Pressure Low), P20E9 (Urea Pressure High), and U029E (Lost Communication with NOx Sensor Module or Denox Control Module). While a generic OBD scanner might point to a NOx sensor, specific manufacturer tools like Diagbox for Peugeot/Citroën are indispensable for accurate diagnosis.
Initial Diagnosis with Diagbox
The first and most critical step in troubleshooting any AdBlue system fault on a Peugeot or Citroën is to connect a diagnostic tool like Diagbox. This proprietary software allows access to the vehicle's specific fault codes and live data parameters, which generic OBD readers often cannot provide. Scan the Engine ECU for codes related to the AdBlue system, urea tank, or denox system. Sometimes, a NOx sensor code might appear alongside other AdBlue-related DTCs, but it's crucial not to jump to conclusions about the NOx sensor itself.
Warranty vs. DIY: Your Options
Once you have a clear picture of the fault codes, consider your vehicle's warranty status. Many modern diesel cars come with extended warranties specifically covering emission control systems. If your vehicle is still within its warranty period (e.g., 5 years or 150,000 km for some PSA models), your first port of call should be an authorised dealership. They should ideally provide a replacement urea tank or component if it's a known manufacturing defect or recall item. However, be prepared for potential resistance, as some dealerships might try to avoid costly repairs, even within warranty or recall periods.
If warranty coverage is denied or unavailable, you're faced with a choice: find an independent specialist to disable the system (which may have legal implications in some regions and is not recommended for road use), or embark on fixing the fault yourself or with a trustworthy mechanic. For those with technical aptitude and the right tools, a DIY approach can save significant costs.
Physical Inspection: Looking for Leaks and Blockages

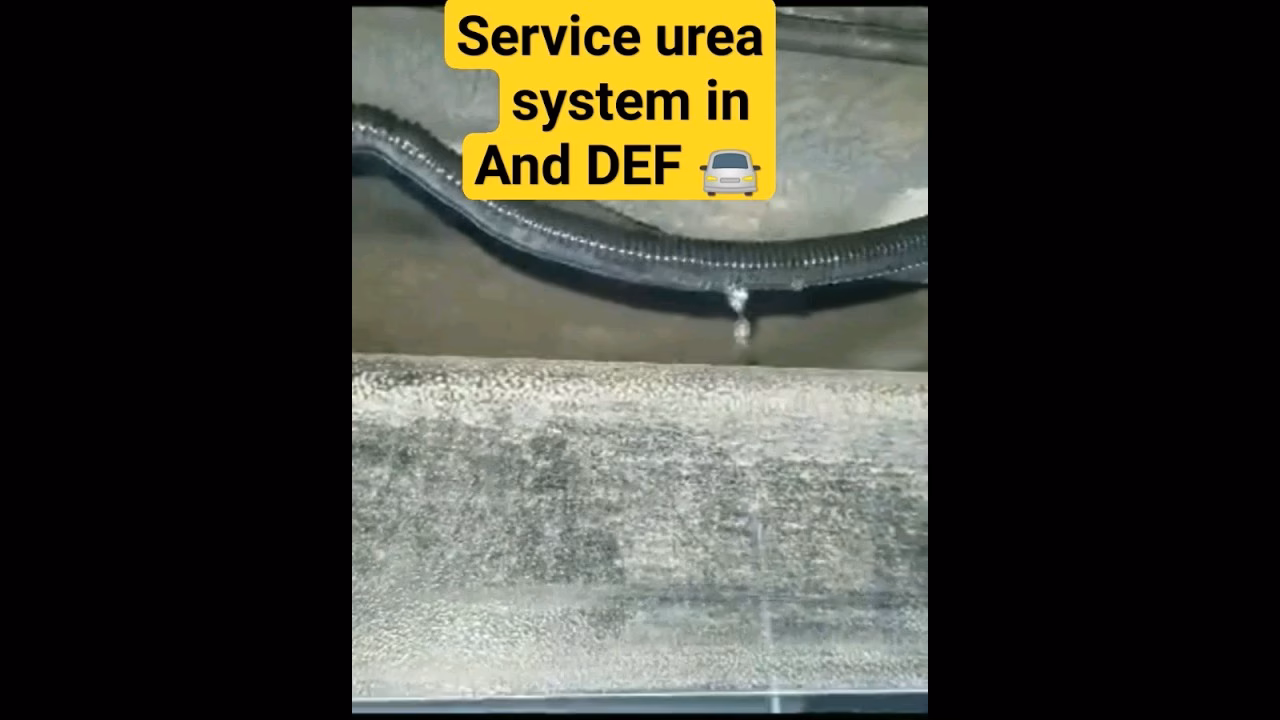

Many AdBlue system issues stem from physical problems within the system components. A thorough visual inspection is paramount. Focus on the urea tank, the pump module, the hoses, and the injector. Look for any signs of fluid leaks, crystallisation (AdBlue solidifies when exposed to air), or obvious damage.
- Pump Module to Injector Pathway: Carefully inspect the hose running from the AdBlue pump module to the injector. Leaks here can lead to pressure drops.
- Component Integrity: Check the pump itself and the injector for any cracks or visible signs of fluid egress.
If a leak is identified, the faulty component – be it a hose, the pump, or the injector – will likely need replacement. Crystallisation inside hoses or the injector can also cause blockages, leading to pressure issues (P20E8 or P20E9). In such cases, cleaning or replacing the blocked component is necessary.
Decoding Pressure Faults: P20E8, P20E9, and ECU Connections
Fault codes P20E8 (Urea Pressure Low) and P20E9 (Urea Pressure High) are common. If your physical inspection reveals no leaks or blockages, the issue is often related to the AdBlue system's Electronic Control Unit (ECU) or its communication. The U029E code, specifically, almost always points to an AdBlue ECU communication problem.
When the ECU is suspected, options include sourcing a second-hand ECU alone or a complete pump module with the integrated ECU. However, this path carries significant risk. Many used pump modules or ECUs available on the market may already be faulty due to inherent design flaws or previous failures, as detailed in various online forums. A seemingly good deal can quickly turn into a wasted investment if the replacement part is also compromised.
For those brave enough, repairing the pump module itself might be possible. The seals and O-rings within the pump are often culprits for leaks. While these can be replaced, a common failure point is the rubber on the accumulator (a black cylindrical component), which can crack. This part is difficult to source individually, often necessitating a complete pump assembly replacement or a creative repair using strong, flexible sealants capable of withstanding the system's 6-bar operating pressure.
Testing the AdBlue ECU and Sensors
Diagnosing the AdBlue ECU itself requires careful attention. If you can access the board from the pump casing, connect the harness to the ECU (ensuring the connector tab faces the smooth green side, not the component side). When you turn on the ignition, the relay on the AdBlue ECU should click a few times. If it clicks but you still get codes like P20E8/P20E9 with no leaks or blockages, it suggests that either the power supply to the ECU is intermittent (possibly due to a CAN bus fault) or that the urea level sender or temperature sensor is providing incorrect readings.
Sensor Verification: Urea Level and Temperature
Using Diagbox, check the "Standard Parameters Measurement for Denox 1" to verify the urea level. A healthy system should show a level greater than 6 litres. If the reading is 0 or erratic, the problem likely lies with the sensors embedded within the urea tank, necessitating a tank replacement. Some advanced DIYers have found a workaround for a faulty level sensor by cutting the black wire from the tank's black connector (which has black, red, and white wires). The white wire is the signal, and by providing a stable 4V to 5V signal, you can trick the AdBlue ECU into believing there's more than 6 litres of urea, potentially clearing the fault for a time. This is a temporary bypass and does not fix the underlying sensor issue.
Similarly, check the temperature sensor readings via "Standard Parameters Measurement for Denox 2". A reading of 0 indicates an invalid value, pointing to a problem with one of the two temperature sensors inside the tank. These sensors are typically connected via two pairs of blue and yellow wires. By isolating and testing each pair, you can determine which sensor is faulty and if the temperature reading is within a reasonable range (e.g., around 30°C in tropical climates).
Advanced ECU Board Repairs: For the Skilled
If all sensor readings are correct, no leaks or blockages are present, and the relay clicks, yet you still face codes like P20E8, it often indicates a fault with the AdBlue ECU board itself. Common issues include moisture trapped by the conformal coating, or faulty electronic components. Repairing these boards requires significant soldering skill, knowledge of surface-mount device (SMD) codes, and access to replacement components. It's a challenging task, but experienced electronics repairers have successfully rectified these issues.
A specific scenario arises when the AdBlue ECU board, despite being correctly connected, fails to make the relay click upon ignition. This typically results in a U029E error code, signifying a lack of communication between the main engine ECU and the denox/AdBlue ECU. As mentioned, generic OBD readers might misinterpret this as a faulty NOx sensor, leading to unnecessary and costly part replacements. The U029E fault is almost always rooted in the AdBlue ECU board itself, due to issues like degraded conformal coating, poor solder joints, or failed components. Repairing this also falls into the realm of advanced electronics work.
Fault Code Summary Table
To help summarise the common fault codes and their typical associations:
| Fault Code | Primary Indication | Common Causes | Typical Solutions |
|---|---|---|---|
| P20E8 | Urea Pressure Low | Leaks in hoses/pump/injector, blocked lines, faulty pump, AdBlue ECU issue | Inspect for leaks/blocks, test pump, diagnose ECU |
| P20E9 | Urea Pressure High | Blocked injector, faulty pump, AdBlue ECU issue | Inspect for blocks, test pump, diagnose ECU |
| U029E | Lost Communication with Denox/AdBlue ECU | Faulty AdBlue ECU board (conformal coating, solder joints, components) | Diagnose/repair/replace AdBlue ECU board |
| NOx Sensor (generic) | Often a misdiagnosis from generic scanners | Underlying AdBlue system fault, especially U029E | Use manufacturer-specific diagnostic tool (Diagbox) for accurate diagnosis |
Frequently Asked Questions (FAQs)
Can I fill AdBlue myself?
Yes, absolutely. AdBlue is readily available at most petrol stations, automotive shops, and even supermarkets. It's a non-toxic, non-flammable liquid. Simply locate the AdBlue filler cap (often next to the diesel filler or in the boot), and carefully pour the solution in. Ensure you don't overfill and clean up any spills immediately, as crystallised AdBlue can be corrosive.
How often do I need to refill AdBlue?
The frequency depends on your vehicle's make and model, engine size, driving style, and the capacity of your AdBlue tank. Generally, a tank can last anywhere from 3,000 to 12,000 miles. Your vehicle's dashboard will typically provide warnings well in advance when the AdBlue level is low.
What happens if I ignore the AdBlue warning light?
Ignoring the AdBlue warning light can lead to serious consequences. Most modern diesel vehicles will enter a "limp mode" (reduced engine power) once the AdBlue level is critically low or a system fault is detected. If the tank becomes completely empty, or the fault is severe and persists, the vehicle may prevent you from restarting the engine once it's switched off, leaving you stranded. This is a protective measure to ensure emissions compliance.
Is it safe to drive with an AdBlue fault?
While some minor faults might allow you to continue driving for a short period, it's generally not advisable to ignore AdBlue system warnings. Persistent faults can lead to the vehicle entering limp mode or becoming immobilised. More importantly, driving with a faulty AdBlue system means your vehicle is likely emitting higher levels of harmful NOx, contributing to air pollution and potentially failing emissions tests.
Can I disable the AdBlue system?
Technically, it is possible to disable the AdBlue system through ECU remapping. However, this is illegal in many countries, including the UK, as it means the vehicle will no longer meet emission standards. Vehicles with disabled AdBlue systems will fail MOT tests and could lead to significant fines or even vehicle seizure. It's strongly recommended to repair the system rather than disable it.
How much does it cost to fix an AdBlue fault?
The cost varies wildly depending on the specific fault. A simple refill is cheap. Replacing a sensor might be a few hundred pounds. A new AdBlue pump or tank, however, can run into four figures, often £1,000 or more, especially if fitted by a main dealer. ECU repairs, if possible, can be cheaper than replacement but require specialist skills. This is why accurate diagnosis is key to avoiding unnecessary expenses.
Troubleshooting complex AdBlue system faults can be a daunting task, but with a systematic approach and the right diagnostic tools, many issues can be identified and potentially resolved. Always prioritise accurate diagnosis with manufacturer-specific tools like Diagbox, and consider the implications of any repair or bypass method on your vehicle's emissions compliance and legality. Patience and methodical testing are your best allies in getting your diesel vehicle back to optimal, emission-compliant operation.
