Chevy Malibu ESC Service Light Explained

Seeing a "Service ESC" message illuminated on your Chevrolet Malibu's dashboard can be concerning, but understanding what it signifies is the first step towards resolution. This alert pertains to your vehicle's Electronic Stability Control (ESC) system, a vital safety feature designed to enhance vehicle handling and prevent skids, particularly in challenging driving conditions. When this light appears, it indicates that the system has detected a fault and requires attention. This article aims to demystify the "Service ESC" warning, exploring its common causes, diagnostic methods, and potential solutions, ensuring you can get your Malibu back to optimal performance and safety.

Understanding the ESC System and its Indicators

The Electronic Stability Control (ESC) system in your Chevy Malibu is a sophisticated network of sensors and control modules working in harmony. Its primary function is to help you maintain control of your vehicle, especially during sudden evasive manoeuvres or when driving on slippery surfaces. It achieves this by detecting loss of steering control and automatically applying brakes to individual wheels and, if necessary, reducing engine power to help you steer back on course.

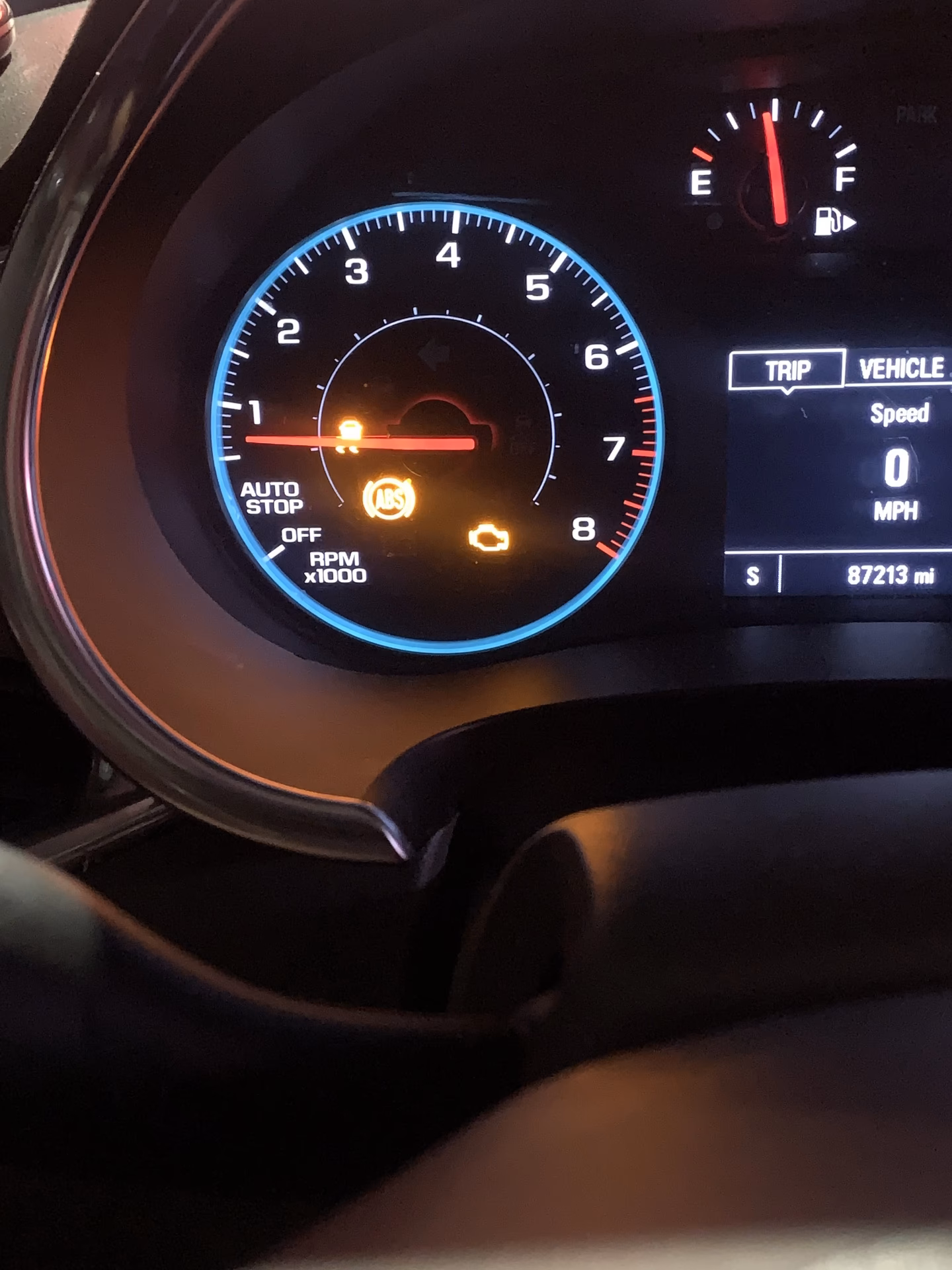

Interpreting Dashboard Lights and Messages

Your Malibu employs various dashboard indicators to communicate the status of its safety systems. The standard ESC light typically illuminates briefly when you start your car, indicating it's active. It may also flash intermittently when the system is actively intervening to maintain stability – this is normal operation. However, a steady "Service ESC" message is a clear signal that something is amiss within the system. This message often appears alongside or instead of the standard ESC symbol, prompting you to investigate the issue.

Differentiating ESC Alerts

It's important to distinguish between the normal operation indicators and a service alert. A flashing ESC light is your car's way of saying, "I'm working to keep you safe right now." Conversely, a steady ESC light or the "Service ESC" message means the system either cannot operate as intended or has a fault that needs addressing. While driving with the "Service ESC" light on may not immediately render your car undrivable, it means the stability control features are likely deactivated, compromising your vehicle's handling in critical situations.

Common Causes for the "Service ESC" Light on a Chevy Malibu

Several factors can trigger the "Service ESC" warning on your Chevy Malibu. Understanding these common culprits is key to diagnosing the problem effectively.

1. Faulty Wheel Speed Sensors

Perhaps the most frequent cause of the "Service ESC" light is a malfunctioning wheel speed sensor. Each wheel on your Malibu is equipped with a sensor that monitors its rotational speed. This data is crucial for the ESC and Anti-lock Braking System (ABS) to function correctly. If a sensor is dirty, damaged, or failing, it can send inaccurate information to the vehicle's computer, leading to the ESC system fault.

Symptoms of Faulty Wheel Speed Sensors:

• Illuminated ESC warning light.
• Illuminated ABS warning light.
• Traction control system not working.
• Inaccurate speedometer readings.
• Uneven braking or pulsing from the brake pedal when not expected.

Troubleshooting Wheel Speed Sensors:

You can often visually inspect the sensors and their wiring for obvious damage or debris. Cleaning the sensors and their mounting points can sometimes resolve the issue. If a sensor is confirmed to be faulty, it will need to be replaced. Given their critical role, it's often recommended to replace sensors in pairs or all four if one fails, as others may be nearing the end of their lifespan.

2. Issues with the Steering Angle Sensor

The steering angle sensor provides the ESC system with information about the direction you are steering. If this sensor malfunctions, the ESC system may receive incorrect data about the vehicle's intended path, leading to activation of the warning light. Symptoms can include the ESC light staying on, the car pulling to one side, or a steering wheel that feels off-centre when driving straight.

3. Electrical System Problems and Blown Fuses

Like any complex system, the ESC is susceptible to electrical issues. A blown fuse in the circuit that powers the ESC module or related components can instantly disable the system and trigger the "Service ESC" light. Loose or corroded wiring connections can also impede the flow of electrical signals, leading to system errors. Checking the vehicle's fuse box and inspecting relevant wiring harnesses are essential diagnostic steps.

4. Low Battery Voltage

Modern vehicles rely heavily on a stable electrical supply. If your Malibu's battery is old, weak, or not holding a sufficient charge, it can cause various electronic modules, including the ESC system, to behave erratically. Low voltage can lead to system resets or incorrect readings, triggering warning lights. Ensuring your battery is in good condition and properly charged is fundamental.

5. Powertrain Control Module (PCM) Errors

The Powertrain Control Module (PCM) is the brain of your vehicle, managing engine and transmission functions, and often integrating with other systems like ESC. Errors within the PCM, whether due to software glitches or hardware failure, can manifest as ESC problems. This can sometimes result in multiple warning lights illuminating on the dashboard.

6. Bad Wheel Bearings

While not directly part of the ESC system, a worn or damaged wheel bearing can indirectly cause the "Service ESC" light to come on. A faulty wheel bearing can create play in the wheel assembly, affecting the accuracy of the wheel speed sensor's readings. This can lead the ESC system to believe there is a wheel speed discrepancy, even if the sensor itself is functioning correctly. You might also notice humming or grinding noises from the affected wheel.

Diagnosing and Resolving ESC Issues

Once the "Service ESC" light appears, a systematic approach to diagnosis is necessary.

Using an OBD2 Scanner

The most effective way to pinpoint the cause of the "Service ESC" light is by using an On-Board Diagnostics (OBD2) scanner. This tool plugs into a port typically located under the dashboard and reads fault codes stored in your car's computer. ESC-related codes often begin with 'C' (Chassis) and can specifically identify which sensor or circuit is experiencing an issue. For example, a code like C0035 might indicate a problem with the left front wheel speed sensor.

Steps for Using an OBD2 Scanner:

1. Locate the OBD2 port in your Malibu.
2. Connect the scanner and turn the ignition to the 'ON' position (without starting the engine).
3. Follow the scanner's prompts to read the stored diagnostic trouble codes (DTCs).
4. Record all codes displayed.
5. Research the meaning of each code to understand the specific fault.

Testing Components with a Multimeter

For components like wheel speed sensors, a multimeter can be used to test their electrical resistance and signal output. This requires some mechanical knowledge and access to the vehicle's service manual for specific resistance values. A significant deviation from the expected readings often indicates a faulty sensor.

Clearing ESC System Codes

After a repair has been made, it's crucial to clear the fault codes from the vehicle's computer. This is typically done using the OBD2 scanner. Simply clearing the codes without addressing the underlying issue will only temporarily turn off the warning light. Ensure the repair is complete before clearing codes.

When to Seek Professional Help

While some ESC issues, like a dirty sensor, can be addressed by a DIY enthusiast, others require specialised knowledge and tools. You should consult a qualified mechanic if:

• You are uncomfortable performing the diagnostic or repair procedures.
• The OBD2 scanner reveals complex or multiple fault codes.
• The problem persists after initial repairs.
• The issue involves components like the steering angle sensor or PCM, which often require recalibration or expert diagnosis.

A professional mechanic has the advanced diagnostic equipment and expertise to accurately identify and repair even the most complex ESC-related problems, ensuring the system's integrity and your safety.

Preventative Maintenance for ESC Longevity

Proactive care can help prevent ESC issues and ensure the system remains reliable.

Regular Servicing and Inspections

Adhering to your Chevy Malibu's recommended maintenance schedule is vital. During regular services, ask your mechanic to inspect the ESC system components, including wheel speed sensors and their wiring. Ensuring proper tire pressure and condition is also important, as underinflated tyres can sometimes trigger ESC warnings.

Best Practices for ESC System Care

• Drive Smoothly: Avoid aggressive acceleration, hard braking, and sharp turns, especially in adverse conditions.
• Maintain Tyres: Keep tyres properly inflated and replace them when they become worn. Uneven tyre wear can affect sensor readings.
• Protect from Damage: Be mindful of potholes and rough road surfaces that could potentially damage sensors or suspension components.
• Keep Clean: Ensure wheels and sensors are free from excessive dirt, mud, or road salt, particularly during winter months.

The Impact of ESC on Driving Dynamics

ESC is more than just a warning light; it's a fundamental safety enhancement that significantly influences how your Malibu handles.

Handling Understeer and Oversteer

ESC actively counteracts the two most common types of skids: understeer (when the front wheels lose grip and the car plows straight) and oversteer (when the rear wheels lose grip and the car’s tail slides out). By selectively applying brakes to individual wheels and reducing engine power, ESC helps the driver regain control and maintain the intended path, significantly reducing the risk of accidents.

Preventing Rollover Accidents

For vehicles like SUVs and higher-riding cars, ESC plays a critical role in preventing rollover accidents. By detecting the potential for a rollover during sharp turns or sudden swerves, the system can apply brakes to the outside wheels and reduce engine torque to stabilise the vehicle and keep all four wheels firmly on the ground. This capability adds a substantial layer of safety, making your Malibu more predictable and secure in emergency situations.

In conclusion, the "Service ESC" light on your Chevy Malibu is a signal that requires your attention. While it can be caused by various factors, from simple sensor issues to more complex electrical problems, understanding these potential causes and knowing how to diagnose them can save you time and money. Regular maintenance and attentive driving habits will further ensure the longevity and effectiveness of your vehicle's crucial safety systems.

Frequently Asked Questions

Q1: What does the "Service ESC" message mean on my Chevy Malibu?

A1: It means there is a fault detected within the Electronic Stability Control system, and it may not be functioning correctly. This requires inspection and potential repair.

Q2: Can I still drive my Chevy Malibu if the "Service ESC" light is on?

A2: You can generally drive your Malibu, but the ESC and likely the Traction Control system will be disabled. It's advisable to drive cautiously, especially in wet or slippery conditions, and get the system checked as soon as possible.

Q3: What are the most common causes for the "Service ESC" light?

A3: The most common culprits are faulty wheel speed sensors, followed by issues with the steering angle sensor, electrical problems (like blown fuses or wiring), low battery voltage, and sometimes worn wheel bearings.

Q4: How can I fix the "Service ESC" light myself?

A4: If you have an OBD2 scanner, you can read the fault codes to identify the problem. Simple issues like cleaning sensors might be DIY-friendly. For more complex repairs or if you're unsure, it's best to consult a professional mechanic.

Q5: How much does it typically cost to fix the "Service ESC" light?

A5: The cost can vary widely depending on the cause. Replacing a wheel speed sensor might cost between $100-$300, while a steering angle sensor or PCM issue could be significantly more expensive, potentially running into hundreds or even over a thousand pounds for parts and labour.

Q6: Does the ESC system affect my braking?

A6: Yes, the ESC system works in conjunction with your braking system. It can apply individual brakes to help maintain control during skids. Issues with the ESC can sometimes be linked to ABS (Anti-lock Braking System) faults.
