Reset Your SES Light: A Simple Guide

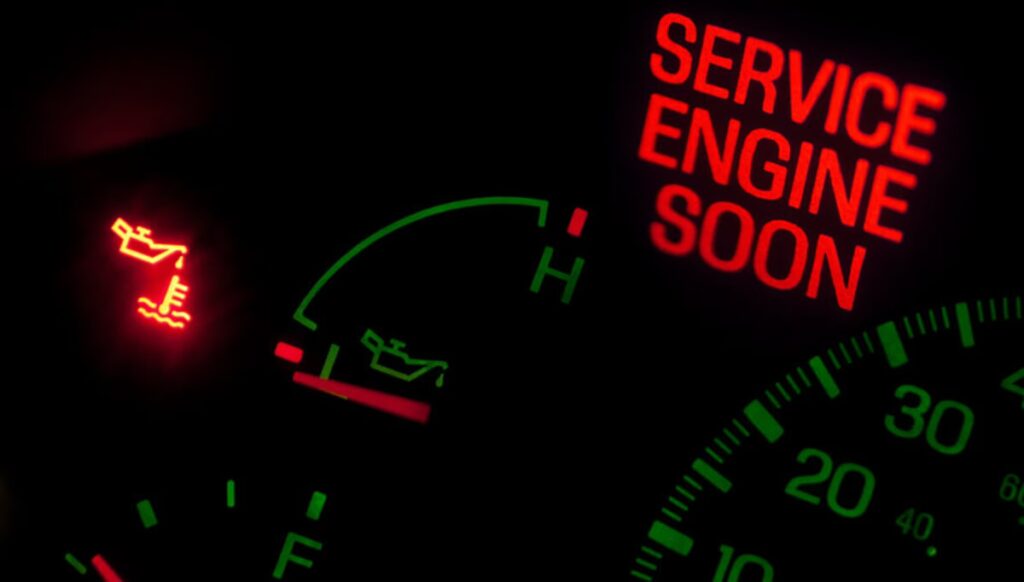

The 'Service Engine Soon' (SES) light, often referred to as the check engine light, can be a source of considerable anxiety for any motorist. Its sudden illumination on your dashboard can conjure images of costly repairs and inconvenient breakdowns. However, before you panic and book an expensive diagnostic appointment, it's crucial to understand that this warning light doesn't always signify a catastrophic failure. In many cases, it's a signal that your vehicle's onboard computer has detected a minor issue, or even a temporary glitch that can be resolved with a simple reset. This guide will walk you through the process of understanding why your SES light might be on and, most importantly, how to reset it yourself, often without the need for any specialized tools.

Understanding the SES Light

The SES light is part of your vehicle's Engine Control Module (ECM) or Powertrain Control Module (PCM) system. This sophisticated computer constantly monitors various sensors throughout your engine and emissions systems. When it detects a reading outside of its normal operating parameters, it logs a diagnostic trouble code (DTC) and illuminates the SES light to alert you. These codes can range from simple issues like a loose fuel cap to more complex problems with sensors, catalytic converters, or ignition systems.

Why is My SES Light On?

There are numerous reasons why your SES light might illuminate. Some of the most common culprits include:

• Loose or Faulty Gas Cap: This is perhaps the most common and easiest fix. A loose gas cap can disrupt the evaporative emission control system, triggering the SES light.
• Faulty Oxygen (O2) Sensor: O2 sensors measure the amount of unburned oxygen in your exhaust. A failing sensor can lead to poor fuel economy and increased emissions.
• Failing Catalytic Converter: This crucial component converts harmful exhaust gases into less harmful ones. A clogged or failing catalytic converter can significantly impact performance and emissions.
• Bad Spark Plugs or Ignition Coils: Worn-out spark plugs or faulty ignition coils can cause misfires, leading to rough idling and reduced power.
• Mass Airflow (MAF) Sensor Issues: The MAF sensor measures the amount of air entering the engine. Incorrect readings can affect fuel-air mixture and performance.
• Vacuum Leaks: Leaks in the vacuum hoses can disrupt the air-fuel mixture and lead to various engine performance issues.

It’s important to note that while this guide provides a method for resetting the light, it does not inherently fix the underlying problem. If the issue persists, the SES light will likely reappear.

The ECM Reset Procedure (No Tools Required!)

For many vehicles, particularly those from certain manufacturers, there’s a built-in diagnostic mode that allows you to retrieve trouble codes and reset the SES light without a scan tool. This procedure involves manipulating the accelerator pedal and ignition switch in a specific sequence. While this method is effective for many, it’s always best to consult your vehicle's owner's manual or a repair manual for the exact procedure specific to your make and model, as variations exist.

Here's the general procedure, as outlined in the provided information:

Step-by-Step Guide:

1. Get Comfortable: Sit in the driver's seat, ensuring you have a clear view of the dashboard and easy access to the ignition and accelerator pedal.
2. Ignition On: Turn the ignition key to the 'ON' position. Do not start the engine. You should see various dashboard lights illuminate.
3. Wait a Moment: Allow approximately three seconds to pass. This gives the ECM time to initialise.
4. The Pedal Dance: Now, you will perform a specific sequence with the accelerator pedal. Fully depress the accelerator pedal and then release it. Repeat this action five times. Crucially, all five of these pedal depressions and releases must be completed in less than five seconds. This rapid action signals to the ECM that you intend to enter diagnostic mode.
5. The Seven-Second Pause: After completing the five rapid pedal presses, wait for exactly seven seconds. This precise timing is critical for the next step.
6. The Ten-Second Hold: At the end of the seven-second wait, fully depress the accelerator pedal again. This time, hold it down for ten seconds. While you are holding the pedal down, observe the SES light. It should begin to flash, indicating that the ECM is preparing to display the diagnostic trouble code.
7. Code Retrieval: Once the SES light flashes, release the accelerator pedal. Now, you need to count the flashes to determine the four-digit trouble code. The ECM will display the code by repeating it. There will be pauses between the digits.

• Long Flashes: The first digit of the code is indicated by longer flashes, each lasting about 0.6 seconds. Count these flashes. A single long flash represents '1', two long flashes represent '2', and so on, up to nine flashes for '9'. If you see ten flashes, this indicates a '0'.
• Subsequent Digits: The next three digits of the four-digit code will follow. These flashes will be shorter (around 0.3 seconds) and will be separated by a one-second pause between each digit. Again, count the flashes to determine the numerical value of each digit (1-9 for blinks, 10 blinks for 0).

The ECM will cycle through the trouble code(s) repeatedly until you turn the ignition key to the 'OFF' position. This action will reset the ECM to its standard operating mode.

Important Note on 'No Malfunction' Codes: If, after performing the procedure, you receive a code of four blinks of ten (0000), this signifies that the ECM has detected no malfunctions in the system. This is a good sign!

Clearing the Code and the SES Light

If you have identified the trouble code (or if you simply wish to clear the light after addressing a suspected minor issue like a loose gas cap), you can clear the stored code and turn off the SES light. After the ECM has displayed the trouble code(s) and is in the process of repeating them:

1. Hold the Pedal Down: With the SES light still flashing (indicating the code is being displayed), fully depress and hold the accelerator pedal for more than ten seconds. This extended hold signals the ECM to erase the stored trouble code(s).
2. Release and Observe: Release the accelerator pedal. The ECM should now erase the trouble code(s), and the SES light should turn off. Your vehicle is now reset.

What to do with the Trouble Codes?

Once you have retrieved the four-digit trouble codes, you can use them to diagnose the specific problem with your vehicle. You can look up these codes in your vehicle's Service Manual (often referred to as ESM or FSM – Electronic Service Manual or Factory Service Manual). The provided information specifically mentions referring to page EC-639 in the ESM for a comprehensive list of codes. Online resources and automotive forums can also be valuable for decoding these DTCs. Understanding the code will guide you on whether it's a DIY fix or requires professional attention.

When to Seek Professional Help

While this DIY reset procedure can be very useful, it's essential to recognise its limitations. If your SES light comes back on shortly after resetting it, or if you notice significant performance issues with your vehicle (e.g., rough idling, lack of power, strange noises), it’s a strong indication that a more serious problem exists. In such cases, it is highly recommended to consult a qualified mechanic. They have advanced diagnostic tools and the expertise to accurately pinpoint and repair the underlying issue, ensuring your safety and the longevity of your vehicle.

Troubleshooting the Reset Procedure

If you're finding that the reset procedure isn't working as described, consider the following:

• Timing is Everything: Ensure you are adhering strictly to the timings mentioned for each step. Even a slight deviation can prevent the ECM from entering diagnostic mode.
• Pedal Input: Make sure you are fully depressing the accelerator pedal each time.
• Ignition Position: Double-check that the ignition is in the 'ON' position and not in the 'START' position.
• Vehicle Specifics: As mentioned, procedures can vary. If this general method doesn't work, consult your owner's manual or a reputable online automotive database for your specific vehicle model.
• Battery Disconnection (Alternative): In some cases, disconnecting the vehicle's battery for a period (usually 15-30 minutes) can also reset the ECM and clear the SES light. However, be aware that this may also reset other vehicle settings, such as radio presets and clock times. It's generally advisable to try the pedal reset procedure first.

FAQs

Q1: Will resetting the SES light fix my car's problem?
A1: No, resetting the SES light only turns off the warning indicator. It does not address the underlying issue that caused the light to illuminate in the first place. You must diagnose and repair the problem for the light to stay off permanently.

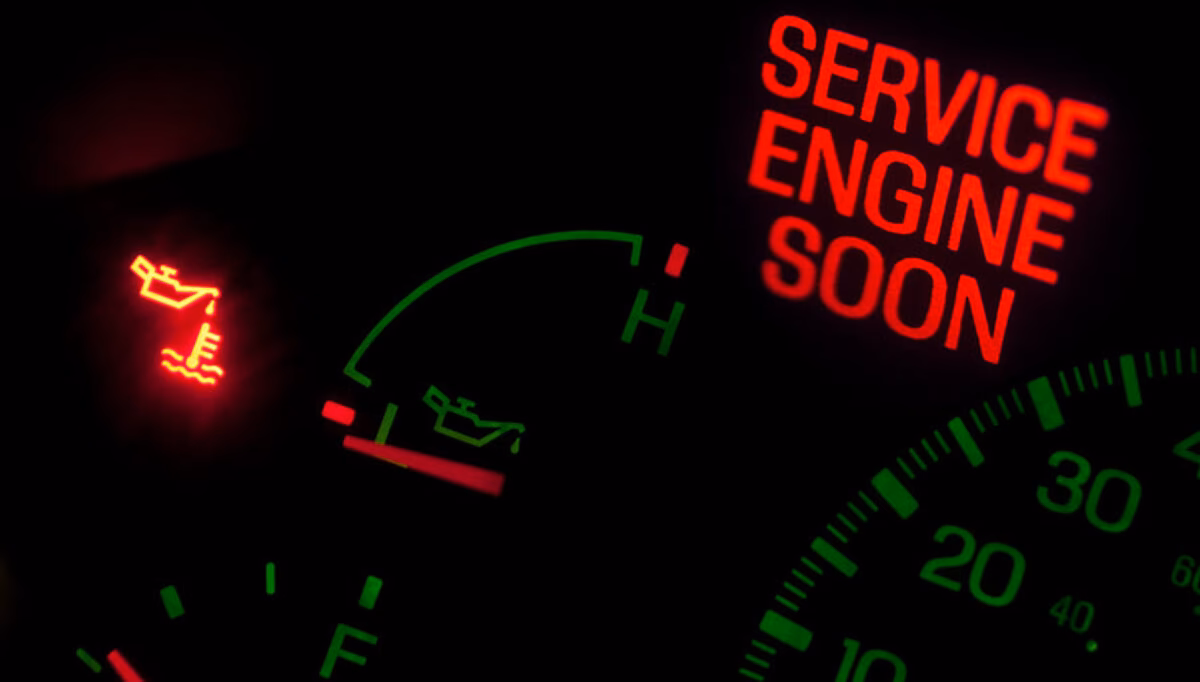

Q2: Is it safe to drive with the SES light on?
A2: It depends on the severity of the problem. If the light is flashing, it usually indicates a severe misfire that could damage your catalytic converter, and you should avoid driving or drive minimally. If the light is steady, it generally signifies a less urgent issue, but it's still advisable to get it checked as soon as possible to prevent potential further damage or reduced fuel efficiency.

Q3: Can I use an OBD-II scanner to reset the light?
A3: Yes, an OBD-II (On-Board Diagnostics II) scanner is the most common and effective way to diagnose and reset the SES light. These scanners read the DTCs, provide definitions, and allow you to clear the codes. However, the procedure described in this article allows for a reset without this tool.

Q4: What happens if I try to reset the light and the problem is serious?
A4: If the problem is serious, the SES light will likely reappear shortly after you reset it, as the ECM will detect the ongoing fault. It's a signal that professional diagnosis is required.

Q5: How long should I hold the accelerator pedal down to clear the code?
A5: You need to hold the accelerator pedal down for more than ten seconds while the SES light is flashing to clear the trouble code(s).
