Service Battery Charging System Explained

The illuminated message "Service Battery Charging System" on your Chevrolet or General Motors (GM) vehicle's dashboard can be a cause for concern. This warning light signifies a malfunction within the car's vital charging system. Understanding what this message means and its potential causes is crucial for maintaining your vehicle's health and preventing unexpected breakdowns. This article will delve into the intricacies of the charging system, explain the common culprits behind this alert, and guide you through the diagnostic process.

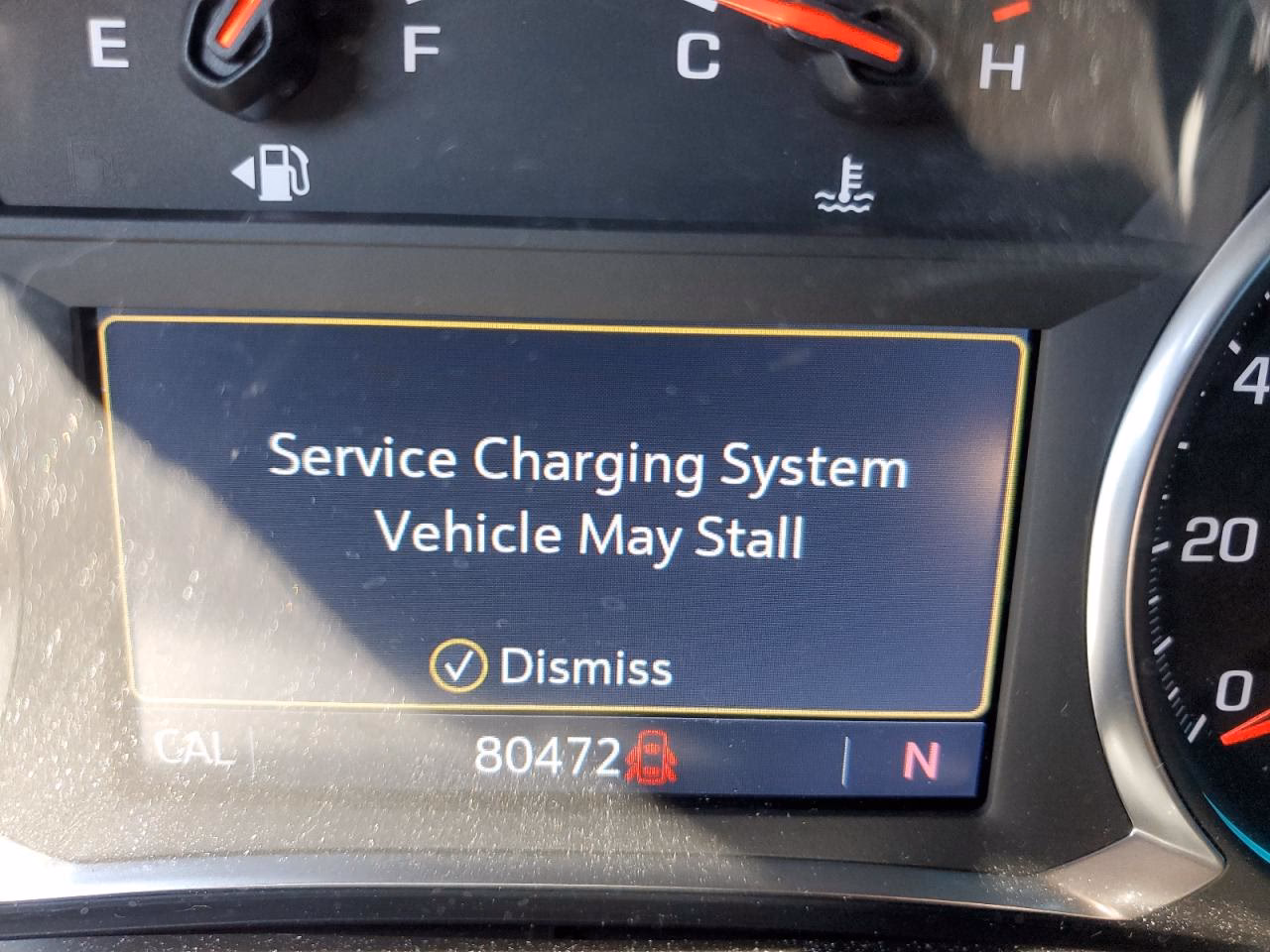

What is the "Service Battery Charging System" Warning?

The "Service Battery Charging System" alert is triggered by your vehicle's onboard computer. This sophisticated system constantly monitors the health and performance of the components responsible for keeping your battery charged and powering your vehicle's electrical systems. When the computer detects an anomaly or a failure in this critical circuit, it illuminates this warning light to inform the driver of a potential problem. Essentially, the charging system's primary role is to replenish the battery's power while the engine is running and to supply the necessary voltage for all the vehicle's electrical components, from the headlights to the infotainment system.

A failure in the charging system means that the battery is no longer receiving a charge. This can lead to a rapid depletion of the battery's stored energy. Depending on the electrical load – what accessories are running – a fully charged battery without any charging input can drain completely within a surprisingly short period, often between 20 to 30 minutes. For instance, a Chevrolet Cruze experiencing an alternator failure might manage to run for approximately this duration, powered solely by the battery, before the voltage drops too low to sustain engine operation and all other functions.

Common Causes of the "Service Battery Charging System" Message

Several components can fail or malfunction, leading to the "Service Battery Charging System" warning. Identifying the specific cause is key to an effective repair.

1. The Battery Itself

While the warning light pertains to the charging system, a failing battery can sometimes trigger this message, especially if it can no longer hold a charge effectively. A healthy car battery, when the engine is off, should typically register slightly over 12 volts, usually between 12.20 and 12.50 volts. If you test the battery and it reads significantly lower, it might be discharged and require charging. However, if the battery fails to hold a charge after being replenished, it indicates the battery itself may be at the end of its lifespan.

Important Note: Corroded battery terminals can impede the flow of electricity, even if the battery and charging system are otherwise sound. Ensure your battery terminals are clean and free from any white or bluish powdery residue.

2. The Alternator

The alternator is the workhorse of the charging system. Its job is to convert mechanical energy from the engine into electrical energy to charge the battery and power the vehicle's electrical systems. A common diagnostic test involves checking the voltage output of the alternator with the engine running. In most Chevrolet and GM vehicles, a functioning alternator will produce a voltage output between 13.5 and 14.5 volts. If the voltage measured is below 13 volts when the engine is running, it strongly suggests that the alternator is not performing its duty and likely needs replacement.

3. Battery Current Sensor

This is a particularly common culprit in Chevrolet and GMC vehicles. The battery current sensor, also known as the battery monitoring sensor or intelligent battery sensor (IBS), plays a vital role in communicating the battery's state of charge and current flow to the vehicle's computer. When this sensor fails, it can send incorrect data, or no data at all, to the Engine Control Module (ECM). This can lead the ECM to believe there's a charging system issue, even if both the battery and alternator are functioning perfectly. If you've tested your battery and alternator, and they both appear to be in good working order, the battery current sensor is a prime suspect.

4. Fuses and Wiring

Like any electrical system, the charging system is protected by fuses. A blown fuse, though less common than the other issues, can certainly interrupt the charging process. Fuses can blow due to short circuits or other electrical faults. Identifying the correct fuse requires consulting your vehicle's owner's manual or a wiring diagram specific to your year and model of Chevrolet or GMC. Inspecting relevant fuses for continuity is a necessary step in a thorough diagnosis.

Beyond fuses, damaged or corroded wiring and connections within the charging circuit can also lead to the "Service Battery Charging System" warning. Loose or corroded connections at the alternator, battery terminals, or ground points can impede electrical flow and cause charging system malfunctions.

Diagnosing and Troubleshooting the "Service Battery Charging System" Warning

Diagnosing this issue requires a systematic approach. The most accessible tool for initial diagnosis is a simple multimeter, which can be purchased at most auto parts stores for a modest price.

Step-by-Step Diagnosis:

1. Test with the Engine Off: Connect the multimeter to the battery terminals (red to positive, black to negative). With the engine completely off and the vehicle having sat for at least a few hours, the voltage should read between 12.20 and 12.50 volts. If it's significantly lower, the battery may be discharged or faulty.
2. Test with the Engine Running: Start the engine. With the multimeter still connected to the battery terminals, observe the voltage reading. A healthy charging system should show an increase in voltage, typically between 13.5 and 14.5 volts. This indicates the alternator is charging the battery.
3. Interpreting the Results:
   • Voltage below 13V when running: This almost certainly points to a problem with the alternator, or potentially a wiring issue preventing the alternator from properly charging the battery.
   • Voltage between 13.5V-14.5V when running, but warning light persists: If the charging voltage is within the normal range, but the "Service Battery Charging System" message remains, the issue likely lies elsewhere. This is where you would consider the battery itself (if it's not holding a charge), the battery current sensor, or a blown fuse/wiring problem.
   • Battery voltage drops quickly after charging: If the battery fails to hold a charge after being tested and charged, it's likely time for a new battery.

Professional Diagnosis:

While a multimeter can provide valuable initial insights, a professional mechanic has more advanced diagnostic tools that can test the load capacity of the alternator, check the resistance of the wiring, and communicate directly with the vehicle's computer to pinpoint the exact fault code related to the charging system. Many auto parts stores also offer free battery and alternator testing.

Common Fixes for the "Service Battery Charging System" Message

The fix will, of course, depend on the diagnosed cause:

• Replace the Battery: If the battery is old, fails to hold a charge, or tests poorly, replacement is the solution.
• Replace the Alternator: If the alternator is not producing adequate voltage, it will need to be replaced.
• Replace the Battery Current Sensor: This is a common and often overlooked fix for GM vehicles displaying this warning, especially when the battery and alternator test fine.
• Replace Blown Fuses/Repair Wiring: If a fuse is blown, replace it with one of the same amperage. If wiring is damaged, it will need to be repaired or replaced by a qualified technician.

Preventative Maintenance for the Charging System

Regular checks of your battery's condition and terminal cleanliness can help prevent charging system issues. Pay attention to any dimming headlights, slow cranking, or unusual electrical behaviour, as these can be early indicators of a problem. Keeping your battery terminals clean and ensuring a secure connection is a simple yet effective preventative measure.

Frequently Asked Questions (FAQs)

Q1: Can I continue driving if the "Service Battery Charging System" light is on?

It is strongly advised not to drive for extended periods once this warning light illuminates. The vehicle is running on battery power alone, and once the battery is depleted, the engine will stall, leaving you stranded. Continuing to drive could also potentially damage other electrical components.

Q2: How much does it cost to fix the "Service Battery Charging System" warning?

The cost varies significantly depending on the cause. A new battery can range from £80 to £200. An alternator replacement might cost between £200 and £600, including parts and labour. Replacing a battery current sensor is typically less expensive, potentially £100 to £300. Fuse replacement is usually very cheap, often under £20.

Q3: Is the battery current sensor the same as the battery itself?

No, they are distinct components. The battery is the energy storage device, while the battery current sensor is a monitoring device that reports the battery's status to the vehicle's computer.

Q4: My car starts fine, does that mean the charging system is okay?

Not necessarily. Your car might start because the battery still has enough residual charge. However, if the alternator isn't charging it, the battery will eventually die, and the warning light will appear. The warning light is an indicator of a fault in the charging process, not just the starting ability.

Conclusion

The "Service Battery Charging System" warning on your Chevrolet or GM vehicle is a signal that requires prompt attention. By understanding the roles of the battery, alternator, and battery current sensor, and by performing basic diagnostic checks with a multimeter, you can often identify the root cause of the problem. Whether it's a simple fix like cleaning terminals or a more involved repair like replacing the alternator, addressing this warning promptly will ensure your vehicle remains reliable and prevent more significant issues down the line.
