In the intricate ballet of modern internal combustion engines, the precise delivery of fuel is paramount. Gone are the days of simple carburettors; today, sophisticated fuel injection systems dominate, offering unparalleled efficiency, power, and environmental responsibility. Among these, the sequential multi-point fuel injection (MPI) system stands out as a highly refined method, meticulously managing fuel delivery to each cylinder for optimal combustion. This article will delve into the mechanics, advantages, and nuances of sequential fuel injection, helping you understand why it's a cornerstone of contemporary engine design.
Understanding Multi-Point Fuel Injection (MPI)
Before we dissect sequential injection, let's first grasp the broader concept of multi-point fuel injection. Unlike single-point (throttle body) injection, where a single injector sprays fuel into a central point for all cylinders, MPI systems feature individual injectors for each cylinder, typically located in the intake manifold just upstream of the intake valve. This design ensures a more direct and uniform fuel delivery to each combustion chamber, which is a significant step up in efficiency and control.
Within MPI, there are primarily two methods of operation: simultaneous and sequential. While both aim to deliver fuel, their timing and control mechanisms differ significantly, leading to distinct performance characteristics.
Simultaneous vs. Sequential Injection: A Critical Comparison
The core difference between simultaneous and sequential injection lies in *when* and *how* the injectors fire. Understanding this distinction is key to appreciating the sophistication of sequential systems.
Simultaneous Injection
In a simultaneous injection system, all injectors fire at the same time, irrespective of which cylinder is ready to receive fuel. For a typical four-cylinder engine, this means all four injectors might fire together. As a result, each cylinder receives multiple injection pulses per engine cycle (which spans 720° of crankshaft rotation). For instance, a cylinder might receive two injection pulses during its cycle, even if the intake valve isn't open for the entire duration of those pulses. This method is simpler to implement electronically, as all injectors are typically wired in parallel to a common control signal.
At normal operating temperature and idle speed, the injector pulse widths (the duration the injector is open) for simultaneous systems are typically around 2.5 milliseconds (ms). While effective and an improvement over earlier systems, the 'shotgun' approach of simultaneous injection means some fuel might sit in the intake port, potentially leading to less efficient atomisation and slightly higher emissions.
Sequential Injection
Sequential injection represents a significant leap forward in precision. As with simultaneous systems, sequential injection also has a common fuel supply to each injector. However, the crucial difference is that each injector has a separate earth path, allowing the engine's Electronic Control Unit (ECU) to fire each injector individually. This individual firing is meticulously timed to coincide with the opening of the inlet valve for that specific cylinder.
With sequential injection, each cylinder receives just one injection pulse per engine cycle, precisely when the incoming air can help atomise the fuel most effectively. This targeted delivery maximises fuel efficiency and ensures a more complete burn. At normal operating temperature and idle speed, sequential injector pulse widths are typically around 3.5 ms, often having twice the duration of a simultaneous pulse, though this is ultimately determined by the injector's flow rate and the system's operating pressure.
To achieve this precise timing, sequential systems require a phase sensor (also known as a camshaft position sensor). This sensor tells the ECU the exact position of the camshaft, and by extension, which cylinder's intake valve is about to open. Without this vital piece of information, the ECU wouldn't know when to fire each individual injector.
Here's a comparative overview:
| Feature | Simultaneous Injection | Sequential Injection |
|---|---|---|
| Firing Pattern | All injectors fire together | Each injector fires individually |
| Pulses per Cycle | Multiple (e.g., 2) | Single, precisely timed |
| Timing | Not synchronised with individual intake valves | Synchronised with individual intake valve opening |
| Wiring | Injectors wired in parallel | Individual earth path for each injector |
| Sensor Requirement | Crankshaft position sensor, basic engine sensors | Requires a phase sensor (camshaft position sensor) in addition to others |
| Idle Pulse Width (approx.) | 2.5 ms | 3.5 ms |
| Fuel Atomisation | Good, but some fuel may sit in port | Excellent, aided by incoming air |
| Efficiency & Emissions | Good, but less precise | Superior, highly precise fuel delivery |
The Electromechanical Injector: A Closer Look
At the heart of any fuel injection system is the electromechanical injector itself. These devices are essentially sophisticated solenoid valves. When an electrical current is applied, it generates a magnetic field that lifts a pintle (a small needle valve) off its seat, allowing fuel to spray into the intake manifold.
A critical characteristic of these injectors is their solenoid reaction time, often referred to as 'dead time'. This is the short but measurable delay between the electrical signal being sent and the pintle actually lifting to allow fuel flow. This delay is vital to monitor and can sometimes account for a significant portion, even a third, of the total pulse width. For example, the electromagnetic force required to lift the pintle might take approximately 0.6 ms. During this initial phase, the current can be seen to rise before levelling off as the pintle is held open. It's important to note that the time the injector is 'held open' might not be identical to the total measured pulse width due to these reaction times. While it's possible to measure the opening time, calculating the exact time for the injector spring to fully close and cut off fuel flow is more complex.
Monitoring the injector's waveform is an ideal way to identify issues such as an unacceptably slow solenoid reaction time. An injector that reacts too slowly will not deliver the required amount of fuel, leading to that specific cylinder running 'lean' (too much air, not enough fuel), which can negatively impact performance, increase emissions, and potentially cause engine damage over time.
Bank Firing in V-Configuration Engines

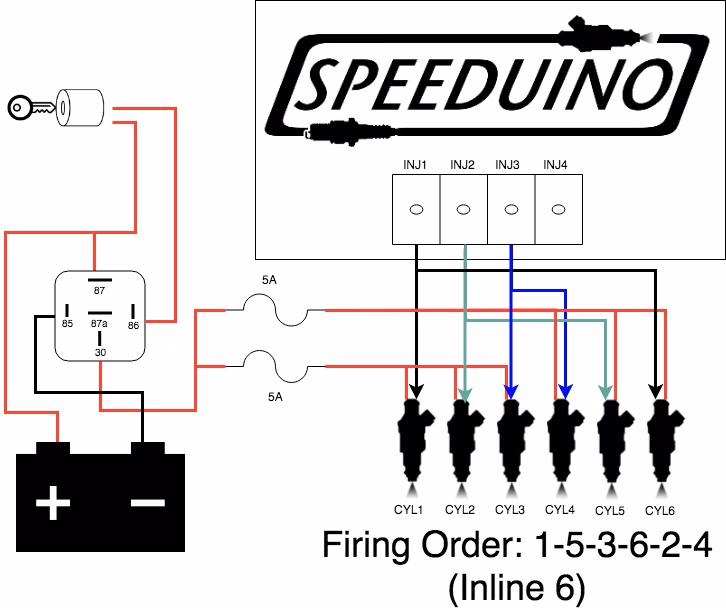

While sequential injection aims for individual cylinder control, in certain engine configurations, particularly V-engines, injectors may be fired in 'banks'. This means that instead of firing each of the V12's twelve injectors individually, they might be grouped. For instance, in a Jaguar V12 engine, the injectors are commonly fired in four groups of three injectors, with fuel being delivered to each bank alternately. This is still a more refined approach than a purely simultaneous system, offering a balance between complexity and precision for larger, multi-cylinder engines.
The Benefits of Sequential Fuel Injection
The advantages of sequential multi-point fuel injection are numerous and significant:
- Improved Fuel Economy: By precisely timing fuel delivery to when the intake valve is open, less fuel is wasted sitting in the intake port, leading to more efficient combustion and better mileage.
- Reduced Emissions: More complete combustion and less unburnt fuel contribute to significantly lower harmful exhaust emissions, helping vehicles meet stringent environmental regulations.
- Enhanced Performance: Accurate fuel delivery allows the engine to run closer to its optimal air-fuel ratio across various operating conditions, resulting in smoother power delivery and better throttle response.
- Better Cold Starts: Precise control over fuel delivery aids in quicker and smoother engine starts, especially in cold weather.
- Optimised Fuel Atomisation: The spray of fuel directly into the incoming air charge ensures superior atomisation, which is crucial for efficient combustion.
Common Questions About Sequential Fuel Injection
What is a phase sensor, and why is it important?
A phase sensor, also known as a camshaft position sensor (CMP sensor), monitors the rotational position of the camshaft. In a sequential fuel injection system, it's crucial because it tells the ECU the exact timing of the intake and exhaust valve openings for each cylinder. This information allows the ECU to precisely time the firing of each individual fuel injector to coincide with the opening of the corresponding intake valve, ensuring optimal fuel delivery and atomisation.
Can I upgrade my older car to a sequential fuel injection system?
While theoretically possible, upgrading an older vehicle with a non-sequential or even carburetted system to sequential fuel injection is a complex and often costly undertaking. It would typically involve replacing the ECU, wiring harness, fuel rail, injectors, and installing a phase sensor, along with extensive custom tuning. For most standard vehicles, it's not a practical or economically viable modification, though it's common in performance or custom engine builds.
What are the signs of a faulty fuel injector in a sequential system?
Signs of a faulty fuel injector, particularly one with a slow solenoid reaction time or a blocked nozzle, can include rough idle, misfires, reduced fuel economy, a noticeable loss of power, increased exhaust emissions, and potentially a 'check engine' light illuminating on your dashboard. Specific diagnostic tools can often pinpoint which injector is malfunctioning by analysing its waveform or performing flow tests.
Does sequential injection impact injector lifespan?
Sequential injection itself doesn't inherently shorten injector lifespan. However, the precise nature of the system means that even minor deviations in injector performance (like a slightly slower reaction time or reduced flow) can have a more pronounced effect on engine operation compared to less precise systems. Regular maintenance, using quality fuel, and addressing any system faults promptly are key to ensuring the longevity of your injectors.
Conclusion
Sequential multi-point fuel injection represents a pinnacle in conventional fuel delivery technology, offering a sophisticated and highly efficient method of managing an engine's fuel supply. By precisely timing the injection event to each cylinder's intake stroke, it optimises fuel atomisation, maximises combustion efficiency, and significantly reduces harmful emissions. This level of precision is not just about power; it's about making modern engines cleaner, more economical, and more reliable. As automotive technology continues to evolve, understanding these foundational systems helps us appreciate the engineering marvels that power our vehicles today.
