Tractor Brake Replacement: A DIY Guide

Tractors are the workhorses of farms and large estates, making countless tasks significantly easier. However, like any piece of heavy machinery, they require regular maintenance to ensure their safe and efficient operation. Among the most critical components are the brakes. When your tractor's stopping power feels diminished, or you notice unusual noises, it's a clear sign that attention is needed. While taking your tractor to a professional workshop is always an option, many common brake maintenance tasks, including replacement, can be tackled by a competent DIY enthusiast. This comprehensive guide will empower you with the knowledge and confidence to replace your tractor's brakes, ensuring both your safety and the longevity of your valuable equipment.

Understanding Your Tractor's Brake System

Before you even think about picking up a spanner, it's crucial to understand the type of braking system your tractor employs. Tractors typically use one of three main brake designs, each with its own replacement procedure:

• Dry Disc Brakes: These are perhaps the most common and often the most straightforward for DIY replacement. Similar in principle to car disc brakes, they consist of a caliper (which may contain a piston or 'sliding brake pad cylinder' if hydraulically actuated, or a mechanical actuator) that presses brake pads against a rotating disc. They are usually exposed or housed in a relatively accessible casing.
• Wet Disc Brakes: Found in many modern tractors, these brakes are submerged in oil within the tractor's axle housing. This design provides excellent durability and heat dissipation, but servicing them is significantly more complex, often requiring the drainage of hydraulic fluid and extensive disassembly of the axle. While possible for the advanced DIYer, they often warrant professional attention.
• Drum Brakes: Less common on modern, larger tractors but still found on older models or smaller utility tractors, drum brakes operate when brake shoes press outwards against the inside of a spinning drum. They are actuated by a wheel cylinder (for hydraulic systems) or a mechanical linkage.

Identifying your tractor's brake type, usually found in the owner's manual or by visual inspection, is the first critical step.

Safety First: Non-Negotiable Precautions

Working on heavy machinery like a tractor carries inherent risks. Your safety must be the absolute priority. Do not proceed unless you are confident you can follow these safety guidelines:

• Park on Level Ground: Always park your tractor on a firm, flat, and level surface.
• Engage Parking Brake: Ensure the parking brake is fully engaged.
• Chock the Wheels: Place sturdy wheel chocks on the wheels that will remain on the ground, especially on the opposite side of the tractor from where you are working, to prevent any unintended movement.
• Lower Implements: Lower all implements (loaders, tillers, etc.) to the ground and relieve any hydraulic pressure.
• Turn Off Engine & Remove Key: Switch off the engine and remove the ignition key to prevent accidental starting.
• Use Jack Stands: Never rely solely on a jack. Once the tractor is lifted, always support it with robust, appropriately rated axle stands placed on solid frame points.
• Personal Protective Equipment (PPE): Wear safety glasses, heavy-duty gloves, and appropriate work attire.
• Allow Cooling: If the tractor has been recently operated, allow the brakes to cool down completely before touching them.

Essential Tools and Materials

Having the right tools for the job will make the process smoother and safer:

• Socket Set and Spanners: A comprehensive set, including large sizes for wheel nuts and axle components.
• Torque Wrench: Essential for tightening fasteners to the manufacturer's specifications.
• Hydraulic Jack: Capable of safely lifting your tractor's weight.
• Axle Stands: Rated for the weight of your tractor.
• Wheel Chocks: Sturdy blocks for preventing movement.
• Brake Cleaner: For degreasing and cleaning components.
• Wire Brush: For cleaning rust and debris.
• Brake Grease/Anti-Seize: For lubrication on certain contact points (do not apply to friction surfaces).
• New Brake Pads/Shoes/Discs: Ensure you have the correct replacement parts for your specific tractor model.
• Brake Bleeder Kit (if hydraulic brakes): Includes a bleeder bottle and hose.
• New Brake Fluid (if hydraulic brakes): Check your owner's manual for the correct type.
• Drain Pan (for wet disc brakes): If you are attempting wet disc brakes, for hydraulic oil.
• Pry Bar/Large Screwdriver: For leverage.
• Hammer/Mallet: For stubborn components.
• Safety Glasses and Gloves.

Dry Disc Brake Replacement: A Step-by-Step Guide

This procedure focuses on the most common DIY-friendly brake system. While specific steps may vary slightly between tractor models, the general principles remain consistent.

1. Preparation and Lifting

1. With the tractor safely parked and chocked as described in the safety section, loosen the wheel nuts on the wheel you intend to remove while the wheel is still on the ground. This makes removal easier once lifted.
2. Position your hydraulic jack under a strong, designated jacking point on the tractor's axle or frame, as specified in your owner's manual.
3. Carefully lift the tractor until the wheel is clear of the ground.
4. Immediately place axle stands securely under appropriate frame or axle points, ensuring the tractor is stable. Slowly lower the jack until the tractor's weight rests firmly on the stands. You can then remove the jack if needed, or leave it lightly supporting for added security.

2. Wheel Removal

Once the tractor is securely on stands, fully remove the loosened wheel nuts and carefully take off the wheel. Store it safely out of your working area.

3. Accessing the Brake Assembly

On many tractors with dry disc brakes, the brake assembly is external or housed behind a relatively accessible cover on the axle. You may need to:

• Remove a protective cover or shield.
• Unbolt and remove the axle housing cover (if the brakes are semi-enclosed). Be prepared for some residual oil or grease.
• Disconnect any mechanical linkages or hydraulic lines leading to the brake caliper/actuator. If disconnecting hydraulic lines, have a drip tray ready to catch fluid and immediately cap the lines to prevent contamination and excessive fluid loss.

4. Inspecting and Removing Old Components

With the brake assembly exposed, carefully inspect the existing components:

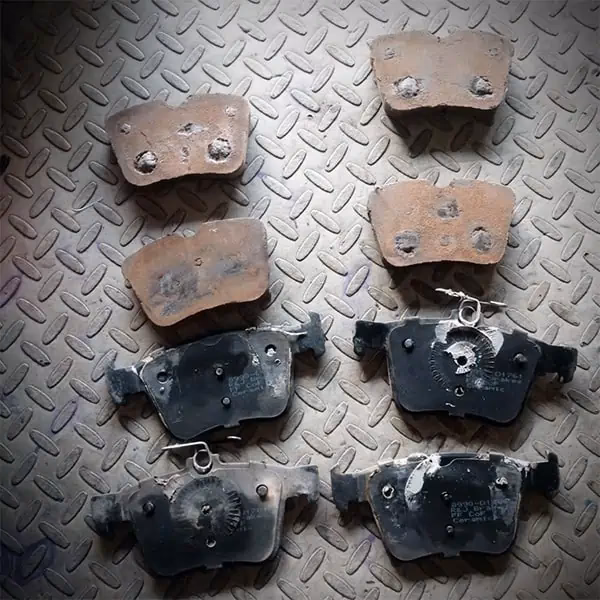

• Brake Pads: Note how they are seated. Look for wear indicators – if the friction material is thin (less than a few millimetres) or if you see rivets, they need replacing.
• Brake Discs: Check for deep scoring, cracks, or uneven wear. Minor surface rust is normal, but significant damage warrants disc replacement.
• Actuator/Caliper: Inspect for leaks (if hydraulic), damage, or excessive play. If your system uses a 'sliding brake pad cylinder' (piston), check for corrosion or damage to the piston itself.
• Springs and Pins: Note the position of any retaining springs, clips, or pins that hold the pads in place.

Now, proceed to remove the old components. This usually involves:

• Removing retaining pins, clips, or bolts that secure the brake pads.
• Carefully prying out the old brake pads.
• If replacing the disc, unbolting and removing the disc itself. It might be bolted to the axle hub or held in place by other components.

5. Cleaning and Preparation

Thorough cleaning is crucial for proper brake function and longevity:

• Use a wire brush to remove any rust, dirt, or old brake dust from the brake assembly mounting points and the hub.
• Spray generous amounts of brake cleaner on all components and mounting surfaces. Let it evaporate or wipe it clean. Ensure no grease or oil gets onto the friction surfaces of the new pads or disc.
• If your brake system uses a hydraulic caliper with a piston (sliding cylinder), you'll need to retract the piston to make space for the new, thicker pads. Use a specialised brake piston compression tool or a large C-clamp with an old brake pad to slowly and evenly push the piston back into its bore. Be mindful of the brake fluid reservoir level, as fluid will return to it.

6. Installation of New Components

Installation is essentially the reverse of removal, but with careful attention to detail:

• If replacing the brake disc, install the new disc onto the hub, ensuring it is properly seated and bolted down to the manufacturer's torque specifications.
• Apply a thin layer of brake grease or anti-seize compound to the contact points where the brake pads slide in their carriers (not on the friction material!). This helps prevent squealing and ensures smooth operation.
• Carefully insert the new brake pads into their respective positions. Ensure they are correctly oriented and seated.
• Reinstall any retaining pins, clips, or springs that hold the pads in place. Make sure they are secure.
• If you disconnected hydraulic lines, reconnect them securely.
• Reinstall any covers or shields removed earlier.

7. Bleeding the Brakes (if hydraulic)

If you opened the hydraulic system (disconnected lines or pushed the piston back), you will need to bleed the brakes to remove any air from the system. Air in the brake lines will result in a spongy pedal and poor braking performance. This is typically a two-person job:

1. Ensure the brake fluid reservoir is full with the correct type of new brake fluid.
2. Have one person sit in the driver's seat.
3. Locate the bleed nipple on the brake caliper/cylinder. Attach a clear hose to the nipple and place the other end into a container partially filled with old brake fluid (to prevent air from being drawn back in).
4. The person in the driver's seat slowly and firmly presses the brake pedal a few times and then holds it down.
5. The person at the wheel opens the bleed nipple for a second or two, allowing fluid and air bubbles to escape into the container. Then, they close the nipple.
6. The person in the driver's seat can then release the pedal.
7. Repeat this process until no more air bubbles appear in the fluid coming out of the bleed nipple.
8. Keep a close eye on the brake fluid reservoir and top it up as needed to prevent it from running dry, which would introduce more air.
9. Once bleeding is complete, tighten the bleed nipple securely.

8. Reassembly and Testing

1. Reinstall the wheel, tightening the wheel nuts by hand initially.
2. Carefully lower the tractor off the axle stands using the jack. Once on the ground, fully tighten the wheel nuts to the manufacturer's specified torque using your torque wrench.
3. Before moving the tractor, pump the brake pedal several times until it feels firm. This helps seat the pads against the disc.
4. Start the tractor and, in a safe, open area, slowly test the brakes. Drive at a low speed and apply the brakes gently. Listen for any unusual noises and check for proper stopping power and even braking on both sides.
5. Perform a 'bedding-in' procedure, which involves several moderate braking applications from a low speed (e.g., 20 mph down to 5 mph) without coming to a complete stop, to properly seat the new pads and discs. Allow them to cool between applications.

Wet Disc Brake Systems: A Brief Note

Wet disc brakes, immersed in oil, are significantly more complex to service DIY. Access often requires splitting the tractor or removing major axle components, and it involves draining and refilling specific hydraulic fluids. While a detailed guide is beyond the scope of a general DIY article, if your tractor has wet disc brakes and you're not experienced with such major mechanical work, it's highly recommended to consult a professional. Attempting this without proper knowledge and tools can lead to serious damage and safety issues.

Troubleshooting Common Brake Issues

Even after replacement, issues can sometimes arise:

• Spongy Pedal: Usually indicates air in the hydraulic system. Re-bleed the brakes.
• Brakes Pulling to One Side: Uneven braking force, possibly due to air on one side, a seized caliper/actuator, or unevenly worn pads (if not replaced).
• Squealing/Grinding Noise: Squealing can be normal during bedding-in or due to lack of anti-squeal grease. Grinding suggests metal-on-metal contact, indicating severely worn pads or an issue with the disc.
• Fluid Leaks: Check all connections if you disconnected hydraulic lines. A leak from a caliper or wheel cylinder indicates a faulty component.

Maintenance Tips for Longer Brake Life

• Regular Inspection: Periodically check your brake pads/shoes for wear, especially if your tractor operates in dusty or wet conditions.
• Keep it Clean: Regularly clean accumulated dust and debris from around the brake assemblies.
• Check Fluid Levels: For hydraulic systems, regularly check the brake fluid reservoir level and top up with the correct fluid.
• Address Issues Promptly: Don't ignore signs of brake trouble. Early intervention can prevent more costly repairs.
• Proper Operation: Avoid unnecessary heavy braking, especially when carrying heavy loads or operating on slopes.

Comparative Brake Systems Overview

Frequently Asked Questions (FAQs)

How often should tractor brakes be replaced?

There's no fixed interval. It depends on the tractor's usage, operating conditions, and brake type. Regular inspection (every 200-500 hours or annually) is key. Replace them when you notice reduced stopping power, excessive pedal travel, grinding noises, or when pads/shoes are worn down to their limits.

Can I use car brake parts on a tractor?

No, absolutely not. Tractor brake systems are designed for much heavier loads, different operating conditions, and specific part dimensions. Always use genuine OEM or high-quality aftermarket parts specifically designed for your tractor model.

What causes tractor brakes to fail?

Common causes include worn-out pads/shoes, contaminated friction material (oil, grease), air in hydraulic lines, seized calipers or wheel cylinders, damaged discs/drums, or maladjusted mechanical linkages.

Is bleeding always necessary after brake replacement?

If you only replaced dry brake pads and did not open any hydraulic lines or push a piston back significantly, bleeding might not be strictly necessary. However, if you disconnected lines, replaced a caliper/cylinder, or notice a spongy pedal, bleeding is essential.

What are the signs of worn tractor brakes?

Key signs include a spongy or excessively long brake pedal travel, grinding or squealing noises when braking, the tractor pulling to one side when braking, reduced stopping power, or a visible reduction in the thickness of the brake pads/shoes.

Conclusion

Replacing your tractor's brakes can seem daunting, but with the right knowledge, tools, and a meticulous approach to safety, it's a perfectly achievable DIY task for many. By understanding your specific brake system, following the step-by-step procedures, and committing to thorough post-replacement checks, you can restore your tractor's crucial stopping power. Regular inspection and prompt attention to any brake issues will not only ensure your safety but also keep your valuable farm machinery running reliably for years to come. Confidently tackle this essential maintenance and keep your tractor working as hard as you do!
