Semi-Truck Brake Lining Thickness Guide

Ensuring the safety and roadworthiness of a semi-truck is paramount, not just for the driver but for everyone sharing the road. At the heart of a truck's safety system are its brakes, and a critical component of these brakes is the lining or pad thickness. Understanding and adhering to the minimum thickness requirements set by the Department for Transport (DfT) in the UK is not merely a suggestion; it's a legal obligation and a fundamental aspect of responsible vehicle maintenance. This comprehensive guide will delve into these crucial regulations, provide a clear step-by-step method for measuring brake lining thickness, and explain why maintaining these standards is absolutely non-negotiable for any commercial vehicle operator.

Understanding Semi-Truck Brake Lining Regulations

The Department for Transport (DfT) has laid down stringent regulations concerning the minimum thickness of brake linings and pads for commercial motor vehicles, especially semi-trucks. These rules are in place to guarantee that braking systems can perform effectively and safely under all operating conditions. Neglecting these specifications can lead to severe penalties, including fines, vehicle prohibitions, and, most importantly, a heightened risk of accidents.

The Department for Transport (DfT) Guidelines

For air-braked commercial motor vehicles, the DfT specifies distinct minimum thicknesses based on the axle type and brake design. It's crucial to differentiate between steering and non-steering axles, as well as between drum and disc brake systems.

Non-Steering Axle Brakes

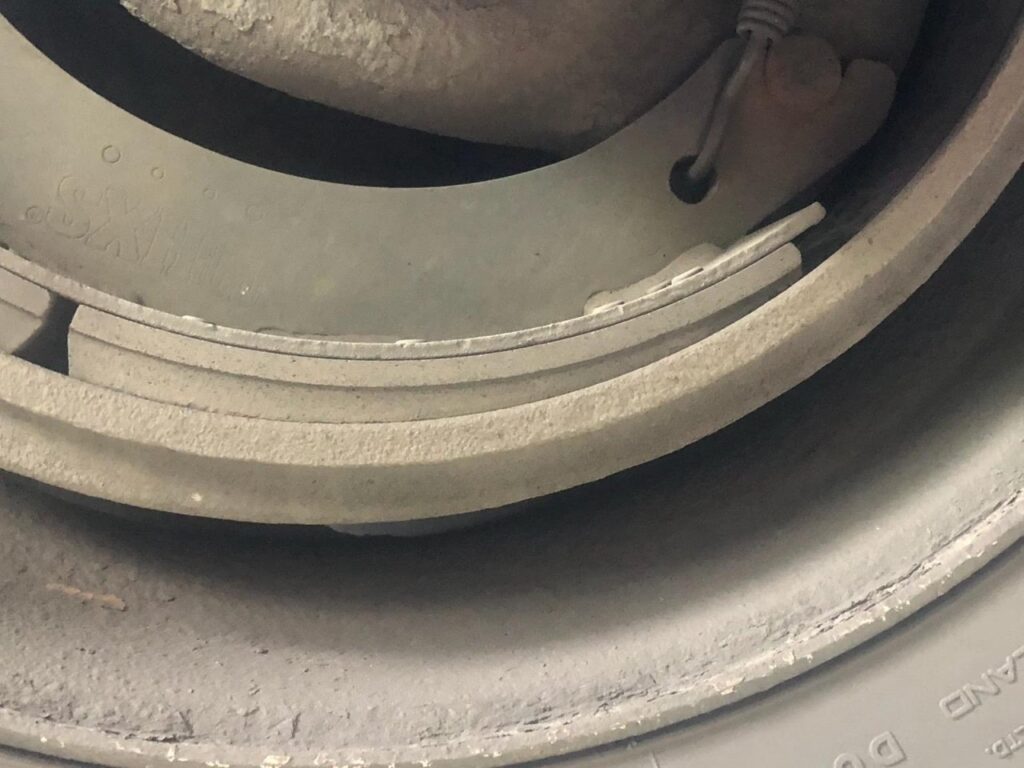

On non-steering axles (often referred to as drive axles or tag/additional axles), the regulations are quite specific. For vehicles equipped with air drum brakes, the brake lining and pads must not be less than 6.4 mm (1/4 inch). This measurement should typically be taken at the shoe centre, or down to the wear indicator if the lining is so marked by the manufacturer. If your semi-truck utilises disc brakes on these axles, the minimum thickness requirement is slightly less, at 3.2 mm (1/8 inch).

Steering Axle Brakes

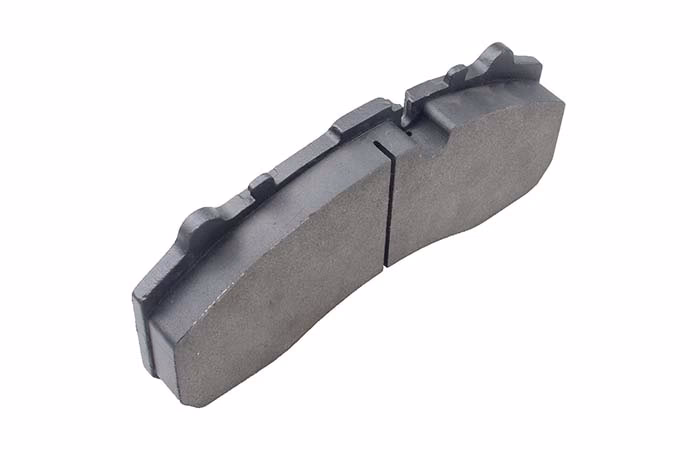

The steering axle, being critical for vehicle control, also has its own set of distinct regulations. For air disc brakes on the steering axle, the lining or pad thickness shall not be less than 3.2 mm (1/8 inch). However, for hydraulic disc, drum, and electric brakes on the steering axle, the minimum thickness is 1.6 mm (1/16 inch). For air drum brakes on the steering axle, the requirements vary slightly depending on the lining configuration:

• For a shoe with a continuous strip of lining, the minimum required thickness is 4.8 mm (3/16 inch) at the shoe centre.
• For a shoe with two pads, the minimum required thickness is 6.4 mm (1/4 inch) at the shoe centre.
• Alternatively, for both types, the lining can be worn down to the wear indicator if the lining is explicitly marked with one.

Why Brake Lining Thickness is Non-Negotiable

The thickness of your semi-truck's brake linings directly correlates with its braking efficiency and overall safety. As linings wear down, their ability to dissipate heat and provide consistent friction diminishes significantly. This leads to several critical issues:

• Reduced Braking Performance: Thinner linings mean less material to generate friction, leading to longer stopping distances, especially under heavy loads or adverse weather conditions. This can be the difference between a safe stop and a collision.
• Increased Heat Build-up: Less material means less capacity to absorb and dissipate the immense heat generated during braking. Excessive heat can lead to brake fade, where the brakes temporarily lose effectiveness, and can also cause damage to other brake components like drums, rotors, and calipers.
• Risk of Brake Failure: If linings wear down completely, the metal backing plate of the brake shoe or pad will come into direct contact with the brake drum or rotor. This metal-on-metal contact not only produces a horrendous grinding sound but also causes severe damage to the drum/rotor, potentially leading to catastrophic brake failure.
• Legal Compliance and Inspections: Regular roadside inspections and annual MOT tests for commercial vehicles strictly enforce these thickness regulations. Non-compliance can result in immediate prohibition from service, hefty fines, and points on your operator's licence. Ensuring your brakes meet the minimum standards is key to maintaining your vehicle's roadworthiness certificate and avoiding costly downtime.
• Component Longevity and Cost Savings: While replacing linings might seem like an expense, doing so before they become excessively worn protects more expensive components like drums, rotors, and calipers from damage. Proactive maintenance is almost always more cost-effective than reactive repairs after a failure.

Step-by-Step: Measuring Your Semi-Truck's Brake Lining Thickness

Accurately measuring brake lining thickness is a straightforward process, but it requires the right tools and a careful approach. Regular checks are vital for preventative maintenance and ensuring your truck remains compliant and safe.

Tools You'll Need

Before you begin, gather these essential items:

• Caliper: A digital or vernier caliper is essential for accurate measurement.
• Pen or Pencil: For recording your measurements.
• Paper or Logbook: To keep a record of your findings for future reference.
• Safety Gear: Always wear appropriate personal protective equipment (PPE), such as safety glasses and gloves, when working on a vehicle.
• Wheel Chocks and Jack Stands: Absolutely crucial for safety when lifting the vehicle.

The Measurement Process

Follow these steps carefully to measure the brake shoe lining thickness:

1. Prepare the Vehicle Safely: Park the semi-truck on a level, stable surface. Engage the parking brake and chock the wheels that are not being worked on. For accessing drum brakes, you will need to jack up the axle and remove the wheel. Ensure the vehicle is securely supported on appropriate jack stands before you get underneath or remove any components.
2. Locate the Brake Shoes/Pads: For drum brakes, the brake shoes are typically found inside the brake drum. You will need to remove the wheel and then the brake drum to expose them. For disc brakes, the pads are visible within the caliper assembly once the wheel is removed.
3. Clean the Area (If Necessary): While not strictly part of the measurement, a quick clean of any excessive dust or debris can help ensure a more accurate reading.

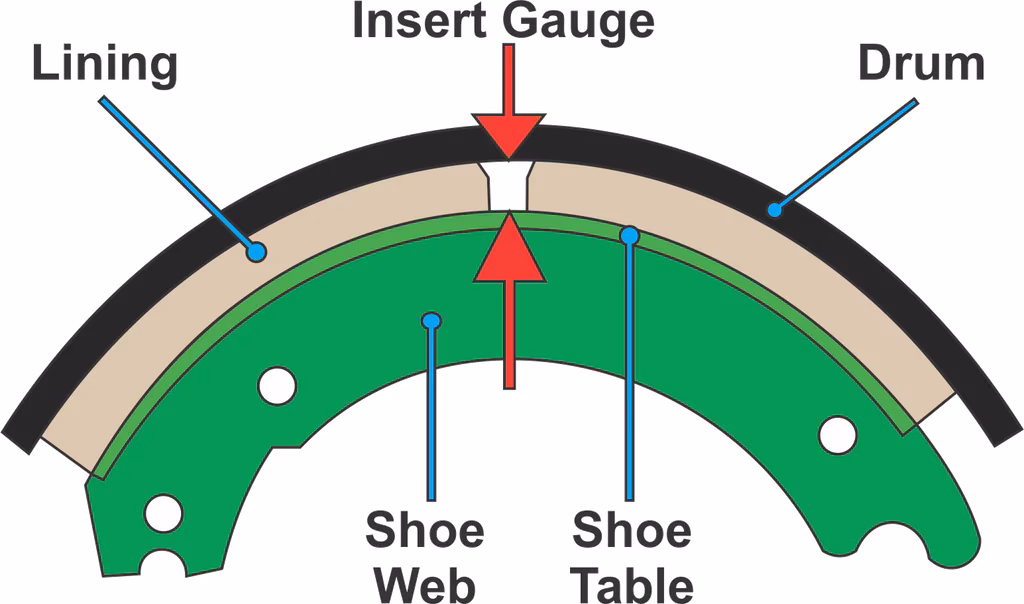

4. Measure the Thickness: Using your caliper, carefully measure the distance between the top and bottom surfaces of the brake lining or pad. It is crucial to measure only the friction material itself, and not to include the metal backing plate of the shoe or pad. Always refer to the manufacturer's specifications if you are unsure where the lining ends and the metal begins, as some designs can be tricky. Take measurements at the shoe centre for drum brakes, as specified by regulations.
5. Record Your Measurement: Write down the thickness you measured on your paper or in your maintenance logbook. Note which wheel and axle the measurement pertains to.
6. Compare to Minimum Required Thickness: Refer to the DfT's minimum thickness guidelines (as detailed in the table below) for the specific axle and brake type you are inspecting. If your measurement is equal to or less than the minimum required thickness, the brake lining or pad needs immediate replacement.
7. Repeat for All Wheels: Ensure you check all brake linings on all axles of the semi-truck. Brake wear can be uneven, and one worn lining can compromise the entire braking system.
8. Reassemble and Test: Once all measurements are taken and any necessary replacements are made, reassemble the brake components, mount the wheels, lower the truck, and perform a brake test in a safe, open area to ensure everything is functioning correctly.

Minimum Thickness Requirements: A Comprehensive Table

To simplify the DfT regulations, here is a comparative table summarising the minimum brake lining/pad thicknesses for semi-trucks in the UK:

What Happens If Your Brake Linings Are Too Thin?

Operating a semi-truck with brake linings below the minimum legal thickness is a recipe for disaster. The immediate consequences are a severe degradation of braking performance, leading to significantly increased stopping distances. In an emergency situation, this could mean the difference between avoiding an obstacle and a catastrophic collision. The risk of brake fade, where brakes temporarily lose their effectiveness due to excessive heat, becomes very high, especially when descending long gradients or performing repeated heavy braking. This can lead to a complete loss of braking power.

Beyond the immediate safety hazards, running on thin linings can cause extensive damage to other, more expensive brake components. Metal-on-metal contact will quickly score and warp brake drums or rotors, necessitating their costly replacement. Calipers and wheel cylinders can also be damaged by the excessive heat and stress. Furthermore, from a legal standpoint, driving a vehicle that does not meet the DfT's safety standards can result in hefty fines, points on your licence, vehicle impoundment, and even criminal charges in the event of an accident. Regular inspections and timely replacement are not just good practice; they are a legal and ethical imperative.

Beyond the Minimum: Signs Your Brake Linings Need Attention

While meeting the minimum thickness is legally required, it's often prudent to replace brake linings before they reach this absolute limit. Several warning signs can indicate that your brake linings are wearing thin and require attention:

• Squealing or Chirping Noises: Many brake pads/linings are equipped with a small metal wear indicator tab that produces a high-pitched squeal when the friction material wears down to a certain point, alerting you that replacement is due.
• Grinding Sound: A much more serious sound, grinding indicates that the friction material has completely worn away, and the metal backing plate of the pad or shoe is now scraping directly against the brake drum or rotor. This requires immediate attention to prevent further damage.
• Reduced Braking Performance: If you notice that your truck takes longer to stop, or you need to apply significantly more pressure to the brake pedal to achieve the same stopping power, your linings are likely worn.
• Vibrations or Pulsations: Uneven wear or damage caused by excessively thin linings can lead to vibrations felt through the brake pedal or steering wheel during braking.
• Pulling to One Side: If your truck pulls to one side when you apply the brakes, it could indicate uneven wear on the brake linings on different wheels, or a problem with a caliper or wheel cylinder.
• Brake Dust: While normal brake dust is common, an excessive amount of fine, dark dust on your wheels can sometimes be a sign of accelerated wear.

Frequently Asked Questions (FAQs)

What is a brake wear indicator?

A brake wear indicator is a small metal tab or a visual groove integrated into the brake lining or pad. As the lining wears down, the metal tab will make contact with the brake rotor or drum, producing a distinct squealing sound to alert the driver that the brakes need to be checked. Some linings also have visual grooves that disappear when the lining is worn to its limit.

How often should I check my brake linings?

For semi-trucks, brake lining thickness should be checked regularly as part of your routine pre-trip and post-trip inspections, or during scheduled maintenance intervals. Given the critical nature of truck brakes and the distances covered, a thorough inspection, including measuring lining thickness, should be performed at least every few months, or more frequently if your truck operates under severe conditions (e.g., heavy loads, mountainous terrain, frequent stop-and-go driving).

Can I replace semi-truck brake linings myself?

While measuring brake lining thickness can be a DIY task for experienced mechanics, replacing semi-truck brake linings or pads is a complex procedure that requires specialised tools, knowledge, and significant physical effort. It involves working with heavy components and critical safety systems. Unless you are a certified heavy vehicle mechanic with proper equipment and experience, it is highly recommended to have brake replacements performed by a qualified professional workshop to ensure the work is done correctly and safely, adhering to all manufacturer specifications and legal requirements.

Is there a difference between "lining" and "pad"?

Yes, while often used interchangeably in general conversation, "lining" typically refers to the friction material on drum brake shoes, while "pad" refers to the friction material on disc brake calipers. Both serve the same fundamental purpose: to create friction against a rotating surface (drum or rotor) to slow or stop the vehicle.

In conclusion, the thickness of your semi-truck's brake linings is not just a technical specification; it's a cornerstone of road safety and legal compliance. By understanding the DfT regulations, diligently measuring your linings, and replacing them proactively when needed, you ensure your vehicle remains safe, efficient, and compliant with UK law. Regular checks are a small investment of time that can prevent dangerous situations, costly repairs, and significant legal repercussions. Always prioritise safety and follow manufacturer's instructions and professional advice when dealing with critical components like your truck's braking system.
