Unravelling the Clutch: Pedals, Transmissions & More

The intricate dance between your car's pedals and its transmission is often shrouded in mystery, leading to common misconceptions about how various components interact. Specifically, the relationship between the brake pedal, the accelerator, and the clutch is far more nuanced than a simple direct mechanical link, especially in modern vehicles. Let's delve into this fascinating area of automotive engineering to clarify how these systems truly work, from traditional manual setups to cutting-edge semi-automatics and beyond.

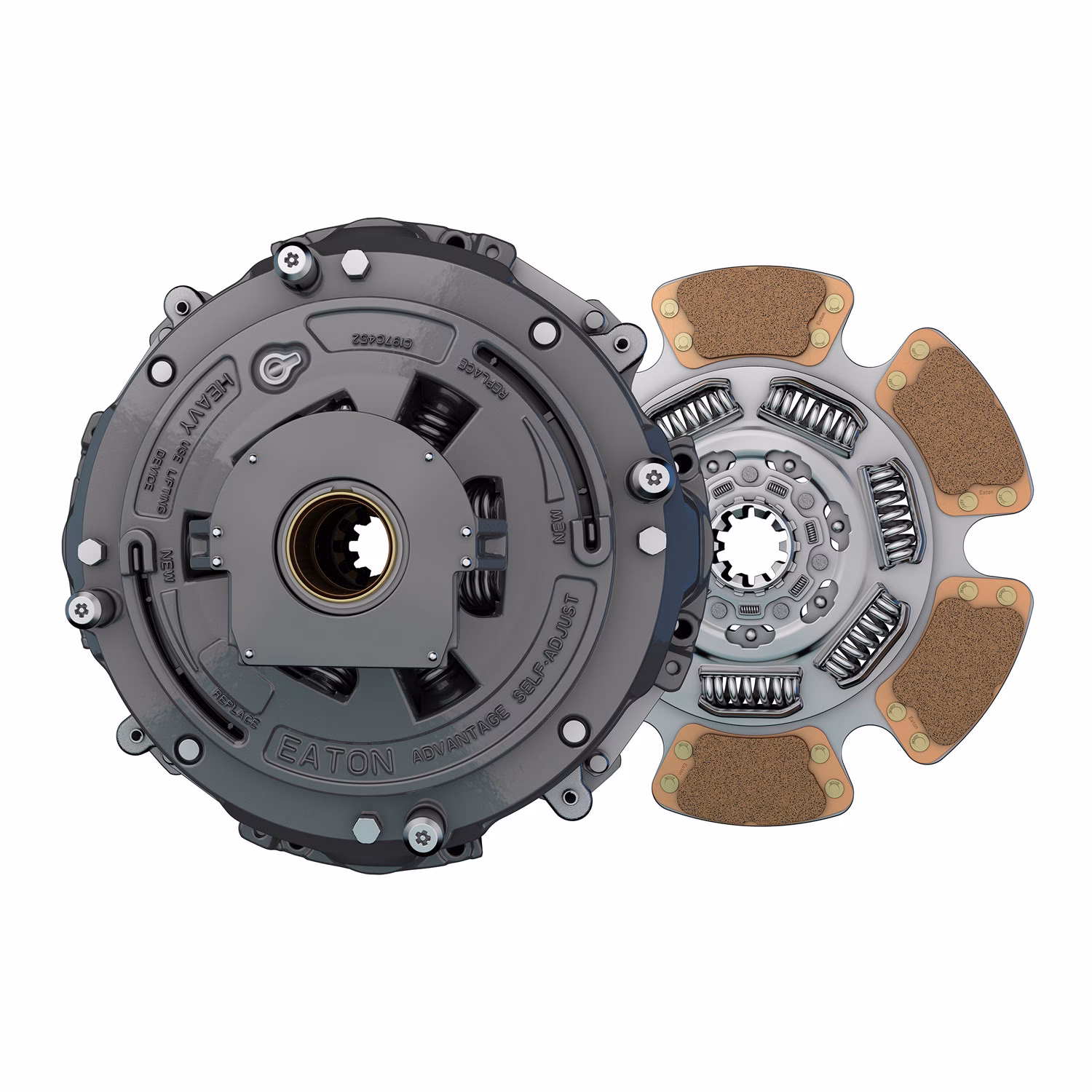

Does a Brake Pedal Have a Direct Link to the Clutch?

It's a common misconception that pressing the brake pedal directly influences the clutch. In reality, there is no direct mechanical linkage between the brake pedal and the clutch assembly in any type of vehicle, be it manual, automatic, or semi-automatic. The primary function of the brake pedal is, of course, to actuate the braking system, slowing or stopping the vehicle.

However, the brake pedal's input *does* indirectly affect how the car's transmission and clutch behave, particularly in vehicles equipped with an electronic control unit (ECU) managing the powertrain. For instance:

• In an automatic transmission: When you press the brake, the ECU receives this signal. If the vehicle's speed drops sufficiently, the ECU will command the transmission to downshift, and eventually, if the vehicle comes to a stop, the torque converter (the automatic equivalent of a clutch for initial engagement) will allow the engine to idle without stalling. Holding the brake at a roundabout or crawling up to it provides continuous input to the ECU, which then intelligently manages gear selection and the 'feathering' of the internal clutches or the torque converter to ensure smooth operation and prevent stalling.
• In a semi-automatic transmission (e.g., AMT or DCT): Similar to automatics, the brake pedal input signals the ECU. The ECU then takes over the responsibility of disengaging and engaging the clutch(es) as needed for downshifts or coming to a stop. Your action of braking informs the car's computer that a gear change or disengagement is imminent.
• In a manual transmission: While the brake pedal has no electronic or mechanical link to the clutch pedal, the driver's action of braking naturally necessitates the driver's action of depressing the clutch pedal to prevent the engine from stalling as the vehicle slows down. The connection here is purely through driver input, not vehicle system design.

The point about 'brake-by-wire' systems further illustrates this lack of a direct mechanical link. Just as many modern cars use 'drive-by-wire' (electronic accelerator pedal) where there's no cable directly connecting the pedal to the throttle body, 'brake-by-wire' systems replace traditional hydraulic lines with electronic signals and actuators. In such systems, the pedal's input is an electrical signal, which the ECU processes before commanding the braking system. This electronic intermediation is precisely why the concept of a 'direct link' to the clutch becomes irrelevant; all significant control is mediated by the vehicle's computer, which considers multiple sensor inputs (including brake pedal position, vehicle speed, engine RPM, etc.) to manage the entire powertrain.

Does an Accelerator Pedal Have a Direct Link to the Clutch?

No, similar to the brake pedal, the accelerator pedal also has no direct mechanical link to the clutch. The accelerator pedal's primary role is to control the engine's throttle, thereby regulating engine speed and power output. In modern vehicles, this is almost universally a 'drive-by-wire' system, meaning the pedal sends an electronic signal to the ECU, which then opens or closes the throttle valve.

However, like the brake pedal, the accelerator pedal's input *indirectly* influences clutch operation:

• In manual transmissions: The driver uses the accelerator pedal to match engine RPMs during gear changes (rev-matching) or to apply power smoothly when engaging the clutch after a shift. The driver manipulates both pedals simultaneously to achieve smooth transitions.
• In automatic and semi-automatic transmissions: The ECU uses accelerator pedal input (along with other sensor data) to determine the driver's demand for acceleration. This demand then dictates when and how the transmission shifts gears and how the torque converter or internal clutches engage or disengage to provide the requested power smoothly. For example, pressing the accelerator quickly will prompt a downshift and firmer clutch engagement for faster acceleration.

So, while no direct mechanical link exists, the interaction between the pedals and the clutch is a sophisticated dance orchestrated by the driver in a manual car, or by the ECU in an automatic or semi-automatic.

Does a Semi-Automatic Transmission Have a Clutch Lever?

This is a common point of confusion. A semi-automatic transmission, by its very definition, *does* contain a clutch (or multiple clutches), but it does *not* have a clutch pedal or a traditional clutch lever for the driver to operate. The 'semi-automatic' aspect refers to the fact that the driver can select gears manually (often via paddle shifters on the steering wheel or a sequential gear lever), but the actual clutch engagement and disengagement are handled automatically by the vehicle's computer and hydraulic or electric actuators.

Design and Operation

Semi-automatic transmissions typically fall into a few categories:

• Automated Manual Transmissions (AMTs): These are essentially manual gearboxes with an added electronic and hydraulic or electric control unit that operates the clutch and shifts gears automatically. They have a single clutch, similar to a manual car, but the pedal is absent.
• Dual-Clutch Transmissions (DCTs): These are a more advanced form of semi-automatic. A dual-clutch transmission has two separate clutches: one for odd gears (1st, 3rd, 5th, etc.) and one for even gears (2nd, 4th, 6th, etc.) and reverse. While one gear is engaged and powered, the next anticipated gear is pre-selected on the other clutch, allowing for incredibly fast and smooth shifts without interrupting torque delivery. Again, there is no clutch pedal for the driver.

In both cases, the driver's input (either selecting 'Drive' or using manual shift modes) sends a signal to the ECU. The ECU then commands the actuators to disengage the current clutch, select the next gear, and engage the new clutch, all without any driver interaction with a clutch pedal.

Usage in Passenger Cars

Semi-automatic transmissions, particularly DCTs, have become increasingly popular in passenger cars due to their blend of efficiency, performance, and convenience. They offer the fuel economy benefits often associated with manual gearboxes, combined with the ease of use of an automatic. Many performance-oriented cars, as well as mainstream models from manufacturers like Volkswagen (DSG), Ford (PowerShift), and Porsche (PDK), extensively use DCT technology.

Usage in Motorcycles

While most motorcycles traditionally feature a manual clutch lever on the left handlebar, semi-automatic systems are becoming more prevalent. Honda's Dual Clutch Transmission (DCT) is a notable example, allowing riders to shift gears via buttons or automatically, without needing to operate a clutch lever. This enhances rider comfort and can simplify riding, especially in congested traffic or for touring.

Usage in Motorsports

Semi-automatic transmissions are ubiquitous in motorsports, from Formula 1 to touring cars and rally racing. The rapid, precise shifts offered by these systems (especially sequential and DCT setups) are crucial for maximising performance and lap times. Drivers typically use paddle shifters on the steering wheel, allowing them to keep both hands on the wheel while shifting gears at lightning speed.

Usage in Other Vehicles

Beyond cars and motorcycles, semi-automatic transmissions are also found in various other vehicles. Commercial trucks, for example, can be equipped with automated manual transmissions to reduce driver fatigue and improve fuel efficiency. Some agricultural machinery and heavy construction equipment also utilise variations of semi-automatic systems for easier operation and better control of torque under heavy loads.

What is the Difference Between a Manual and Automatic Clutch?

The fundamental difference between a clutch in a manual transmission and the 'clutching' mechanism in an automatic transmission lies in their design, operation, and how they are maintained. While both serve the purpose of connecting and disconnecting engine power to the transmission, they achieve this in vastly different ways.

Manual Transmission Clutch

A manual transmission uses a traditional friction clutch, which the driver operates via a pedal. Key characteristics include:

• Components: It typically consists of a clutch disc (with friction material), a pressure plate, and a flywheel. When the pedal is released, the pressure plate clamps the clutch disc against the flywheel, transmitting engine power. When the pedal is depressed, the pressure plate releases the clutch disc, disengaging power.
• Driver Control: The driver has direct control over clutch engagement and disengagement, allowing for precise control over gear changes and vehicle launches.
• Maintenance: The clutch disc's friction material wears down over time due to repeated engagement and disengagement. Therefore, a manual clutch is considered a maintenance item that needs periodic replacement (often between 50,000 to 100,000 miles, depending on driving style and conditions).
• Operation: It provides a direct mechanical link between the engine and transmission when engaged.

Automatic Transmission 'Clutch'

Automatic transmissions do not use a driver-operated friction clutch for initial engagement. Instead, they primarily rely on a torque converter and internal multi-plate clutches for gear changes. Key characteristics include:

• Torque Converter: For initial engagement and low-speed operation, an automatic transmission uses a torque converter. This is a fluid coupling device that allows the engine to spin while the vehicle is stationary (without stalling) and smoothly transfers power as the engine speed increases. It's essentially a fluid-based clutch.
• Internal Clutches: Within the automatic transmission itself, there are multiple sets of wet multi-plate clutches and brake bands. These are hydraulically or electronically controlled and are responsible for engaging and disengaging different gear sets as the transmission shifts through ratios. These are not driver-operated.
• No Driver Control: The transmission's ECU manages all engagement and disengagement of the torque converter and internal clutches.
• Maintenance: The internal clutches and the torque converter are designed to last the lifetime of the transmission under normal operating conditions. They are not routine maintenance items like a manual clutch. If issues arise, these components are typically serviced or replaced during a full transmission rebuild, rather than as a standalone replacement.
• Operation: The torque converter provides a fluid coupling, allowing for slip and smooth power transfer, especially at low speeds. The internal clutches provide direct mechanical engagement once locked up for efficiency.

Comparison Table: Manual vs. Automatic Clutch Mechanisms

Frequently Asked Questions (FAQs)

Q: Can I 'ride' the clutch in an automatic car?

A: No, you cannot 'ride' the clutch in an automatic car in the same way you would a manual. Automatic transmissions manage their internal clutches and the torque converter automatically. What might feel like 'riding the clutch' in an automatic (e.g., holding it on the brake while applying some throttle) is the torque converter slipping, which is part of its normal operation, though excessive or prolonged 'stalling' (holding it stationary with throttle) can generate heat and reduce efficiency over time.

Q: Do all semi-automatic cars have paddle shifters?

A: Not all semi-automatic cars have paddle shifters. Many will have a sequential gear lever (often labelled '+/-') on the centre console, allowing the driver to push it forward or backward to shift gears. However, paddle shifters are a very common and convenient feature on most modern semi-automatics, especially those with a sporting pretence.

Q: Is a continuously variable transmission (CVT) a type of semi-automatic?

A: A CVT is distinct from a semi-automatic. While some CVTs offer 'simulated' gear changes that can be manually selected (often via paddles), a CVT fundamentally uses a belt and pulley system to provide an infinite range of gear ratios, rather than fixed gears. It uses either a wet clutch or a torque converter for launch, but its internal operation is very different from an AMT or DCT.

Q: Why don't manual cars have 'brake-by-wire' systems more commonly?

A: While the brake pedal itself can be 'by-wire' in any car, the 'manual' aspect refers to the driver's direct control over the clutch and gear selection. The type of braking system (traditional hydraulic vs. by-wire) is separate from the transmission type. However, 'by-wire' systems are often associated with more advanced driver assistance features and integrated electronic control, which are more prevalent in automatic and semi-automatic vehicles.

Q: Does braking hard damage the clutch in an automatic car?

A: No, braking hard does not directly damage the internal clutches or the torque converter in an automatic car. The transmission's ECU is designed to manage gear downshifts and clutch disengagement smoothly during braking, even under hard braking conditions. Excessive heat from prolonged, heavy use (e.g., towing a heavy load up a steep hill) is more likely to cause wear to automatic transmission components than braking itself.

In conclusion, the days of simple mechanical linkages are increasingly giving way to sophisticated electronic control. While your brake and accelerator pedals don't have direct mechanical connections to the clutch, their inputs are vital signals that the car's electronic control unit uses to precisely manage power delivery and gear changes, ensuring a smooth and efficient driving experience. Understanding these underlying principles helps demystify the complex workings of modern vehicle transmissions.
