Mastering Your SEAT Ibiza 4: A Comprehensive Tightening Torque Guide

Ensuring your SEAT Ibiza 4 (6J/6P) is maintained to the highest standard is paramount for its longevity and performance. A crucial aspect of this maintenance involves understanding and applying the correct tightening torques for various components. Whether you're an experienced DIY mechanic or new to car maintenance, this guide will equip you with the necessary knowledge to tackle common tasks with confidence. We'll delve into the specifics of tightening torques, focusing on essential areas like the oil drain plug and oil filter, and provide a clear, actionable resource to help you keep your Ibiza running smoothly.

Why Are Tightening Torques So Important?

Tightening torque refers to the specific amount of rotational force applied when fastening a component. Using the correct torque is vital for several reasons. Firstly, over-tightening can strip threads, damage gaskets, or even crack components. This can lead to costly repairs and potential safety hazards. Conversely, under-tightening can result in leaks, vibrations, and components coming loose, which can also compromise safety and lead to premature wear. For example, an oil drain plug that's not tight enough can lead to a significant oil leak, potentially causing catastrophic engine damage due to oil starvation. Similarly, an oil filter that isn't seated correctly can allow oil to escape, affecting lubrication and engine health. Adhering to manufacturer-specified torques ensures that components are secured effectively without causing damage, maintaining the integrity of the system they are part of.

Locating and Replacing the Sump Plug: A Step-by-Step Approach

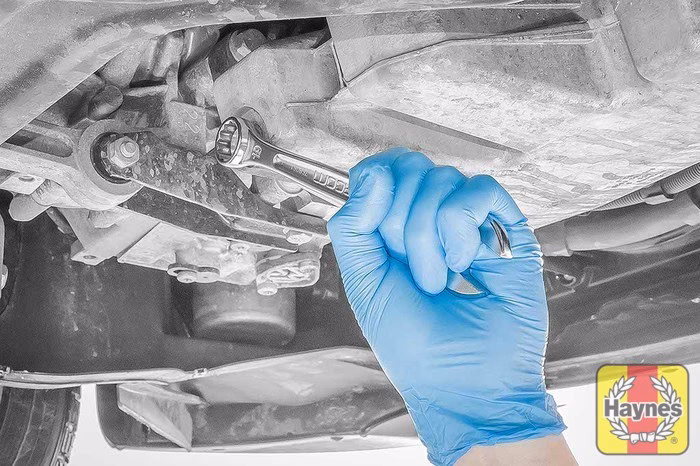

The sump plug, also known as the oil drain plug, is a small but critical component located at the lowest point of the engine's oil sump. Its primary function is to allow for the draining of old engine oil during an oil change. Accessing the sump plug typically requires getting underneath the vehicle. You might need to remove an undertray or sump cover, which is usually secured by several fixings. These fixings often require a Torx socket, commonly a Torx-25, to undo them. Once the undertray is removed, you'll be able to locate the sump plug. Before attempting to remove it, it's essential to place a suitably sized oil receiving tray directly beneath the plug to catch the draining oil. The sump plug itself is usually removed using a spanner or socket, typically a 19mm in the case of the SEAT Ibiza 4. Exercise caution when undoing the plug, as the oil may still be hot. Once the oil has completely drained, thoroughly clean the area around the sump plug with a paper towel to remove any residual oil and debris. This ensures a clean surface for the plug to seal against when it's refitted.

SEAT Ibiza 4 (6J/6P) Tightening Torque Specifications

To assist you in performing maintenance on your SEAT Ibiza 4, we've compiled the most commonly required tightening torque values. It's always recommended to consult your vehicle's specific service manual for the most accurate and up-to-date information, but these figures provide a reliable starting point for essential tasks.

Table 1: Most-Used Torque Specs for SEAT Ibiza 4 (6J/6P)

It's important to note that the torque for the oil drain plug is a consistent 15 Nm (11 ft/lbs) across the board for the SEAT Ibiza 4. The oil filter torque also remains constant at 20 Nm (15 ft/lbs), but it's crucial to be aware of the specific engine variants these apply to, as listed in the table. This consistency simplifies basic maintenance procedures.

Understanding Oil Pump Torque Requirements

While the SEAT Ibiza 4's oil drain plug and filter have specific, relatively low torque requirements, it's worth noting that other engine components, such as the oil pump, can have significantly different needs. Generally, most oil pumps require a torque of at least 50 foot-pounds. However, this can vary considerably between manufacturers and even between different models from the same manufacturer. For instance, some Ford and Chrysler vehicles might have much lower torque specifications for their oil pumps, sometimes as low as 25 foot-pounds or 35 foot-pounds for later models. This highlights the importance of consulting a qualified technician or referring to the official service manual for your specific vehicle when dealing with more complex engine components. Incorrect torque on an oil pump could lead to leaks or operational issues, impacting the entire lubrication system.

Verifying Your SEAT Ibiza 4 Model

To ensure you are using the correct torque specifications, it's helpful to verify that you have the SEAT Ibiza 4 (6J/6P) model. You can usually find this information on your vehicle's registration documents or by checking the VIN (Vehicle Identification Number) plate, typically located on the dashboard or the driver's side doorjamb. The engine codes listed in the table (DADA, CHZB, CHZL, etc.) are specific to certain generations and configurations of the Ibiza 4. Confirming your engine code can provide an extra layer of certainty when performing maintenance.

Additional Tightening Tips for Your Ibiza

When tightening any component, always ensure the threads are clean and free from dirt or old thread-locking compound. If the component requires thread sealant or locking compound, ensure you use the correct type as specified by SEAT. Always use a calibrated torque wrench to achieve the precise torque setting. Start by tightening the fastener by hand until snug, then use the torque wrench to reach the final specified torque. If you are tightening multiple fasteners in a specific pattern (e.g., a cylinder head or wheel nuts, though not covered here), always follow a star pattern or criss-cross sequence to ensure even pressure distribution. This is crucial for preventing warping or uneven stress on the component. For parts like the oil filter, a light application of clean engine oil on the rubber gasket can help ensure a good seal and prevent it from sticking to the engine block during the next oil change.

Frequently Asked Questions (FAQs)

• What happens if I overtighten the oil drain plug? Overtightening can damage the threads in the oil sump, making it difficult or impossible to remove the plug later, or it could strip the threads entirely, requiring costly repairs to the sump pan. It can also damage the crush washer, leading to leaks.
• Can I reuse the oil drain plug washer? It is highly recommended to replace the oil drain plug washer (often a crush washer) every time you change the oil. These washers are designed to deform and create a seal, and reusing them can compromise this seal, leading to oil leaks.
• How do I know if my torque wrench is accurate? For best results, have your torque wrench calibrated annually by a professional service. If you suspect inaccuracy, compare its readings with a known accurate wrench or avoid using it for critical applications until it has been checked.
• Is the torque for the oil filter always the same? While the SEAT Ibiza 4 specifies 20 Nm for its filters, torque specifications for oil filters can vary between different car models and filter types. Always check the filter manufacturer's recommendations or your vehicle's service manual.
• Where can I find a more detailed service manual for my SEAT Ibiza 4? Official SEAT service manuals can often be purchased from SEAT dealerships or through specialist automotive repair manual publishers. Online forums dedicated to SEAT vehicles can also be a good resource for information and advice from other owners.

By understanding and applying the correct tightening torques, you are taking a significant step towards maintaining the health and reliability of your SEAT Ibiza 4. Regular, proper maintenance, including adhering to these specific torque values, will ensure your vehicle serves you well for years to come.
