Seadoo 787/800cc Cylinder Compatibility: A Comprehensive Guide

When embarking on a rebuild or repair for your Seadoo 787/800cc engine, selecting the correct cylinder is paramount. One common query revolves around the compatibility of WSM cylinders with these popular PWC powerplants. This article aims to demystify this question, providing a detailed overview of WSM cylinder fitment, piston considerations, and crucial steps for ensuring a robust engine rebuild.

WSM Cylinder Fitment for Seadoo 787/800cc Engines

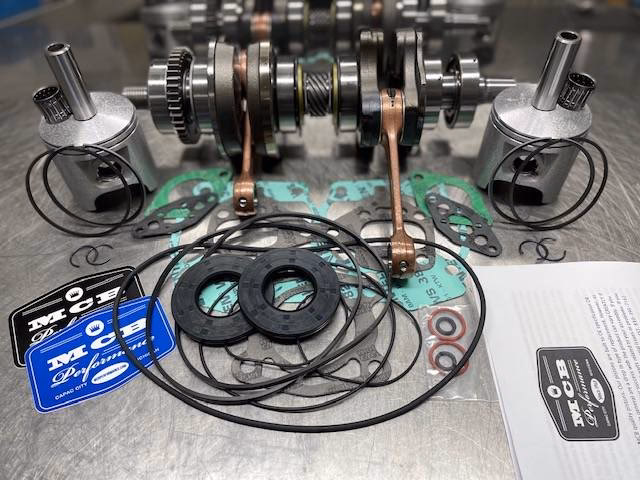

The primary question on many a Seadoo owner's mind is whether a WSM cylinder will seamlessly integrate with their 787 or 800cc engine. The good news is that WSM offers cylinders specifically designed to fit all Seadoo 787/800cc Silver and white engine variants. This means that if your Seadoo is equipped with one of these engine blocks, a WSM cylinder kit is a viable and often high-performance replacement option.

Understanding WSM Cylinder Construction

WSM cylinders are known for their robust construction. They are typically manufactured as a full cast unit. This casting process contributes to their durability and reliability. Furthermore, WSM cylinders often come supplied with Rik Japanese high-performance rings. These rings are engineered for superior sealing, reduced friction, and enhanced power delivery, making them an excellent complement to the cylinder's performance.

Piston Choices: WSM vs. Wiseco

When rebuilding an engine, the choice of pistons is as critical as the cylinders themselves. It's important to understand the differences between piston manufacturers and their associated ring sets. WSM cylinders are often paired with their own piston offerings, or can be used with other reputable brands. A key comparison point is Wiseco pistons.

Wiseco pistons are renowned for being forged. Forging is a manufacturing process that heats and shapes metal, resulting in a stronger, more resilient piston capable of withstanding higher stresses and temperatures. Wiseco pistons exclusively use Wiseco high-performance rings. These rings are designed to work in perfect harmony with Wiseco's forged pistons, ensuring optimal compression, efficient oil control, and longevity.

The choice between WSM and Wiseco pistons, and their respective rings, often comes down to intended use and budget. For high-performance applications or engines that will be pushed to their limits, forged Wiseco pistons might be the preferred choice. However, WSM cylinders paired with their own high-quality rings offer an excellent balance of performance and value for a wide range of Seadoo owners.

Bore Sizing and Piston Selection: A Critical Step

Proper bore sizing is arguably the most crucial aspect of a successful cylinder rebuild. Incorrect sizing can lead to poor compression, excessive oil consumption, and premature engine failure. The general rule of thumb is to order Std size pistons if your existing cylinders only require a light hone to clean up the bore. Honing is a process that refines the cylinder wall's surface finish, creating the ideal cross-hatch pattern for piston ring lubrication and sealing.

However, if your engine's bores exhibit more significant damage – such as deep scoring, chipping, or cracks – a simple hone may not suffice. In such cases, you will need to order the correct oversize piston kit. The cylinder will need to be bored out to match the dimensions of the oversize piston.

Understanding Oversize Tolerances

It's vital to understand the relationship between metric and imperial measurements when ordering oversize pistons. For example, 1.00mm is equivalent to .040 inches. This means that if your cylinder bore needs to be enlarged by 1.00mm, you'll be using a piston that is 1.00mm larger than the standard size.

When honing or boring a cylinder, there's a limit to how much material can be removed from the cylinder wall while still maintaining structural integrity and proper ring seal. Generally, you will only be able to hone up to .020 inches into your cylinder wall for it to clean up for a finish hone. If the damage extends deeper than this, or if the cylinder wall is compromised beyond this limit, it will necessitate the replacement of the cylinder sleeve.

When Sleeving is Necessary

If your inspection reveals heavy scoring, chipping, or cracks in the cylinder bore that cannot be resolved by boring to the next oversize, a cylinder sleeve replacement is the only viable solution. This process involves removing the old, damaged sleeve and installing a new one, which is then bored to the required finish size. This ensures a perfectly round and smooth cylinder bore, ready to accept the new piston and rings.

Essential Cylinder Inspection: What to Look For

Before ordering any parts, a thorough inspection of your existing cylinders is absolutely essential. This will dictate whether you need standard pistons, oversize pistons, or a complete sleeve replacement. Pay close attention to the following:

• Scoring: Look for longitudinal scratches or gouges on the cylinder walls. Light honing may remove minor scoring, but deep grooves can compromise the seal and require boring or sleeving.
• Chipping: Inspect the top and bottom edges of the cylinder bore, as well as the cylinder walls, for any signs of material being chipped away. Chipped areas can create hotspots and leak paths.
• Cracks: Carefully examine the cylinder walls and the deck surface for any visible cracks. Cracks can propagate under heat and pressure, leading to catastrophic engine failure.
• Wear Pattern: Observe the wear pattern on the cylinder walls. Uneven wear can indicate issues with the piston, connecting rod, or crankshaft alignment.
• Ovality/Taper: Use a bore gauge to measure the cylinder's diameter at multiple points and at different heights. Significant deviation from a perfect circle (ovality) or a consistent change in diameter from top to bottom (taper) will require boring or sleeving.

Table: Piston and Bore Size Considerations

Frequently Asked Questions (FAQs)

Q1: Can I use Wiseco pistons with WSM cylinders?

A1: Yes, generally you can use Wiseco pistons with WSM cylinders, provided they are the correct bore size and spec for your Seadoo 787/800cc engine. However, for optimal performance and longevity, it's often recommended to use pistons and rings specifically designed to work together as a set.

Q2: How much can I bore a cylinder?

A2: The amount you can bore a cylinder depends on the original cylinder material, the type of damage, and the sleeve thickness. As a general guideline, for most cast iron sleeves, you can typically bore up to .040 inches (1.00mm) oversize. Beyond that, or if there's significant damage, a sleeve replacement is usually necessary.

Q3: What is the difference between forged and cast pistons?

A3: Forged pistons are made from a single billet of aluminum that is heated and hammered into shape. This process aligns the metal's grain structure, making them stronger, more durable, and better able to withstand high temperatures and pressures. Cast pistons are made by pouring molten aluminum into a mold. They are less expensive but also less strong and more prone to distortion under extreme conditions.

Q4: Why is the cylinder bore finish important?

A4: The cylinder bore finish, typically a cross-hatch pattern created by honing, is crucial for proper piston ring lubrication and sealing. It allows a thin film of oil to be retained on the cylinder wall, reducing friction between the piston rings and the cylinder. It also helps the rings to seat properly against the cylinder wall, ensuring a tight seal for optimal compression and preventing blow-by.

Conclusion

In summary, WSM cylinders are a compatible and often excellent choice for Seadoo 787/800cc engines. When undertaking a rebuild, careful attention to piston selection, understanding bore sizing tolerances, and performing a meticulous inspection of your existing cylinders are critical steps. By following these guidelines, you can ensure a successful engine rebuild that delivers reliable performance and longevity for your PWC.
