Understanding the Ford SDS Engine Management System

For enthusiasts seeking to unlock the full potential of their Ford engine, particularly those with older EEC (Electronic Engine Control) systems, the SDS (Sequential Drive System) Programmable Engine Management system offers a compelling and powerful upgrade. This standalone digital injection system completely replaces the factory EEC computer, taking comprehensive control of all fuel injection and ignition functions. It's a robust solution designed for performance, offering unparalleled tuneability and ease of use, even for those new to fuel injection tuning.

What is the Ford SDS System?

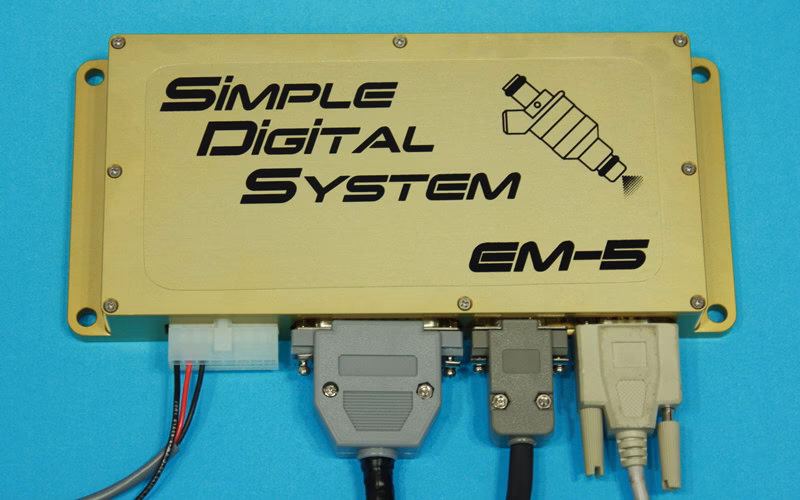

At its core, the Ford SDS is a sophisticated, standalone digital engine management system. It's engineered to directly replace the original Ford EEC computer, providing a modern and highly adaptable platform for controlling your engine's vital functions. Unlike simpler upgrades, the SDS takes over both fuel delivery and ignition timing, offering a truly integrated approach to engine tuning. This allows for finer control over a wider range of parameters, leading to improved performance, drivability, and fuel efficiency.

Key Features and Benefits of the SDS System

The SDS system boasts a suite of features designed to make it both powerful and user-friendly:

• Plug-and-Play Installation: Often cited as the easiest engine management system to install and program on the market, the SDS can typically be up and running in around two hours. This significantly reduces downtime and the complexity typically associated with such upgrades.
• Standalone Operation: It operates as a completely independent system, meaning it doesn't rely on any other factory ECUs or modules for its core functions.
• Superior Tuneability: The SDS offers far greater tuning flexibility compared to simpler upgrades like mass air conversions. Crucially, it requires no additional chips or separate software for programming, streamlining the tuning process.
• Forced Induction Compatibility: The system is designed to handle boosted applications, supporting superchargers and turbochargers up to 30 lbs of boost out of the box. It manages crucial parameters like fuel enrichment, timing retard, and boost limits. Optional map sensors are available for even higher boost levels (up to 60 lbs).
• No Laptop Required for Basic Tuning: A standout feature is its ability to be programmed using a simple, included handheld programmer. This eliminates the need for an expensive laptop and complex software, making tuning accessible even to those who are experienced with carburettor tuning but new to EFI.
• Real-Time Diagnostics and Tuning: The handheld programmer allows for full sensor diagnostics and real-time tuning adjustments. If you can tune a carb, you can tune an SDS system.
• Wideband O2 Datalogging: The system includes datalogging capabilities for a wideband O2 sensor. This crucial feature captures the air/fuel ratio (AFR) at various RPMs, storing it in memory. The AFR data is then displayed in an easy-to-understand format on the programmer, making it straightforward to identify and correct rich or lean conditions across the RPM range.
• Optional 8-Channel Datalogging: For more in-depth analysis, an optional 8-channel data logging package is available, allowing you to capture and transfer data to a laptop for further review and tuning.
• Knock Sensor Compatibility: The SDS can be integrated with a knock sensor, allowing for automatic ignition timing adjustments to prevent detonation and protect your engine.
• Lean Warning and Automatic Enrichment: With a wideband O2 sensor, the system can provide a lean warning and automatically enrich the fuel mixture when lean conditions are detected.
• Lean/Rich Adjustment Knob: A convenient knob allows for on-the-fly adjustments of +/- 50% to the fuel pulse width, facilitating quick tuning modifications to improve drivability or performance.
• No Mass Air Flow (MAF) Sensor Required: The SDS does not rely on a restrictive MAF sensor, which often requires recalibration when injector sizes or engine components are changed. This flexibility means you can easily adapt the system to your engine's modifications.
• Pre-programmed Curves: The system comes with pre-programmed fuel and timing curves to enable initial engine startup. Once the engine is running, the tuning process is simplified.
• Excellent Drivability: The flexibility of the SDS system ensures excellent drivability for street, drag, and road race applications. A race car can be easily tamed for street use.
• Engine Swap Friendly: It's an ideal solution for 5.0 and 4.6 EFI engine swaps into earlier Mustangs, Cobras, and hot rods.
• Proven Reliability: With over 20 years of proven performance in a wide range of applications, including street cars, race cars, trucks, boats, and even aircraft, the SDS has a solid track record.
• Warranty and Support: The system comes with a 1-year warranty and comprehensive technical support.

What's Included with an SDS System?

A complete SDS system typically includes:

Everything required to install and program the SDS on a Ford EEC-controlled engine is generally included, with the exception of an ignition box. For distributor engines (like the 5.0, 351W, 460, 2.3), a basic MSD 6A or similar ignition box is needed. For 4.6/5.4 engines, an MSD DIS4 ignition system is recommended for coil-pack or coil-on-plug setups. The SDS system controls ignition timing and rev limits, so only a basic ignition box is required.

Installation Options: Plug-in vs. Full Harness

The SDS system is available in two primary wiring configurations:

Plug-in Systems

These systems are designed to directly integrate with the factory Ford engine harness. They utilise existing factory sensors such as water temperature, air temperature, and throttle position sensors. The SDS system interfaces with the Ford TFI distributor trigger and controls the ignition box. This simplifies installation considerably, as the original EEC computer is removed, and the SDS harness plugs directly into the EEC's port on the Ford engine harness. Only a few connections to the ignition box and power/ground are typically needed.

Full Harness Systems

For custom engine swaps or conversions from carburettor to EFI, full harness systems provide a complete wiring solution. These kits include a complete computer-to-engine wiring harness and often come with essential sensors like air temperature, water temperature, and MAP sensors. This allows for a clean and comprehensive installation, especially when integrating a Ford EFI system into an older vehicle or a non-Ford engine.

SDS System Adjustability: Fine-Tuning Your Engine

The true power of the SDS system lies in its extensive adjustability, allowing for precise tuning of virtually every engine parameter. The handheld programmer provides access to:

Fuel Control

• Fuel Curve by RPM: Adjust fuel delivery in 250 RPM increments from 500 to 9750 RPM.
• Fuel Curve by Manifold Pressure: 64 points of adjustment from 28" vacuum to +0.8 lbs.
• Fuel Curve by Boost: 64 points of adjustment from 28" vacuum to +30 lbs boost.
• Fuel Curve by Air Temperature: 64 points of adjustment from -58°C to +392°C.
• Fuel Curve by Water Temperature: 32 points of adjustment from -32°C to +212°C.
• Cold Start Fuel Curve: 32 points of adjustment from -32°C to +212°C to ensure smooth cold starts.
• Accelerator Pump Function: Three distinct adjustments to fine-tune throttle response.
• Closed Loop Operation: Program on/off points for closed loop operation based on RPM and MAP.

Ignition Control

• Ignition Curve by RPM: Set ignition timing in 250 RPM increments from 500 to 9750 RPM.
• Ignition Retard for Boost: 64 points of adjustment to retard timing based on boost pressure from 28" vacuum to +30 lbs boost.
• Ignition Advance for Cruise: Optimise ignition timing for better mileage and drivability during cruising.
• Rev Protection: Set rev limiters in 250 RPM increments from 500 to 9750 RPM.
• Boost Protection: Set boost limits up to 30 lbs boost.
• Knock Sensor Sensitivity: Adjust sensitivity and timing retard based on knock sensor input.
• Electric Fan Control: Set on/off temperatures for the radiator electric fan.
• Fast Idle Control: Set on/off temperatures for fast idle functions.

Programming the SDS System

The SDS LCD Programmer is a key differentiator. It allows for intuitive adjustments without the need for a laptop. Users can navigate through the various parameters, select a value, and change it with simple button presses. The interface is designed to be straightforward, eliminating complex menus and the need to learn new software. Once programmed, the controller can often be removed, as the system automatically compensates for changes in temperature, air density, and altitude. However, for more advanced tuning or performance analysis, the optional 8-channel datalogging to a laptop is invaluable.

Gauge Modes

The programmer also features various gauge modes, allowing real-time monitoring of critical engine parameters:

• Gauge 1: Displays Manifold Pressure (MP), RPM, Engine Temperature (ET), and Air Temperature (AT).
• Gauge 2: Shows Mixture Knob position, Injector Duty Cycle, and Ignition Timing.
• Gauge 3: Displays Voltage and Throttle Position Sensor (TPS).
• Gauge 4: Monitors RPM, MAP, AFR, and Ignition Timing.

These gauge modes provide essential real-time feedback, enabling drivers to monitor engine health and performance at a glance.

Applications

The SDS system is highly versatile and finds application in a wide range of Ford vehicles and engine swaps:

• Mustang: 86-93 5.0, 94-95 5.0, 96-98 GT and Cobra 4.6, 99-04 GT and Cobra 4.6 (note: stock gauges may not work with 99-04 models).
• Turbo Cars: 2.3 Turbo applications including 84-86 SVO, 85-88 T-Bird, 85-89 Merkur XR4Ti.
• Other Ford Cars: 89-93 T-Bird 5.0, 83-87 Crown Vic 5.0.
• Trucks and Broncos: 86-95 F150 and Bronco with 5.0, 5.8, and 460 engines.
• Engine Swaps: Full harness systems are available for most Ford V8s with distributors (5.0/289/302/351W/351C/460), Ford 2.3 Turbos, and 4.6/5.4 2V and 4V engines.

Do I need a fuel system upgrade?

If your horsepower output is similar to factory levels, your existing fuel tank, pumps, lines, and injectors should be adequate. However, if you're aiming for significantly increased power, an upgrade to some or all of these fuel system components will likely be necessary to ensure proper fuel delivery.

Frequently Asked Questions

Q: What is a SDS engine management system?

A: The SDS (Sequential Drive System) is a programmable, standalone digital engine management system that replaces the factory Ford EEC computer to control fuel injection and ignition functions for enhanced performance and tuneability.

Q: Is the SDS system difficult to install?

A: No, the SDS system is designed for relatively easy installation, often achievable in around two hours, especially the plug-in systems. It's user-friendly even for those new to fuel injection.

Q: Do I need a laptop to tune the SDS system?

A: For basic tuning and diagnostics, a laptop is not required. The system comes with a handheld programmer that makes tuning accessible and straightforward.

Q: Can the SDS system handle forced induction?

A: Yes, the SDS system is compatible with superchargers and turbochargers up to 30 lbs of boost out of the box, with options for higher boost levels.

Q: What is the advantage of datalogging with a Wideband O2 sensor?

A: Datalogging with a Wideband O2 sensor allows you to accurately monitor and adjust your air/fuel ratio across the entire RPM range, ensuring optimal performance and preventing engine damage from lean conditions.

Q: Can I use the SDS system for engine swaps?

A: Absolutely. The SDS system, particularly the full harness options, is an excellent choice for engine swaps, allowing for custom EFI integration into a wide variety of vehicles.

The Ford SDS Programmable Engine Management system represents a significant leap forward for Ford EFI tuning, offering a blend of advanced control, user-friendly operation, and robust performance capabilities. Whether you're looking to fine-tune a stock engine or build a high-performance boosted powerplant, the SDS provides the tools you need to achieve your goals.
