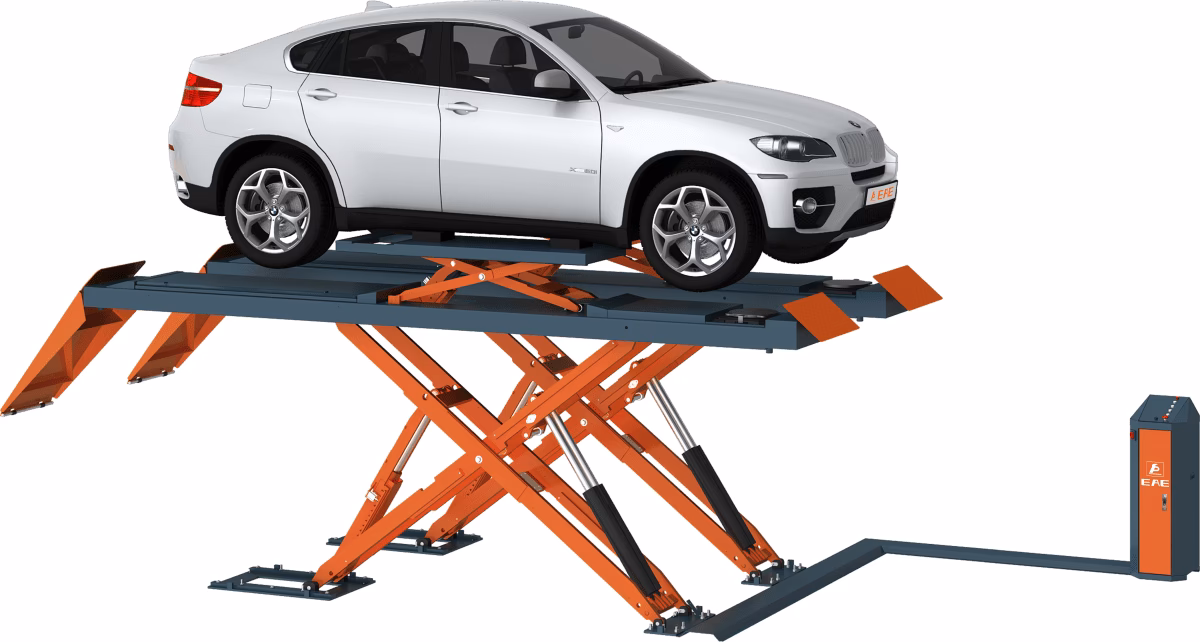

Low Profile Double Ram Scissor Lifts Explained

In the world of automotive maintenance and repair, the right equipment can make all the difference. For workshops and home garages alike, efficient and effective lifting solutions are paramount. Among the various types of vehicle lifts available, the low profile double ram scissor lift stands out for its unique design and practical benefits. This type of lift offers a compelling combination of compact storage, ease of use, and robust lifting power, making it a popular choice for a wide range of automotive tasks.

Understanding the Basics: What is a Scissor Lift?

Before diving into the specifics of the low profile double ram variant, it's essential to understand what a scissor lift is. At its core, a scissor lift is a mechanical device that uses a system of linkages, arranged in a criss-cross or 'scissor' pattern, to raise or lower a platform. As the linkages are extended, the platform is lifted; as they are retracted, the platform descends. This mechanism is powered by hydraulic or mechanical means, providing the force needed to lift heavy loads.

The 'Double Ram' Advantage

The term 'double ram' refers to the lifting mechanism employed. In a double ram scissor lift, there are two hydraulic cylinders (rams) that are responsible for extending and retracting the scissor mechanism. This dual-ram design typically offers several advantages over single-ram systems, including:

• Increased Stability: With two lifting points, the weight distribution is more even, leading to a more stable and secure lift, especially when lifting heavier vehicles.
• Enhanced Lifting Capacity: The two rams can collectively generate more force, allowing the lift to handle higher weight capacities.
• Smoother Operation: The synchronized action of two rams can contribute to a smoother and more controlled lifting and lowering process.

Defining 'Low Profile'

The 'low profile' aspect is what truly sets this type of scissor lift apart. A low profile scissor lift is designed with a much lower minimum height when fully lowered compared to standard scissor lifts. This characteristic is incredibly important for several reasons:

• Accessibility for Low Vehicles: Modern sports cars, performance vehicles, and even many regular saloons have very low ground clearance. Standard lifts often struggle to get underneath these vehicles. A low profile lift, with its minimal retracted height, can easily slide under these cars without the need for ramps or extensive positioning adjustments. This dramatically improves workflow and reduces the risk of damage to vehicle components.
• Space-Saving Storage: When not in use, many low profile scissor lifts can be folded down to a very compact size, often requiring minimal space for storage. This is a significant advantage for home garages or workshops where space is at a premium.
• Portability (in some models): Some lighter-duty low profile scissor lifts are designed to be portable, allowing them to be moved around the workshop or even taken to different locations.

How Does a Low Profile Double Ram Scissor Lift Work?

The operation of a low profile double ram scissor lift is relatively straightforward, involving a hydraulic system:

1. Positioning: The lift is positioned under the vehicle, typically aligning with the vehicle's jacking points. The low profile design is crucial here, allowing it to slide easily beneath the vehicle.
2. Engagement: The lift's arms or pads are raised to contact the designated jacking points on the vehicle.
3. Lifting: The hydraulic pump is activated, sending hydraulic fluid under pressure to the two rams. These rams extend, pushing against the scissor mechanism. As the scissor arms extend outwards and upwards, they lift the vehicle platform, and consequently, the vehicle itself.
4. Locking: Most scissor lifts feature safety locking mechanisms. These engage at various heights to prevent accidental lowering and provide an extra layer of security. The operator typically selects the desired lock position.
5. Lowering: To lower the vehicle, the operator activates a release valve, which allows the hydraulic fluid to return to the reservoir. The weight of the vehicle, combined with gravity, causes the scissor arms to retract, lowering the vehicle back to the ground.

Key Features and Considerations

When looking to purchase a low profile double ram scissor lift, several key features and considerations should be taken into account:

Lifting Capacity

This is perhaps the most critical specification. Lifts are rated for a maximum weight capacity. Ensure the lift you choose can comfortably handle the weight of the vehicles you intend to work on, with a safety margin. Capacities can range from around 2,000 kg (approx. 4,400 lbs) for lighter-duty home use to 4,000 kg (approx. 8,800 lbs) or more for professional workshops.

Minimum and Maximum Lifting Height

The 'low profile' aspect refers to the minimum height. However, also consider the maximum lifting height. This determines how high you can raise the vehicle, which is crucial for comfortable working underneath. Typical maximum heights can range from 1 meter (approx. 40 inches) to over 1.5 meters (approx. 60 inches).

Power Source

Most scissor lifts are powered by electric hydraulic pumps, which require a standard mains power supply (e.g., 230V in the UK). Ensure you have access to the appropriate power outlet.

Safety Features

Look for lifts with robust safety features, including:

• Automatic Safety Locks: As mentioned, these prevent accidental lowering.
• Emergency Stop Button: For immediate shutdown in case of an issue.
• Overload Protection: Prevents the lift from being operated beyond its rated capacity.
• Stable Base and Pads: Ensure the lift has a solid base and non-slip, protective pads to prevent damage to the vehicle's chassis.

Construction and Build Quality

The materials and construction methods used will impact the lift's durability and longevity. Look for sturdy steel construction and a good quality finish to resist corrosion.

Portability vs. Fixed Installation

Some low profile scissor lifts are designed to be relatively portable, often with castor wheels or a towing handle. Others are more substantial and may require a more fixed installation. Consider how you plan to use the lift and whether portability is a priority.

Advantages of Low Profile Double Ram Scissor Lifts

The combination of 'low profile' and 'double ram' offers significant benefits:

• Excellent for Low Clearance Vehicles: This is the primary advantage. Accessing sports cars, modified vehicles, or even standard cars with aerodynamic body kits is made significantly easier.
• Space Efficiency: When lowered, they occupy less space than many other types of lifts, such as two-post or four-post lifts. This makes them ideal for smaller garages.
• Versatility: They can be used for a wide range of tasks, from routine maintenance like oil changes and brake work to more involved repairs.
• Ease of Use: Many models are designed for intuitive operation, making them accessible even for less experienced users.
• Quick Lifting: The hydraulic system typically provides relatively fast lifting times, improving productivity.

Potential Drawbacks

While highly beneficial, there are a few potential considerations:

• Lifting Height Limitations: Compared to taller two-post or four-post lifts, scissor lifts generally offer less maximum lifting height. This might be a factor if you need to lift vehicles very high for extensive underbody work or to store vehicles one above the other.
• Platform Width: The platform width might be a consideration for very wide vehicles.
• Requires Flat Surface: Like most lifts, they require a firm, level, and flat surface for safe operation.

Typical Applications

Low profile double ram scissor lifts are commonly found in:

• Home Garages: For enthusiasts who want to perform their own maintenance and modifications.
• Small to Medium Workshops: Where space is limited or a variety of vehicles, including low sports cars, are serviced.
• Tyre Shops and Mobile Mechanics: Their relatively compact nature and ability to lift low vehicles make them suitable for tyre fitting and mobile repair services.
• Showrooms: To display vehicles at an elevated height.

Comparison with Other Lift Types

Let's briefly compare the low profile double ram scissor lift with other common lift types:

Frequently Asked Questions (FAQs)

Q1: Can a low profile double ram scissor lift safely lift an electric vehicle (EV)?

A: Yes, provided the lift has sufficient lifting capacity for the EV's weight (EVs can be heavier due to batteries) and the lift's contact pads are positioned correctly on the vehicle's designated jacking points. Always check the vehicle's owner manual and the lift's specifications.

Q2: What kind of maintenance do these lifts require?

A: Regular maintenance typically includes checking hydraulic fluid levels, inspecting hoses for leaks, lubricating moving parts, and ensuring safety locks are functioning correctly. Periodic professional inspections are also recommended.

Q3: Are they difficult to set up?

A: Setup is generally straightforward. Most require connection to a power source and ensuring the ground surface is level. Some portable models may involve attaching small wheels or handles.

Q4: What is the typical lifespan of a low profile double ram scissor lift?

A: With proper maintenance and use within its rated capacity, a good quality scissor lift can last for many years, often a decade or more.

Q5: Do I need special tools to operate it?

A: No, operation is typically controlled via simple hydraulic levers or buttons. The main 'tool' involved is the lift itself.

Conclusion

The low profile double ram scissor lift is a highly practical and versatile piece of equipment for any automotive enthusiast or professional mechanic. Its ability to easily access low-slung vehicles, combined with its space-saving design and stable lifting capabilities, makes it an excellent investment. Whether you're working in a compact home garage or a busy professional workshop, understanding the benefits and specifications of these lifts can help you choose the right solution to elevate your automotive work.
