Saab 9-5 Oil Cooler Line Repair

The Saab 9-5, a car renowned for its distinctive Scandinavian design and often turbocharged performance, relies on a robust cooling system to maintain optimal engine temperatures. A crucial, yet often overlooked, component of this system is the oil cooler line. These lines are responsible for circulating transmission fluid (in the case of automatic transmissions) or engine oil to an external cooler, preventing overheating and ensuring the longevity of vital mechanical parts. When these lines develop issues, it can lead to a cascade of problems, impacting performance and potentially causing significant damage. This article delves into the specifics of the oil cooler lines for the Saab 9-5, addressing common concerns, replacement strategies, and clarifying important details regarding their purchase, including return warranties.

Understanding the Saab 9-5 Oil Cooler Lines

For automatic transmission models of the Saab 9-5, the oil cooler lines are specifically designed to manage the heat generated by the transmission fluid. Over time, these lines can degrade due to constant exposure to heat, pressure, and the corrosive nature of transmission fluid and environmental factors. Signs of failure can include leaks, often noticeable as red or brown fluid under the vehicle, a burning smell, or a noticeable drop in transmission performance, such as slipping gears or delayed engagement. While some 9-5 models may also have engine oil cooler lines, the focus here is on the transmission cooler lines as indicated by the provided reference numbers.

Common Issues and Symptoms of Failure

The integrity of the oil cooler lines is paramount. When they fail, several issues can arise:

• Leaks: This is the most common symptom. Leaks can occur at the fittings, along the length of the hose, or at the connection points to the transmission or the cooler itself. Low transmission fluid levels due to leaks can lead to inadequate lubrication and cooling, causing internal transmission damage.
• Overheating: A compromised cooling system, including faulty cooler lines, will result in the transmission fluid overheating. This can degrade the fluid's properties, reduce its lubricating effectiveness, and lead to excessive wear on transmission components.
• Performance Degradation: As the transmission fluid level drops or its temperature rises, you might experience symptoms like rough shifting, gear slippage, or a complete loss of drive.
• Corrosion and Abrasion: The lines are routed under the vehicle, making them susceptible to damage from road debris, salt (in winter climates), and general wear and tear. The rubber or braided material can become brittle, crack, or be physically compromised.

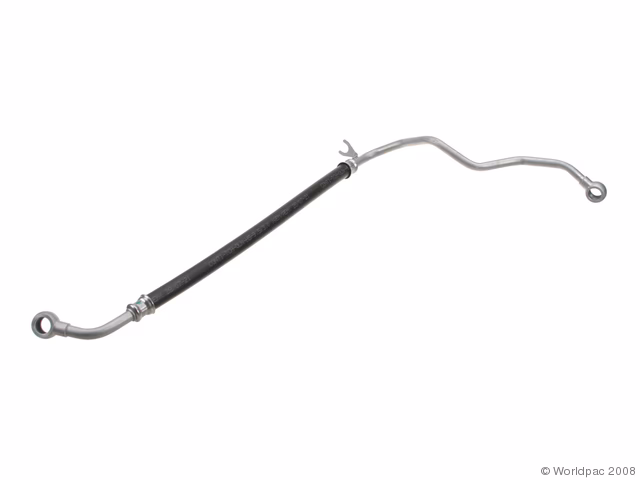

Identifying the Correct Oil Cooler Line Kit

For the Saab 9-5, several part numbers are associated with the complete oil cooler line kit for automatic transmissions. These include, but are not limited to: 12775715, 12775716, 12775717, 12775718, 4576260, 4576278, 4839932, 5193974, 5194014, and 5194873. It is crucial to verify the exact part numbers that correspond to your specific Saab 9-5 model year and transmission type. Consulting your vehicle's service manual or a reputable Saab parts specialist is highly recommended to ensure you order the correct components. Using the wrong part can lead to improper fitment, leaks, and potential damage.

Table of Common Part Numbers and References

While direct cross-referencing without a specific vehicle VIN can be complex, the following table lists the provided part numbers. Always double-check compatibility:

Note: These numbers often represent different sections or variations of the complete cooler line assembly.

Return Warranty Considerations for Saab 9-5 Parts

The question of a "return warranty" for a Saab 9-5 oil cooler line kit brings up important points about purchasing automotive parts. As stated, "Our return warranty is not applicable to electrical and special ordered parts." While oil cooler lines are typically mechanical, not electrical, it's essential to understand the supplier's specific terms. Generally, mechanical parts like hoses and fittings are returnable if they are unused, in their original packaging, and within a specified return period. However, there are crucial exceptions and considerations:

• Electrical Components: If any part of the kit included sensors or electrical connectors, those specific items would likely fall under the non-returnable category.
• Special Orders: If the oil cooler line kit is a "special order" item, meaning it's not a commonly stocked part and had to be ordered specifically for your vehicle, it may also be non-returnable. This is a common policy for unique or less frequently requested parts.
• Used or Installed Parts: Once an oil cooler line kit has been installed or even unpacked in a way that compromises its resalable condition, it is almost always non-returnable. This is a standard policy across most automotive parts suppliers.
• Defective Parts: If the part is found to be defective upon arrival or installation, the return policy might differ, often allowing for an exchange or refund under warranty for manufacturing defects. However, proof of defect is usually required.
• VAT and Pricing: The information "All prices are ex 21% VAT unless stated differently" indicates that the price quoted does not include Value Added Tax, which is standard in many European countries. This detail is more about pricing structure than return policy but is good to note for cost calculations.

What to Do Before Purchasing

Before committing to a purchase, it is highly advisable to:

1. Verify Part Compatibility: Use your vehicle's VIN to confirm the exact part number required.
2. Read the Supplier's Full Return Policy: Look for the detailed terms and conditions regarding returns, exchanges, and warranty claims on the supplier's website or by contacting their customer service directly.
3. Confirm if it's a Special Order: Ask the supplier if the specific kit you are interested in is a stocked item or a special order.
4. Inspect Upon Arrival: When the part arrives, carefully inspect it for any damage or defects before installation. Keep all original packaging until you are certain the part is correct and functional.

Installation and Maintenance Tips

Replacing the oil cooler lines requires a good understanding of automotive mechanics. It's a task that often involves working under the vehicle, draining and refilling transmission fluid, and ensuring all connections are secure to prevent leaks. If you are not comfortable with this level of work, it is best to entrust the job to a qualified mechanic.

Key Installation Steps (General):

• Ensure the vehicle is properly supported on jack stands.
• Safely drain the transmission fluid.
• Carefully disconnect the old lines, noting how they are routed.
• Clean the connection points on the transmission and cooler.
• Install the new lines, ensuring a tight but not over-tightened fit at the connections. Use appropriate thread sealant if recommended.
• Refill the transmission with the correct type and amount of transmission fluid.
• Start the engine and check for leaks while running through the gears.
• Top up the transmission fluid to the correct level as per the service manual.

Regularly inspecting your Saab 9-5's undercarriage for any signs of fluid leaks or damage to the oil cooler lines can help prevent catastrophic failures. Addressing minor leaks or wear early can save significant costs and prevent major transmission repairs.

Frequently Asked Questions

Q1: Can I use universal oil cooler lines for my Saab 9-5?

While universal kits exist, it is generally recommended to use parts specifically designed for your Saab 9-5. Universal kits may require custom fittings and routing, which can be prone to leaks if not installed perfectly. OEM or reputable aftermarket direct-fit kits ensure proper fitment and performance.

Q2: How often should I check my oil cooler lines?

It's good practice to visually inspect your oil cooler lines during routine maintenance, such as oil changes. Look for any signs of cracking, wear, leaks, or physical damage. If you notice any fluid spots under your car, a prompt inspection is necessary.

Q3: What happens if the oil cooler lines leak?

A leak in the oil cooler lines will cause a loss of transmission fluid. This can lead to the transmission overheating, reduced lubrication, and increased wear on internal components. In severe cases, it can result in complete transmission failure.

Q4: Are all Saab 9-5 models equipped with transmission oil coolers?

Most automatic transmission models of the Saab 9-5 are equipped with external transmission oil coolers and, consequently, oil cooler lines. Manual transmission models typically do not have these external cooling systems.

Q5: What is the difference between engine oil cooler lines and transmission oil cooler lines?

Engine oil cooler lines circulate engine oil to a cooler, primarily to manage engine operating temperature. Transmission oil cooler lines circulate transmission fluid to prevent the transmission from overheating due to the friction and work it performs. They are distinct systems with different fluid types and operating parameters.

Maintaining your Saab 9-5 is a rewarding experience, and understanding the function and maintenance of components like the oil cooler lines is a key part of keeping this unique vehicle in excellent condition. Always prioritise correct part identification and adhere to supplier return policies to ensure a smooth and successful repair.
