S13 Brake Upgrades: Stopping Power for Your Silvia

So, you've decided to give your S13 a bit more grunt under the bonnet, or perhaps you're just looking to fill out those impressive larger alloy wheels. Whatever the motivation, the need for enhanced stopping power becomes paramount. The factory S13 braking system, while adequate for daily driving, can quickly become overwhelmed when faced with increased horsepower, spirited driving, or track day demands. Fortunately, the aftermarket and OEM parts bins offer a wealth of brake upgrade options for your Nissan Silvia, ranging from straightforward bolt-ons to more bespoke solutions. This comprehensive guide will navigate you through the best choices available, helping you make an informed decision to ensure your S13 stops as effectively as it goes.

S13 Brake Upgrades on a Tight Budget

When financial constraints are a primary concern, brake upgrades might not seem like the most obvious area for investment. However, if you've significantly boosted your S13's power output, neglecting your braking system can be a dangerous oversight. Even with a modest budget, you can achieve substantial improvements in braking performance. There are even viable 4-pot caliper options that won't require you to remortgage your house.

Refurbish & Braided Lines

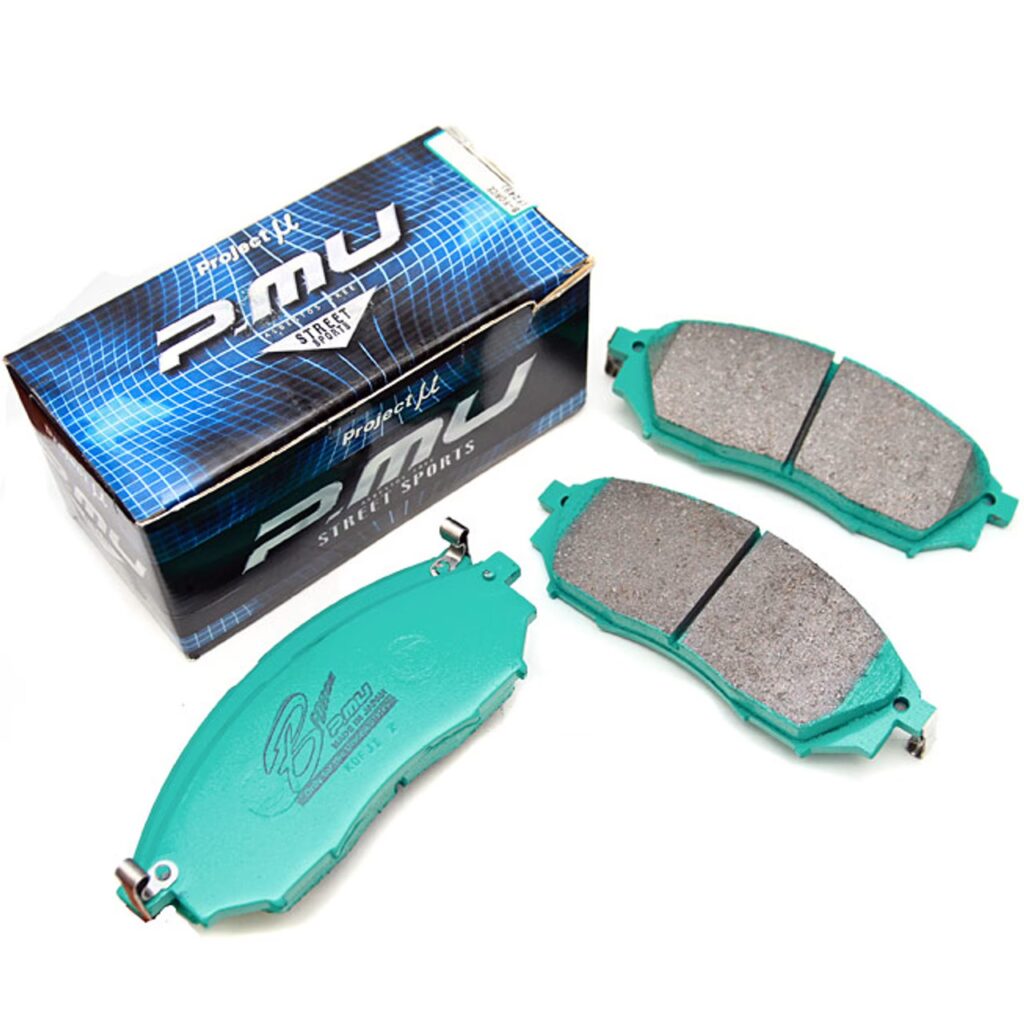

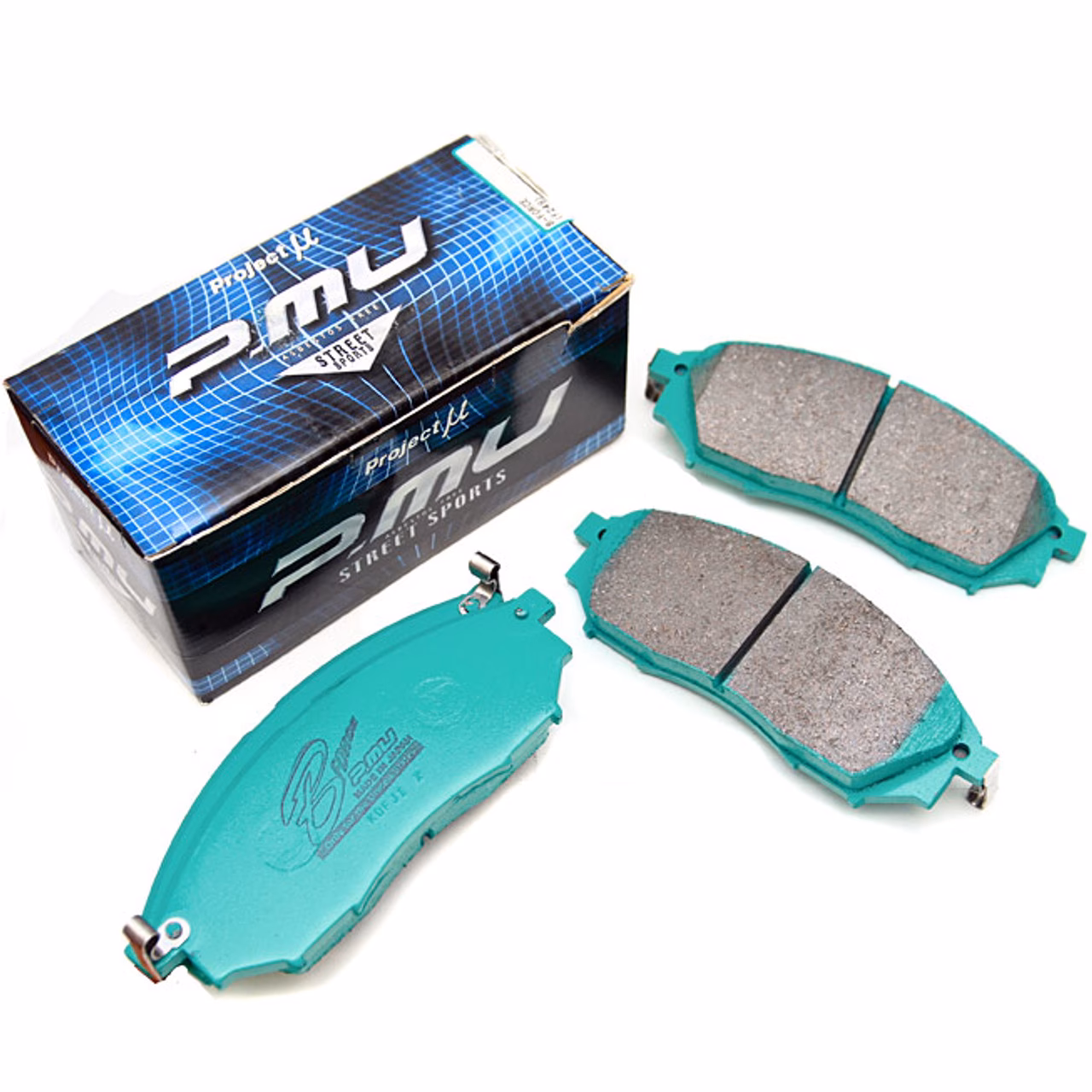

Let's begin with arguably the most budget-friendly approach, which, while not a direct 'upgrade' in terms of size or piston count, offers a surprising improvement in feel and performance. This involves a thorough refurbishment of your existing brake components. Start by acquiring a new set of pistons, seals, fresh rotors, performance-oriented brake pads, and a complete flush with high-quality brake fluid. You'll be astonished by how much better your brakes function once everything is refreshed and operating within optimal parameters. The old, worn seals and tired fluid can significantly degrade pedal feel and overall effectiveness.

To further enhance this basic overhaul, consider upgrading to a set of braided brake lines. Standard rubber brake lines can expand under hydraulic pressure, especially during hard braking, leading to a 'spongy' pedal feel and a loss of pressure. Braided lines, constructed with a reinforced stainless steel mesh, virtually eliminate this expansion, providing a firmer, more consistent pedal feel and improved modulation. This entire process, including parts and fluid, can often be completed for under £200. Many enthusiasts overlook this fundamental step, rushing straight to larger brake setups, but rebuilding your original brakes is a highly worthwhile investment, particularly if your S13 is primarily used for road driving and occasional light track use.

Popular OEM Caliper Swaps

If a simple refurbishment isn't quite cutting it, or you're seeking a more significant leap in performance, turning to other Nissan OEM parts is a popular and often cost-effective solution. Nissan's parts bin is a treasure trove for S13 owners, offering readily available and compatible larger calipers.

S14 / S15 / Z32 / Skyline Calipers

The Nissan S14, S15, 300ZX (Z32), and R32 Skyline models share a remarkably similar 4-pot brake caliper design. These are generally 4-pot calipers designed for 5-stud hubs and 280mm brake rotors. The primary difference between them lies in their construction: some are cast iron, while others are alloy calipers. The alloy versions are notably lighter, saving around 1.2kg per caliper. Reducing unsprung mass has a pretty drastic positive effect on handling dynamics, making the lighter alloy calipers the superior choice if you can source them. A second-hand pair of these calipers can typically be acquired for £300 to £500.

These OEM brake upgrades are incredibly straightforward, largely being a direct fit bolt-on affair for S13s that have already converted to 5-stud hubs. This 5-stud conversion simplifies rotor sourcing, as all rotors designed for these calipers are 5-stud only. However, if you wish to retain your 4-stud hubs, there are three main options:

1. Japanese 180SX Rotors: Certain Japanese 180SX models equipped with the SR20DET engine came with 280mm rotors that fit these calipers. However, they are 8mm thinner than the standard rotors intended for these 4-pot calipers. While the caliper pistons can compensate for this difference, it's not ideal for optimal performance.
2. Redrilled 5-stud Rotors: You can have a pair of standard 5-stud rotors redrilled to a 4-stud pattern by a competent machine shop. This is a common practice, relatively easy for them to perform, but might not be everyone's preferred route due to potential balance issues if not done professionally.
3. P2M 4-stud Rotors: A company called P2M produces purpose-made 4-stud brake rotors in the correct dimensions for these caliper swaps. This offers a direct fit solution without the need for modifications or compromises. Simply search for 'P2M S13 rotors' to find them.

R32 GTR / R33 / R34 GTR Calipers

For those seeking even larger OEM options, the R32 GTR, R33, R33 GTR, and R34 GTR calipers represent another bolt-on upgrade path. These calipers are slightly larger than the S14/Z32 units and are designed for 296mm rotors instead of 280mm. While still considered relatively affordable compared to high-end aftermarket kits, there's a significant price jump for the R33 GTR and R34 GTR calipers. These particular models utilise genuine Brembo calipers rather than the Sumitomo units found on the others, and consequently command a premium price. Given that a used set of R33/R34 GTR Brembos can easily exceed £1,500, many consider them a less sensible upgrade when compared to other options offering similar performance for considerably less outlay.

Cost-Effective Big Brake Options

The terms 'cheap' and 'big brakes' rarely coexist, but there are some genuinely surprising options for achieving significant braking performance without the exorbitant price tag usually associated with large caliper kits. This often involves adapting calipers from other performance vehicles.

Cadillac CTS-V Calipers (6-Pot & 4-Pot)

One of the most remarkable value propositions in the big brake world comes from an unexpected source: the Cadillac CTS-V. You can purchase brand new 6-pot Brembo calipers from a Cadillac CTS-V for under £600. Naturally, these are not a direct bolt-on for your S13, but the adaptation process is surprisingly straightforward thanks to specialist companies. Firms like CTSV Brakeswaps produce specific mounting brackets for this conversion, typically costing around £150. To complete the setup, you'll also need 370Z track rotors, which are readily available and appropriately sized.

The only modification required on your S13 is to drill out your hubs slightly to accommodate the larger bolts for the mounting bracket. All in all, if you purchase all components brand new, this powerful 6-pot setup could cost you around £1,000. This figure can be significantly reduced if you manage to source a good second-hand set of CTS-V calipers, which are often found on auction sites or specialist forums.

Interestingly, CTSV Brakeswaps also produces brackets to fit the 4-pot CTS-V calipers. For the lightweight S13 chassis, the 6-pot setup can be considered hugely oversized for anything but extreme track use. The 4-pot CTS-V Brembos are arguably a more appropriate and balanced brake option, offering amazing performance at an even better value. A brand new set of these 4-pot calipers can be had for less than £350. Opting for the 4-pot route, the entire setup, purchased new, might only set you back around £650, making it an incredibly attractive proposition for those seeking genuine Brembo performance on a budget. Again, scoring second-hand calipers will drop this price even further.

High-End, Brand Name Big Brake Kits

At the pinnacle of S13 brake upgrades lie the high-end, dedicated big brake kits from renowned performance manufacturers. Think of brands such as Endless, StopTech, Wilwood, AP Racing, and Alcon. These kits are meticulously engineered with competition in mind, meaning they are often super lightweight, designed for easy servicing, and typically come with superior 2-piece rotors. If ultimate performance is your primary objective and budget is not a significant constraint, these are the calipers for you. They not only look phenomenal but perform even better, providing exceptional stopping power, fade resistance, and modulation.

When you invest in a complete kit from one of these manufacturers, it will almost always include everything necessary for installation: the calipers, specific mounting brackets, high-performance rotors (often 2-piece floating designs for better heat management), compatible pads, braided lines, and all necessary hardware. These premium big brake kits typically range in price from £1,000 to over £3,500. For some of these high-end calipers, there's also the option to retain your 4-stud setup if that's a preference, though 5-stud is generally more common for such serious upgrades.

The main downsides to these top-tier calipers are their considerable cost and often their sheer size. To accommodate such large calipers and rotors, you'll generally need larger wheels – 17 inches as a minimum, and often 18 inches, to ensure adequate clearance.

Beyond Calipers: Other Considerations

While upgrading your brake calipers is a significant step, it's crucial to understand that they are just one component of a holistic braking system. To truly maximise your S13's stopping performance and maintain a balanced feel, several other factors must be taken into account.

Master Cylinder Upgrade

As you increase the size and piston count of your brake calipers, you should strongly consider upgrading your brake master cylinder. The master cylinder dictates the volume of fluid pushed per unit of pedal travel. A stock S13 master cylinder, designed for smaller, single-pot calipers, may struggle to displace enough fluid for larger multi-pot calipers. This can result in a 'long' or 'spongy' pedal, or conversely, an 'on/off' switch feeling with very little modulation or fine control. Upgrading to a Z32 master cylinder is a widely recommended and popular modification when installing larger calipers. It provides a better fluid volume-to-pedal travel ratio, resulting in a firmer, more progressive, and controllable brake pedal feel.

Brake Bias

Another critical aspect to consider is brake bias. This refers to the proportion of braking force distributed between the front and rear axles. Ideally, you want a slight front bias, as the weight transfer during braking means the front tyres do most of the work. However, if your front calipers are massively oversized compared to the rears, or if your master cylinder upgrade isn't properly matched, you can end up with too much front bias. This can lead to premature front wheel lock-up, reduced braking efficiency, and an unstable car under hard braking. Achieving the ideal brake bias often involves a bit of trial and error, and different drivers will have personal preferences. Some aftermarket master cylinders offer adjustable bias, or you can use a brake bias valve for fine-tuning.

Tyres: The Ultimate Upgrade

Before signing off, here's a crucial piece of wisdom: the absolute biggest impact you can make on your S13's braking performance isn't a fancy caliper or rotor, but rather the quality tyres you choose. Even if you equip your car with the most expensive, high-performance brake calipers available, they simply won't live up to their potential without a set of high-grip, quality tyres. Your brakes can only slow your car down as effectively as your tyres can grip the road. Investing in good performance tyres is often the single most impactful upgrade for overall vehicle dynamics, including braking, acceleration, and cornering. Always prioritise good rubber!

Comparative Table of S13 Brake Upgrade Options

Frequently Asked Questions About S13 Brake Upgrades

Do I need to upgrade my master cylinder when upgrading my S13 brakes?

Yes, it's highly recommended, especially when moving to larger multi-piston calipers like S14/Z32 or aftermarket kits. The stock S13 master cylinder may not displace enough fluid, leading to a 'long' or 'spongy' pedal. A Z32 master cylinder is a popular and effective upgrade that provides a firmer, more consistent pedal feel and better modulation.

Can I keep my 4-stud hubs with bigger brake upgrades?

Yes, for some upgrades. While many OEM 4-pot swaps (like S14/Z32) are designed for 5-stud, there are options for 4-stud. These include using specific 180SX rotors, having 5-stud rotors redrilled, or purchasing purpose-made 4-stud rotors from companies like P2M. High-end aftermarket kits also often offer 4-stud fitments.

What size wheels do I need for big brake kits on an S13?

For most significant big brake kits, you'll typically need a minimum of 17-inch wheels. Many of the larger kits, especially those with very large rotors (e.g., 355mm+), will require 18-inch wheels to ensure adequate caliper and barrel clearance. Always check the manufacturer's specifications for wheel fitment before purchasing.

How much difference do braided brake lines really make?

Braided brake lines make a noticeable difference in pedal feel. They prevent the expansion that occurs in standard rubber lines under pressure, which eliminates the 'spongy' feeling and provides a much firmer, more consistent, and responsive brake pedal. This improved feedback allows for better modulation and control, especially during hard braking.

Are R33/R34 GTR Brembo calipers worth the high price for an S13?

While they are undoubtedly excellent calipers, for many S13 owners, the high price tag (often £1,500+ for used sets) makes them a less cost-effective choice compared to other options. Similar or even superior performance can often be achieved with the more affordable CTS-V Brembo swaps or other aftermarket kits for a similar or lesser investment. They are more suited to a purist GTR build than a value-driven S13 upgrade.

What's the single most important upgrade for braking performance on an S13?

Without a doubt, the single most important upgrade for overall braking performance is investing in high-quality, high-grip performance tyres. No matter how powerful your braking system is, it can only perform as well as your tyres can transfer that stopping force to the road. Good tyres will dramatically improve braking distance, feel, and overall vehicle control.

Upgrading the brakes on your S13 is a crucial step in enhancing its overall performance and, more importantly, its safety. Whether you opt for a simple refurbishment, a cost-effective OEM swap, or a full-blown big brake kit, understanding the options and their implications will help you make the best choice for your driving style and budget. Remember to always consider the entire braking system, from fluid to master cylinder and, crucially, your tyres, to achieve a balanced and confidence-inspiring setup. Happy stopping!
