Ryobi Repairs: Clutch Drum & Parts Sourcing Guide

Owning Ryobi tools brings convenience and efficiency to your home and garden tasks. However, even the most reliable equipment eventually requires maintenance or a repair. The good news is that tackling these fixes yourself can be incredibly rewarding, saving you time and money. This guide will walk you through the essential steps of sourcing the correct repair parts for your Ryobi equipment and then dive deep into a common repair: replacing the clutch drum on a Ryobi string trimmer. Prepare to become your own master mechanic and keep your tools running smoothly for years to come.

Finding the Right Ryobi Repair Parts

The first and most crucial step in any successful DIY repair is acquiring the correct replacement parts. Using genuine, high-quality components ensures compatibility, performance, and longevity. Here's how to navigate the process effectively:

Locating Your Ryobi Model and Serial Numbers

Every piece of Ryobi equipment is manufactured with a unique identifier: a factory model number and serial number. These are your golden tickets to finding the exact parts you need. You'll typically find this information on a sticker-like label or a metallic tag securely attached to the unit. These labels are strategically placed away from moving parts, often near the handle, under the seat (for larger equipment), or on the side of the unit casing. Before you start searching for parts, take a moment to locate this tag. It's an excellent idea to take a clear photograph of it with your phone. This picture will be invaluable for future repair parts needs, saving you the hassle of hunting for the tag every time something needs attention.

Searching for OEM Ryobi Parts

Once you have your model number, the best way to ensure you're getting compatible and reliable components is to search for OEM Ryobi parts. OEM stands for Original Equipment Manufacturer, meaning these are the exact parts made by Ryobi or its authorised suppliers, designed to fit your specific model perfectly. Websites like PartsTree (as mentioned in the original information) are excellent resources. They allow you to search directly using your Ryobi model number and often provide detailed exploded diagrams of your equipment. These diagrams are incredibly helpful, as they visually represent all the components of your tool, allowing you to pinpoint the exact part you need. This visual aid minimises the risk of ordering the wrong part and ensures a smooth repair process.

While aftermarket parts might seem like a cheaper alternative, they can sometimes lead to fitment issues, reduced performance, or even premature failure. For critical components, investing in OEM parts is often the more cost-effective choice in the long run. Always double-check part numbers against the diagrams to confirm accuracy before making a purchase.

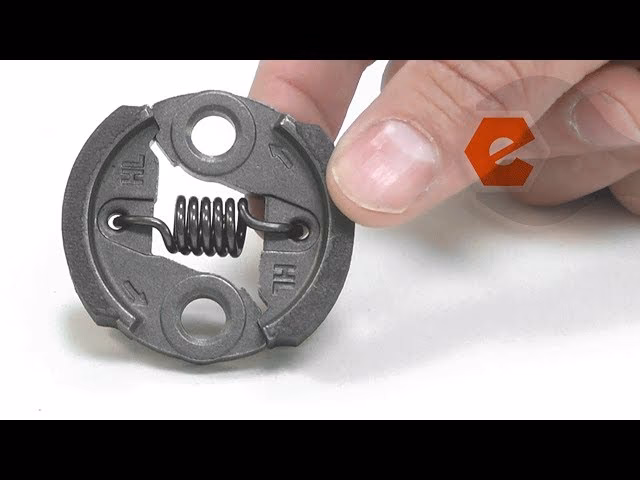

Understanding the Ryobi String Trimmer Clutch Drum

If your string trimmer is acting up, particularly if the head isn't spinning or spins inconsistently, the clutch drum might be the culprit. This component plays a vital role in the trimmer's operation, working in unison with the clutch assembly. Together, they enable the engine to idle without constantly rotating the trimmer head. When you apply throttle, the clutch assembly expands centrifugally, engaging with the inside of the clutch drum. This engagement transfers power from the engine to the trimmer head, causing it to spin and cut through weeds and grass.

Common Clutch Drum Issues and Symptoms

Like any mechanical part, the clutch drum is subject to wear and tear. Two common issues plague this component:

• Spindle Erosion: The spindle, where the upper drive shaft connects to the clutch drum assembly, can erode over time. The square corners of the spindle, designed to accommodate the square drive shaft, can become rounded. When this happens, the drive shaft loses its secure connection, leading to the trimmer head not spinning or spinning intermittently, even when the engine is revving.
• Inner Drum Wear: The inner surface of the clutch drum, where the clutch shoes make contact, can also wear down. This wear reduces the friction needed for proper engagement, leading to slippage. Symptoms include the trimmer head spinning weakly, inconsistently, or not at all, despite the engine running at full throttle. You might also hear unusual noises, such as grinding or squealing, as the clutch struggles to engage.

Addressing these issues promptly ensures your trimmer operates efficiently and safely. Now, let's get into the step-by-step process of replacing this crucial component.

Tools You'll Need for Clutch Drum Replacement

Before you begin, gather the following basic tools. Having everything at hand will make the process much smoother:

• Phillips head screwdriver
• Spark plug wrench or socket
• Small pliers (optional, for fuel lines)
• Old starter rope or similar soft rope (for piston binding)
• New Ryobi clutch drum (OEM recommended)

Step-by-Step Guide: Removing and Installing the Clutch Drum

Safety First: Always ensure your Ryobi string trimmer is turned off, cool, and the spark plug boot is disconnected before attempting any repairs. This prevents accidental starting and potential injury. Work in a well-ventilated area.

Removing the Clutch Drum

1. Remove the Rear Cover

Begin by locating the rear cover of the engine. This protective casing is typically held in place by four screws. Using your Phillips head screwdriver, carefully remove these four screws. Once the screws are out, gently lift and remove the rear cover from the engine. Set it aside in a safe place, ensuring you keep track of the screws.

2. Remove the Carburettor

This step requires a bit more care. First, it's highly recommended to drain any excess fuel from the fuel tank. This prevents spills and makes handling the fuel lines safer. Locate the two screws that secure the carburettor assembly to the engine. Remove these screws. Next, carefully detach the choke plate and choke assembly from the carburettor. You'll then need to disconnect the throttle cable; this is usually achieved with a simple lift-and-twist motion to free it from its linkage. Finally, disconnect the two fuel lines from the carburettor. They should pull away relatively easily by hand, but if they are stubborn, small pliers can be used gently to assist. Once all connections are free, remove the carburettor from the engine and place it aside, being mindful of any gaskets.

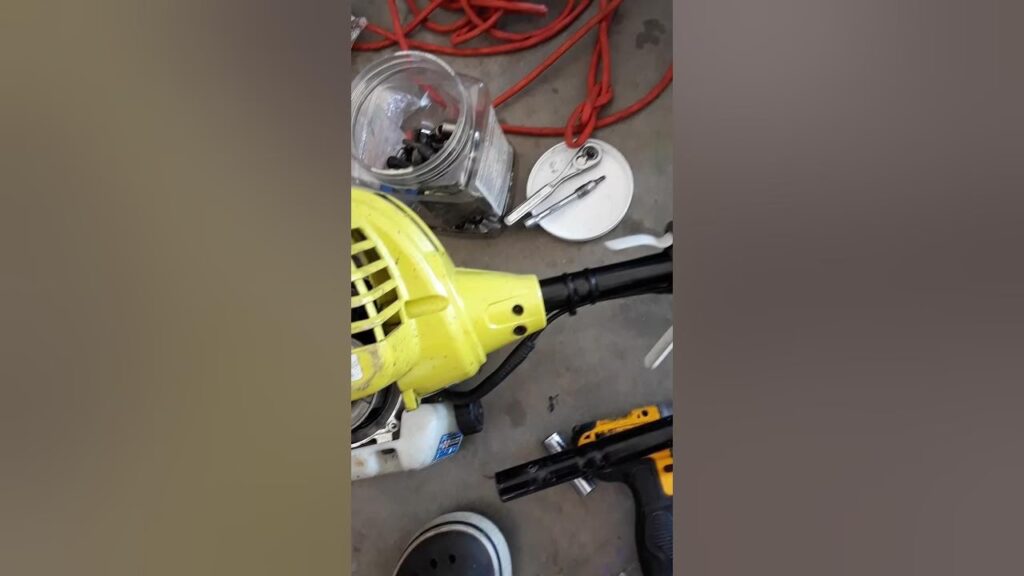

3. Disconnect the Clutch Housing and Upper Shaft from the Engine

The clutch housing encases the clutch and clutch drum assembly. You'll find four screws securing this housing to the engine. Remove these four screws. With the screws gone, you can now carefully separate the entire clutch housing and upper shaft assembly from the engine. As you do this, ensure the throttle cable slides freely from the opening in the engine housing. This separation gives you access to the internal components.

4. Bind the Piston

This critical step prevents the engine's piston from moving, which is essential for safely loosening the clutch drum. First, disconnect the spark plug boot from the spark plug. Then, use your spark plug wrench or socket to loosen and remove the spark plug from the engine cylinder. Once the spark plug is out, take the end of an old starter rope (or any similar soft, non-abrasive rope) and gently feed it into the engine cylinder through the spark plug hole. Continue feeding the rope until you feel resistance, indicating that the piston is effectively unable to move. This binding action will allow you to apply torque to the clutch drum without the engine rotating.

5. Remove the Clutch Drum

With the piston bound, you can now remove the clutch drum. Locate the internal screw on the clutch drum itself. Using your Phillips head screwdriver, loosen this screw. It's not necessary to remove the screw entirely; simply loosen it enough until the clutch drum disengages from the spindle. Once disengaged, you can carefully slide the clutch drum off the spindle. Inspect the old clutch drum for wear on the spindle area and the inner surface, confirming the need for replacement.

Installing the New Clutch Drum

6. Install the New Clutch Drum

Begin by taking your new clutch drum. First, install the small spacer washer onto the spindle. This washer ensures proper spacing and function. Then, carefully slide the new clutch drum onto the clutch, aligning it correctly with the spindle. Once in place, secure the new clutch drum to the spindle using the internal screw you previously loosened. Tighten this screw firmly but do not overtighten, as this could strip the threads or damage the drum.

Reassembling the Unit

7. Reinstall the Spark Plug

Now that the clutch drum is installed, you can remove the piston binding. Gently pull the starter rope out of the cylinder. Once clear, install the spark plug back into the cylinder. Use your spark plug wrench or socket to secure the spark plug firmly. Finally, replace the spark plug boot, ensuring it makes a snug connection.

8. Reconnect the Clutch Housing and Upper Shaft to the Engine

Carefully thread the throttle cable back through the engine housing and through the designated opening on the carburettor mounting assembly. Then, align the upper shaft and clutch drum housing with the engine. Ensure all components fit together correctly. Secure the upper shaft and clutch drum housing to the engine using the four screws you removed earlier. Tighten them evenly to ensure a secure fit.

9. Reinstall the Carburettor

First, ensure the carburettor gasket is properly seated. If damaged, replace it with a new one. Reinstall the throttle cable onto the throttle linkage of the carburettor. Then, reconnect the incoming fuel line to the lower carburettor inlet and the primer fuel line to the upper carburettor inlet. Install the carburettor mounting screws onto the choke plate and lever. Carefully secure the carburettor (and choke plate) to the engine with the two screws. Pay close attention to the choke lever and the wavy washer; they must be properly aligned before tightening the upper screw to ensure smooth choke operation.

10. Reinstall the Rear Cover

Finally, place the rear cover back onto the engine. Align it correctly and secure it in place with the four screws. Tighten these screws evenly until the cover is snug.

Troubleshooting After Clutch Drum Replacement

After reassembly, if your trimmer still isn't performing as expected, consider these points:

• Trimmer Head Not Spinning: Double-check the connection between the drive shaft and the clutch drum. Ensure the internal screw is tight and the square drive shaft is fully engaged.
• Engine Not Starting: Reconfirm all fuel lines are correctly attached and not kinked. Ensure the spark plug is properly tightened and the boot is secure.
• Unusual Noises: Check for any loose screws or components. Ensure the clutch drum is seated correctly and not rubbing against other parts.

Preventative Maintenance for Your Ryobi Trimmer

Preventative maintenance is key to extending the life of your Ryobi tools. Here are some tips:

• Clean Regularly: After each use, clean the trimmer head and housing, removing grass and debris that can build up and cause imbalances or block cooling vents.
• Inspect the Clutch Drum: Periodically check the clutch drum and clutch shoes for signs of wear. Early detection can prevent more severe damage.
• Use Fresh Fuel: Old or stale fuel can cause engine problems. Use fresh, correctly mixed fuel for 2-stroke engines.
• Check Spark Plug: Inspect and clean or replace the spark plug annually for optimal ignition.
• Store Properly: When storing for extended periods, drain the fuel tank or add a fuel stabiliser to prevent carburettor issues.

OEM vs. Aftermarket Parts: A Comparison

When it comes to sourcing replacement parts for your Ryobi tools, you'll often encounter two main categories: OEM (Original Equipment Manufacturer) and aftermarket parts. Understanding the differences is crucial for making an informed decision that balances cost, quality, and reliability.

For crucial components like the clutch drum, investing in an OEM part often saves you from future headaches and ensures your Ryobi equipment operates as intended. While aftermarket options can be tempting due to lower prices, the potential for compatibility issues or premature failure can lead to greater costs and frustration in the long run.

Frequently Asked Questions About Ryobi Trimmer Repairs

Q: Why is my Ryobi trimmer head not spinning, even though the engine is running?

A: This is a classic symptom of a worn or faulty clutch drum or clutch assembly. When the engine revs, the clutch shoes should expand and engage with the clutch drum, transferring power to the trimmer head. If the clutch drum's inner surface is worn, or the spindle is rounded, the engagement won't happen effectively, or the drive shaft won't transmit power. Follow the steps in this guide to inspect and potentially replace the clutch drum.

Q: How often should I replace my Ryobi trimmer's clutch drum?

A: There's no fixed schedule, as it depends heavily on usage and maintenance. A clutch drum typically lasts for many years under normal conditions. You should consider replacement when you notice the symptoms described above: the trimmer head not spinning or spinning inconsistently, or if you hear grinding noises during operation. Regular inspection during routine maintenance can help you catch wear early.

Q: Can I use an aftermarket clutch drum for my Ryobi trimmer?

A: While aftermarket clutch drums are available and often cheaper, it's generally recommended to use OEM Ryobi parts, especially for critical components like the clutch drum. OEM parts are guaranteed to fit perfectly and meet the manufacturer's quality standards, ensuring optimal performance and longevity. Aftermarket parts can sometimes have fitment issues or be made from lower-quality materials, leading to premature failure.

Q: Is it safe to repair my Ryobi trimmer myself?

A: Yes, many Ryobi trimmer repairs, including clutch drum replacement, are well within the capabilities of a competent DIY enthusiast. However, safety is paramount. Always ensure the tool is turned off, cooled down, and the spark plug boot is disconnected to prevent accidental starting. Wear appropriate safety gear, such as gloves and eye protection. If you're ever unsure about a step, it's best to consult a professional.

Q: What should I do if my Ryobi trimmer is still not working after replacing the clutch drum?

A: If the issue persists, carefully re-trace your steps, ensuring all connections are secure and parts are correctly installed. Double-check that the drive shaft is properly seated in the clutch drum's spindle. If the problem continues, the issue might lie with another component, such as the clutch assembly itself, the drive shaft, or even the engine. In such cases, further diagnosis or professional assistance might be required.

Conclusion

You don't have to leverage your savings to level your lawns. As you've just learned, repairing your own Ryobi equipment is entirely achievable when you follow clear, step-by-step guides and ensure you're using the correct parts. Not only have you restored your trimmer's functionality at a fraction of the cost of replacement, but you've also gained valuable experience that will serve you well for future repairs. Empower yourself to maintain your tools and enjoy the satisfaction of a job well done. Happy trimming!
